Grove Crane RT518C 69859 Parts Manual 2021

Description

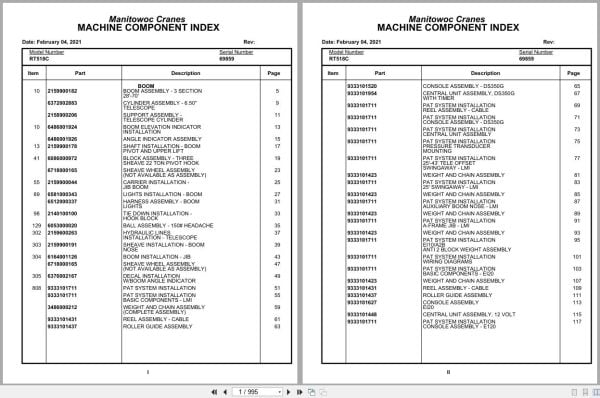

Contents:
Boom Assembly – 3 Section28′-70′
Cylinder Assembly – 6.50”Telescope
Support Assembly -Telescope Cylinder
Boom Elevation Indicator Installation
Angle Indicator Assembly
Shaft Installation – Boom Pivot And Upper Lift
Block Assembly – Three Sheave 22 Ton Pivot Hook
Sheave Wheel Assembly (Not Available As Assembly )
Carrier Installation -Jib Boom
Lights Installation – Boom
Harness Assembly – Boom Lights
Tie Down Installation -Hook Block
Ball Assembly – 150# Headache
Hydraulic Lines Installation – Telescope
Sheave Installation – Boom Nose
Boom Installation – Jib
Decal Installation w/Boom Angle Indicator
Pat System Installation
Pat System Installation basic Components – Lmi
Weight And Chain Assembly (Complete Assembly )
Reel Assembly – Cable
Roller Guide Assembly

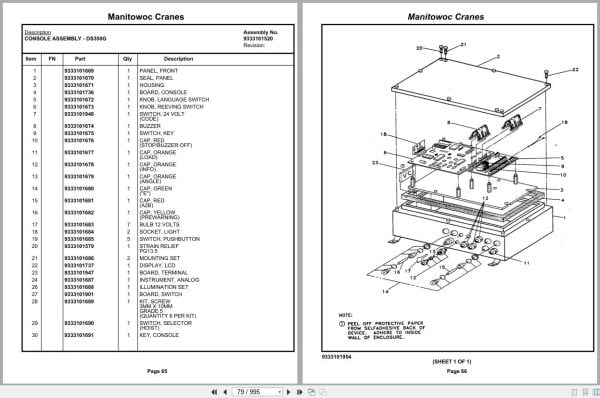

Console Assembly – Ds350g
Central Unit Assembly , Ds350gwith Timer
Pat System Installation reel Assembly – Cable
Pat System Installation console Assembly – Ds350g
Pat System Installation central Unit Assembly
Pat System Installation pressure Transducer
Pat System Installation 25′-43′ Tele Offset
Weight And Chain Assembly
Pat System Installation 25′ Swing Away – Lmi
Pat System Installation auxiliary Boom Nose – Lmi
Pat System Installation a-Frame Jib – Lmi
Pat System Installation ei10/A2b
Pat System Installation wiring Diagrams
Pat System Installation basic Components – Ei20
Console Assembly ei20
Central Unit Assembly , 12 Volt
Pat System Installation console Assembly – E120
Pat System Installation 25′ Swing Away – Ei20
Pat System Installation auxiliary Boom Nose –
Pat System Installation a-Frame Jib
Pat System Installation basic Components – Ei10
Console Assembly ei10
Pat System Installation console Assembly – E110
Pat System Installation 25′ Swing Away – Ei10
Pat System Installation basic Components – A2b
Console Assembly anti 2 Block
Pat System Installation console Assembly – A2b
Counterweight Installation
Cylinder Installation – Lift
Cylinder Assembly – Lift
Main Hoist Installation -Ho15d-16
Hoist Assembly – Low Profile
Hoist Assembly -Ho15d-16g
Valve Assembly – Motor Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hoist Control
Cable Follower And Idler Drum Installation
Auxiliary Hoist Installation – Ho15d-16
Hoist Assembly – High Profile
Rotation Indicator Installation
Sensor Assembly -Rotation Indicator
Valve Installation – Flow Divider
Valve Assembly – Flow Divider
Bearing Bolt Installation
Lock Installation – Swing
Cable Assy, Swing Lock
Cable Follower Installation
Swivel Installation -Electric, Air And Hydraulic
Swivel Assembly -Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Cooler Installation – Oil
Fan Assembly
Mounting Kit Installation – Diesel Tank
Guard Installation -Pinion
Switch Installation -Remote Cranking Pump
Hydraulic Lines Installation -Supply, Pressure And Return
Valve Assembly – Residual Check
Idler And Cable Follower Installation
Hydraulic Lines Installation -Telescope
Hydraulic Lines Installation -Swing
Hydraulic Lines Installation -Main And Auxiliary Hoist
Hydraulic Lines Installation -Lift
Hydraulic Lines Installation -Test Panel
Valve Installation – Control
Valve Assembly – 5 Section
Cartridge Assembly
Valve Assembly – 2 Section Control
Valve Assembly – Pressure Reducing
Valve Assembly – Transmission Shift Control
Trans Shift Bracket
Valve Assembly – Solenoid
Lock Pin Installation
Turntable Drive Installation
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Hydraulic Lines Installation – Lift
Extinguisher Installation – Fire
Acoustical Installation
Electrical System Installation – Cab
Harness Assembly -Cab Rear
Control Handles Installation
Rotation Indicator Assembly
Mirror Installation – Cab
Mat Installation – Floor
Wiper Installation -Skylight
Pedal Installation -Swing Brake
Cab Heater Installation -Diesel
Heater Assembly – Diesel
Heater Assembly – Diesel Exhaust Parts
Heater Assembly – Diesel Case And Heater Exchanger
Heater Assembly – Diesel Parts
Heater Assembly – Diesel Fuel And Ignition Systems
Heater Assembly – Diesel Control Panel Parts
Heater Assembly – Diesel Circuit Board Parts
Heater Assembly – Diesel Carburetor Parts
Heater Assembly – Diesel Motor And Blower Parts
Heater Assembly – Diesel Remote Control Parts
Work Light Installation
Control Seat Installation
Valve Assembly – Control
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab(Complete Assembly )
Seat Belt Installation
Pedal Installation -Telescope
Astray Installation – Ash
Windshield Washer Installation
Cold Start Switch Installation
Tachometer Installation
Rear Cover Installation -Cab
Gauge Installation – Water Temperature
Harness Installation -Console
Harness Assy, Outrigger Cab To Board
Hydraulic Lines Installation -Front Console
Cab Installation
Window Assembly
Valve Assembly – Dual Brake
Pedal And Valve Assembly -Accelerator
Column Assembly – Steering
Steering Wheel Assembly
Valve Assembly – Steering
Ventilator Assembly (Complete Assembly )
Console Installation – Front
Control Assembly – Shift
Valve Assembly -Directional Control
Air Lines Installation -Front Console
Frame Section
Axle Installation – Front
Axle Assembly – Front
Axle Assembly – Front Differential Carrier Assembly
Axle Assembly – Front Planet Carrier Assembly
Axle Assembly – Front Brake Head Assembly
Axle Assembly – Front Parking Brake Assembly
Cylinder Assembly – Steer
Cylinder Assembly – 2 1/2″Steer
Axle Installation – Rear
Axle Assembly
Axle Assembly differential Carrier Assembly
Axle Assembly planet Carrier Assembly
Axle Assembly brake Head Assembly
Axle Assembly – Rear
Cylinder Assembly – 5″Lockout
Transmission Installation
Transmission Assembly
Valve Assembly transmission
Driveline Installation
Driveline Assembly
Engine Installation -Cummins 6bt5.9
Muffler Installation (Not Available As Assembly )
Cleaner Installation – Air(Not Available As Assembly )
Cleaner Assembly – Air
Filter Assembly – Oil
Pump Assembly – Steer
Cylinder Assembly – Throttle
Hood Installation – Engine
Door Assembly – Left Hand
Door Assembly – Right Hand
Valve Installation -Rear Axle Lockout
Valve Assembly
Fuel Tank Installation
Air Tank And Valve Installation
Valve Assembly – Check
Actuator Assembly -Air Hydraulic
Hydraulic Lines Converter And Transmission
Brake Lines Installation -Hydraulic
Mirror Installation -Frame
Battery Box Installation
Exterior Lights Installation
Hydraulic Lines Installation -Transmission Shift
Battery Installation
Hydraulic Reservoir Installation
Radiator Installation
Tool Box And Decking Installation
Parking Brake Installation
Brake Chamber Assembly
Stowage Installation -Outrigger Float
Float Assembly – Outrigger
Outrigger Valve Installation
Valve Assembly – Integrated Outrigger
Valve Assembly – 4 Stack Outrigger Solenoid
Fender Installation
Alarm Installation -Back-Up
Cover Installation – Pump
Cold Start Installation
Air Lines And Tank Installation
Air Schematic
Pintle Hook Installation
Pintle Hook
Hydraulic Lines Installation – Outrigger
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation -Rear Axle L/O
Hydraulic Schematic – Rear Steer
Hydraulic Lines Installation – Rear Steer
Tachometer Sender Installation
Tire And Wheel Assembly
Belt & Filter Cummins 6bt5.9
Electrical System Installation
Harness Assembly – Carrier
Harness Assembly – S/S
Hydraulic Lines Installation -Steer
Indicator Installation -Rear Steer
Switch Assembly – Limit
Outrigger Beam Installation
Cylinder Assembly – 4 1/2″Outrigger Jack
Cylinder Assembly -Extension Outrigger
Decal Installation -Rt500c Series
