Grove Crane RT522 48371 Parts Manual 2016

Description

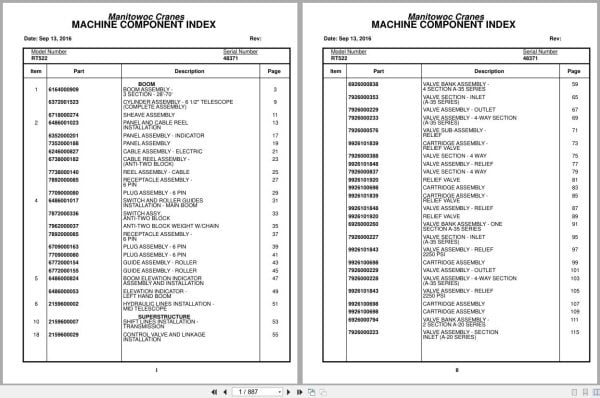

Contents:
Boom Assembly – 3 Section – 28′-70′
Cylinder Assembly – 6 1/2″ Telescope (Complete Assembly )
Sheave Assembly
Panel And Cable Reel Installation
Panel Assembly – Indicator
Panel Assembly
Cable Assembly – Electric
Cable Reel Assembly – (Anti-Two Block)
Reel Assembly – Cable
Receptacle Assembly – 6 Pin
Plug Assembly – 6 Pin
Switch And Roller Guides Installation – Main Boom
Switch Assy, Anti-Two Block
Anti-Two Block Weight W/Chain
Guide Assembly – Roller
Boom Elevation Indicator Assembly And Installation
Elevation Indicator – Left Hand Boom
Hydraulic Lines Installation – Mid Telescope
Shift Lines Installation – Transmission
Control Valve And Linkage Installation
Valve Bank Assembly – 4 Section A-35 Series
Valve Section – Inlet (A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section (A-35 Series)
Valve Sub- Assembly – Relief
Cartridge Assembly – Relief Valve
Valve Section – 4 Way
Valve Assembly – Relief
Relief Valve
Cartridge Assembly
Valve Bank Assembly – One Section A-35 Series
Valve Assembly – Relief 2250 Psi
Valve Bank Assembly – 2 Section A-20 Series
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – Section Outlet (A-20 Series)
Panel Installation – Hydraulic Test
Hydraulic Lines Installation – Valve Section Loop Line
Hoist Installation – Main And/Or Auxiliary
Hoist Assembly – Model Ho15b-16
Valve Assembly – Motor Control
Tubing Installation – Hoist
Gear Reduction Assembly
Motor Assembly – Hydraulic
Tubing Installation – Hoist (Not Available As Assembly )
Rotation Indicator Installation
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Idler Drum And Cable Follower Installation
Cable Follower
Idler Drum Assembly
Hose Clamp Installation
Hydraulic Lines Installation – Main And Auxiliary Hoist
Turntable Drive Assembly And Installation
Swing Box Assembly – Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Counterweight Installation
Cylinder Installation – 9.00” Lift
Cylinder Assembly – 9″ Lift
Swivel Installation – Electric/Air/Hydraulic
Swivel Assembly – Hydraulic
Swivel Assembly – Air/Hydraulic
Ring Assembly – Slip 36 Conductor
Lock Installation – Turntable
Valve Installation – Reducing/Relief (Swing)
Valve Assembly – Pressure And Sequence
Valve Installation – Solenoid And Flow Divider
Valve Assembly – Solenoid
Free Swing Hydraulic Schematic
Hydraulic Lines Installation – Lift
Switch Installation – Remote Cranking Pump
Hydraulic Lines Installation – Pressure Check Panel
Cab Installation
Cab Assembly
Controls Installation
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Dual Brake
Control Assembly – (W/O Return To Center Steering)
Seat Assembly
Valve Assembly – Transmission Shift Control
Fire Extinguisher Assembly
Instruments And Lights Installation
Brake Pedal Hydraulic Lines Installation
Cover Plate Installation
Acoustical Installation
Brake Valve And Air Tank Installation
Fan Installation – Cab
Fan Assembly – 12 Volt Cab
Electrical Systems Installation
Fuse And Connector Panel Assembly
Wiring Diagram
Spotlight
Heater Assembly – Diesel
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Outrigger Selector (Complete Assembly )
Dryer Assembly – Air
Air Lines Installation –
Brake Installation – Parking
Spring Brake Chamber Assembly
Engine Installation – Cat 3208
Filter Assembly – Oil
Filter Assembly – Primary Fuel
Fuel/Water Separater Assembly
Compressor Assembly – Air
Cylinder Assembly – Throttle
Pump Assembly – Steer
Fitting
Exhaust And Air Cleaner Installation
Cleaner Assembly – Air
Torque Converter Installation
Torque Converter Assembly
Electrical System Installation
Battery Installation
Radiator Installation
Quick Start Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Case Assembly
Transmission Assembly Clutch And Gear Group
Transmission Assembly Axle Disconnect Assembly
Transmission Assembly Low Clutch Assembly
Transmission Assembly Forward Clutch Assembly
Transmission Assembly Reverse And Second Shift
Transmission Assembly Control Valve Assembly
Cylinder Assembly – Air Lockout
Valve Assembly Transmission
Driveline Installation
Driveline Assembly
Transmission And Converter Lines Installation
Axle Installation – Front
Axle Assy Clark Front
Axle Assy. Housing & Hub Group
Axle Assy. Diff. Carrier Group
Axle Assy. Park Brake Group
Axle Assy. Spider Assy. Group
Axle Assy. Brake Assy. Group

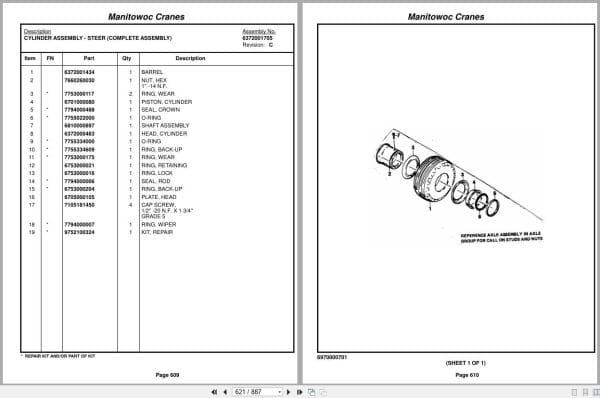

Cylinder Assembly – Steer (Complete Assembly )
Axle Installation – Rear
Cylinder Assembly -Lockout
Axle Assembly
Axle Assembly Differential And Carrier
Differential Assembly – Non-Spin
Axle Assembly Differential Assembly
Axle Assembly Brake Assembly
Axle Assembly Planet Spider Assembly
Tire And Wheel Assembly
Brake Lines Installation – Hydraulic
Lockout Installation – Axle
Valve Assembly – Selector
Valve Installation – Relief (Steer)
Valve Assembly – Relief (See Separate Parts List)
Inflation Kit Installation – Tire
Tire Inflation Kit
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout
Outrigger Beam Installation
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Mirror Installation -Rear View
Hydraulic Lines Installation – Outrigger
Hood Installation – Engine
Reservoir Installation – Hydraulic
Fuel Tank Installation
Air Dryer Installation
Air Tank And Valve Installation
Valve Assembly – Check
Actuator Assembly – Air Hydraulic
Lights Installation
Battery Box Installation
Fender Installation
Pintle Hook Installation
Pintle Hook
Supply, Pressure And Return Hydraulic Schematic
Pump And Disconnect Assembly And Installation
Disconnect Assembly – Pump
Pump Assembly
Decal Installation – Rt500 Series
