Grove Crane RT528C 79995 Parts Manual 2008

Description

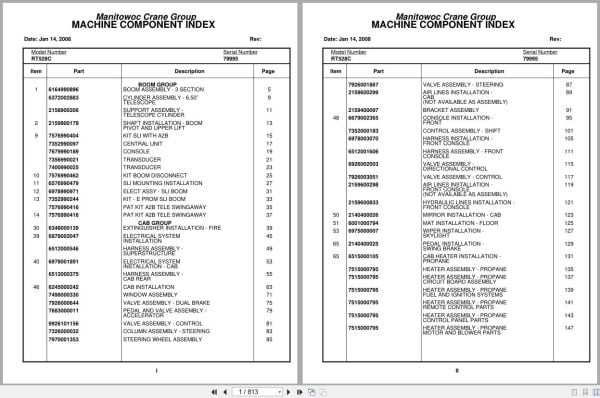

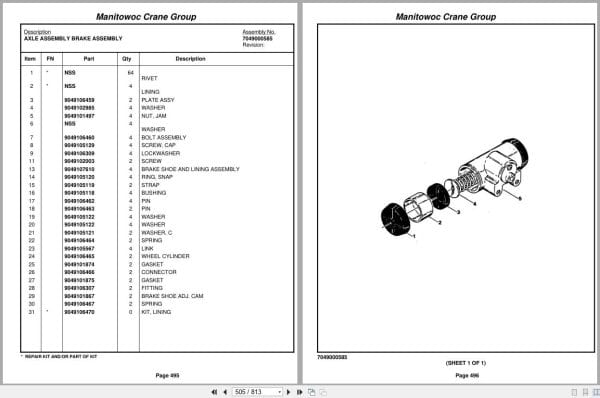

Contents:
Boom Assembly – 3 Section
Cylinder Assembly – 6.50’’ Telescope
Support Assembly – Telescope Cylinder
Shaft Installation – Boom Pivot And Upper Lift
Kit Sli With A2b
Central Unit
Console
Transducer
Kit Boom Disconnect
Sli Mounting Installation
Elect Assy – Sli Boom
Kit – E Prom Sli Boom
Pat Kit A2b Tele Swing Away
Extinguisher Installation – Fire
Electrical System Installation
Harness Assembly – Superstructure
Electrical System Installation – Cab
Harness Assembly – Cab Rear
Cab Installation
Window Assembly
Valve Assembly – Dual Brake
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Column Assembly – Steering
Steering Wheel Assembly
Valve Assembly – Steering
Air Lines Installation – Cab
Bracket Assembly
Console Installation – Front
Control Assembly – Shift
Harness Installation – Front Console
Harness Assembly – Front Console
Valve Assembly – Directional Control
Air Lines Installation – Front Console
Hydraulic Lines Installation – Front Console
Mirror Installation – Cab
Mat Installation – Floor
Wiper Installation – Skylight
Pedal Installation – Swing Brake
Cab Heater Installation – Propane
Heater Assembly – Propane
Heater Assembly – Propane Circuit Board Assembly
Heater Assembly – Propane Fuel And Ignition Systems
Heater Assembly – Propane Remote Control Parts
Heater Assembly – Propane Control Panel Parts
Heater Assembly – Propane Motor And Blower Parts
Heater Assembly – Propane Case And Exchanger Parts
Heater Assembly – Propane Regulator And Exhaust Parts
Work Light Installation
Cover Plate Installation
Mounting Kit Installation – Propane Tank
Kit, Tank Mounting
Control Seat Installation
Control Seat Assembly – Single Axis
Seat Assembly
Controller Assembly – Single Axis
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Seat Belt Installation
Astray Installation – Ash
Acoustical Installation
Windshield Washer Installation
Control Handles Installation
Rear Cover Installation – Cab
Gauge Installation – Water Temperature
Skylight Glass Installation
Control Pedal And Valve Installation – Telescope
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Lift
Valve Installation – Flow Divider
Valve Assembly – Flow Divider
Control Valve Installation
Valve Assembly – 5 Section
Valve Assembly – 2 Section Control
Valve Assembly – Pressure Reducing/Relieving
Valve Assembly – Transmission Shift Control
Trans Shift Bracket
Valve Assembly – Solenoid
Valve Assembly – 5 Station Solenoid
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Residual Check
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Test Panel
Hydraulic Lines Installation – Swing And Swing Brake
Hydraulic Schematic – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer
Hydraulic Lines Installation – Main Hoist
Main Hoist Installation – Ho15d-16
Hoist Assembly – Low Profile
Hoist Assembly – Ho15d-16g
Valve Assembly – Motor Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hoist Control
Cable Follower And Idler Drum Installation
Hoist Rot Ind Sensor.
P.A.T. Barrel Rotation Ind
Counterweight Installation
Cylinder Installation – Lift
Cylinder Assembly
Bearing Bolt Installation
Lock Pin Installation
Warning Device Installation
Drive Install – Turntable
Swing Box Assembly – Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Cooler Installation – Oil
Fan Assembly
Guard Installation – Pinion
Swivel Install-Elect,Air & Hyd
Swivel Assembly – Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Coupling Electrical Swivel – 35 Way
Engine Installation
Muffler Installation (Not Available As Assembly )
Cleaner Installation – Air (Not Available As Assembly )
Cleaner Assembly – Air
Filter Assembly – Oil
Pump Assembly – Steer
Cylinder Assembly – Throttle
Engine Harness Install (Not Available As Assembly )
Hydraulic Lines Installation – Engine
Hood Installation – Engine
Door Assembly – Left Hand
Door Assembly – Right Hand
Radiator Installation
Switch Installation – Engine Distress
Transmission Installation
Transmission Assembly
Valve Assembly Transmission
Hydraulic Lines Converter And Transmission
Hydraulic Lines Installation – Transmission Shift
Driveline Installation .
Prop Shaft
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Parts
Axle Assembly Housing Parts
Axle Assembly Wheel End Parts
Axle Assembly Brake Parts
Axle Assembly Wheel Cylinder Assembly
Cylinder Assembly – Steer
Axle Installation – Rear
Cylinder Assembly – 5″ Lockout
Axle Assembly Differential Carrier Assembly
Axle Assembly Housing Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Brake Assembly
Lug Nut And Washer Installation
Indicator Installation – Rear Steer
Parking Brake Installation
Brake Chamber Assembly
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Tire & Wheel Assy
Beam Install – Outrigger
Cylinder Assembly – 4 1/2″ Outrigger Jack
Cylinder Assembly – Extension Outrigger
Outrigger Valve Installation
Valve Assembly – Integrated Outrigger
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Check
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Tie Down Installation – Hook Block
Air Tank And Valve Installation
Actuator Assembly – Air Hydraulic
Exterior Lights Installation
Mirror Installation – Frame
Battery Box Installation
Battery Installation
Electrical System Installation – Carrier
Harness Assembly Carrier Frame
Decal Installation
Decal Installation W/Boom Angle Indicator
Fender Installation
Hydraulic Reservoir Installation
Fuel Tank Installation
Tool Box And Decking Installation
Alarm Installation – Back-Up
Cover Installation – Pump
Air Lines And Tank Installation
Air Schematic
Chassis Frame Assembly
Frame Section
Fifth Wheel Installation
Hydraulic Lines Installation – Outrigger
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation -Rear Axle L/O
Hydraulic Schematic – Rear Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Brake Lines Installation
