Grove Crane RT528C 87121 Parts Manual 2008

Description

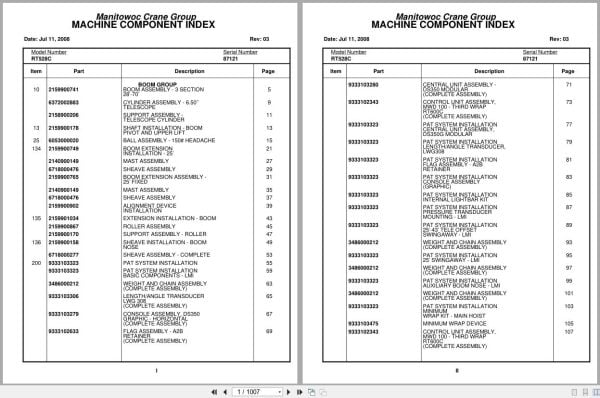

Contents:

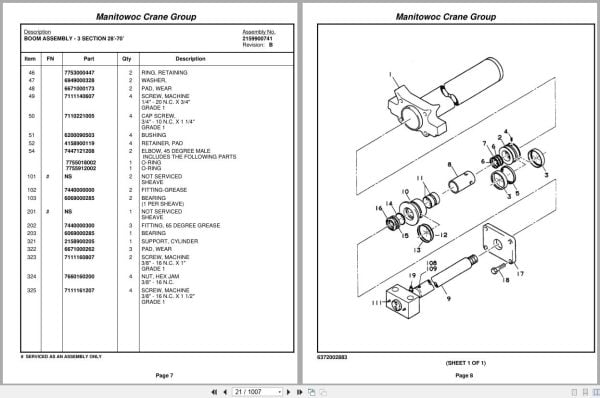

Boom Assembly – 3 Section 28’-70’
Cylinder Assembly – 6.50’’ Telescope
Support Assembly – Telescope Cylinder
Shaft Installation – Boom Pivot And Upper Lift
Ball Assembly – 150# Headache
Boom Extension Installation – 25’
Mast Assembly
Sheave Assembly
Boom Extension Assembly – 25’ Fixed
Alignment Device Installation
Extension Installation – Boom
Roller Assembly
Support Assembly – Roller
Sheave Installation – Boom Nose
Sheave Assembly – Complete
Pat System Installation
Pat System Installation Basic Components – Lmi
Weight And Chain Assembly (Complete Assembly)
Length/Angle Transducer Lwg 308
Console Assembly , Ds350 Graphic – Horizontal
Flag Assembly – A2b Retainer
Central Unit Assembly – Ds350 Modular
Control Unit Assembly , Mwd 100 – Third Wrap
Pat System Installation Central Unit Assembly ,
Pat System Installation Length/Angle Transducer,
Pat System Installation Flag Assembly – A2b
Pat System Installation Console Assembly
Pat System Installation Internal Light Bar Kit
Pat System Installation Pressure Transducer
Pat System Installation 25’-43’ Tele Offset
Pat System Installation 25’ Swing Away – Lmi
Pat System Installation Auxiliary Boom Nose – Lmi
Pat System Installation Minimum
Minimum Wrap Device
Pat System Installation Sensor, Minimum Wrap W/Notch
Pat System Installation Control Unit Assembly – Mwd100
Pat System Installation Cable Assembly – Jumper 7’
Pat System Installation Anti 2 Block Weight Assembly
Pat System Installation Decal – Lmi
Pat System Installation Wiring Diagrams
Extinguisher Installation – Fire
Electrical System Installation
Harness Assembly – Superstructure
Electrical System Installation – Cab
Harness Assembly – Cab Rear
Cab Installation
Cab Assembly
Cab Section
Door Assembly – Cab
Window Assembly
Valve Assembly – Dual Brake
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Column Assembly – Steering
Steering Wheel Assembly
Valve Assembly – Steering Control
Air Lines Installation – Cab
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Harness Installation – Front Console
Harness Assembly – Front Console
Valve Assembly – Directional Control
Air Lines Installation – Front Console
Hydraulic Lines Installation – Front Console
Handle Installation – Control
Light Installation – Flasher
Pedal Installation – Swing Brake
Cab Heater Installation – Propane
Heater Assembly – Propane
Heater Assembly – Propane Circuit Board Assembly
Heater Assembly – Propane Fuel And Ignition Systems
Heater Assembly – Propane Remote Control Parts
Heater Assembly – Propane Control Panel Parts
Heater Assembly – Propane Motor And Blower Parts
Heater Assembly – Propane Case And Exchanger Parts
Heater Assembly – Propane Regulator And Exhaust Parts
Mounting Kit Installation – Propane Tank
Kit, Tank Mounting
Cover Plate Installation
Seat Installation – Single Axis Control
Seat Assembly – Control
Controller Assembly – Single Axis
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab (Complete Assembly)
Seat Belt Installation
Mat Installation – Floor
Mirror Installation – Cab
Control Pedal And Valve Installation – Telescope
Astray Installation – Ash
Acoustical Installation
Windshield Washer Installation
Cold Start Switch Installation
Tachometer Installation
Rear Cover Installation – Cab
Gauge Installation – Water Temperature
Work Light Installation
Skylight Wiper Installation
Window Assembly – Skylight
Harness Assembly – Wiper
Valve Installation – Flow Divider
Valve Assembly – Flow Divider
Control Valve Installation
Valve Assembly – 5 Section
Valve Assembly – 2 Section Control
Valve Assembly – Pressure Reducing/Relieving
Valve Assembly – Transmission Shift Control
Trans Shift Bracket
Valve Assembly – Solenoid
Valve Assembly – 5 Station Solenoid
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Residual Check
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation
Hydraulic Lines Installation – Swing
Swing And Swing Brake Hydraulic Lines Installation –
Hydraulic Schematic – Main And Auxiliary Hoist
Hydraulic Lines Installation – Main Hoist
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Test Panel
Hydraulic Lines Installation – Steer
Hoist Installation – Main
Hoist Assembly
Hoist Assembly (15d-16g)
Valve Assembly – Motor Control
Brake Assembly
Gear Reduction Assembly
Motor Assembly – Hydraulic Vane Type
Cable Follower And Idler Drum Installation
Kicker Bar Installation
Kicker Bar Assembly
Hoist Rotation Indicator Installation
Harness Assembly – Rotation Sensor
Harness Assembly – Rotation Module
Resistor Assembly – 6 Ohms
Turntable Drive Assembly (Roteck)
Box Assembly – Swing Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Counterweight Installation
Cylinder Installation – Lift
Cylinder Assembly
Bearing Bolt Installation
Lock Pin Installation
Lock Installation – Swing
Swivel Installation – Electric, Air And Hydraulic
Swivel Assembly – Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Cooler Installation – Oil
Fan Assembly
Guard Installation – Pinion
Switch Installation – Remote Cranking Pump
Warning Device Installation
Engine Installation – (For Reference Only)
Engine Assembly – With Pump Disconnect
Converter Installation – Torque
Converter Assembly – Torque
Pump Assembly – Power Steer
Electrical Systems Installation – Engine
Harness Assembly – Engine
Hydraulic Lines Installation – Engine
Cylinder Assembly – Throttle
Pump Installation – With Disconnect
Pump Assembly – 3 Stage Tandem
Disconnect Assembly – Pump
Engine Components – 6bt5.9 Cummins
Filter Assembly – Oil
Hood Installation – Engine
Hood Assembly – Engine
Door Assembly – Left Hand
Door Assembly – Right Hand
Radiator Installation
Radiator Assembly
Cold Start Installation
Tachometer Sender Installation
Switch Installation – Engine Distress
Separater Installation
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Muffler Installation
Transmission Installation
Transmission Assembly
Valve Assembly Transmission
Driveline Installation
Driveline Assembly
Hydraulic Lines Installation – Transmission Shift
Hydraulic Lines Converter And Transmission
Axle Installation – Front
Axle Assembly – Front
Axle Assembly – Front Drive/Steer
Cylinder Assembly – 2 1/2″ Steer
Axle Installation – Rear
Axle Assembly – Rear
Axle Assembly – Rear Drive/Steer
Cylinder Assembly – 5″ Lockout
Lug Nut And Washer Installation
Indicator Installation – Rear Steer
Parking Brake Installation
Brake Chamber Assembly
Tire And Wheel Assembly
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Air Lines Installation –
Inflation Kit Installation – Tire
Tire Inflation Kit
Beam Installation – Outrigger
Beam Assembly – Outrigger
Cylinder Assembly -4 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – 2 1/2″ Outrigger Extension
Stowage Installation – Outrigger Float
Float Assembly – Outrigger
Decal Installation – Rt500c
Frame Assembly
Exterior Lights Installation
Mirror Installation – Frame
Battery Installation
Cover Installation – Box, Battery
Harness Assembly
Fender Installation
Hydraulic Reservoir Installation
Tank And Step Installation – Fuel
Tool Box And Decking Installation
Plate Assembly – Cover
Alarm Installation – Back-Up
Cover Installation – Pump
Air Dryer Installation
Dryer Assembly – 12 Volt Air
Air Tanks And Valves Installation
Tank And Valve Assembly – Air
Actuator Assembly – Air Hydraulic
Tie Down Installation – Hook Block
Hydraulic Brake Lines Installation
Outrigger Valve Installation
Valve Assembly – Integrated Outrigger
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Check
Hydraulic Lines Installation – Outrigger
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation -Rear Axle L/O
Hydraulic Schematic – Rear Steer
Hydraulic Lines Installation – Rear Steer
