Grove Crane RT530E-2 228085 Parts Manual 2008

Description

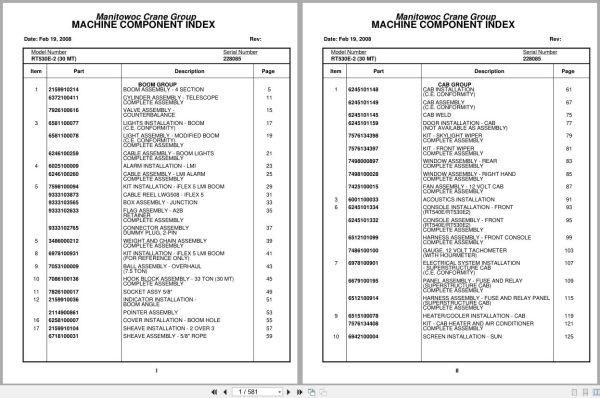

Contents:
Boom Assembly – 4 Section
Cylinder Assembly – Telescope Complete Assembly
Valve Assembly – Counterbalance
Lights Installation – Boom (C.E. Conformity)
Light Assembly – Modified Boom (C.E. Conformity)
Cable Assembly – Boom Lights Complete Assembly
Alarm Installation – Lmi
Cable Assembly – Lmi Alarm Complete Assembly
Kit Installation – Iflex 5 Lmi Boom
Cable Reel Lwg508 – Iflex 5

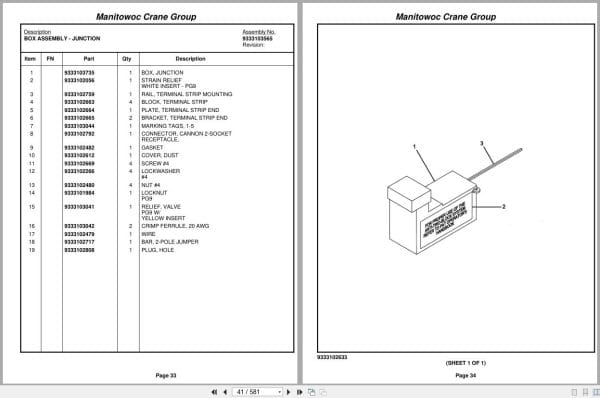

Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Weight And Chain Assembly Complete Assembly
Kit Installation – Iflex 5 Lmi Boom (For Reference Only)
Ball Assembly – Overhaul (7.5 Ton)
Hook Block Assembly – 33 Ton (30 Mt) Complete Assembly
Socket Assy 5/8″
Indicator Installation – Boom Angle
Pointer Assembly
Cover Installation – Boom Hole
Sheave Installation – 2 Over 3
Sheave Assembly – 5/8″ Rope
Cab Installation (C.E. Conformity)
Cab Assembly (C.E. Conformity)
Cab Weld
Door Installation – Cab (Not Available As Assembly)
Kit – Skylight Wiper Complete Assembly
Kit – Front Wiper Complete Assembly
Window Assembly – Rear Complete Assembly
Window Assembly – Right Hand Complete Assembly
Fan Assembly – 12 Volt Cab Complete Assembly
Acoustics Installation
Console Installation – Front (Rt540e/Rt530e2)
Console Assembly – Front (Rt540e/Rt530e2)
Harness Assembly – Front Console Complete Assembly
Gauge, 12 Volt Tachometer (With Hourmeter)
Electrical System Installation – Superstructure Cab
Panel Assembly – Fuse And Relay (Superstructure Cab)
Harness Assembly – Fuse And Relay Panel (Superstructure Cab)
Heater/Cooler Installation – Cab
Kit – Cab Heater And Air Conditioner Complete Assembly
Screen Installation – Sun
Binder Installation
Kit, Lmi S/S Iflex 5
Kit Installation – Iflex 5 Lmi Superstructure
Kit – Iflex2 Lmi Cab Complete Assembly
Electrical System Installation – Superstructure
Harness Assembly – Superstructure Complete Assembly
Cover Installation – Rear Cab
Switch And Lamp Installation – Cross Axle
Switch Installation – Boom Lights
Pedals Installation – Without Auxiliary Hoist
Valve Assembly – Brake Treadle Complete Assembly
Controls Installation – Steer And Drive
Valve Assembly – Steering Control Complete Assembly
Column Assembly – Modified Tilt Steering Complete Assembly
Column Assembly – Tilt Steering Complete Assembly
Harness Assembly – Turn Signal/Washer Complete Assembly
Harness Assembly – Shifter Complete Assembly
Indicator Installation – 3rd Wrap
Indicator Installation – Low Steer Pressure
Hydraulic Lines Installation – Cab
16mm Dia Hoisting Wire Rope –
Hoist Installation – Main (C.E. Conformity)
Hoist Assembly – Hp15c/17g With 3rd Wrap
Cover Installation – Hoist Main
Mirror Installation – Hoist
Drive Installation – Turntable And (Rotek)
Turntable Section
Motor Assembly – Swing Drive Complete Assembly
Shaft Installation – Upper & Boom Pivot
Swivel Installation – Electric, Water And Hydraulic
Swivel Assembly – Electric, Water And Hydraulic
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Ring Assembly – Slip 15 Conductor
Bolt Installation – Bearing
Cylinder Installation – Lift
Cylinder Assembly – 9″ Lift Complete Assembly
Valve Assembly – Holding Complete Assembly
Pin Installation – Turntable Lock
Cover Installation – Valve
Mirror Installation – Turntable
Lube Installation – Turntable Bearing Manual
Counterweight Installation
Light Installation – Strobe
Light Assembly – Modified Strobe Complete Assembly
Foam Installation -Valve Cover
Cooler Installation – Hydraulic Oil
Cooler Assembly – Hydraulic Oil Complete Assembly
Hood Installation – Engine
Engine Installation – Cummins Qsb6.7
Radiator Installation
Radiator Assembly (Not Available As Assembly)
Cooler Assembly – Radiator/Charge Air Complete Assembly
Tank Assembly – Surge (Not Available As Assembly)
System Installation – Exhaust
Cleaner Installation – Air
Cleaner Assembly – Air Complete Assembly
Grill Installation – Engine Hood (C.E. Conformity)
Foam Installation -Engine Hood
Axle Installation – Rear With Differential Lock
Axle Assembly – Drive/Steer With Differential Lock
Diff. Carrier Group
Housing & Hub Group
Planetary Hub Group
Steer Cylinder Group
Brake Group
Harness Assembly – Axle Differential Supplemental
Cylinder Assembly – 5″ Lockout Complete Assembly
Switch Assembly – Proximity Complete Assembly
Axle Installation – Front With Differential Lock
Tire And Wheel Installation – General 16.00 X 25
Tire And Wheel Assembly – General 16.00 X 25
Wheel Assembly – 11.25″ X 25″ Complete Assembly
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly Complete Assembly
Float Installation – Outrigger
Float Assembly – Outrigger Complete Assembly
Cover Installation – Outrigger Beam
Cover Installation – Outrigger Box
Fender & Decking Installation
Decal Installation – Rt530e2 (Nomenclature)
Lights Installation – Exterior (C.E. Conformity)
Head/Turn Signal Signal Light Assembly – Left Hand
Head/Turn Signal Signal Light Assembly – Right Hand
Harness Assembly – Front Lights C. E. Conformity
Harness Assembly – Marker Light C. E. Conformity
Harness Assembly – Rear Lights C. E. Conformity
Tie Down Installation – Hook Block
Cover Installation -Battery Box
Mirror Installation – Rear View
Step Installation
Hardware Kit – Decal
Electrical System Installation – Carrier (Rt540e/Rt530e2)
Harness Assembly – Carrier Complete Assembly
Panel Assembly – Engine Relays Complete Assembly
Harness Assembly – Engine Relay Panel Complete Assembly
Tank Installation – Hydraulic
Reservoir Assembly – Hydraulic Complete Assembly
Filter Assy. Hyd. Return
Ladder Assembly Complete Assembly
Valve Installation – Hydraulic Carrier With Differential Lock
Valve Assembly – Outrigger Control 4 Section
Valve Assembly – Park Brake Range Shift Complete Assembly
Valve Assembly – Outrigger Selector Rear Steer
Valve Assembly – Differential Lockout Complete Assembly
Valve Assembly – Differential Lockout C. E. Conformity
Tray Installation – Storage
Tank Installation – Fuel
Tank Assembly – 58 Gallon Fuel Complete Assembly
Mounting Kit – Oil Cooler
Battery Installation
Kit – Cable (Batteries) Rt535
Hydraulic Lines Installation – Carrier
