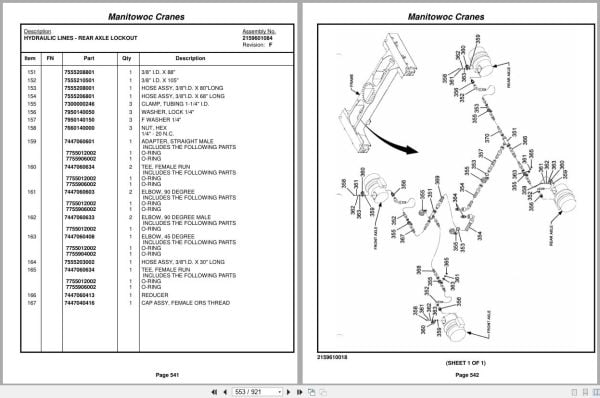

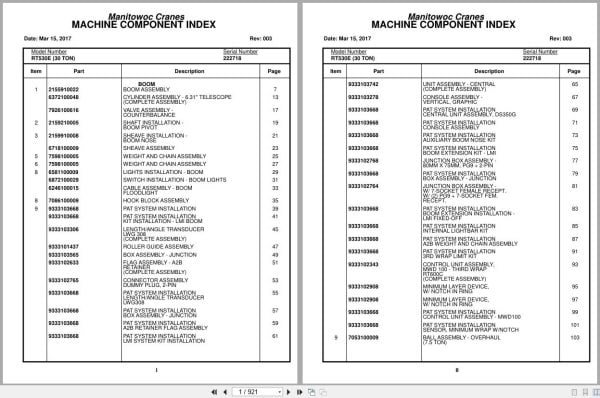

Grove Crane RT530E 222718 Parts Manual 2017

Description

Contents:
Boom Assembly
Cylinder Assembly – 6.31″ Telescope (Complete Assembly)
Valve Assembly – Counterbalance
Shaft Installation – Boom Pivot
Sheave Installation – Boom Nose
Sheave Assembly
Weight And Chain Assembly
Lights Installation – Boom
Switch Installation – Boom Lights
Cable Assembly – Boom Floodlight
Hook Block Assembly
Pat System Installation
Pat System Installation Kit Installation – Lmi Boom
Length/Angle Transducer Lwg 308
Roller Guide Assembly
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Pat System Installation Length/Angle Transducer
Pat System Installation Box Assembly – Junction
Pat System Installation A2b Retainer Flag Assembly
Pat System Installation Lmi System Kit Installation
Unit Assembly – Central (Complete Assembly)
Console Assembly – Vertical, Graphic
Pat System Installation Central Unit Assembly , Ds350g
Pat System Installation Console Assembly
Pat System Installation Auxiliary Boom Nose Kit
Pat System Installation Boom Extension Kit – Lmi
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Junction Box Assembly – W/ 7-Socket Female Recept.
Pat System Installation Boom Extension Installation –
Pat System Installation Internal Light Bar Kit
Pat System Installation A2b Weight And Chain Assembly
Pat System Installation 3rd Wrap Limit Kit
Control Unit Assembly , Mwd 100 – Third Wrap
Minimum Layer Device, W/ Notch In Ring
Pat System Installation Control Unit Assembly – Mwd100
Pat System Installation Sensor, Minimum Wrap W/Notch
Ball Assembly – Overhaul (7.5 Ton)
Boom Kit – Lmi
Kit-Lmi Auxiliary Boom Nose
Kit Installation – Lmi Boom
Lmi Aux Boom Nose Kit Install
Q01 Decal Install Supplemental
Light Bar Installation Lmi
Nose Installation – Auxiliary Boom
System Kit – Lmi
Central Unit Assembly
Indicator Installation – Boom Angle
Pointer Assembly
Lmi Installation
T/T Weld & Drive Install(Kaydon)
Turntable Section
Swing Box Assy
Motor Assembly
Swing Drive Kit
Counterweight Installation
Swivel Installation – Electric, Water And Hydraulic
Swivel Assembly – Electric, Water And Hydraulic
Swivel Assembly – 10 Port Hydraulic (Complete Assembly)
Swivel Assembly – 2 Port Water (Complete Assembly)
Ring Assembly – Slip 44 Conductor
Cont Val Install Main & Aux
Valve Assembly – Directional Control
Valve Assembly – 5 Station Lmi Lockout
Directional Control Valve
Cylinder Assembly – Hydraulic Master
Brake Booster And Master Cylinder Assembly
Cylinder Assembly – Brake Booster And Master
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Residual Check
Hydraulic Lines Installation – Lift
Bearing Bolt Installation
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Telescope
Binder Installation
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lmi
Hydraulic Lines Installation – Brake
Hoist Installation – Main And Auxiliary
Hoist Assembly
Hydraulic Lines Installation – Tele (With Auxiliary Hoist)
Hydraulic Lines Installation – Swing And Swing Brake
Indicator Installation – Hoist Rotation
Control Assembly – Central Processing Unit
Hydraulic Lines Installation – Steer
Hydraulic Lines Installation – Throttle
Mirror Installation – Hoist
Cylinder Installation – Lift
Cylinder Assembly – 9″ Lift
Cover Installation – Valve
Lube Installation – Turntable Bearing
Pump Assembly – Grease
Valve Assembly – Solenoid
Valve Assembly – Divide
Q-01 Hoist Light Install.
Q-01 Swing Alarm Install.
Q-02 Swing Hyd Lines-Rework
Lube Installation – Bearing
Harness Assy, Outrigger Cab To Board
Special Equipment Bom
Lift Cyl Replacement Install
Cylinder Assembly – 9″ Lift (Complete Assembly)
Valve Assembly – Holding (Complete Assembly)
Supplemental Hyd Lines Install
Cab Installation
Cab Assembly
Cab Section
Skylight Assembly – Sliding
Window Assembly – Rear (Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly – Treadle
Fan Assembly – 12 Volt Cab (Complete Assembly)
Seat Installation – Control With Auxiliary Hoist Control
Seat Assembly – Single Axis Control With Auxiliary Hoist Control
Controller Assembly – Single Axis
Handle, With Solenoid Assembly
Harness Assembly – Seat
Acoustics Installation
Spotlight Installation
Light Installation – Strobe
Console Installation – Front
Console Assembly – Front
Electrical System Installation (Cab)
Panel Assembly – Relay
Harness Assembly – Relay
Heater Installation
Heater Assembly – Hot Water 12 Volt
Pedal Installation – Telescope
Valve Assembly – Control
Screen Installation – Sun
Cover Installation – Rear Cab
Pedal Installation – Brake
Shifter Installation – Transmission
Rod Installation – Lock Pin
Valve Installation – Steer
Valve Assembly – Steering Control
Throttle Pedal Install-Air
Electrical System Installation
Q-02 Harness Install-Swing Alarm
Harness Assembly – Swing Alarm
Q-02 Harness Install-Hoist Light
Q-01 Harn Assy-Hoist Lt (S/S)
Frame Assembly
Beam Installation – Outrigger (Not Available As Assembly)
Beam Assembly – Outrigger (Complete Assembly)
Cylinder Assembly – 4″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – 2 1/2″ Outrigger Extend
Cylinder Assembly – 2 1/2″
Fender Installation
Engine Hood Assy & Install
Float Installation – Outrigger
Float Assembly – Outrigger (Complete Assembly)
Lights Installation – Exterior
Light Assembly – Turn Signal
Light Assembly – Stop
Tie Down Installation – Hook Block
Cover Installation – Battery
Decking Installation – Full Length
Components Installation – Decking
Mirror Installation – Rear View
Hardware Kit – Decal
Extension Installation – Step
Electrical System Installation – Carrier
Harness Assembly – Carrier
Q00,Sup Decal Install- Auto Lube
Tank Installation – Hydraulic
Filter Assembly – Return (Complete Assembly)
Valve Installation – Hydraulic
Valve Assembly – Outrigger Control 4 Section
Valve Assembly – Selector Outrigger And Rear Steer
Valve Assembly – Double Solenoid
Solenoid Valve – 4 Wheel Dr
Switch Assembly – Pressure (Normally Closed)
Valve Assembly – 4-Way Solenoid
Hydraulic Lines Installation – Outrigger
Valve Assembly – Hi Speed Boost
Hydraulic Lines – Rear Axle Lockout
Hydraulic Lines Installation – Service Brake
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Front Steer
Axle Installation – Rear
Axle Assembly – Drive/Steer
Cylinder Assembly – 2 1/2″ Steer (Also Used As A Cab Tilt Cylinder)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Axle Installation – Front
Tire And Wheel Installation 20.5 X 25
Tire And Wheel Assembly 20.5 X 25 General
Wheel & Disc Assy
Driveline Installation
Driveline Assembly – 7c Slip
Engine Installation – Without Air Conditioner
Engine Assembly – Without Air Conditioner
Transmission Assembly
Transmission Assembly Converter Housing Group
Transmission Assembly Case And Rear Cover Group
Transmission Assembly Turbine Shaft Group
Transmission Assembly Drive Plate Group
Transmission Assembly Gear Group
Transmission Assembly Auxiliary Drive Group
Transmission Assembly Pump Drive Group
Transmission Assembly Forward Shaft Group
Transmission Assembly Reverse Shaft Group
Transmission Assembly Reverse Idler Group
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Disc Brake Group
Transmission Assembly Charging Pump And Filter Group
Transmission Assembly Electric Control Valve
Control Valve Assy
Transmission Assembly Electric Control Valve Group
Pump Assembly – Gear (Complete Assembly)
Pump Assembly – Piggyback (Complete Assembly)
Brake Assembly – Parking (Complete Assembly)
Cylinder Assembly – Throttle (Complete Assembly)
Electrical System Installation – Engine
Harness Assembly – Engine
Radiator Installation
Radiator Assembly
Tank Installation – Surge
Tank Installation – Fuel
Tank Assembly – 58 Gallon Fuel (Complete Assembly)
Switch Installation – Battery Disconnect
Q-01 Exhaust System Inst
Intake Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Cold Start Installation
Strainer Installation – Coolant
Socket Assembly – 5/8″ Wedge (Complete Assembly)
Miscellaneous Decals
Decal Installation – Standard
Decal Installation – Rt530e
