Grove Crane RT58A 37392 Parts Manual 2016

Description

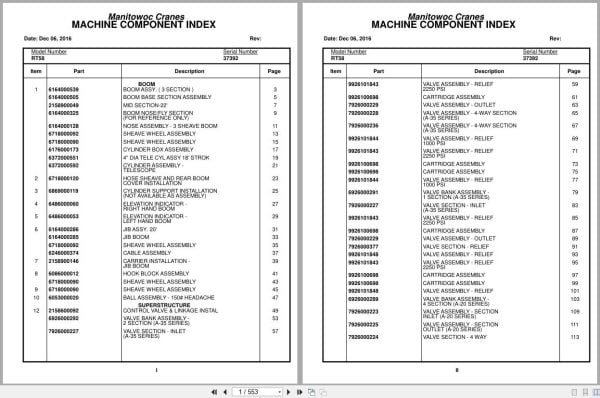

Contents:
Boom Assy. ( 3 Section )
Boom Base Section Assembly
Mid Section-22′
Boom Nose/Fly Section (For Reference Only)
Nose Assembly – 3 Sheave Boom
Sheave Wheel Assembly
Cylinder Box Assembly
4″ Dia Tele Cyl Assy 18′ Strok
Cylinder Assembly – Telescope
Hose Sheave And Rear Boom Cover Installation
Cylinder Support Installation (Not Available As Assembly)
Elevation Indicator – Right Hand Boom
Elevation Indicator – Left Hand Boom
Jib Assy. 20′
Jib Boom
Cable Assembly
Carrier Installation – Jib Boom
Hook Block Assembly
Ball Assembly – 150# Headache
Control Valve & Linkage Install
Valve Bank Assembly – 2 Section (A-35 Series)
Valve Section – Inlet (A-35 Series)
Valve Assembly – Relief 2250 Psi
Cartridge Assembly
Valve Assembly – Outlet
Valve Assembly – 4-Way Section (A-35 Series)
Valve Assembly – Relief 1000 Psi
Valve Bank Assembly – 1 Section (A-35 Series)
Valve Section – Relief
Valve Assembly – Relief
Valve Bank Assembly – 4 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – Section Outlet (A-20 Series)
Valve Section – 4 Way
Valve Assembly – 4-Way Section
Lift Hyd. Schematic
Tele.Mid Hyd. Schematic
Tele.Fly Hyd. Schematic
Model 15 Hoist Hyd. Schematic
Supply.Press.& Return Hyd.Sch
Turntable Drive Assy.
Box Assembly – Swing
Brake Assembly – Swing
Brake Assembly – Disc
Cylinder Assembly – Swing Brake Release
Motor Assembly – Orbit
Turntable Mast Assy.
Lift Cyl.& Hold Valve Install
Cylinder Assembly – Lift
Valve Assembly – Check
Hoist Installation – Main
Hoist Assembly – Model 15a-11
Gear Reduction Assembly
Motor Assembly – Hydraulic
Tubing Installation – Hoist
Valve Assembly – Hoist Control
Reel Installation – Hose
Reel Assembly – Hose
Hyd Swivel Install (9 Port)
Swivel Assembly – Hydraulic
Valve Install. By-Pass
Control Assembly – Orbitrol Unit
Valve Assembly – Relief (See Separate Parts List)
Brake & Accelerator Pedal Inst
Cylinder Assembly – Master
Park Brake Install.
Transmission Shift Linkage
Axle And Range Shifter Installation

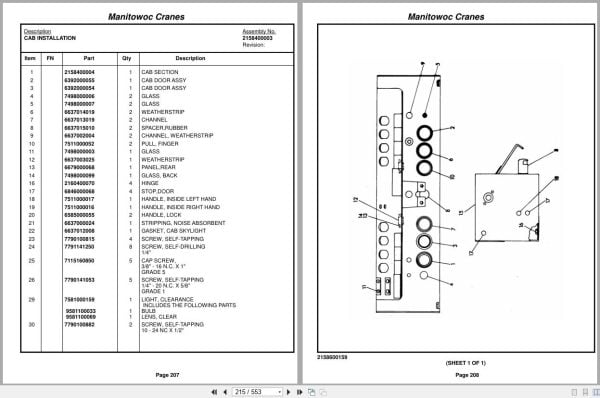

Cab Installation
Control Console Assy. & Install
Heater Inst
Heater Assembly – Hot Water
Windshield Defroster Install
Horn Installation
Rear Steer Indicator Install
Windshield Wiper Installation
Motor Assembly – Windshield Wiper
Lock Installation – Window (Not Available As Assembly)
Extinguisher Installation – Fire
Engine Installation
Torque Converter Assembly
Torque Converter Assembly Converter Assembly
Torque Converter Assembly Housing Group And Parts
Torque Converter Assembly Pump Group – Charging Parts
Torque Converter Assembly Pump Group
Torque Converter Assembly Remote Mount – Oil Filter
Torque Converter Assembly Filter Assembly
Filter Assembly – Oil
Torque Converter Assembly Drive Plate Assembly
Pump Assembly – (W/O Return To Center Steering)
Hood Assembly – Engine
Cleaner Assembly – Air
Relay And Regulator Installation
Radiator Installation (Not Available As Assembly)
Pump Install. Three Stage
Pump Assembly – 3 Section
Solenoid Installation
Driveline Installation
Driveline
Driveline Assembly
Driveline Assembly – Transmission
Guard Installation – Muffler
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Input
Transmission Assembly Main Case Group
Transmission Assembly First Stage Clutch Assembly
Transmission Assembly Second Stage Clutch Assembly
Transmission Assembly Third Clutch Group
Transmission Assembly Oil Strainer Group
Transmission Assembly Oil Retainer Group
Transmission Assembly Disconnect Output Assembly
Transmission Assembly Output Group
Transmission Assembly Yoke Group
Frt Axle & Install. Rockwell
Drive Steer Axle Assembly
Drive Steer Axle Assembly Park Brake Assembly
Drive Steer Axle Assembly Housing Assembly
Drive Steer Axle Assembly Differential Carrier Assembly
Drive Steer Axle Assembly Wheel Cylinder Assembly
Drive Steer Axle Assembly Hub And Shaft Group
Drive Steer Axle Assembly Brake Assembly
Cylinder Assembly – 3″ Steer (Complete Assembly)
Rear Axle & Install. Rockwell
Front & Rear O/R. Install.
Cylinder Assembly – Outrigger
Valve Assembly – Solenoid
Fuel& Hyd Tank/Tool Box Install
Tank And Tool Box Assembly – Gas
Hydraulic Reservoir Assembly
Tire And Wheel Assembly
Front Cover Installation
Cover Installation
Hyd.Oil Filter Install
Hyd.Lockout Cyl.Install.
Cylinder Assembly
Valve Assembly – Selector
Light Installation – Front And Rear
Turn Signal Installation
Valve Installation – Rear Axle
Hydrovac. Brake/Lines Install
Hydrovac Assembly
Frt.Steer Hyd. Lines.
Hydraulic Lines Installation – Rear Steer
Axle Lockout Hyd. Lines Install
Trans&Torque Conver Line Inst
Vacuum Pump Installation (Not Available As Assembly)
Pump Assembly – Vacuum
Wiring Diagram – Hourmeter
Wiring Diagram – Engine
Wiring Diagram
O/R Hyd. Schematic
Non-Free Swing Hyd. Schem.
Decal Install.
