Grove Crane RT58A 51949 Parts Manual 2016

Description

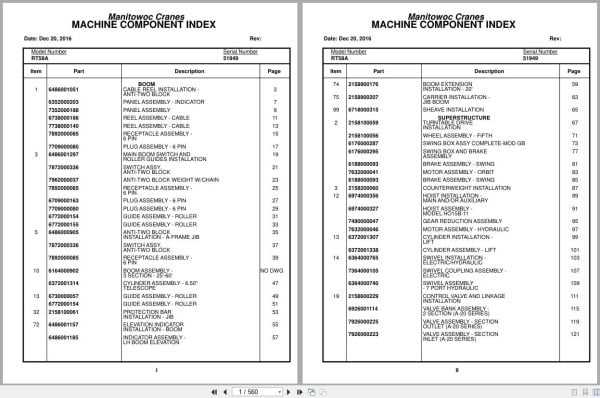

Contents:
Cable Reel Installation – Anti-Two Block
Panel Assembly – Indicator
Panel Assembly
Reel Assembly – Cable
Receptacle Assembly – 6 Pin
Plug Assembly – 6 Pin
Main Boom Switch And Roller Guides Installation
Switch Assy, Anti-Two Block
Anti-Two Block Weight W/Chain
Guide Assembly – Roller
Anti-Two Block Installation – A-Frame Jib
Boom Assembly – 3 Section – 25′-60′
Cylinder Assembly – 6.50” Telescope
Protection Bar Installation – Jib
Elevation Indicator Installation – Boom
Indicator Assembly – Lh Boom Elevation
Boom Extension Installation – 20′
Carrier Installation – Jib Boom
Sheave Installation
Turntable Drive Installation
Wheel Assembly – Fifth
Swing Box Assy Complete-Mod Gb
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Counterweight Installation
Hoist Installation – Main And/Or Auxiliary
Hoist Assembly – Model Ho15b-11
Gear Reduction Assembly
Motor Assembly – Hydraulic
Cylinder Installation – Lift
Cylinder Assembly – Lift
Swivel Installation – Electric/Hydraulic
Swivel Coupling Assembly – Electric
Swivel Assembly – 7 Port Hydraulic
Control Valve And Linkage Installation
Valve Bank Assembly – 2 Section (A-20 Series)
Valve Assembly – Section Outlet (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – 4 Section
Valve Assembly – Outlet
Valve Section – Inlet (A-35 Series)
Cartridge Assembly
Valve Assembly – Relief 1000 Psi
Valve Bank Assembly – 1 Section
Valve Assembly – Relief 2250 Psi
Turntable Lock Installation
Hydraulic Lines Installation – Swing
Valve Assembly – Relief
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Mid-Telescope
Hydraulic Lines Installation – Main Hoist
Hose Clamps Installation – Main Hoist
Idler Drum Installation
Idler Drum Assembly
Pivot Shaft Installation – Boom
Console Installation – Front
Shift Installation – Axle And Range
Shift Installation – Transmission
Transmission Kit – Shift
Control Lever Assembly
Power Steering And Horn Installation
Valve Assembly – Steering Control
Brake And Accelerator Pedal Installation
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Park Brake Installation
Seat Installation
Seat Assembly – Industrial
Instruments And Lights Installation
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Bank Assembly
Valve Assembly – Selector
Extinguisher Installation – Fire
Cab Installation (With Doors)
Cab Weldment (With Doors)
Door Assembly – Cab
Heater Installation – Gmc
Heater Assembly – Hot Water
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab (Complete Assembly)
Windshield Wiper Installation
Mirror Installation – Rear
Cover Installation – Seat Support
Skc810555
Decal Installation
Axle Installation – Front
Axle Assy Clark Front
Axle Assy. Housing & Hub Group
Axle Assy. Diff. Carrier Group
Axle Assy. Park Brake Group
Axle Assy. Spider Assy. Group
Axle Assy. Brake Assy. Group
Cylinder Assembly – Steer (Complete Assembly)
Axle Installation – Rear
Cylinder Assembly-Lockout
Axle Assembly
Axle Assy. Housing & Hud Group
Axle Assy . Diff.Carrier Group
Outrigger Installation
Cylinder Assembly – 7″ Outrigger Jack
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Case Assembly
Transmission Assembly Clutch And Gear Group
Transmission Assembly Axle Disconnect Assembly
Transmission Assembly Low Clutch Assembly
Transmission Assembly Forward Clutch Assembly
Transmission Assembly Third Clutch Assembly
Transmission Assembly Reverse And Second Shift
Transmission Assembly Control Valve Assembly

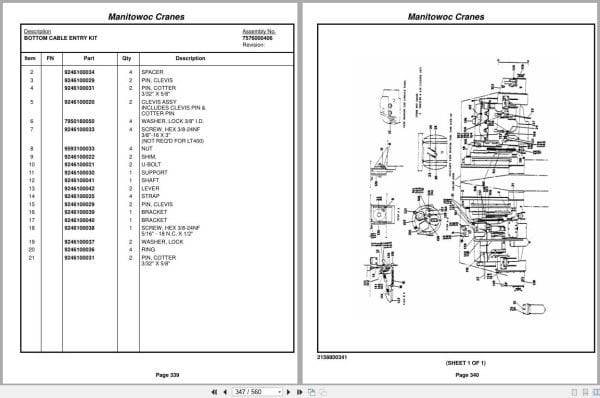

Bottom Cable Entry Kit
Engine Installation – Gmc 3-53t
Filter Assembly – Oil
Pump Assembly – (W/O Return To Center Steering)
Hood Installation – Engine
Driveline Installation
Driveline Assembly
Reservoir Installation – Hydraulic
Tank Installation – Fuel
Tire And Wheel Assembly
Transmission/Converter Lines Installation
Power Boost And Brake Lines Installation
Cylinder Assembly – Master With Power Head
Power Brake Assembly
Cylinder Assembly – Master
Valve Assembly – Flow Control
Axle Oscillation Lockout Installation
Electrical Systems Installation – Carrier
Harness Assembly – Carrier
Harness Assembly – Deutz Engine F6l912 Engine
Tool Box Step And Handle Installation – W/Fenders
Cover Installation – Front
Battery Installation
Lights Installation – Front And Rear
Fender Installation
Alarm Installation – Back-Up
Hydraulic Lines Installation – Supply, Pressure And Return
Hydraulic Lines Installation – Outrigger
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout
Valve Installation – Selector
Valve Assembly – Outrigger Selector
