Grove Crane RT58D 69705 Parts Manual 2020

Description

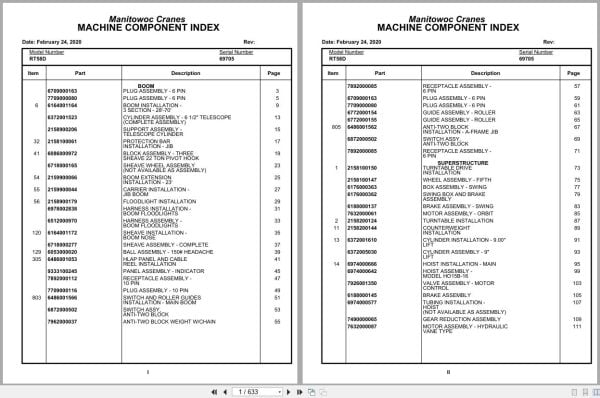

Contents:
Plug Assembly – 6 Pin
Boom Installation -3 Section – 28′-70′
Cylinder Assembly – 6 1/2″ Telescope(Complete Assembly )
Support Assembly -Telescope Cylinder
Protection Bar Installation – Jib
Block Assembly – Three Sheave 22 Ton Pivot Hook
Sheave Wheel Assembly (Not Available As Assembly )
Boom Extension Installation – 23′
Carrier Installation -Jib Boom
Floodlight Installation
Harness Installation -Boom Floodlights
Harness Assembly -Boom Floodlights
Sheave Installation -Boom Nose
Sheave Assembly – Complete
Ball Assembly – 150# Headache
Hlap Panel And Cable Reel Installation
Panel Assembly – Indicator
Receptacle Assembly -10 Pin
Plug Assembly – 10 Pin
Switch And Roller Guides Installation – Main Boom
Switch Assy,Anti-Two Block
Anti-Two Block Weight W/Chain
Receptacle Assembly -6 Pin
Guide Assembly – Roller
Anti-Two Block Installation – A-Frame Jib
Turntable Drive Installation
Wheel Assembly – Fifth
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing

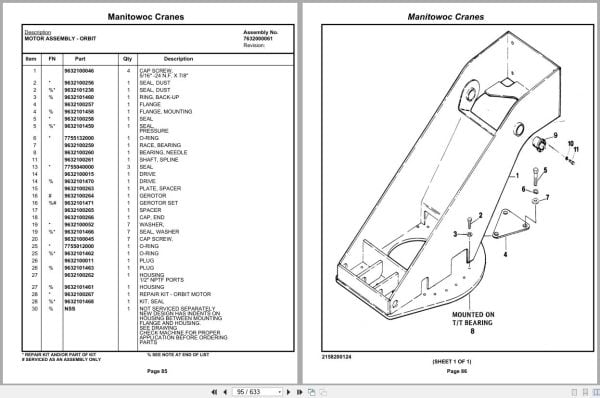

Motor Assembly – Orbit
Turntable Installation
Counterweight Installation
Cylinder Installation – 9.00”Lift
Cylinder Assembly – 9″Lift
Hoist Installation – Main
Hoist Assembly -Model Ho15b-16
Valve Assembly – Motor Control
Brake Assembly
Tubing Installation -Hoist
Gear Reduction Assembly
Motor Assembly – Hydraulic Vane Type
Swivel Installation -Electric/Hydraulic
Collector Ring Assembly
Swivel Assembly – 7 Port Hydraulic
Control Valve And Linkage Installation
Valve Bank Assembly -2 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly -4 Section
Valve Assembly – Outlet
Valve Section – Inlet(A-35 Series)
Cartridge Assembly
Valve Assembly – Relief1000 Psi
Valve Bank Assembly -1 Section
Valve Assembly – Relief2250 Psi
Valve Assembly – Solenoid
Cylinder Assembly -Lockout
Valve Assembly -Flow Divider
Turntable Lock Installation
Rotation Indicator Installation
Driver Assembly driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation -Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation -Mid-Telescope
Hydraulic Lines Installation -Main Hoist
Hydraulic Lines Installation -Lever Lockout
Hose Clamps Installation – Main Hoist
Idler Drum Installation
Idler Drum Assembly
Pivot Shaft Installation -Boom
Console Installation -Front
Shift Installation -Axle And Range
Shift Installation -Transmission
Transmission Kit – Shift
Control Lever Assembly
Power Steering And Horn Installation
Valve Assembly – Steering control
Park Brake Installation
Seat And Seat Belt Installation
Seat Assembly – Industrial
Electrical Systems Installation – S/S
Instruments And Lights Installation
Extinguisher Installation – Fire
Cab Installation (With Doors)
Cab Weldment (With Doors)
Door Assembly – Cab
Acoustical Installation
Windshield Wiper Installation
Windshield Washer Installation
Mirror Installation – Rear
Circular Level Installation
Cover Installation -Seat Support
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab(Complete Assembly )
Handrail Installation
Mounting Chart Installation – Load Chart
Heater Installation
Heater Assembly -Hot Water
Warning System Installation -Audio/Visual
Sk871117
Valve Installation -Selector
Valve Assembly – Selector
Axle Installation – Front
Axle Assembly
Axle Assembly differential Carrier Parts
Axle Assembly housing Parts
Axle Assembly wheel End Parts
Axle Assembly Brake Parts
Axle Assembly wheel Cylinder Assembly
Cylinder Assembly – 3″Steer
Axle Installation – Rear
Cylinder Assembly -Lockout
Axle Assembly differential Carrier Assembly
Axle Assembly housing Assembly
Axle Assembly hub And Shaft Group
Axle Assembly Brake Assembly
Outrigger Installation
Cylinder Assembly -7″ Outrigger Jack
Transmission Installation
Transmission Assembly
Transmission Assembly front Cover And Case Assembly
Transmission Assembly clutch And Gear Group
Transmission Assembly axle Disconnect Assembly
Transmission Assembly low Clutch Assembly
Transmission Assembly forward Clutch Assembly
Transmission Assembly third Clutch Assembly
Transmission Assembly reverse And Second Shift
Transmission Assembly control Valve Assembly
Bottom Cable Entry Kit
Reservoir Installation -Hydraulic
Filter Assembly – Oil
Tank Installation – Fuel
Transmission/Converter Lines Installation
Power Boost And Brake lines Installation
Cylinder Assembly -Master With Power Head
Power Brake Assembly
Cylinder Assembly – Brake master
Valve Assembly -Flow Control
Valve Assembly – Relief
Valve Installation -Rear Axle Lockout
Valve Assembly
Tool Box Step And Handle Installation – W/Fenders
Cover Installation – Front
Lights Installation -Front And Rear
Indicator Installation -Rear Steer
Switch Assembly – Limit
Pintle Hook Installation
Pintle Hook
Alarm Installation -Back-Up
Fender Installation
Hydraulic Lines Installation -Supply, Pressure And Return
Hydraulic Lines Installation -Outrigger
Hydraulic Lines Installation -Front Steer
Hydraulic Lines Installation -Axle Lockout With Override
Valve Assembly – Outrigger Selector
Lug Nut And Washer Installation
Radiator Installation
Exhaust And Air Cleaner Installation
Cleaner Assembly – Air
Fuel/Water Separater Installation
Fuel/Water Separater Assembly
Cover Installation – Pump
Skd823984
Winch Installation -Tow
Battery Installation
Engine Installation -Gmc 8.2
Pump Assembly -(W/O Return To Center Steering )
Tachometer Sensor Installation
Electrical Systems Installation – Carrier
Wiring Harness Assembly
Link Assembly – Fusible
Driveline Installation
Driveline Assembly
Tire And Wheel Assembly
Hood Installation – Engine
Skc842512
Hydraulic Lines Installation -Rear Steer
Heater Installation -Engine Block
Belt & Filter Detroit 8.2
Wiring Diagram – Krueger
Wiring Diagram
Decal Installation
