Grove Crane RT60S 31407 Parts Manual 2019

Size: 3.46 MB

Format: PDF

Language: English

Brand: Grove

Type of Machine: Crane

Type of Manual: Parts Manual

Model: Grove RT60S Crane

Serial Number: 31407

Publication Date: 2019

Number of Pages: 535 Pages

40 USD

Tags: Grove Crane PDF, Grove Parts Manual, RT60S

Description

Description

Contents:

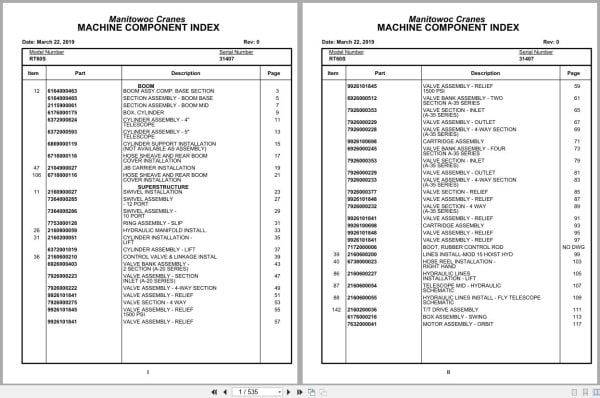

Boom Assy.Comp. Base Section
Section Assembly – Boom Base
Section Assembly – Boom Mid
Box, Cylinder
Cylinder Assembly – 4″Telescope
Cylinder Assembly – 5″Telescope
Cylinder Support Installation (Not Available As Assembly )
Hose Sheave And Rear Boom Cover Installation
Jib Carrier Installation
Swivel Installation
Swivel Assembly – 12 Port
Swivel Assembly -10 Port
Ring Assembly – Slip
Hydraulic Manifold Install.
Cylinder Installation -Lift
Cylinder Assembly – Lift
Control Valve & Linkage Install
Valve Bank Assembly -2 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – 4-Way Section
Valve Assembly – Relief
Valve Section – 4 Way
Valve Assembly – Relief1500 Psi
Valve Bank Assembly – Twosection A-35 Series
Valve Section – Inlet(A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section(A-35 Series)
Cartridge Assembly
Valve Bank Assembly – Four Section A-35 Series
Valve Section – Relief
Valve Section – 4 Way(A-35 Series)
Lines Install-Mod 15 Hoist Hyd
Hose Reel Installation -Right Hand
Hydraulic Lines Installation – Lift
Telescope Mid – Hydraulic Schematic
Hydraulic Lines Install – Fly Telescope Schematic
T/T Drive Assembly
Box Assembly – Swing
Motor Assembly – Orbit
Brake Cover Assembly
Hoist Install – Mod 15 Main
Hoist Assembly – Ho15 – 16
Gear Reduction Assembly
Motor Assembly – Hydraulic
Tubing Installation -Hoist
Valve Assembly – Hoist Control
Right Hand Housing Installation
Trans.Shift Linkage Install.
Cab Assembly
Door Assembly – Cab
Front Control Console Installation
Valve Assembly – Steering
Pin Installation – Turntable Lock Installation
Control Console Installation – Right Hand
Valve Assembly
Wiper Installation -Windshield
Pedal Assembly
Valve, Control
Valve Assembly – Control
Lock Installation – Window(Not Available As Assembly )
Cab Installation
Rear View Mirror Installation
Heater Install. Propane
Heater Assembly – Propane
Windshield Defroster Install
Air Horn Installation
Valve Assembly – Horn
Front Axle Installation
Axle Assembly – Drive Steer
Cylinder Assembly – 3″ Steer(Complete Assembly )

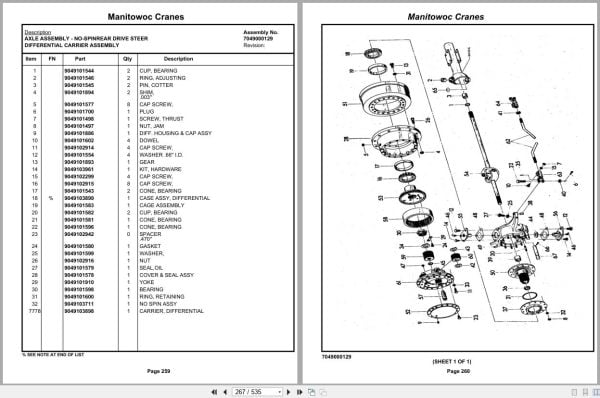

Rear Axle Installation
Axle Assembly – No-Spin Rear Drive Steer
Cylinder Assembly – 5″Lockout
Transmission Installation
Transmission Assembly
Driveline Assembly -Transmission
Driveline Assembly -Front Axle
Driveline Assembly -Rear Axle
Hydraulic Tank Installation
Hydraulic Reservoir Assembly
Main Air Tank Installation
Valve Assembly – Relay
Valve Assembly – Check
Valve Assembly -Quick Release
Dryer Assembly – Air
Pump Cover& Discon. Handle Ins
Pump Cover And Disconnect Handle Assembly
Tire & Wheel Assy.
Shifter Installation -Hi-Lo
Cylinder Assembly – Air
Valve Assy. Three Way
Filter Installation -Hydraulic Oil
Filter Assembly – Oil
Electric Terminal Box Inst
Axle Installation – Rear Axle Lockout
Valve Assembly – Selector
Front Steer Relief Valve Installation
Valve Assembly – Relief(See Separate Parts List)
Step Install.
Emergency Air Tank Installation
Hyd.Shift Trans.& Torque.Line
Engine Install- Caterpillar
Torque Converter Assembly
Oil Pressure Check Point Installation – Clutch/Lub
Radiator And Oil Cooler Installation
Cleaner Assembly – Air
Engine Hood And Grill Assembly
Cylinder Assembly – Throttle
Wiring Diagram
Pump Assembly – Steer
Clearance Lights &Reflector Installation
Lights And Turn Signal Installation
Rear Axle Lockout Override Valve Installation
Valve Assembly – Solenoid
Supply, Pressure & Return Ins
Outrigger Hyd. Schematic
Valve, Pressure Relief
Lines Install – Rear Steer Hyd
Axle Lockout & Front Steer Hyd
Outrigger Installation
Cylinder Assembly -Extension
Cylinder Assembly -Stabilizer
Decal Installation
