Grove Crane RT630 43327 Parts Manual 2021

Description

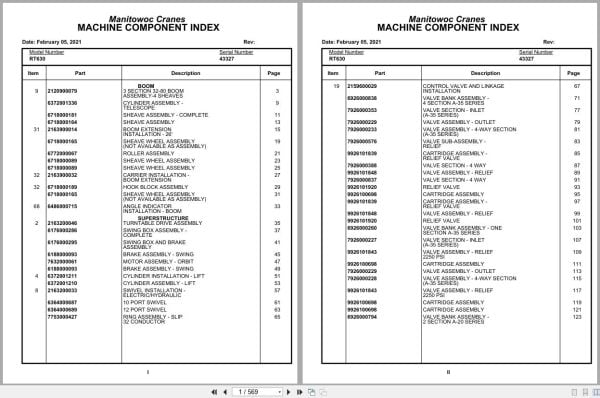

Contents:
3 Section 32-80 Boom Assembly -4 Sheaves
Cylinder Assembly -Telescope
Sheave Assembly – Complete
Sheave Assembly
Boom Extension Installation – 26′
Sheave Wheel Assembly (Not Available As Assembly)
Roller Assembly
Sheave Wheel Assembly
Carrier Installation -Boom Extension
Hook Block Assembly
Angle Indicator Installation – Boom
Turntable Drive Assembly
Swing Box Assembly -Complete
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Cylinder Installation – Lift
Cylinder Assembly – Lift
Swivel Installation -Electric/Hydraulic
10 Port Swivel
12 Port Swivel
Ring Assembly – Slip32 Conductor
Control Valve And Linkage Installation
Valve Bank Assembly -4 Section A-35 Series
Valve Section – Inlet(A-35 Series)
Valve Assembly – Outlet
Valve Assembly – 4-Way Section(A-35 Series)
Valve Sub- Assembly -Relief
Cartridge Assembly -Relief Valve
Valve Section – 4 Way
Valve Assembly – Relief
Relief Valve
Cartridge Assembly
Valve Bank Assembly – One Section A-35 Series
Valve Assembly – Relief2250 Psi
Valve Bank Assembly -2 Section A-20 Series
Valve Assembly – Section Inlet (A-20 Series)
Hoist Installation -Main And/Or Auxiliary
Hoist Assembly -Model Ho15b-16
Gear Reduction Assembly
Motor Assembly – Hydraulic
Tubing Installation – Hoist(Not Available As Assembly)
Valve Assembly -Motor Control
Cable Follower
Idler Drum Assembly
Counterweight Installation
Warning Device Installation
Switch Assembly – Limit
Valve Installation -Flow Divider
Rotation Indicator Installation
Driver Assembly driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation -Supply, Pressure And Return
Free Swing-Hydraulic Schematic
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation -Mid – Telescope
Lock Installation – Swing

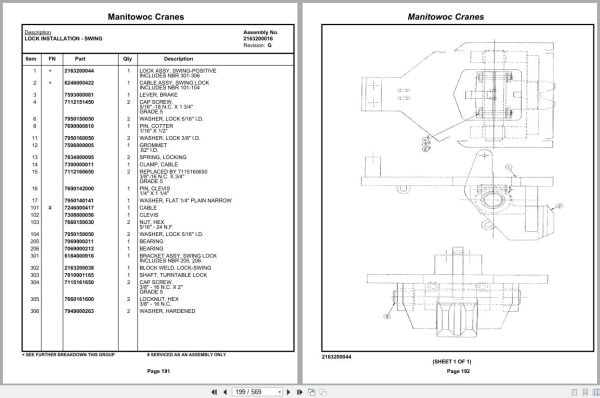

Lock Assy, Swing-Positive
Cable Assy, Swing Lock
Panel Installation -Hydraulic Test
Valve Installation -Solenoid
Valve Assembly – Solenoid
Hydraulic Lines Installation -Main & Auxiliary Hoist
Brake Pedal And Hydraulic Lines Installation
Heater/Defroster And Fuel Tank Installation
Heater Assembly – Diesel
Electrical System Installation
Fuse And Connector Panel Assembly
Acoustical Installation
Instruments And Lights Installation
Cab Install
Seat Assembly
Valve Assembly – Transmission Shift Control
Fire Extinguisher Assembly
Axle Installation – Front And Rear
Cylinder Assembly -Lockout
Axle Assembly
Axle Assembly housing Assembly
Axle Assembly differential Carrier Assembly
Axle Assembly hub And Shaft Group
Axle Assembly brake Assembly
Axle Assembly Fail Safe Chamber Assembly
Cylinder Assembly – Steer(Complete Assembly)
Outrigger Beam Installation
Cylinder Assembly -Stabilizer
Cylinder Assembly -Extension
Transmission Installation
Transmission Assembly
Engine Assembly And Installation -Cummins
Engine Assembly – Cummins v-504c
Torque Converter Assembly
Loose Parts-Engine Assembly
Harness, Wiring(Engine)
Fitting Assy
Pump Assembly – Steer
Cylinder Assembly – Throttle
Engine Components Installation -Cummins V-50v-C
Radiator And Oil Cooler Installation
Cleaner Installation – Air
Cleaner Assembly – Air
Exhaust System Installation
Lines Installation -Transmission And Converter
Filter Assembly – Oil
Quick Start Installation (Not Available As Assembly)
Pump And Disconnect Installation – 3 Section
Disconnect Assembly – Pump
Pump Assembly
Driveline Installation
Reservoir Install – Hydraulic
Tank Installation – Fuel
Air Tank And Valve Assembly And Installation
Valve, Relay
Valve Assembly – Check
Tire And Wheel Assembly
Suction Line And Manifold Installation
Valve Installation – Rear Axle Lockout
Valve Assembly – Selector
Valve Installation – Front Steer Relief
Valve Assembly – Relief(See Separate Parts List)
Hydraulic Shift,Converter Line Installation
Mirror Installation -Rear View
Lights And Turn Signals Installation
Fender Installation
Hydraulic Lines Installation -Outrigger
Hydraulic Schematic -Front Steer
Hydraulic Lines Installation -Rear Steer
Hydraulic Schematic – Axle Lockout
Hood Installation – Engine
Air Lines Installation -Brake And Throttle
Dryer Assembly – Air
Electrical System Installation -Carrier Frame
Harness Assembly – Carrier Frame Wiring
Battery Box Installation
Battery Installation
Cranking Pump Engagement Switch Installation
Decal Installation -Rt625/Rt630
