Grove Crane RT635C 220037 Parts Manual 2014

Description

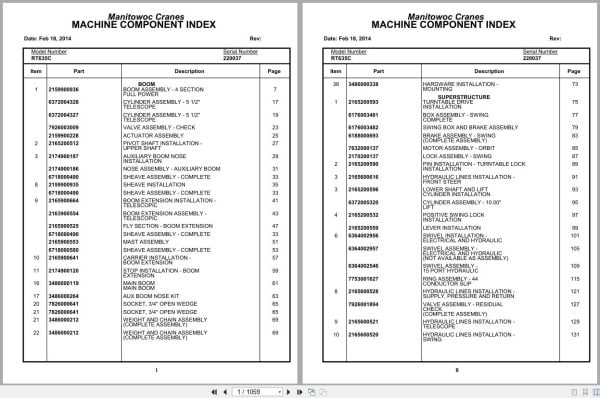

Contents:
Boom Assembly – 4 Section Full Power
Cylinder Assembly – 5 1/2″ Telescope
Valve Assembly – Check
Actuator Assembly
Pivot Shaft Installation – Upper Shaft
Auxiliary Boom Nose Installation
Nose Assembly – Auxiliary Boom
Sheave Assembly – Complete
Sheave Installation
Boom Extension Installation – Telescopic
Boom Extension Assembly – Telescopic
Fly Section – Boom Extension
Mast Assembly
Carrier Installation – Boom Extension
Stop Installation – Boom Extension
Main Boom Main Boom
Aux Boom Nose Kit
Socket, 3/4” Open Wedge
Weight And Chain Assembly (Complete Assembly)
Hardware Installation – Mounting
Turntable Drive Installation
Box Assembly – Swing Complete
Swing Box And Brake Assembly
Brake Assembly – Swing (Complete Assembly)
Motor Assembly – Orbit
Lock Assembly – Swing
Pin Installation – Turntable Lock Installation
Hydraulic Lines Installation – Front Steer
Lower Shaft And Lift Cylinder Installation
Cylinder Assembly – 10.00” Lift
Positive Swing Lock Installation
Lever Installation
Swivel Installation – Electrical And Hydraulic
Swivel Assembly – Electrical And Hydraulic
Swivel Assembly – 15 Port Hydraulic
Ring Assembly – 44 Conductor Slip
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Residual Check
Hydraulic Lines Installation – Telescope
Hydraulic Lines Installation – Swing
Hydraulic Lines Installation – Lift
Valve Installation – Control (Main And Auxiliary Hoist)
Valve Assembly – 2 Section Control
Valve Assembly – 2 Section
Valve Assembly – 1 Section Control
Brake Booster And Master Cylinder Assembly
Cylinder Assembly – Brake Booster And Master
Valve Assembly – Pressure Reducing
Valve Assembly – Flow Control
Valve Assembly – Sequence
Valve Assembly – 5 Station Solenoid
Hoist Installation – Main And Auxiliary
Hoist Assembly – Complete
Hoist Assembly
Group Assembly – Right Hand
Group Assembly – Left Hand
Center Group – Hoist
Motor Assembly – Hydraulic Vane Type (Complete Assembly)
Brake Assembly
Valves And Plumbing Installation
Valve Assembly – Control
Cable Follower And Idler Drum Assembly
Kicker Installation
Hydraulic Lines Installation – Main And Auxiliary Hoist
Sensor Installation – Hoist Rotation
Rotation Sensor Assembly
Harness Assembly – Rotation Sensor
Mirror Installation – Hoist
Hydraulic Lines Installation – Pressure Check Panel
Sensor Installation – Swing Lock Pin Position
Switch Assembly
Hydraulic Lines Installation – Brake
Lube Installation – Turntable Manual Bearing
Bearing Bolt Installation
Lmi System Kit (1319)
Console Assembly – Vertical, Graphic
Central Unit Assembly – Ds350 Modular
Cable, 16′ 3-Pin Pressure Trans. Cable
Handle Installation – Control
Hydraulic Lines Installation – Swing And Swing Brake
Hydraulic Lines Installation – Main And Auxiliary Hoist
Electrical System Installation – Superstructure
Harness Assembly – Superstructure
Air Conditioning Components Installation
Condenser Assembly
Air Compressor And Motor Assembly
Motor Assembly
Valve Assembly – Solenoid
Heater And Air Conditioner Hydraulic Lines Installation –
Valve Installation – Hydraulic Heater
Valve Assembly – Relief 2500 Psi
Valve Installation – Air Conditioner
Valve Assembly – Solenoid 3 Way 2 Position
Hydraulic Lines – Heater And Air Conditioning
Cab Installation
Cab Assembly
Cab Section
Valve Assembly – Treadle
Cable Assembly – Control
Motor Assembly – Wiper (Complete Assembly)
Door Assembly
Skylight Assembly – Sliding
Column Assembly – Steering (Complete Assembly)
Valve Assembly – Orbital (W/O Return To Center Steering)
Console Installation – Front
Console Assembly – Front
Control Assembly – Shift
Gauge Cluster – 12v
Harness Installation
Harness Assy, Outrigger Cab To Board
Cable Assembly – Wiper Motor
Seat Installation – Control Single Axis With Auxiliary
Control Seat Assembly – Single Axis
Seat Assembly
Plate Assembly
Controller Assembly – Single Axis
Harness Assembly – Seat Arm
Harness Assembly – Seat
Suspension Assembly – Seat
Covers Installation – Bottom
Pedal Installation – Swing Brake
Screen Installation – Sun Open Mesh
Hydraulic Heater/Air Conditioner Installation – Cab – 12 Volt
Heater/Air Conditioner Assembly
Heater Panel Installation
Harness Assembly – Heater Panel
Work Light Installation
Extinguisher Installation – Fire
Electrical System Installation – Cab
Harness Assembly – Cab
Cable Assembly – Skylight Wiper Motor
Panel Assembly
Harness Assembly – Panel Assembly
Mat Installation – Floor
Acoustical Installation
Wiper/Washer Installation – Skylight
Washer Installation – Windshield
Pedal Installation – Boom Telescope
Rocker Pedal – Single Function
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab (Complete Assembly)
Hydraulic Lines Installation – Heater And Air Conditioner
Light Bar Installation Lmi

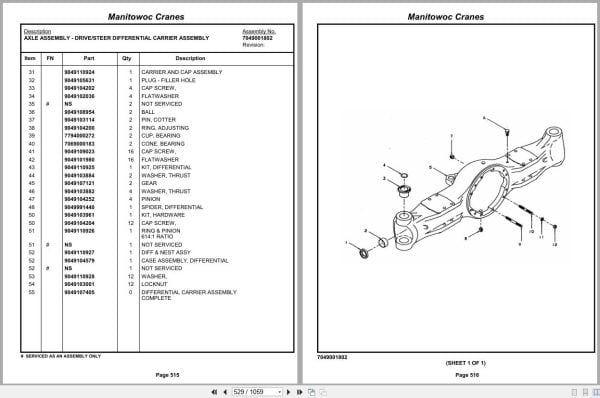

Frame Section
Stud Installation
Axle Installation – Front
Chamber Assembly – Brake
Axle Assembly – Drive/Steer
Axle Assembly – Drive/Steer Differential Carrier Assembly
Axle Assembly – Drive/Steer Housing Assembly
Axle Assembly – Drive/Steer Wheel End Parts
Axle Assembly – Drive/Steer Caliper Assembly
Cylinder Assembly – 3″ Steer
Axle Installation – Rear
Axle Assembly – Rear
Axle Assembly – Drive/Steer Carrier Assembly
Cylinder Assembly – 5″ Lockout
Hydraulic Lines Installation – Rear Axle Lockout
Hydraulic Lines Installation – Rear Steer
Outrigger Beam Installation
Beam Assembly – Outrigger
Cylinder Assembly -4 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – 2 1/2″ Outrigger Extension
Hydraulic Lines Installation – Outrigger
Outrigger Float Stowage Installation
Float Assembly – Outrigger
Electrical System Installation – Carrier
Harness Assembly – Carrier
Box Assembly – Relay
Harness Assembly – Relay Box
Exterior Lights Installation – Carrier
Mirror Installation – Frame
Fender Installation
Hydraulic Reservoir Installation
Reservoir Assembly – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Filter Assembly – Return
Flex Step Installation
Fuel Tank And Step Installation
Tank Assembly – 60 Gallon Fuel
Tire And Wheel Assembly
Tie Down Installation – Hook Block
Engine Installation – (For Reference Only)
Engine Assembly – Cummins 6bt5.9
Transmission Installation – Cummins/Clark
Transmission Assembly – Complete
Transmission Assembly
Transmission Assembly Converter Housing Group
Transmission Assembly Transmission Case And
Transmission Assembly Turbine Shaft Stator Support
Transmission Assembly Torque Converter Assembly
Transmission Assembly Auxiliary Pump Drive Parts
Transmission Assembly Charging Pump Drive Group
Transmission Assembly Forward Shaft Group
Transmission Assembly Reverse Idler Group
Transmission Assembly Reverse And Second Shaft
Transmission Assembly Low Speed Shaft Group
Transmission Assembly Forward And Hi 3rd And 4th
Transmission Assembly Idler Shaft Group
Transmission Assembly Output Shaft Group
Transmission Assembly Drive Plate Group
Transmission Assembly Control Valve Group
Transmission Assembly Control Valve Assembly
Transmission Assembly Disconnect Assembly – Pump
Transmission Assembly Charging Pump And Filter
Pump Assembly – Two Section Gear
Pump Assembly
Cylinder Assembly – Throttle (Complete Assembly)
Electrical Systems Installation
Harness Assembly – Engine
Disconnect Assembly – Pump
Engine Components Assembly
Quick Start Installation
Cleaner Installation – Air
Cleaner Assembly – Air (Complete Assembly)
Exhaust System Installation
Radiator Installation
Radiator Assembly
Hood Installation – Engine Cummins
Engine Hood Weld And Assembly – Cummins
Weatherstrip Installation – Engine Hood
Cooler Installation – Oil
Fan Assembly
Battery Installation
Driveline Installation
Driveline Assembly
Shaft Assembly – Drive
Tool Box Installation
Cover Installation – Battery
Indicator Installation – Rear Steer
Decking Installation
Filter Installation – Fuel/ Water Separator
Relief Valve And Parking Brake Installation
Valve Assembly – Relief
Valve Assembly – Park Brake (Complete Assembly)
Outrigger Control Valve Installation
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly
Valve Installation – Rear Axle Lockout
Divider Installation – Flow
Divider Assembly – Flow
Back-Up Alarm Installation
Hydraulic Lines Installation – Steer
Miscellaneous Decals
Decal Installation – Rt635c
Decal Installation – English Lmi
