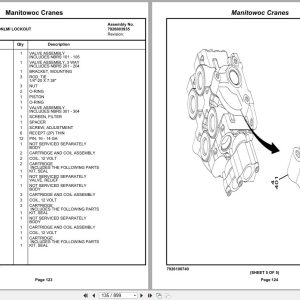

Grove Crane RT650E 229301 Parts Manual 2019

Description

Contents:
Boom Assembly – 4 Section(Complete Assembly)
Cylinder Assembly – 8 1/4″Telescope
Shaft Installation -Boom Pivot
Sheave Install-2 Over 3
Sheave Assembly (Complete Assembly)
Boom Kit – 2 Over 3
Weight And Chain Assembly (Complete Assembly)
Kit Installation – Iflex 5 Lmi Boom
Cable Reel Lwg508 – Iflex 5
Roller Guide Assembly
Box Assembly – Junction
A2b Flag Assy
Connector Assembly dummy Plug, 2-Pin
Lmi Boom Install Kit – Iflex 5
Alarm Installation – Lmi
Cable Assembly – Lmi Alarm(Complete Assembly)
Boom Covers Install
Drive Installation – Turntable And(Rotek)
Turntable Section
Drive Assembly – Swing(Complete Assembly)
Counterweight Installation – Fixed
Cylinder Installation – Lift
Cylinder Assembly – 10″ Lift(Complete Assembly)
Swivel Installation -Electric, Water And Hydraulic
Swivel Assembly -Electric, Water And Hydraulic
Swivel Assembly – 10 Port Hydraulic(Complete Assembly)
Swivel Assembly – 2 Port Water(Complete Assembly)
Ring Assembly – Slip15 Conductor
Hoist Installation – Main
Hoist Assembly (Complete Assembly)
Cable Assembly – Auxiliary Hoist Hi Speed(Complete Assembly)
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator(Complete Assembly)
Socket, 3/4” Open Wedge
Mirror Installation – Hoist
Valve Installation – Control Main And Future Auxiliary
Valve Assembly – Directional Control4 Section
Valve Assembly – 4 Stationlmi Lockout
Valve Assembly – Directional Control(Complete Assembly)
Accumulator Assembly -Hydraulic Oil
Hydraulic Lines Installation -Supply, Pressure And Return
Valve Assembly – Residual Check
Hydraulic Lines Installation – Lift(Superstructure)
Hydraulic Lines Installation -Main And Future Auxiliary Hoist
Hydraulic Lines Installation -Telescope
Hydraulic Lines Installation – Swing(Superstructure)
Hydraulic Lines Installation -Lmi
Hydraulic Lines Installation -Telescope With Future Auxiliary Hoist
Cover Installation – Valve
Hydraulic Lines Installation -Swing And Swing Brake
3rd Wrap Indicator Install – Main Hoist
Hydraulic Lines Installation -Main And Future Auxiliary
Hydraulic Lines Installation – Lift(Cab)
Kit – Lmi S/S Iflex 5
Hydraulic Lines Installation – Steer(Cab)
Kit Installation – Iflex 5 Lmi Superstructure
Limit Kit – Third Wrap(Main Hoist)
Control Unit Assembly ,Mwd 100 – Third Wrap
Minimum Layer Device,W/ Notch In Ring
Hydraulic Lines Installation -Brake
Kit Installation -3rd Wrap Limit
Valve Installation -Secondary Front Steer
Hydraulic Lines Installation – Steer(C.E. Conformity)
Bearing Bolt Installation
Mirror Installation -Turntable
Enclosure Installation – Hoist(Main)
Valve Cover Foam Install
Seal Installation – Valve Cover
Cooler Installation – Hydraulic Oil
Cooler Assembly – Hydraulic Oil(Complete Assembly)
Lines Installation – Motor Case Drainair Conditioner
Cab Installation – Rt600e3(C.E. Conformity)
Cab Assembly – Rt600e3(C.E. Conformity)
Cab (With Door Installation)
Door Installation – Cab(Not Available As Assembly)
Window Assembly – Rear(Complete Assembly)
Wiper, Motor Modified
Harness Assembly – Wiper Motor(Complete Assembly)
Harness Assembly – Skylight Wiper(C.E. Conformity)
Fan Assembly – 12 Volt Cab(Complete Assembly)
Ctrl Seat Install D.A. W/O Aux
Ctrl Seat Assy D.A. W/O Aux
Switch Assembly – Proximity(Normally Open)
Valve Assembly – Joy Stick(Complete Assembly)
Handles Installation – Control With Main Rotation Indicator
Harness Assembly – Seat(Complete Assembly)
Acoustics Install – Rt”E”
Rt”E” Series Acoustics Kit
Air Conditioning Installation (Superstructure)
Kit – Hydraulic Air Conditioner Unit12 Volt
Ce Panel Installation
Panel Installation – Front Consolert600e3
Panel Assembly – Front Console(C.E. Conformity)
Panel Assembly – Front Console Rt600e3
Harness Assembly – Console
Harness Assembly – Potentiometer(Complete Assembly)
Electrical System Installation – Superstructure Cab
Heater/Cooler Installation – Cab
Kit – Cab Heater And Air Conditioner(Complete Assembly)
Screen Installation – Sun
Pedal Installation – Brake
Valve Assembly with Treadle
Shifter Installation -Transmission
Rod Installation – Lock Pin
Valve Installation – Steer
Valve Assembly – Steering Control(Complete Assembly)
Pedal Installation – Throttle(Electric)
Kit- Rt”E” Series Cab Std Comp
Electrical System Installation – Superstructure
Harness Assembly – Superstructure(Complete Assembly)
Kit – Lmi Iflex 5 Cab
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Switch Installation -Air Conditioner
Lines Installation – Air Conditioning(Cab)
Kit – Air Conditioner Hose(Complete Assembly)
Cover Installation – Cab Rear
Plate Install- Telescope Pedal
Components Installation – Consoleelectrical
Frame Complete (Ce)
Carrier Frame – Ce
Frame Assembly – Carrier(Complete Assembly)
Beam Installation – Outrigger(Not Available As Assembly)
Beam Assembly – Outrigger(Complete Assembly)
Cylinder Assembly -4 1/2″ Outrigger Jack(Complete Assembly)
Cylinder Assembly – Outrigger Extension(Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension(Complete Assembly)
Tray Installation – Fender And Storage
Decking Installation
Hood Installation – Engine(C.E. Conformity)
Cover Assembly (Complete Assembly)
Cover Installation -Battery Box
Extension Installation – Step
Hook Block Tie-Down Installation
Mirror Installation -Rear View
Electrical System Installation – Carrier
Harness Assembly – Carrier(Complete Assembly)
Panel Assembly – Engine Relays(Complete Assembly)
Harness Assembly – Engine Relay Panel(Complete Assembly)
Hyd Tank Install W/Full Decking
Tank Assembly – Hydraulic(Complete Assembly)
Filter Assembly – Return(Complete Assembly)
Valve Installation – Hydraulicwithout Differential Lock
Valve Assembly – Outrigger Control4 Section
Valve Assembly – Selectoroutrigger And Rear Steer
Hydraulic Lines Installation – Outriggercarrier
Valve Assembly – High Speed Boost(Complete Assembly)
Hydraulic Lines Installation -Rear Axle Lockout
Hydraulic Lines Installation -Service Brakes
Hydraulic Lines Installation -Rear Steer
Hydraulic Lines Installation -Front Steer
Axle Installation – Rearwithout Differential Lock
Axle Assembly – Drive/Steerwithout Differential Lock
Axle Assembly – Drive Steerwithout Differential Lock
Diff.Carrier Group @6.83 Ratio
Housing Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3″ Steer(Complete Assembly)
Cylinder Assembly – 5″ Lockout(Complete Assembly)
Valve Assembly – Solenoid
Axle Installation – Frontwithout Differential Lock
Driveline Installation -Cummins
Driveline Assembly
Shaft Assembly – Drive
Engine Installation – Cummins Qsb6.7
Engine Assembly – Cummins Qsb6.7(Complete Assembly)
Transmission Assembly – 3 Speed12 Volt
Converter Housing Group
Case & Cover Group
Turbine Shaft/Stator Sup.Group
Torque Converter Group
Gear Group
Auxiliary Pump Drive Group
Charge Pump Drive Group
Forward Shaft Group
Reverse Idler Group
Reverse & 2nd Shaft Group
Low Speed Shaft Group
Forward High & 3rd Shaft Group
Ider Shaft Group
Thru Drive Charge Pump Group
Control Valve Mounting Group
Control Valve Assy. Group
Disc Brake Group
Output Shaft Group
Drive Plate Group
Pump Assembly -Counter Clockwise Rotation(Complete Assembly)
Pump Assembly – Piggyback Gear(Complete Assembly)
Brake Assembly – Parking(Complete Assembly)
Electrical System Installation – Engine
Harness Assembly – Engine(Complete Assembly)
Cable Kit
Disconnect Assembly – Pump
Pump Assembly – Gearwith Priority Flow Divider Set
Valve Assembly – Park Brake Range Shift(Complete Assembly)
Filter Assembly (Complete Assembly)
Radiator Installation -Cummins
Radiator Assembly – Cummins(Not Available As Assembly)
Transmission Oil Cooler/Cooler Assembly – Radiator/Charge Air
Tank Installation – Fuelwith Full Decking
Tank Assembly – 58 Gallon Fuel(Complete Assembly)
Battery Installation
Kit – Cable (Battery)Rt600e3
Exhaust Installation – Cummins(C.E. Conformity)
Cleaner Installation – Air
Cleaner Assembly – Air(Complete Assembly)
Outrigger Float Stowage Inst
Float Assembly – Outrigger
Lights Installation – Exterior
Tire And Wheel Installation
Tire And Wheel Assembly -General 23.5 X 25
Electrical System Installation with Main
Harness Assembly -Left Axle
Harness Assembly -Right Axle
Harness Assembly – Steerpressure Switch
Engine Speed Control Module(C.E. Conformity)
Cover Installation
Foam Installation – Engine Hood
Foam Installation – Decking
Engine Hood Grill Installation (C.E. Conformity)
Strainer Installation -Coolant
Carrier Harness Rework Drawing
Acoustic Panel Installation – Carrier
Miscellaneous Decals
Decal Installation – Rt600e3(Standard)
Decal Installation – Rt600e3(Standard Cab)
Decal Installation – Rt600e3(Standard Carrier)
Decal Installation – Rt600e2(Standard Superstructure)
Decal Install-Standard Boom
Decal Installation – Rt600e(Nomenclature)
Hardware Kit – Decal
