Grove Crane RT745 68967 Parts Manual 2007

Description

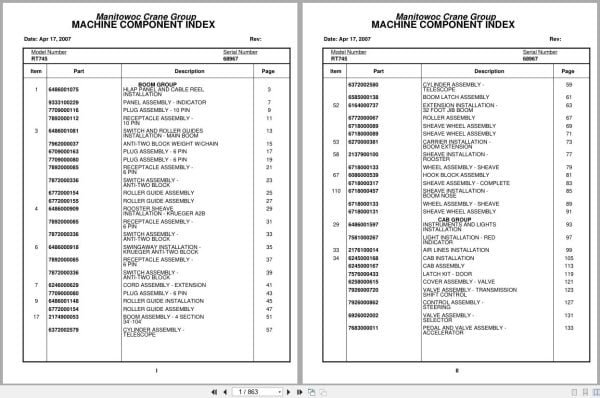

Contents:
Hlap Panel And Cable Reel Installation
Panel Assembly – Indicator
Plug Assembly – 10 Pin
Receptacle Assembly – 10 Pin
Switch And Roller Guides Installation – Main Boom
Anti-Two Block Weight W/Chain
Plug Assembly – 6 Pin
Receptacle Assembly – 6 Pin
Switch Assembly – Anti-Two Block
Roller Guide Assembly
Rooster Sheave Installation – Krueger A2b
Swing Away Installation – Krueger Anti-Two Block
Cord Assembly – Extension
Roller Guide Installation
Boom Assembly – 4 Section 34’-104’

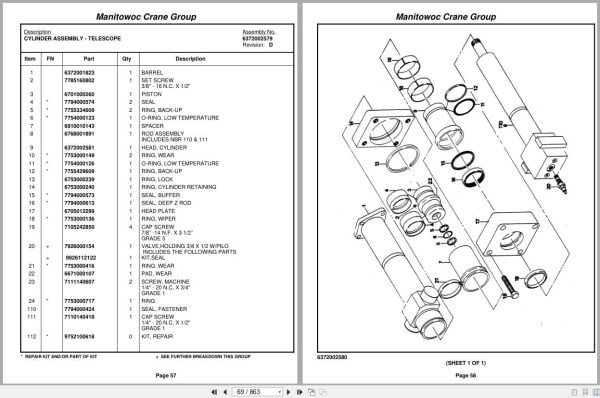

Cylinder Assembly – Telescope
Boom Latch Assembly
Extension Installation – 32 Foot Jib Boom
Roller Assembly
Sheave Wheel Assembly
Carrier Installation – Boom Extension
Sheave Installation – Rooster
Wheel Assembly – Sheave
Hook Block Assembly
Sheave Assembly – Complete
Sheave Installation – Boom Nose
Instruments And Lights Installation
Light Installation – Red Indicator
Air Lines Installation
Cab Installation
Cab Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Control Assembly – Steering
Valve Assembly – Selector
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Valve Assembly – Dual Brake
Skylight Wiper Installation
Acoustical Installation
Heater And Defroster Installation
Heater Assembly – Propane
Heater Assembly – Propane Circuit Board Assembly
Heater Assembly – Propane Fuel And Ignition Systems
Heater Assembly – Propane Remote Control Parts
Heater Assembly – Propane Control Panel Parts
Heater Assembly – Propane Motor And Blower Parts
Heater Assembly – Propane Case And Exchanger Parts
Heater Assembly – Propane Regulator And Exhaust Parts
Seat Installation
Seat Assembly
Extinguisher Installation – Fire
Mirror Installation
Valve And Pedal Installation – Swing Brake
Valve Assembly – Power Brake
Electrical System Installation
Wiring Harness Assembly
Fuse And Connector Panel Assembly
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Weatherstrip Installation – Cab
Grab Rail Installation
Plate, Mounting Installation – Load Chart
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Panel Installation – Hydraulic Test
Valve Installation – Control
Valve Assembly – 4 Section Control
Valve Assembly – Outlet
Valve Section – Inlet (A-35 Series)
Valve Assembly – Relief 1000 Psi
Relief Valve
Cartridge Assembly
Valve Bank Assembly – 1 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – Section Outlet (A-20 Series)
Valve Bank Assembly – 3 Section (A-20 Series)
Valve Assembly – Relief 2500 Psi
Valve Assembly – 2 Section Control
Lines Installation – Transmission Shift
Hydraulic Lines Installation – Free Swing
Valve Assembly – Relief
Hydraulic Schematic- Lift
Hydraulic Lines Installation – Telescope Mid
Hydraulic Lines Installation – Telescope Fly
Hydraulic Lines Installation – Main And Auxiliary Hoist
Hydraulic Lines Installation – Steer Hose
Hoist Installation – Main
Hoist Assembly – Model Ho-30b-16
Valves And Plumbing Installation – Hoist
Valve Assembly – Motor Control
Motor Assembly – Hydraulic
Brake Assembly
Cylinder Assembly – Air
Hoist Installation – Auxiliary
Idler Drum Installation (Not Available As Assembly)
Roller Assembly – Cable
Follower Installation – Cable
Cable Follower Installation
Rotation Indicator Installation – Model 30
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Turntable Drive Installation
Swing Box Assembly – Complete
Motor Assembly – Orbit
Pivot Shaft Installation – Boom
Cylinder Installation – Lift
Cylinder Assembly – 8 1/4″ Lift
Counterweight Installation
Swivel Installation – Electric/Hydraulic
Swivel Assembly – Hydraulic
Swivel Assembly – Air/Hydraulic
Ring Assembly – Slip 36 Conductor
Reel Installation – Hose
Hose Reel Assembly – Right Hand
Bearing Bolt Installation
Manifold Installation – Hydraulic
Warning System Installation
Pin Installation – Turntable Lock Installation
Cooler Installation – Hydraulic Oil
Fan Assembly – Electric
Engine Installation – Ddad 8.2l
Filter Assembly – Oil
Cylinder Assembly – Throttle
Compressor Assembly – Air
Pump Assembly – Steer
Engine Hood Assembly &
Door Assembly
Cover And Disconnect Installation – Pump
Fuel/Water Separater Installation
Fuel/Water Separater Assembly
Quick Start Installation
Radiator Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Case Assembly
Transmission Assembly Clutch And Gear Parts – Main
Transmission Assembly Disconnect Assembly
Transmission Assembly Reverse, Third, Forward And
Transmission Assembly Low Clutch Group
Transmission Assembly Control Valve Assembly
Cylinder Assembly – Air Lockout
Transmission And Torque Converter Converter Installation
Driveline Installation
Driveline Assembly
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Assembly
Axle Assembly Housing Assembly
Axle Assembly Brake Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Fail Safe Brake Chamber
Cylinder Assembly – Steer
Axle Installation – Rear
Cylinder Assembly – Lockout
Lug Nut And Washer Installation
Indicator Installation – Rear Steer
Tire And Wheel Assembly
Outrigger Installation – Front & Rear
Cylinder Assembly – Stabilizer
Cylinder Assembly – Extension
Float Assembly – Outrigger
Storage Installation – Front Outrigger Pad
Frame – 5th Wheel
Fuel Tank, Battery Box, & Cover Installation
Reservoir And Deck Installation
Front Deck Cover And Storage Well Installation
Rear View Mirror Installation
Fender Installation
Decal Installation – Rt700 Series
Grab Handle Installation
Lights And Turn Signals Installation
Electrical System Installation – Carrier
Alarm Installation – Back-Up
Valve Installation – Front Steer
Valve Installation – Rear Axle Lockout
Valve Assembly – Lockout
Outrigger Valve Installation
Valve Assembly – Sequence
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Outrigger Selector Complete Assembly
Valve Assembly – Solenoid
Air Lines Installation – Carrier
Dryer Assembly – Air
Cover Installation – Deck
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Check
Hydraulic Lines Installation – Outrigger
Relief Valve Installation – Rear Steer
