Grove Crane RT75S 43922 Parts Manual 2016

Description

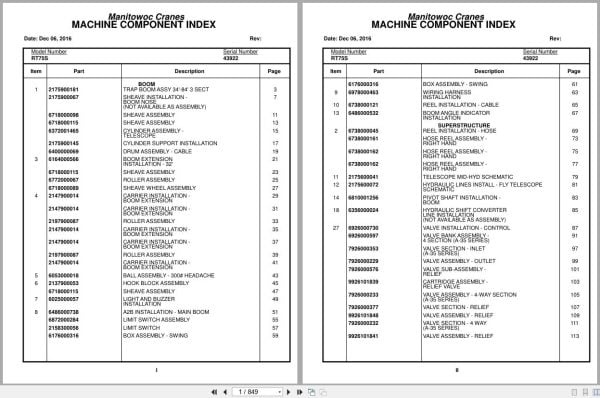

Contents:
Trap Boom Assy 34′-84′ 3 Sect
Sheave Installation – Boom Nose
Sheave Assembly
Cylinder Assembly – Telescope
Cylinder Support Installation
Drum Assembly – Cable
Boom Extension Installation – 32′
Roller Assembly
Sheave Wheel Assembly
Carrier Installation – Boom Extension
Ball Assembly – 300# Headache
Hook Block Assembly
Light And Buzzer Installation
A2b Installation – Main Boom
Limit Switch Assembly
Limit Switch
Box Assembly – Swing
Wiring Harness Installation
Reel Installation – Cable
Boom Angle Indicator Installation
Reel Installation – Hose
Hose Reel Assembly – Right Hand
Telescope Mid-Hyd Schematic
Hydraulic Lines Install – Fly Telescope Schematic
Pivot Shaft Installation – Boom
Hydraulic Shift Converter Line Installation
Valve Installation – Control
Valve Bank Assembly – 4 Section (A-35 Series)
Valve Section – Inlet (A-35 Series)
Valve Assembly – Outlet
Valve Sub- Assembly – Relief
Cartridge Assembly – Relief Valve
Valve Assembly – 4-Way Section (A-35 Series)
Valve Section – Relief
Valve Assembly – Relief
Valve Section – 4 Way (A-35 Series)
Cartridge Assembly
Valve Bank Assembly – 1 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – Section Outlet (A-20 Series)
Valve Section – 4 Way
Valve Assembly – Relief 1500 Psi
Valve Bank Assembly – 3 Section (A-20 Series)
Valve Assembly – Relief 2500 Psi
Valve Bank Assembly – 1 Section (A-35 Series)
Hoist Installation – Main
Hoist Assembly – Model Ho30b-16
Motor Assembly , Hydraulic
Valve Assembly – Selector
Valve Assembly – Motor Control
Hoist And Counterweight Installation – Auxiliary
Hoist Assembly – Model H015b-16
Gear Reduction Assembly
Motor Assembly – Hydraulic
Tubing Installation – Hoist
Idler Drum Installation (Not Available As Assembly )
Roller Assembly – Cable
Tubing Installation – Hoist (Not Available As Assembly )
Rotation Indicator Installation
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation – Grove Model 30a Main And
Tube Support Install Grove
Turntable Weldment And Drive Assembly
Swing Box And Brake Assembly
Motor Assembly – Orbit
Brake Assembly – Mechanical
Brake Assembly – Disc
Swivel Assembly And Installation
Swivel Assembly – Hydraulic
Swivel Assembly – 10 Port
Ring Assembly – Slip 32 Conductor
Manifold Installation – Hydraulic
Cylinder Installation – Lift
Cylinder Assembly – Lift
Elevation And Swing Warning Installation
Switch Assembly – Limit
Hydraulic Lines Installation – Swing

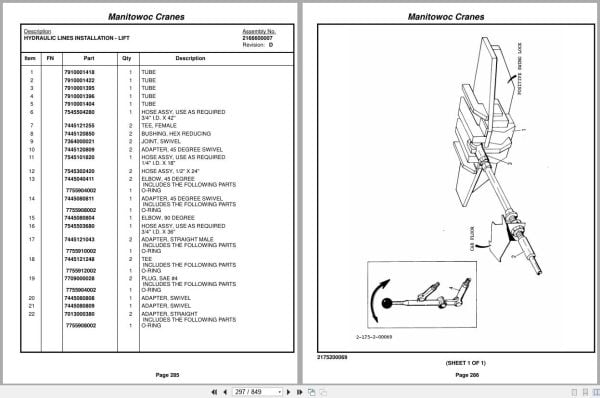

Hydraulic Lines Installation – Lift
Positive Swing Lock Installation
Lock Assembly
Bearing Bolt Installation
Cab Installation
Cab Assembly
Door Assembly
Instruments And Lights Installation
Console Assembly – Right Hand Side Front
Console Assembly – Right Hand Side Rear
Panel Assembly – Front
Panel – Right Hand Side Front
Air Brake And Throttle Lines Installation
Controls Installation (Not Available As Assembly )
Pedal Assembly
Valve, Control
Valve Assembly – Control
Valve Assembly – Transmission Shift Control
Valve Assembly
Control Assembly – (W/O Return To Center Steering)
Valve Assembly – Horn
Cover Installation
Extinguisher Installation – Fire
Fire Extinguisher Assembly
Acoustical Installation
Storage Installation – Removable Windshield
Hydraulic Lines Installation – Free Swing
Cable Installation – Parking Brake
Cable Assembly – Brake
Valve Assembly – Check
Tank Install – Emergency Air
Caterpillar 3208 Engine Assembly And Installation
Engine Assembly
Torque Converter Assembly
Pump Assembly – Steer
Cylinder Assembly – Throttle
Pump And Disconnect Installation – 4 Stage
Disconnect Assembly – Pump (Not Available As Assembly )
Pump Assembly
Engine Harness Installation -Cat 3208
Wiring Diagram Cat 3208
Fitting
Radiator And Oil Cooler Installation
Hood Assembly – Engine
Exhaust System Installation
Cleaner Installation – Air (Not Available As Assembly )
Cleaner Assembly – Air
Quick Start Installation (Not Available As Assembly )
Clutch/Lube Oil Pressure Check Point Installation
Filter Assembly – Oil
Filter Assembly – Primary Fuel
Fuel/Water Separater Installation
Fuel/Water Separater Assembly
Light And Turn Signal Installation
Wiring Harness Installation – Carrier
Transmission Installation
Transmission Assembly
Trans. Assy. Case Group
Trans. Clutch & Gear Group
Trans. Low Clutch Group
Trans. Rev.3rd & 2nd Clutch Gr
Trans. Disconnect Group
Trans. Valve Assy. Group
Driveline Installation
Driveline Assembly
Driveline (Rear Axle)
Driveline (Transmission)
Transmission And Converter Lines Installation
Axle Assembly – Front
Axle Assembly
Axle Assembly Differential Carrier Assembly
Axle Assembly Planet Spider Assembly
Axle Assembly Brake Assembly
Cylinder Assembly – Steer
Chamber Assembly – Camtite
Rear Axle Installation
Cylinder Assembly -Lockout
Axle Assembly – Rear Drive Steer
Tire And Wheel Assembly
Shifter Installation – Hi-Lo
Cylinder Assembly – Air
Valve Assembly – 3 Way Solenoid
Valve Installation – Rear Axle Lockout
Valve Installation – Front Steer
Front Steer – Hydraulic Schematic
Rear Steer – Hydraulic Schematic
Axle Lockout – Hydraulic Schematic
Outrigger And Valve- Installation
Cylinder Assembly – Stabilizer
Cylinder Assembly – Outrigger
Hydraulic Lines Installation – Outrigger
Valve, Pressure Relief
Rear View Mirror Installation
Outrigger Valve Installation
Valve Assembly – Sequence
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Outrigger Selector (Complete Assembly )
Float Assembly – Outrigger
Hydraulic Reservoir And Deck Installation
Reservoir And Deck Assembly
Fuel Tank, Battery Box,And Cover Installation
Air Tanks, Valves, And Cover Installation
Valve Assembly – Quick Release
Valve Assembly – Relay
Fenders And Storage Well Assembly And Installation
Hydraulic Lines Installation – Supply, Pressure And Return
Cover And Handle Assembly – Hydraulic Pump Disconnect
Pintle Hook Installation
Pintle Hook Assembly
Front Deck Cover And Storage Well Installation
Wiring Diagram
