Grove Crane RT760 73417 Parts Manual 2007

Description

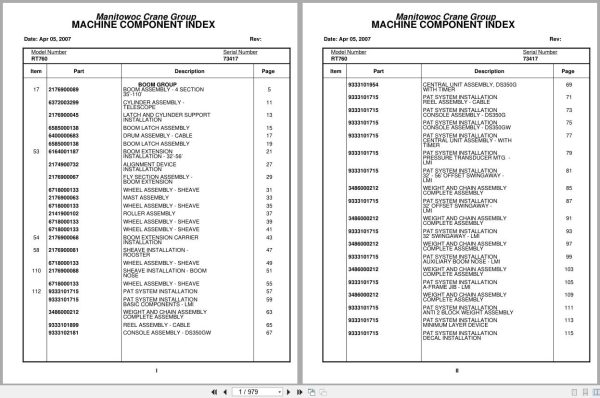

Contents:
Boom Assembly – 4 Section 35’-110’
Cylinder Assembly – Telescope
Latch And Cylinder Support Installation
Boom Latch Assembly
Drum Assembly – Cable
Boom Extension Installation – 32’-56’
Alignment Device Installation
Fly Section Assembly – Boom Extension
Wheel Assembly – Sheave
Mast Assembly
Roller Assembly
Boom Extension Carrier Installation
Sheave Installation – Rooster
Sheave Installation – Boom Nose

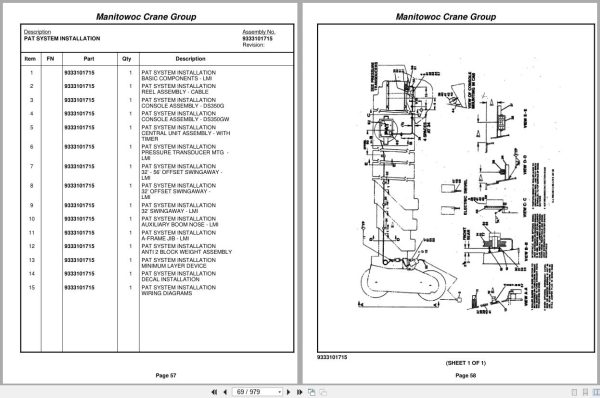

Pat System Installation
Pat System Installation Basic Components – Lmi
Weight And Chain Assembly Complete Assembly
Reel Assembly – Cable
Console Assembly – Ds350gw
Central Unit Assembly , Ds350g With Timer
Pat System Installation Reel Assembly – Cable
Pat System Installation Console Assembly – Ds350g
Pat System Installation Console Assembly – Ds350gw
Pat System Installation Central Unit Assembly – With
Pat System Installation Pressure Transducer Mtg –
Pat System Installation 32’ – 56’ Offset Swing Away –
Pat System Installation 32’ Offset Swing Away –
Pat System Installation 32’ Swing Away – Lmi
Pat System Installation Auxiliary Boom Nose – Lmi
Pat System Installation A-Frame Jib – Lmi
Pat System Installation Anti 2 Block Weight Assembly
Pat System Installation Minimum Layer Device
Pat System Installation Decal Installation
Pat System Installation Wiring Diagrams
Instruments And Lights Installation
Harness Assembly – Right Hand Side Console
Light Installation – Red Indicator
Harness Assembly – Right Hand Front Console
Harness Assembly – Left Hand Front Console
Air Lines Installation
Cab Installation
Cab Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Control Assembly – Steering
Valve Assembly – Selector
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Valve Assembly – Dual Brake
Control Lever Lockout Installation
Cylinder Assembly – Air
Skylight Wiper Installation
Acoustical Installation
Heater And Defroster Installation
Heater Assembly – Propane
Seat Installation
Seat Assembly
Extinguisher Installation – Fire
Mirror Installation
Valve And Pedal Installation – Swing Brake
Valve Assembly – Power Brake
Electrical System Installation
Harness Assembly – S/S
Harness Assembly – S/S Cab Interior
Fuse And Connector Panel Assembly
Harness Assembly – Connector Panel
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Weatherstrip Installation – Cab
Warning System Installation – Audio/Visual
Grab Rail Installation
Load Chart Manual Installation
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Panel Installation – Hydraulic Test
Control Valve And Linkage Installation
Valve Assembly – 4 Section Control
Valve Assembly – Outlet
Valve Section – Inlet (A-35 Series)
Valve Assembly – Relief 1000 Psi
Relief Valve
Cartridge Assembly
Valve Assembly – 1 Section Control
Valve Assembly – Section Outlet (A-20 Series)
Valve Bank Assembly – 3 Section (A-20 Series)
Valve Assembly – Section Inlet (A-20 Series)
Valve Assembly – Relief 2500 Psi
Valve Assembly – 2 Section Control
Lines Installation – Transmission Shift
Hydraulic Lines Installation – Free Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Telescope Mid
Hydraulic Lines Installation – Telescope Fly
Hydraulic Lines Installation – Hoist
Hydraulic Lines Installation – Steer Hose
Hoist Installation
Hoist Assembly – Model Ho-30b-26
Motor Assembly – Hydraulic
Brake Assembly
Hoist Installation – Auxiliary
Hoist Assembly – Model Ho-30b-16
Valves And Plumbing Installation – Hoist
Valve Assembly – Motor Control
Idler And Cable Follower Installation
Cable Follower Installation
Rotation Indicator Installation – Model 30
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Indicator Installation – Hoist Rotation
Turntable Drive Installation
Box Assembly – Swing
Motor Assembly – Orbit
Brake Assembly – Swing
Pivot Shaft Installation – Boom
Cylinder Installation – Lift
Cylinder Assembly – 9″ Lift
Counterweight Installation
Swivel Installation – Electric/Hydraulic
Swivel Assembly – 11 Port Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Reel Installation – Hose
Hose Reel Assembly – Right Hand
Bearing Bolt Installation
Manifold Installation – Hydraulic
Warning System Installation
Pin Installation – Turntable Lock Installation
Lock Installation – Swing
Lock Assembly – Swing
Engine Installation – Caterpillar 3208
Radiator And Oil Cooler Installation
Exhaust System Installation
Cleaner Installation – Air (Not Available As Assembly)
Cleaner Assembly – Air
Clutch/Lube Oil Pressure Check Point Installation
Battery Installation
Filter Assembly – Oil
Torque Converter Assembly
Pump Assembly – Steer
Cylinder Assembly – Throttle
Pump And Disconnect Installation – 4 Stage
Disconnect Assembly – Pump (Not Available As Assembly)
Pump Assembly
Harness Assembly – Engine
Link Assembly – Fusible
Fitting
Starter Installation (Not Available As Assembly)
Engine Hood Assembly &
Door Assembly
Cover And Disconnect Installation – Pump
Fuel/Water Separater Installation
Fuel/Water Separater Assembly
Quick Start Installation
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Case Assembly
Transmission Assembly Clutch And Gear Parts – Main
Transmission Assembly Disconnect Assembly
Transmission Assembly Reverse, Third, Forward And
Transmission Assembly Low Clutch Group
Transmission Assembly Control Valve Assembly
Cylinder Assembly – Air Lockout
Transmission And Torque Converter Converter Installation
Driveline Installation
Driveline Assembly
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Assembly
Axle Assembly Housing Assembly
Axle Assembly Brake Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Fail Safe Brake Chamber
Cylinder Assembly – Steer
Axle Installation – Rear
Cylinder Assembly – Lockout
Valve Installation – Rear Axle Lockout
Valve Assembly
Valve Assembly Transmission
Tire And Wheel Assembly
Lug Nut And Washer Installation
Rear Steer Indicator Installation
Switch Assembly – Limit
Outrigger Beam Installation
Cylinder Assembly – 6″ Outrigger Jack Complete Assembly
Cylinder Assembly – 2 1/2″ Outrigger Extension
Float Assembly – Outrigger
Storage Installation – Front Outrigger Pad
Frame – 5th Wheel
Decal Installation – Rt700 Series
Tank Installation – Fuel
Reservoir And Deck Installation
Front Deck Cover And Storage Well Installation
Rear View Mirror Installation
Fender Installation
Grab Handle Installation
Lights And Turn Signals Installation
Wiring Harness Assembly – Carrier Frame
Alarm Installation – Back-Up
Valve Installation – Front Steer
Valve Assembly – Relief
Outrigger Valve Installation
Valve Assembly – Sequence
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Outrigger Selector Complete Assembly
Valve Assembly – Solenoid
Air Lines Installation – Carrier
Dryer Assembly – Air
Cover Installation – Deck
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Check
Hydraulic Lines Installation – Outrigger
Relief Valve Installation – Rear Steer
