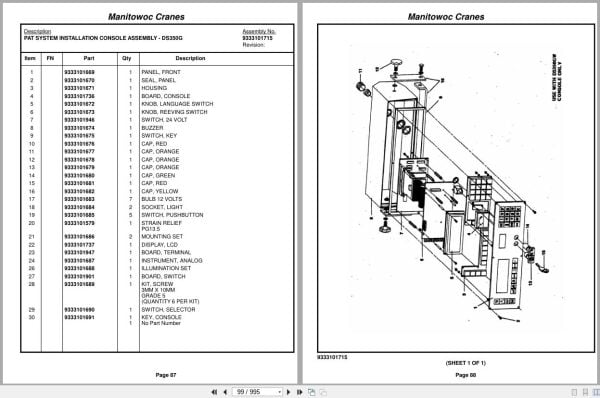

Grove Crane RT760 78394 Parts Manual 2014

Description

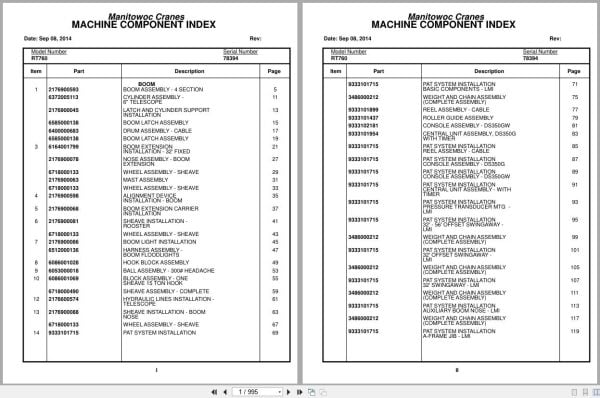

Contents:
Boom Assembly – 4 Section
Cylinder Assembly – 6″ Telescope
Latch And Cylinder Support Installation
Boom Latch Assembly
Drum Assembly – Cable
Boom Extension Installation – 32′ Fixed
Nose Assembly – Boom Extension
Wheel Assembly – Sheave
Mast Assembly
Alignment Device Installation – Boom
Boom Extension Carrier Installation
Sheave Installation – Rooster
Boom Light Installation
Harness Assembly – Boom Floodlights
Hook Block Assembly
Ball Assembly – 300# Headache
Block Assembly – One Sheave 15 Ton Hook
Sheave Assembly – Complete
Hydraulic Lines Installation – Telescope
Sheave Installation – Boom Nose
Pat System Installation
Pat System Installation Basic Components – Lmi
Weight And Chain Assembly (Complete Assembly)
Reel Assembly – Cable
Roller Guide Assembly
Console Assembly – Ds350gw
Central Unit Assembly , Ds350g With Timer
Pat System Installation Reel Assembly – Cable
Pat System Installation Console Assembly – Ds350g
Pat System Installation Console Assembly – Ds350gw
Pat System Installation Central Unit Assembly – With
Pat System Installation Pressure Transducer Mtg –
Pat System Installation 32′ – 56′ Offset Swing Away –
Pat System Installation 32′ Offset Swing Away –
Pat System Installation 32′ Swing Away – Lmi
Pat System Installation Auxiliary Boom Nose – Lmi
Pat System Installation A-Frame Jib – Lmi
Pat System Installation Anti 2 Block Weight Assembly
Pat System Installation Minimum Layer Device
Pat System Installation Decal Installation
Pat System Installation Wiring Diagrams
Pivot Shaft Installation – Boom
Hydraulic Lines Installation – Telescope Mid
Hydraulic Lines Installation – Steer Hose
Panel Installation – Hydraulic Test
Lines Installation – Transmission Shift
Control Valve And Linkage Installation
Valve Bank Assembly – 4 Section
Valve Assembly – Outlet
Valve Assembly
Valve Assembly – 3 Section
Valve Assembly – Relief 2500 Psi
Valve Assembly – 2 Section Control
Hoist Installation – Main And Auxiliary
Hoist Assembly – Ho30b – 26g
Hoist Assembly – Model Ho30b-26g
Motor Assembly – Hydraulic
Brake Assembly
Cylinder Assembly – Air
Valves And Plumbing Installation – Hoist
Valve Assembly – Motor Control
Valve Assembly – Selector
Cable Follower Installation
Idler Drum Installation – 30b-26g
Hoist Installation – Ho30b-16g
Counterweight Installation
Reel Installation – Hose
Reel Assembly – Hose
Indicator Installation – Ho30b Hoist Rotation
Indicator Installation – Hoist Rotation
Hydraulic Lines Installation – Main And Auxiliary Hoist
Sk921586
Turntable Drive Installation
Box Assembly – Swing
Swing Box And Brake Assembly
Brake Assembly – Swing
Motor Assembly – Orbit
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Cylinder Installation – Lift
Cylinder Assembly – 9″ Lift
Swivel Installation – Electric/Hydraulic
Swivel Assembly – 11 Port Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Bearing Bolt Installation
Manifold Installation – Hydraulic
Warning System Installation
Pin Installation – Turntable Lock Installation
Hydraulic Lines Installation – Free Swing
Hydraulic Lines Installation – Lift
Cooler Installation – Hydraulic Oil
Fan Assembly – Electric
Lock Installation – Swing
Lock Assembly – Swing
Cab Installation
Cab Assembly
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Valve Assembly – Steering Control
Shaft Assembly – Pivot
Lockout Installation – Automatic Control Lever
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Air Lines Installation –
Spotlight Installation
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab (Complete Assembly)
Weatherstrip Installation – Cab
Warning System Installation – Audio/Visual
Grab Rail Installation
Load Chart Manual Installation
Sk930814
Instruments And Lights Installation
Sk930832
Wiring Diagram
Harness Assembly – Right Hand Side Console
Harness Assembly – Right Hand Front Console
Harness Assembly – Left Hand Front Console
Sk930790
Reservoir Heater Installation – Hydraulic
Skylight Wiper Installation
Acoustical Installation
Heater And Defroster Installation
Heater Assembly – Diesel
Heater Assembly – Diesel Exhaust Parts
Heater Assembly – Diesel Case And Heater Exchanger
Heater Assembly – Diesel Parts
Heater Assembly – Diesel Fuel And Ignition Systems
Heater Assembly – Diesel Control Panel Parts
Heater Assembly – Diesel Circuit Board Parts
Heater Assembly – Diesel Carburetor Parts
Heater Assembly – Diesel Motor And Blower Parts
Heater Assembly – Diesel Remote Control Parts
Rotating Light Installation
Seat Installation
Seat Assembly
Extinguisher Installation – Fire
Mirror Installation
Electrical System Installation
Harness Assembly – S/S
Harness Assembly – S/S Cab Interior
Fuse And Connector Panel Assembly
Harness Assembly – Connector Panel
Decal Installation
Rear View Mirror Installation
Sk930803
Engine Installation – Cat 3208t
Filter Assembly – Oil
Torque Converter Assembly
Pump Assembly – Steer
Fitting
Fuel/Water Separater Installation
Wiring Harness Assembly – Carrier Frame
Quick Start Installation
Sk930800
Radiator Installation
Sk930780
Muffler Installation
Sk930781
Cleaner Installation – Air
Cleaner Assembly – Air
Clutch/Lube Oil Pressure Check Point Installation
Sk930820
Battery Installation
Pump And Disconnect Installation – 4 Stage
Disconnect Assembly – Pump (Not Available As Assembly)
Pump Assembly
Harness Assembly – Engine
Link Assembly – Fusible
Starter Installation (Not Available As Assembly)
Sk930878
Electrical Box Installation
Sk900031
Transmission Oil Cooler Installation
Cooler Assembly – Oil
Transmission Installation
Transmission Assembly
Transmission Assembly Front Cover And Case Assembly
Transmission Assembly Clutch And Gear Parts – Main
Transmission Assembly Disconnect Assembly
Transmission Assembly Reverse, Third, Forward And
Transmission Assembly Low Clutch Group
Transmission Assembly Control Valve Assembly
Valve Assembly Transmission
Cylinder Assembly – Air Lockout
Driveline Installation
Driveline Assembly
Axle Installation – Front
Axle Assembly
Axle Assembly Differential Carrier Parts
Axle Assembly Housing Parts
Axle Assembly Shaft And Hub Parts
Axle Assembly Brake Parts – Left Hand
Axle Assembly Brake Parts – Right Hand
Cylinder Assembly – Steer
Valve Installation – Front Steer
Axle Installation – Rear
Cylinder Assembly – Lockout
Axle Assembly Differential Carrier Assembly
Axle Assembly Housing Assembly
Axle Assembly Brake Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Fail Safe Brake Chamber
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Tire And Wheel Assembly
Rim Assembly – Wheel
Lug Nut And Washer Installation
Rear Steer Indicator Installation
Switch Assembly – Limit
Hydraulic Lines Installation – Front Steer
Hydraulic Lines Installation – Rear Steer
Hydraulic Lines Installation – Axle Lockout
Relief Valve Installation – Rear Steer
Outrigger Beam Installation
Cylinder Assembly – 6″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – 2 1/2″ Outrigger Extension
Outrigger Valve Installation
Valve Assembly – Sequence
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Outrigger Selector (Complete Assembly)
Valve Assembly – Solenoid
Float Assembly – Outrigger
Hydraulic Lines Installation – Outrigger
Cover And Disconnect Installation – Pump
Air Lines Installation – Carrier
Dryer Assembly – Air
Cover Installation – Deck
Fender Installation
Grab Handle Installation
Lights And Turn Signals Installation
Pintle Hook Installation
Pintle Hook Assembly
Hydraulic Lines Installation – Supply, Pressure And Return
Valve Assembly – Check
Alarm Installation – Back-Up
Sk930761
Fuel Tank Installation
Sk930792
Reservoir Installation – Hydraulic
Cover Assembly – 16 1/4″ Inspection Inspection
Sk900960
Front Deck Cover And Storage Well Installation
Storage Well Cover
Sk930833
Storage Installation – Rear Outrigger Pad
Sk930812
Hood Installation – Engine
Door Assembly
Decal Install-Spanish/78394
Decal Installation – Spanish Lmi
