Grove Crane RT760E 231651 Parts Manual 2011

Description

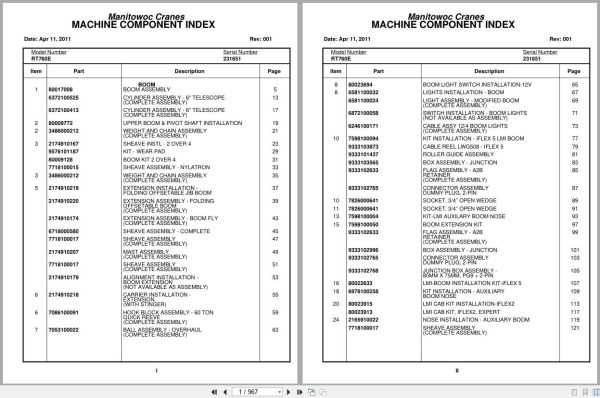

Contents:
Boom Assembly

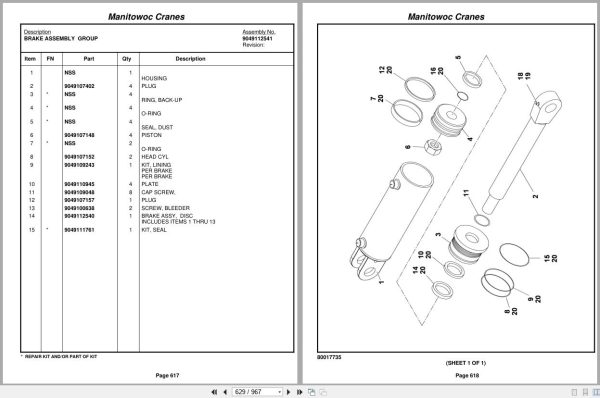

Cylinder Assembly – 6″ Telescope (Complete Assembly)
Upper Boom & Pivot Shaft Installation
Weight And Chain Assembly (Complete Assembly)
Sheave Install – 2 Over 4
Kit – Wear Pad
Boom Kit 2 Over 4
Sheave Assembly – Nylatron
Extension Installation – Folding Offset Table Jib Boom
Extension Assembly – Folding Offset Table Boom
Extension Assembly – Boom Fly (Complete Assembly)
Sheave Assembly – Complete
Sheave Assembly (Complete Assembly)
Mast Assembly (Complete Assembly)
Alignment Installation – Boom Extension
Carrier Installation – Extension
Hook Block Assembly – 60 Ton Quick Reeve
Ball Assembly – Overhaul (Complete Assembly)
Boom Light Switch Installation -12v
Lights Installation – Boom
Light Assembly – Modified Boom (Complete Assembly)
Switch Installation – Boom Lights (Not Available As Assembly)
Cable Assy 12/4 Boom Lights (Complete Assembly)
Kit Installation – Iflex 5 Lmi Boom
Cable Reel Lwg508 – Iflex 5
Roller Guide Assembly
Box Assembly – Junction
Flag Assembly – A2b Retainer
Connector Assembly Dummy Plug, 2-Pin
Socket, 3/4’’ Open Wedge
Kit-Lmi Auxiliary Boom Nose
Boom Extension Kit
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Lmi-Boom Installation Kit-Iflex 5
Kit Installation – Auxiliary Boom Nose
Lmi Cab Kit Installation -Iflex2
Lmi Cab Kit, Iflex2, Expert
Nose Installation – Auxiliary Boom
Extension Installation – Boom
Stop Block Install
Turntable Weld And Drive Installation (Rotek)
Swing Box Assembly – Model Pg702 Ps
Swing Lock Installation
Swing Lock Cast Assembly
Swivel Installation Hydraulic, Water, Electric & A/C
Control Valve Without Counterweight Removal
Directional Control Valve
Pressure Reducing Valve W/Sol
Valve Assembly – Dual Accumulator Charge
Supply Pressure And Return Hydraulic Lines Installation
Valve Assembly – Residual Check
Bearing Bolt Installation
Hydraulic Lines Installation -Lift (Superstructure)
Main And Auxiliary Hoist Hydraulic Lines Installation
Rope, Wire
Tele Hydraulic Lines Installation (Superstructure)
19mm Rope 35x7x153m
Lmi Hydraulic Lines Installation (Superstructure)
Hoist Installation -Main & Auxiliary
Hoist Assembly
Hydraulic Lines Installation Tele With Auxiliary Hoist
Binder Installation
Hydraulic Lines Installation Swing
Beacon Light Installation
Light Assembly – Modified Strobe (Complete Assembly)
Hydraulic Lines Installation Main And Auxiliary Hoist
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi Superstructure
Air Condition Installation -Ss
Air Cond Lines Kit – S/S
A/C Condenser-Vertical Mount
Cover Installation – Valve
Electrical System Installation Rt700et4
Harness Assembly -Superstructure Rt700et4
Diode (Modified)
Cylinder Installation – Lift
Cylinder Assembly – 12″ Bore Lift (Complete Assembly)
Valve Assembly – 3/4 Holding (Complete Assembly)
Hoist Access Platform-Superstructure
Hoist Access Plat.- Cwt Comps.
Crane Star Installation -Superstructure
Tcu And Sat Antenna Kit
Swing Hydraulic Lines Installation (Superstructure)
Cab Assembly (12v) Purchased
Cab Sub- Assembly – (Sg-12v)
Glass Door Assembly
Skylight Assembly – Sliding (Complete Assembly)
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Kit – Wiper Skylight 12 Volt
Wiper Kit – Front 12 Volt
Fan Assembly – 12 Volt Cab (Complete Assembly)
Heater Installation 12v
Kit, Heater/Cool 12v.
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Acoustics Installation (Sg)
Cab Crane Star Installation
Control Seat Installation Single Axis With Auxiliary Hoist
Control Seat Assembly Single Axis With Auxiliary Hoist
Switch Assembly – Proximity (Normally Open)
Single Axis Controller
Handle Assembly (W/Solenoid)
Harness Assembly -Seat
Heater And Air Conditioning Control Panel Installation
Plastic Covers Installation
Pin Lock Cable Installation
Pedal Installation – Boom Telescope
Tredal Valve Assembly – Bi Directional Hydraulic Proportional Remote
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Hydraulic Lines Installation Lift Cab
Lock Pin Installation
Heater Lines Installation -Cab
Hydraulic Lines Installation -Steer (Cab)
Supply, Pressure And Return Hydraulic Lines Installation -Cab
Hydraulic Lines Installation -Brake (Cab)
Hydraulic Lines Installation -Carrier Rear Steer
Lmi Internal Light Bar Installation
Electrical System Installation -Cab
Panel Assembly -Fuse & Relay
Harness Assembly -Fuse & Relay
Panel Assembly -Cab Overhead
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Rear Cab Cover Installation
Cab Grab Handle Rework
Sw Install T4 Regen Permit/Inhib
Cab Installation -Components
Carrier Frame Complete
Frame Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cylinder Assembly -4 1/2″ Outrigger Jack (Complete Assembly)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender Installation
Engine Hood Installation
Counterweight Installation -Fxd
Outrigger Float Stowage Installation
Float Assembly – Outrigger
Lights Installation – Exterior
Tie Down Installation – Hook Block
Mirror Installation – Rear View
Step Installation
Hook Installation – Pintle
Hook Assembly – Pintle (Complete Assembly)
Esi-Carrier
Harness Assembly -Carrier
Supplemental Install-120 Ohm Resistor
Supplemental Harness Assembly -Carrier 120 Ohm Resistor
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Hyd. Return Filter Assembly
Washer Bottle Installation
Hydraulic Valve Installation -Carrier Without Differential
Valve Assembly – Outrigger Control 4 Section
Valve Assembly – Outrigger Selector (Complete Assembly)
Valve Assembly – Double Solenoid
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Manifold Assy, Motor Control
Valve, Flow Adjustable
Valve Assy, Fan Bypass
Hydraulic Lines Installation -Carrier (Outrigger)
Supply, Pressure And Return Hydraulic Lines Installation -Carrier
Valve Assembly – High Speed Boost (Complete Assembly)
Hydraulic Lines Installation Rear Axle
Hydraulic Lines Installation – Service Brake (Disc)
Outrigger Controller Installation
Outrigger Controller Assembly -Right
Cable Assembly
Hydraulic Lines Installation -Carrier Front Steer
Axle Disc & Park Brake Line Installation
Rear Axle Installation – Without Differential (Hdb)
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Assy. Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Front Axle Installation With Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Cylinder Assembly – 4.00 Steer
Brake Assembly -Parking
Tire And Wheel Installation – 29.5 X 25 General
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Driveline Installation
Coupling Shaft
Driveline Assembly (Complete Assembly)
Front Lower Slip Shaft
Cac Installation Rt700e4
Cac Assembly Rt700e4
Charge Air Cooler Assembly
Air Condition Installation -Carrier
Freon Compressor-12v W/Pad Mtg
A/C Hose Kit Carrier
Exhaust Cover Installation
Fuel Tank & Step Installation (Tier 4)
Tank Assembly – Fuel (Complete Assembly)
Mounting Kit – Oil Cooler
Battery Box Installation
Cable Kit Batteries Rt700et4
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exhaust System Installation -Tier 4
Warning Light-Modified
Air Intake Installation
Air Cleaner Assembly
Pump Disconnect Installation
Pump Disconnect Assembly
Oil Cooler Installation
Block Heater Installation -Qsb 120v
Radiator Installation
Radiator Assembly
Decal Installation -Rt700e4 Standard
Decal Installation -Rt700e4 Standard Cab
Decal Installation -Rt700e4 Standard Carrier
Decal Installation -Rt700e4 Standard Superstructure
Decal Installation -Rt700e4 Standard Boom
Decal Installation -Rt700e Nomenclature
Rt700e4 Dec001
Rt700e4 Series Decal Install
Decal Installation -Rt700e4 Foreign Standard
Decal Installation -Rt760e Nomenclature
Decal Installation -Rt700e2 (Spanish)
Decal Installation -Rt700e4 (French)
Decal Install Supplemental
Decal Installation – Rt700e2 Counterweight Removal
Hardware Kit – Decal
Kit, Lmi S/S Iflex 5
