Grove Crane RT765E-2 4 SECT 236750 Parts Manual 2019

Description

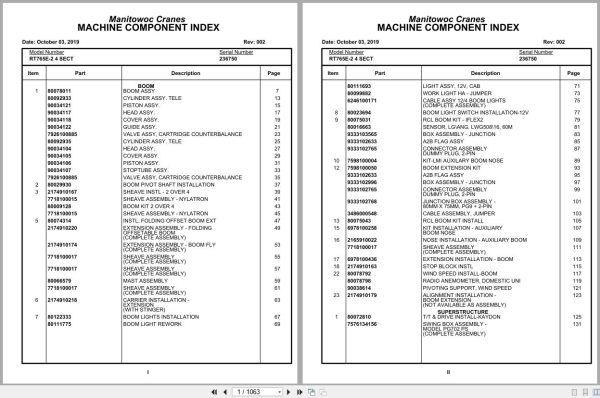

Contents:
Boom Assy
Cylinder Assy. Tele
Piston Assy.
Head Assy.
Cover Assy.
Guide Assy.
Valve Assy, Cartridge Counterbalance
Stop Tube Assy.
Boom Pivot Shaft Installation
Sheave Install – 2 Over 4
Sheave Assembly – Nylatron
Boom Kit 2 Over 4
Install, Folding Offset Boom Ext
Extension Assembly – Folding Offset Table Boom
Extension Assembly – Boom Fly(Complete Assembly)
Sheave Assembly (Complete Assembly)
Mast Assembly
Carrier Installation -Extension
Boom Lights Installation
Boom Light Rework
Light Assy, 12v, Cab
Work Light Ha – Jumper
Cable Assy 12/4 Boom Lights(Complete Assembly)
Boom Light Switch Installation -12v
Rcl Boom Kit – Iflex2
Sensor, LgAng, Lwg50816, 60m
Box Assembly – Junction
A2b Flag Assy
Connector Assembly dummy Plug, 2-Pin
Kit-Lmi Auxiliary Boom Nose
Boom Extension Kit
Junction Box Assembly -80mm X 75mm, Pg9 + 2-Pin
Cable Assembly , Jumper
Rcl Boom Kit Install
Kit Installation – Auxiliary Boom Nose
Nose Installation – Auxiliary Boom
Extension Installation – Boom
Stop Block Install
Wind Speed Install-Boom
Radio Anemometer, Domestic Uni
Pivoting Support, Wind Speed
Alignment Installation -Boom Extension
T/T & Drive Install-Kaydon
Swing Box Assembly -Model Pg702 Ps
Swing Lock Install
Swing Lock Assy
Hydr,Water,Elec&A/C Swivel Ins
Electric, Water & Hydraulic Swivel Assembly
Swivel Assy-14 Port Hyd Assy.
Slip Ring Assembly
Control Valve Installation without Counterweight Removal
Directional Control Valve
Valve Assy. Inlet Section
Valve Assy. Work Section
End Cap Assy.
Valve Assy. Outlet Section
Pressure Reducing Valve W/Sol
Dual Accumulator Charge Valve
Hydraulic Lines Installation -Ss Supply, Pressure And Return
Valve Assembly – Residual Check
19mm Rope 35x7x153m
Bearing Bolt Installation
Lift Hydraulic Lines Installation (Superstructure)
Hyd Lines Install, Main & Aux
Socket, 3/4” Open Wedge
Tele Hydraulic Lines Installation (Superstructure)
Valve Assy. Boom Lock
Rcl Hyd Lines Install – S/S
Hoist Installation main & Auxiliary With 3rd Wrap
Ghp30a Hoist Assy W 3rd Wrap
Hydraulic Lines Installation tele With Auxiliary Hoist
Binder Installation
Hydraulic Lines Installation swing
Beacon Light Installation
Light Assembly – Modified Strobe(Complete Assembly)
Lock Pin Installation
Hydraulic Lines Installation main And Auxiliary Hoist
Valve Cover Installation
Hoist Mirror Installation
Rcl S/S Kit Installation
Lmi S/S Kit – Iflex 2
Air Condition Installation -Ss
Air Cond Lines Kit – S/S
A/C Condenser-Vertical Mount
Valve Cover Comps Installation
Esi, S/S Rt765e-2
Harness Assembly -Superstructurert700et4
Diode (Modified)
Wiring Harness, Main Hoist Sw
360 Swing Lock Pedal Install
Foot Pedal
Hoist Access Platf – S/S Comps
Swing Hydraulic Lines Installation (Superstructure)
Supp Esi, S/S
Wiring Harness, Aux Hoist Sw
Counterweight Install-Fixed
Lift Cylinder Installation
Cyl Assy 12.00″ Bore-Lift
Valve – Lift Cyl Pilot Hold
Hoist Access Plat.- Cwt Comps.
Cab Assy – (12v)
Sub Assy – Cab Std 12v
Glass Door Assembly
Sliding Skylight
Sliding Glass Sub/Assy.
Window Assy. Rh Side
Glass Assy. Sliding
Glass Assy. Fixed
Window Assy-Rear
Kit – Wiper Skylight 12 Volt
Wiper Kit – Front 12 Volt
Fan Assembly -12v (Cab)
Cab Hvac Install – 12v
12v Cab Hvac Kit (Large Core)
Superstructure Cab – 12vmiscellaneous Parts Installation
Cab Brackets Installation
Pedal Group Installation
Valve Assembly – Theadle Swing
Valve-Brake Pedal
Acoustics Installation (Sg)
Plug Installation
Ctrl Seat Install S.A. W/Aux
Control Seat Assembly single Axis With Auxiliary Hoist
Switch Assembly – Proximity(Normally Open)
Single Axis Controller
Handle Assy. W/Solenoid
Harness Assembly -Seat
Seat
Heater & Air Condition Control Panel Installation
Heat Ac Control 12v/24v Grove
Plastic Covers Installation
Assy, Hoist Indicator Panel
Pin Lock Cable Installation
Pedal Installation – Boom Telescope
Tredal Valve Assembly – Bi Directional Hydraulic Proportional Remote Control
Install, Drive Controls
Steering Column W/ Cluster
Valve Assembly – Steering Control(Complete Assembly)
Washer Bottle Installation
Hydraulic Lines Installation lift Cab
Heater Lines Installation -Cab
Hydraulic Lines Installation -Steer(Cab)
Supply, Pressure And Return Hydraulic Lines Installation -Cab
Hydraulic Lines Installation -Brake(Cab)
Lmi Internal Light Bar Installation
Rcl Cab Kit Installation
Lmi Cab Kit, Iflex2, Expert
Esi-Cab
Fuse & Relay Panel Assembly
Ha – Fuse & Relay
Control Panel O/H Console
Harness Assembly -Overhead Cab Panel
Front Console Panel Assembly
Ha-Cab Frt Panel Assy
Harness Assembly -Cab Interior
Wiring Harness, Hst Ind. Power
Indicator Installation -3rd Wrap
Cab Cover Install-Rr
Grab Handle Installation
Cab Installation s-Components
Wind Speed Install – Cab
Wind Speed Display,Domestic/Fc
Wind Speed Harness
Carrier Frame
Frame Assembly
Outrigger Beam Installation
Outrigger Beam – Assembly
Cyl Assembly -4.50 Jack
Fender & Deck Install W/Mat
Engine Hood Installation
Assy – Engine Hood
Outrigger Float Installation
Outrigger Float Assembly
Lights Installation – Exterior
Light Assembly -12v
Headlamp Jumper Harness
Overhaul Weight Assy.
Tie Down Installation – Hook Block
Mirror Installation -Rear View
Step Installation
Carrier Esi
Harness Assembly -Carrier
Install, Hydraulic Reservoir
Assy, Hydraulic Reservoir
Hyd. Return Filter Assembly
Hyd Vlve Inst-Carrier W/O Diff
Valve Assembly – Outrigger Control4 Section
Valve Assembly – Outrigger Selector(Complete Assembly)
Double Solenoid Valve 12v
Valve Assembly – Park Brake Range Shift(Complete Assembly)
Motor Control Manifold – 12v
Valve, Flow Adjustable
Valve Assy, Fan Bypass
O/R Hyd Lines-Carr
S,P&R Hyd Lines Install Carrier
Valve-Hi Speed Boost (12v)
Rear Axle L/O Hyd Lines Install
Serv Brake Hyd Lines-Disc
Rear Steer Hyd Lines Install-Car
Outrigger Controller Installation
Outrigger Controller Assembly
Cable Assembly
Frt Steer Hyd Lines Install-Carr
Axle Disc & Park Brake Lines
Rear Axle Installation -Without Differential (Hdb)
Axle Assembly – Rear Drive Steer Without Differential Lock
Diff. Carrier Group
Housing, Assy. Group
Hub & Shaft Group
Brake Group
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer(Complete Assembly)
Cylinder Assy. – Lockout
Front Axle Installation with Standard Differential
Axle Assembly – Front Drive Steer Without Differential Lock
Brake Group 4,Set
Cylinder Assembly – 4.00 Steer
Park Brake Assembly
Brake-Park Assy W/O Spacer
Install,T&W 29.50×25 Titan (Hdb)
T & W Assy 29.5×25 Titan
Driveline Installation
Coupling Shaft
Driveline Assembly (Complete Assembly)
Front Lower Slip Shaft
Engine Installation
Engine Assy
Transmission Assembly
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft Group
Torque Converter Group
Pump Drive Group
Forward & Reverse Gear Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Reg.& Charge Pump Mtg. Group
Pressure Regulator Group
Charge Pump Assy. Group
Electric Control & Cover Group
Control Valve Assy. Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Flange Group – Output
Pump Assy.2 Sec Gear-Piggyback

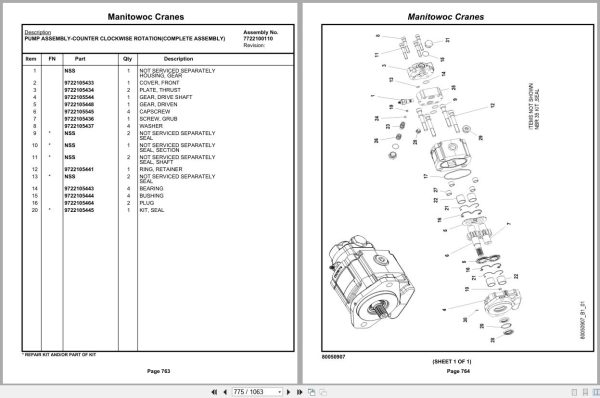

Pump Assembly -Counter Clockwise Rotation(Complete Assembly)
Gear Pump W/Priority Flow C.W.
Filter Assembly (Complete Assembly)
Cac Install
Cac Assembly
A/C Install-Carrier
Freon Compressor-12v W/Pad Mtg
Exhaust Cover Installation
Fuel Tank Installation -T3
Fuel Tank
Battery Box Installation
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exhaust System Installation tier 3
Air Intake Installation – T3
Air Cleaner Assembly
Oil Cooler Installation
Oil Cooler Assembly
Trans Oil Temp Gauge Install
Harness Jumper
Block Heater Installation -Qsb 240v
Radiator Installation – T4f
Radiator Assembly T4f
Coolant Lines Install
Edge Guard Installation
Fan Installation
Esi – Engine
Wiring Harn-Engine Tier 3
Alternator Installation
Trans Oil Temp Gauge Rework
Supp Harness Assy-Carrier
Weight-Lmi A2b
Hook Block Wll 60 Mtons
Cover Plate Installation
Miscellaneous Decals
Decal Install-Rt765e-2 Forgn Std
Decal Install-Nomenclature
Decal Installation -Es
