Grove Crane RT875 76113 Parts Manual 2005

Description

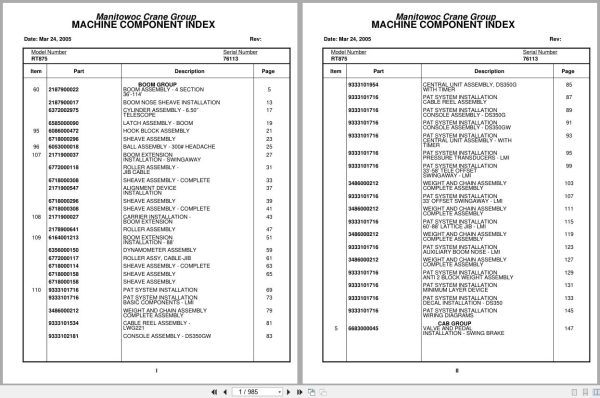

Contents:
Boom Assembly – 4 Section 36’-114’
Boom Nose Sheave Installation
Cylinder Assembly – 6.50’’ Telescope
Latch Assembly – Boom
Hook Block Assembly
Sheave Assembly
Ball Assembly – 300# Headache
Boom Extension Installation – Swing Away
Roller Assembly – Jib Cable
Sheave Assembly – Complete
Alignment Device Installation
Carrier Installation – Boom Extension
Roller Assembly
Boom Extension Installation – 88’
Dynamometer Assembly
Roller Assy, Cable-Jib
Pat System Installation

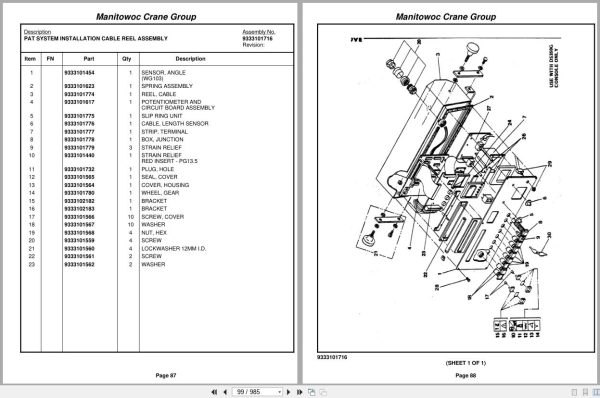

Pat System Installation Basic Components – Lmi
Weight And Chain Assembly Complete Assembly
Cable Reel Assembly – Lwg221
Console Assembly – Ds350gw
Central Unit Assembly , Ds350g With Timer
Pat System Installation Cable Reel Assembly
Pat System Installation Console Assembly – Ds350g
Pat System Installation Console Assembly – Ds350gw
Pat System Installation Central Unit Assembly – With
Pat System Installation Pressure Transducers – Lmi
Pat System Installation 33’-58’ Tele Offset
Pat System Installation 33’ Offset Swing Away – Lmi
Pat System Installation 60’-88’ Lattice Jib – Lmi
Pat System Installation Auxiliary Boom Nose – Lmi
Pat System Installation Anti 2 Block Weight Assembly
Pat System Installation Minimum Layer Device
Pat System Installation Decal Installation – Ds350
Pat System Installation Wiring Diagrams
Valve And Pedal Installation – Swing Brake
Valve Assembly – Power Brake
A/V Warning System Installation
Light Installation – Red Indicator
Cab Installation
Cab Section
Console Assembly
Latch Kit – Door
Cover Assembly – Valve
Valve Assembly – Transmission Shift Control
Valve Assembly – Steering Control
Shaft Assembly – Pivot
Lockout Installation – Automatic Control Lever
Cylinder Assembly – Air
Valve Assembly – Selector
Pedal And Valve Assembly – Accelerator
Valve Assembly – Control
Valve Assembly – Spring Brake
Valve Assembly – Dual Brake
Weatherstrip Installation – Cab
Acoustical Installation
Seat Installation
Seat Assembly
Heater And Defroster Installation
Heater Assembly – Propane
Heater Assembly – Propane Circuit Board Assembly
Heater Assembly – Propane Fuel And Ignition Systems
Heater Assembly – Propane Remote Control Parts
Heater Assembly – Propane Control Panel Parts
Heater Assembly – Propane Motor And Blower Parts
Heater Assembly – Propane Case And Exchanger Parts
Heater Assembly – Propane Regulator And Exhaust Parts
Kit Installation – Propane Tank Mounting
Kit, Tank Mounting
Instruments And Lights Installation
Harness Assembly – Right Hand Side Console
Harness Assembly – Right Hand Front Console
Harness Assembly – Left Hand Front Console
Control Lever Lockout Installation
Fan Installation – Cab Circulating
Fan Assembly – 12 Volt Cab Complete Assembly
Electrical System Installation
Harness Assembly – Superstructure
Harness Assembly – S/S Cab Interior
Fuse And Connector Panel Assembly
Harness Assembly – Connector Panel
Air Lines Installation
Grab Rail Installation
Fire Extinguisher Installation
Load Chart Manual Installation
Control Valve And Linkage Installation
Valve Bank Assembly – 4 Section (A-35 Series)
Valve Assembly – Outlet
Valve Section – Inlet (A-35 Series)
Cartridge Assembly
Valve Assembly – 2 Section
Valve Bank Assembly – 3 Section (A-35 Series)
Valve Section – Outlet
Valve Assembly – Relief 1000 Psi
Valve Bank Assembly – 1 Section
Panel Installation – Hydraulic Test
Hydraulic Lines Installation – Front Steer – Cab
Hydraulic Lines Installation – Free Swing
Hydraulic Lines Installation – Lift
Hydraulic Lines Installation – Inner Mid Telescope
Hydraulic Lines Installation – Outer Mid
Hydraulic Lines Installation – Main And Auxiliary Hoist
Lines Installation – Transmission Shift
Hoist Installation – Main
Hoist Assembly – Model Ho-30b-26
Motor Assembly – Hydraulic
Brake Assembly
Cable Follower And Idler Installation
Cable Follower And Idler Assembly
Hoist Installation – Auxiliary
Idler Drum Assembly
Roller Assembly – Cable
Cable Follower Installation – Hoist
Rotation Indicator Installation – Model 30
Driver Assembly Driver Assembly
Indicator Assembly
Transmitter Assembly
Turntable Drive Installation
Swing Box Assembly – Complete
Motor Assembly – Orbit
Brake Assembly – Swing
Block Assy,Swing Lock
Bearing Bolt Installation
Lock Installation – Swing
Hydraulic Oil Cooler And By-Pass Valve Installation
Motor Assembly – Fan
Fan Assembly – Oil Cooler
Cooler Assembly – Oil
Swivel Installation – Electric/Hydraulic
Swivel Assembly – Hydraulic
Swivel Assembly – 12 Port Air/Hydraulic
Ring Assembly – Slip
Elevation And Swing Warning Installation
Reel Installation – Hose
Reel Assembly – Hose
Valve Installation – Pressure Reducing
Valve Assembly – Pressure/ Reducing/Relieving
Counterweight Installation
Cylinder Installation – Lift
Cylinder Assembly – 10’’ Lift
Valve Assembly – Overcenter
Shaft Installation – Boom Pivot
Engine Installation – Cummins 6cta8.3
Pump Assembly
Cylinder Assembly – Throttle
Compressor Assembly – Air
Pump Assembly – Piggyback
Pump Assembly – Steer
Disconnect Assembly – Pump
Hood Installation – Engine
Door Assembly – Left Hand Side
Door Assembly – Right Hand
Battery Installation
Controls Installation – Pump Disconnect
Valve Assembly – Dry
Dry Valve Assembly
Pump Cover Installation
Quick Start Installation
Converter Oil Filter Installation
Filter Assembly – Oil
Driveline Installation
Driveline Assembly
Transmission Installation
Transmission Assembly
Cylinder Assembly – Air Lockout
Valve Assembly Transmission
Hydraulic Lines Installation
Axle Installation – Front
Axle Assembly
Axle Assembly Housing Assembly
Axle Assembly Differential Carrier Assembly
Axle Assembly Hub And Shaft Group
Axle Assembly Brake Assembly
Axle Assembly Fail Safe Brake Chamber
Cylinder Assembly – Steer
Valve Installation – Relief
Valve Assembly – Relief
Axle Installation – Rear
Axle Assembly Air Brake Chamber
Cylinder Assembly – Lockout
Valve Installation – Rear Axle Lockout
Valve Assembly – Rear Axle Lockout
Tire And Wheel Assembly
Lug Nut And Washer Installation
Tire Inflation Kit Installation
Hydraulic Lines Installation – Front Steer
Rear Steer Hydraulic Schematic
Hydraulic Lines Installation – Axle Lockout
Outrigger Beam Installation
Cylinder Assembly – 6.50’’ Stabilizer
Cylinder Assembly – 2 1/2″ Outrigger Extension
Valve Installation – Outrigger Control
Valve Assembly – 4 Stack Outrigger Solenoid
Valve Assembly – Integrated Outrigger
Outrigger Pad And Storage Installation
Float Assembly – Outrigger
Hydraulic Lines Installation – Outrigger
Decal Installation – Rt875
Fenders And Battery Box Installation
Moulding Installation – Battery Box
Reservoir Installation – Hydraulic
Filter Assembly
Cover Installation – Hydraulic Tank
Tank Installation – Fuel
Fuel Tank Assembly – 100 Gallon
Tool Box And Ladder Installation
Weatherstrip Installation – Tool Box
Turn Signal And Lights Installation
Harness Assembly – Carrier
Air Lines Installation –
Dryer Assembly – Air
Rear View Mirror Installation
Alarm Installation – Back-Up
Pintle Hook Installation
Hook Assembly – Pintle
