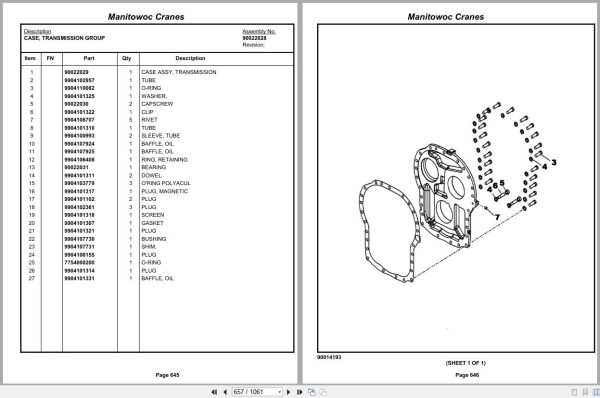

Grove Crane RT890E 233836 Parts Manual 2013

Description

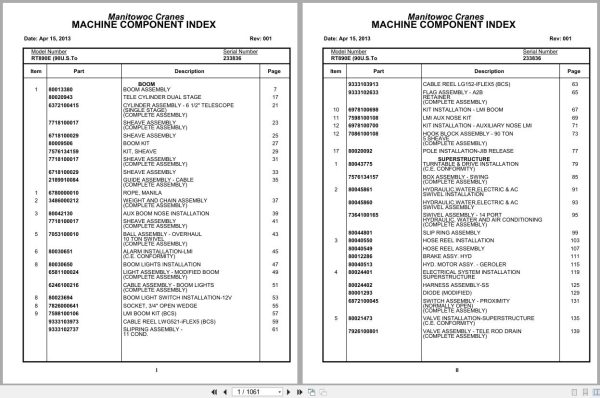

Contents:
Boom Assembly
Tele Cylinder Dual Stage
Cylinder Assembly – 6 1/2″ Telescope (Single Stage)
Sheave Assembly (Complete Assembly)
Sheave Assembly
Boom Kit
Kit, Sheave
Guide Assembly – Cable (Complete Assembly)
Weight And Chain Assembly (Complete Assembly)
Aux Boom Nose Installation
Ball Assembly – Overhaul 10 Ton Swivel
Alarm Installation -Lmi (C.E. Conformity)
Boom Lights Installation
Light Assembly – Modified Boom (Complete Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Boom Light Switch Installation -12v
Socket, 3/4” Open Wedge
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Lg152-Iflex5 (Bcs)
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Hook Block Assembly – 90 Ton 5 Sheave
Pole Installation -Jib Release
Turntable & Drive Installation (C.E. Conformity)
Box Assembly – Swing (Complete Assembly)
Hydraulic,Water,Electric & Ac Swivel Installation
Hydraulic,Water,Electric & Ac Swivel Assembly
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Slip Ring Assembly
Hose Reel Installation
Hose Reel Assembly
Brake Assy. Hyd
Hyd. Motor Assy. – Geroler
Electrical System Installation Superstructure
Harness Assembly -Ss
Diode (Modified)
Switch Assembly – Proximity (Normally Open)
Valve Installation -Superstructure (C.E. Conformity)
Valve Assembly – Tele Rod Drain (Complete Assembly)
Valve Assembly – 5 Section Directional (Complete Assembly)
Swing/Steer/Brake Valve
Dual Accum Charge Valve
Luff Jib Cab Tilt Valve
Cw Removal Valve
Accumulator Assembly – Emergency Steer
Valve Assembly – 2 Speed Swing (Complete Assembly)
Accumulator Charge Manifold
Bolt Installation – Bearing
Main Hoist Installation With 3rd Wrap
Hp30-18g Hoist W/ Acc W 3rd
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Binder Installation
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Mirror Installation – Turntable
Valve Cover Installation (C.E. Conformity)
Valve Covers Foam Installation – Rt800e
Valve Cover Comps Installation (C.E. Conformity)
Turntable Lock Pin Installation
Air Conditioning Installation (Superstructure)
Air Cond Lines Kit-Ss
A/C Condenser-Vertical Mount
Hydraulic Lines Installation Future Auxiliary Hoist-Superstructure
Switch Assembly – Pressure (Modified)
Hoist Cover Installation -Superstructure (C.E. Conformity)
Lift Cylinder & Lower Pin Installation
Cylinder Assembly -12″ Bore
3/4 Holding Valve
Pilot Press Reduction Installation (C.E. Conformity)
Washer Bottle Installation
Beacon Light Installation
Light Assembly – Modified Strobe (Complete Assembly)
Crane Star Installation -Superstructure (C.E. Conformity)
Tcu And Sat Antenna Kit
Lmi Override Installation (C.E. Conformity)
Lmi Override Assy
Fly-Back Diode-Modified
Harness Assembly – Coil Suppression (Complete Assembly)
Cab Assembly -12v (C.E. Conformity)
Cab Sub-Assy Ce Std 12v
Glass Door Assembly
Wiper Kit – Front 12 Volt
Kit – Wiper Skylight 12 Volt
Fan Assembly – 12 Volt Cab (Complete Assembly)
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Cab Hvac Installation – 12v
12v Cab Hvac Kit
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Pedal Group Installation
Valve Assembly – Treadle (Swing Brake)
Valve-Brake Pedal
Acoustics Installation (Sg)
Lmi Warning Light Installation -12v
Cab Crane Star Installation
Control Seat Installation -Dual Axis Without Auxiliary Hoist
Control Seat Assembly -Dual Axis Without Auxiliary Hoist
Controller Assembly – Dual Axis (Complete Assembly)
Control Handle Installation -Dual Axis Without Auxiliary Hoist
Harness Assembly -Seat
Heater And Air Conditioning Control Panel Installation
Heater & A/C Ctrl Panel (12v)
Plastic Covers Installation
Pin Lock Cable Installation
Control Lever Installation – Counterweight
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Lmi S/S Kit Install, 2 Port P/T
Lmi S/S Kit – 2 Port P/T Block
Hydraulic Lines Installation -Cab Future Auxiliary Hoist
Lmi Internal Light Bar Installation
Lmi Cab Kit Installation -Iflex5/Exp
Lmi Cab Kit, Iflex5/Expert Bcs
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Heater Lines Installation -Cab
Esi-Cab
Panel Assembly -Fuse & Relay
Harness Assembly -Fuse & Relay Panel
Panel Assembly -Cab Overhead
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Panel Assembly -Overhead Boom Control
Harness Assembly -Overhead Boom Control
Rear Cab Cover Installation (C.E. Conformity)
Rear Cab Cover Modified (C.E. Conformity)
Sw Install T4 Regen Permit/Inhib
Switch & Lamp Installation -A/B Mode
Front Sun Visor Installation
First Aid Kit Installation
Indicator Installation 3rd Wrap & Override
360 Pedal Cover Installation
Grab Handle Installation
Rework-Brake Pedal
Roller Assembly
Supplemental Esi Cab-Retarder
Harness Assy-Retarder (Cab)
Cab Installation -Components
Fire Extinguisher Installation (C.E. Conformity)
Driveline Retarder-Modified
Control Assembly – Retarder Hand Control
Carrier Frame Complete
Frame Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cyl Assembly -5.50 Jack
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Install W/Mat
Door Assembly
Engine Hood & Rear Covers Installation
Outrigger Float Installation – Russian (C.E. Conformity)
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Esi-Carrier
Harness Assembly -Carrier
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Hydraulic Return Filter
Valve Installation -Carrier With Differential Lock
Rear Steer Axle Lo Fan Ce
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assembly – Outrigger/Stablizer (Complete Assembly)
Solenoid Valve – Diff Lock
Manifold,Selectable Psi Red’g
Rear Axle Installation With Differential Lock
Axle Assembly – Rear Drive Steer With Differential Lock
Housing, Axle Group
Hub & Shaft Group
Brake Group 2,Set
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Valve Assembly – Solenoid
Outrigger Controller Installation
Outrigger Controller Assembly
Cable Assembly
Front Axle Installation – With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Diff.Carrier Group @ 488 Ratio
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation (With Klam Retarder)
Driveline Assembly (Complete Assembly)
Driveline Assembly – Rear Slip (Complete Assembly)
Tire And Wheel Installation
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation -Cummins Qsb T4
Engine Assembly -Cummins Qsb T4
Transmission
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft Group
Torque Converter Group
Pump Drive Group
Forward & Reverse Gear Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Electric Control & Cover Group
Control Valve Assy. Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Flange Group – Output
Pump Assembly
Pump Assembly – 1 Section Gear (Complete Assembly)
Esi Engine-Retarder
Harness Assembly -Engine
Cable Kit-Eng W/Retarder
Radiator Installation
Radiator Assembly
Rad/Cac Assembly
Surge Tank Assembly
Exhaust Installation Tier4i
After Treatment Device
Warning Light-Modified
Air Intake Installation
Air Cleaner Assembly
Hydraulic Oil Cooler Installation (C.E. Conformity)
Oil Cooler Assembly
Hook Installation – Pintle
Hook Assembly – Pintle (Complete Assembly)
Cover Installation
Foam Installation – Main Hoist (C.E. Conformity)
Electrical Components Installation C. E. Conformity
Harness Assembly – Ce Axle Oscillation
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Air Condition Lines Installation -Carrier
A/C Hose Kit Carrier
A/C Compressor Installation
Freon Compressor-12v
Hydraulic Lines Installation -Carrier With Differential
Hose Reel Foam Installation – Rt890e
Foam Installation -Ce Conform
Fuel Tank Installation -T4 (C.E. Conformity)
Fuel Tank Assembly
Fuel Tank
Mounting Kit – Oil Cooler
Noise Panel Installation -Carrier (C.E. Conformity)
Block Heater Installation -Qsb 240v
Battery & Disconnect Installation
Cable Kit Batteries
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exterior Lights & Alarm Installation
Fan Installation -Ce
Retarder Installation
Supplemental Esi-Carrier (Retard)
Harness Assembly -Carrier (Retarder)
Harness Assembly -Module/Swivel (Carrier)
Miscellaneous Decals
Decal Installation Foreign Standard
Decal Installation -Rt890e Nomenclature
Hardware Kit – Decal
Decal Installation -Rt880e3 Supplemental
