Grove Crane RT890E 234515 Parts Manual 2014

Description

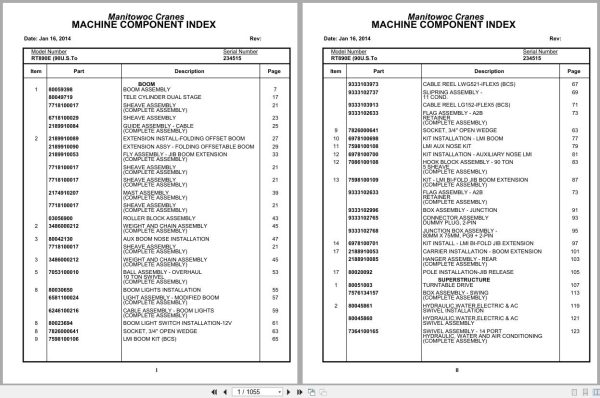

Contents:
Boom Assembly
Tele Cylinder Dual Stage
Sheave Assembly (Complete Assembly)
Sheave Assembly
Guide Assembly – Cable (Complete Assembly)
Extension Install-Folding Offset Boom
Extension Assy – Folding Offset Table Boom
Fly Assembly – Jib Boom Extension (Complete Assembly)
Mast Assembly (Complete Assembly)
Roller Block Assembly
Weight And Chain Assembly (Complete Assembly)
Aux Boom Nose Installation
Ball Assembly – Overhaul 10 Ton Swivel
Boom Lights Installation
Light Assembly – Modified Boom (Complete Assembly)
Cable Assembly – Boom Lights (Complete Assembly)
Boom Light Switch Installation -12v
Socket, 3/4” Open Wedge
Lmi Boom Kit (Bcs)
Cable Reel Lwg521-Iflex5 (Bcs)
Slip Ring Assembly – 11 Cond.
Cable Reel Lg152-Iflex5 (Bcs)
Flag Assembly – A2b Retainer
Kit Installation – Lmi Boom
Lmi Aux Nose Kit
Kit Installation – Auxiliary Nose Lmi
Hook Block Assembly – 90 Ton 5 Sheave
Kit – Lmi Bi-Fold Jib Boom Extension (Complete Assembly)
Box Assembly – Junction
Connector Assembly Dummy Plug, 2-Pin
Junction Box Assembly – 80mm X 75mm, Pg9 + 2-Pin
Kit Install – Lmi Bi-Fold Jib Extension
Carrier Installation – Boom Extension
Hanger Assembly – Rear (Complete Assembly)
Pole Installation -Jib Release
Turntable Drive
Box Assembly – Swing (Complete Assembly)
Hydraulic,Water,Electric & Ac Swivel Installation
Hydraulic,Water,Electric & Ac Swivel Assembly
Swivel Assembly – 14 Port Hydraulic, Water And Air Conditioning
Slip Ring Assembly
Hose Reel Installation
Hose Reel Assembly
Brake Assy. Hyd
Hyd. Motor Assy. – Geroler
Esi-Superstructure
Harness Assembly -Ss
Diode (Modified)
Switch Assembly – Proximity (Normally Open)
Valve Installation -Superstructure
Valve Assembly – Tele Rod Drain (Complete Assembly)
Valve Assembly – 5 Section Directional (Complete Assembly)
Swing/Steer/Brake Valve
Dual Accum Charge Valve
Luff Jib Cab Tilt Valve
Cw Removal Valve
Valve Assembly – 2 Speed Swing (Complete Assembly)
Accumulator Charge Manifold
Valve Assmbly, Make-Up Oil
Bolt Installation – Bearing
Main Hoist Installation
Hp30-18g Hoist W/ Acc
3/4″ Dia Wire Rope 6×37 600 Ft
Counterweight Control Lever Installation
Wire Rope-19mm 35×7-185m
Mirror Installation – Hoist
Binder Installation
Cylinder Installation – Counterweight Pinning
Cylinder Assembly – 3″ Hoist Pin Removal
Swing Lock Installation
Swing Lock Cast Assembly
Valve Cover Comps Installation
Turntable Lock Pin Installation
Air Conditioning Installation (Superstructure)
Air Cond Lines Kit-Ss
A/C Condenser-Vertical Mount
Main And Auxiliary Hydraulic Lines Installation
Switch Assembly – Pressure (Modified)
Lift Cylinder & Lower Pin Installation
Cylinder Assembly -12″ Bore
3/4 Holding Valve
Counterweight & Aux Hoist Installation 22000#
Counterweight & Aux Hoist Assembly 22000#
Cylinder Assembly – Counterweight (Complete Assembly)
Cylinder Assembly – 3 1/2″ Cwt Removal (Complete Assembly)
Cable Assembly – Auxiliary Hoist Hi Speed (Complete Assembly)
360 Swing Lock Pedal Install
Pedal Assembly – Foot (Complete Assembly)
Esi-Tele Charge Valve
Supplemental Harness Assy-Cab
Washer Bottle Installation
Beacon Light Installation
Light Assembly – Modified Strobe (Complete Assembly)
Crane Star Installation -Superstructure Without C.E. Conformity
Tcu And Sat Antenna Kit
Platform Installation -Hoist Access
Mirror Installation -Aux Hoist
Cab Assembly – (12v)
Sub- Assembly – Cab Stanard 12v
Glass Door Assembly
Skylight Assembly – Sliding (Complete Assembly)
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Kit – Wiper Skylight 12 Volt
Wiper Kit – Front 12 Volt
Fan Assembly -12v (Cab)
Cab Hvac Installation – 12v
12v Cab Hvac Kit
Superstructure Cab – 12v Miscellaneous Parts Installation
Cab Brackets Installation
Pedal Group Installation
Valve Assembly – Treadle (Swing Brake)
Valve-Brake Pedal
Acoustics Installation (Sg)
Cab Crane Star Installation
Control Seat Installation Single Axis With Auxiliary Hoist
Control Seat Assembly Single Axis With Auxiliary Hoist
Single Axis Controller
Handle Assembly (W/Solenoid)
Harness Assembly -Seat
Heater & Air Condition Control Panel Installation
Heater & A/C Ctrl Panel (12v)
Plastic Covers Installation
Pin Lock Cable Installation
Pedal Installation – Boom Telescope
Tredal Valve Assembly – Bi Directional Hydraulic Proportional Remote
Drive Controls Installation
Steering Column W/ Cluster
Valve Assembly – Steering Control (Complete Assembly)
Lmi S/S Kit Install, 2 Port P/T
Lmi S/S Kit – 2 Port P/T Block
Hydraulic Lines Installation -Cab Main & Auxiliary Hoist
Lmi Internal Light Bar Installation
Lmi Cab Kit Installation -Iflex5/Exp
Lmi Cab Kit, Iflex5/Expert Bcs
Ha, Lmi Iflex5 Bcs
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Heater Lines Installation -Cab
Esi-Cab
Panel Assembly -Fuse & Relay
Harness Assembly -Fuse & Relay Panel
Control Panel O/H Console
Harness Assembly -Overhead Cab Panel
Panel Assembly -Front Console
Harness Assembly -Front Panel Cab
Harness Assembly -Interior Cab
Panel Assembly -Overhead Boom Control
Harness Assembly -Overhead Boom Control
Rear Cab Cover Installation
Sw Install T4 Regen Permit/Inhib
Switch & Lamp Installation -A/B Mode
Grab Handle Installation
Cab Installation -Components
Carrier Frame Complete
Frame Assembly
Outrigger Beam Installation
Outrigger Beam Assembly
Cyl Assembly -5.50 Jack
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Fender & Decking Install W/Mat
Door Assembly
Engine Hood & Rear Covers Installation
Engine Hood Assembly
Outrigger Float Installation – Russian (C.E. Conformity)
Float Assembly – Outrigger
Hook Block Tie-Down Installation
Mirror Installation – Rear View
Step Installation
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Hydraulic Return Filter
Valve Installation -Carrier With Differential Lock
Rear Steer Axle Lo Fan Drive
Valve Assembly – Park Brake Range Shift (Complete Assembly)
Valve Assy.Outrigger
Solenoid Valve – Diff Lock
Manifold,Selectable Psi Red’g
Rear Axle Installation With Differential Lock
Axle Assembly – Rear Drive Steer With Differential Lock
Housing, Axle Group
Hub & Shaft Group
Brake Group 2,Set
Brake Assembly Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Cylinder Assembly – 5″ Lockout (Complete Assembly)
Outrigger Controller Installation
Outrigger Controller Assembly
Cable Assembly
Front Axle Installation – With Differential Lock
Axle Assembly – Front Drive Steer With Differential Lock
Diff.Carrier Group @ 488 Ratio
Brake Group 4,Set
Brake Assembly – Parking (Complete Assembly)
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly (Complete Assembly)
Slip Shaft Assy
Tire And Wheel Installation
Tire And Wheel Assembly – 29.5 X 25 General
Wheel Assembly – 25 X 25.00 (Complete Assembly)
Engine Installation -Cummins Qsbt4
Engine Assembly -Cummins Qsbt4
Transmission
Converter Housing Group
Case, Transmission Group
Rear Cover Group
Drive Plate Group
Turbine Shaft Group
Torque Converter Group

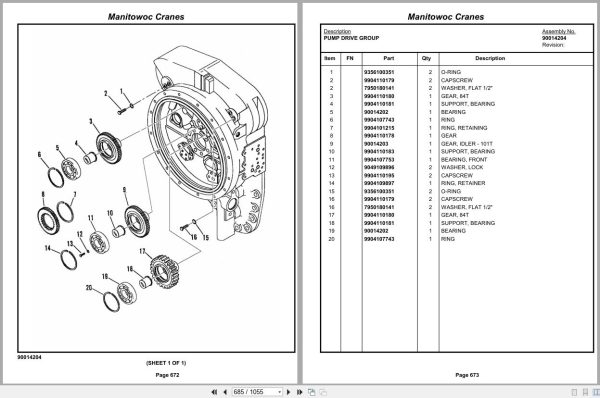

Pump Drive Group
Forward & Reverse Gear Group
Reverse & High Shaft Group
Forward & 2nd Shaft Group
Low Shaft Group
Idler Shaft Group
Output Shaft Group
Charge Pump & Regulator Group
Pressure Regulator Group
Charge Pump Group
Electric Control & Cover Group
Control Valve Assy. Group
Hi & Low Shift Control Group
Pump Adaptor Group
Pump Drive Sleeve Assy. Group
Flange Group – Output
Pump Assembly
Pump Assembly – 1 Section Gear (Complete Assembly)
Esi Engine Rt800e4
Harness Assembly -Engine
Cable Kit Engine Rt800et4
Radiator Installation
Radiator Assembly
Rad/Cac Assembly
Surge Tank Assembly
Air Intake Installation
Air Cleaner Assembly
Cooler Installation -Transmission Oil
Oil Cooler Assembly
Filter Installation – Transmission
Filter Assembly (Complete Assembly)
Air Condition Lines Installation -Carrier
A/C Hose Kit Carrier
A/C Compressor Installation
Freon Compressor-12v
Hydraulic Lines Installation -Carrier With Differential Lock
Fuel Tank Installation T4
Fuel Tank Assembly
Fuel Tank
Mounting Kit – Oil Cooler
Block Heater Installation -Qsb 120v
Battery & Disconnect Installation
Cable Kit Batteries
Fuse Panel Assembly
Harness Assembly -Engine Relay Panel
Exterior Lights & Alarm Installation
Oms Installation
Horizontal Potentiometer Installation (Outrigger)
Fan Installation -N.Am.
Decal Installation Standard
Decal Installation Standard Cab
Decal Installation Standard Carrier
Decal Installation Standard Superstructure
Decal Installation Standard Boom
Decal Installation -Rt890e Nomenclature
Hardware Kit – Decal
