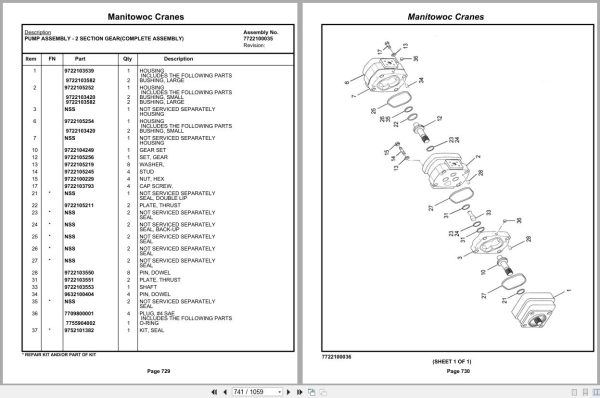

Grove Crane RT9000E 222950 Parts Manual 2019

Description

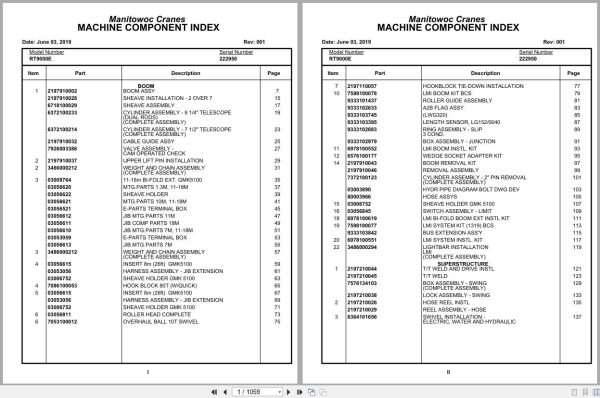

Contents:
Boom Assy
Sheave Installation – 2 Over 7
Sheave Assembly
Cylinder Assembly – 9 1/4″ Telescope(Dual Rods)
Cylinder Assembly – 7 1/2″ Telescope(Complete Assembly)
Cable Guide Assy
Valve Assembly -Cam Operated Check
Upper Lift Pin Installation
Weight And Chain Assembly (Complete Assembly)
11-18m Bi-Fold Ext. Gmk5100
Mtg.Parts 1.3m, 11-18m
Sheave Holder
Mtg.Parts 10m, 11-18m
E-Parts Terminal Box
Jib Mtg.Parts 11m
Jib Comp Parts 18m
Jib Mtg.Parts 7m, 11-18m
Jib Mtg.Parts 7m
Insert 8m (26ft) Gmk5100
Harness Assembly – Jib Extension
Sheave Holder Gmk 5100
Hook Block 80t (W/Quick)
Roller Head Complete
Overhaul Ball 10t Swivel
Hook Block Tie-Down Installation
Lmi Boom Kit Bcs
Roller Guide Assembly
A2b Flag Assy
(Lwg320)
Length Sensor, Lg152/0040
Ring Assembly – Slip3 Cond.
Box Assembly – Junction
Lmi Boom Install. Kit
Wedge Socket Adapter Kit
Boom Removal Kit
Removal Assembly
Cylinder Assembly – 2″ Pin Removal(Complete Assembly)
Hydr Pipe Diagram Bolt Dwg Dev
Hose Assys
Switch Assembly – Limit
Lmi Bi-Fold Boom Ext Install Kit
Lmi System Kit (1319) Bcs
Bus Extension Ass’y
Lmi System Install. Kit
Light Bar Installation lmi
T/T Weld And Drive Install
T/T Weld
Box Assembly – Swing(Complete Assembly)
Lock Assembly – Swing
Hose Reel Install
Swivel Installation -Electric, Water And Hydraulic
Swivel Assembly – Electric,Water And Hydraulic
Swivel Assembly – 11 Port
Swivel Assembly – 2 Port Water
Ring Assembly – Slip15 Conductor
Lever Install.-Ctwt Removal
Valve Installation – Control
Valve Assembly – Control
Valve Assembly – Counterweightremoval
Valve Assembly – Selector
Valve Assy – Pressure Reducing Sequence(Complete Assembly)
Valve Assembly – Directionalcontrol
Accumulator Assembly -Hydraulic Oil
Valve Assembly -Dual Pilot Operated Check(Complete Assembly)
Valve Assembly – Bleed-Off
S,P & R Hyd Lines S/S With A/C
Solenoid Valve – 4 Wheel Dr
Lift Hyd Lines Install-S/S
Main & Aux Hoist Hyd Lines Ins
Cylinder Installation – Lift
Cylinder Assembly – 14″ Lift(Complete Assembly)
Bolt Installation – Bearing
Tele Hyd Lines Install-S/S
Switch Assembly – Pressure(Modified)
Valve Assembly – Solenoid(Complete Assembly)
Valve Assembly – Shuttle
Valve Assembly – Relief
Socket, 3/4” Open Wedge
Swing Hyd Lines Install-S/S
Valve Assembly – Residual Check
Lmi Hyd Lines Install-S/S
Binder Installation
Cwgt Removal Hyd Lines-S/S
Counterweight Install-24000 Lb
Cylinder Assembly – 4″Counterweight Removal
Hoist Installation – Main Andauxiliary
Hoist Assembly – Hp35 – 26g(Complete Assembly)
Clutch Assy.
Cylinder Assembly – 3″Hoist Pin Removal
Heavy Counterweight Install
Pin Assembly
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator(Complete Assembly)
S, P & R Hyd Lines Install-Cab
Tele Hyd Lines Install- Cab
Mirror Installation – Hoist
Swing & Sw. Brake Hyd Lines In
M. & Aux Hoist Hyd Lines Install
Lift Hyd Lines Install-Cab
Steer Hyd Lines Install-Cab
Air Conditioning Installation
A/C Condenser Installation
Condenser Assembly – 12v
A/C Compressor Installation
Compressor And Motor Assembly
Motor Assembly
A/C Lines Installation
Brake Hyd Lines Install-Cab
Valve Cover Install
Esi-S/S
Ha-Superstructure
Switch Assembly – Proximity(Normally Open)
T/T Lock Pin Install
Cab Install
Cab Assy
Cab Section
Skylight Assembly – Sliding
Window Assembly – Rear(Complete Assembly)
Cable Assembly (Complete Assembly)
Valve Assembly with Treadle Pedal
Fan Assembly – 12 Volt Cab(Complete Assembly)
Ctrl Seat Install W/ Main & Aux
Ctrl Seat Assy W/ Main & Aux
Controller Assembly -Single Axis
Handle, With Solenoid Assembly
Harness Assy-Seat
Acoustics Install
Rt “E” Series Acoustics Kit
Front Console Install
Front Console Assy
Panel Assy – Front Console
Ha-Console
Harness Assembly – Potentiometer(Complete Assembly)
Electrical System Installation – Cab
360 Lever Install
Heater Installation
Air Conditioner And Heater Assembly
Switch Installation -Air Conditioner
Pedal Installation – Telescope
Screen Installation – Sun
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer(Also Used As A Cab Tilt Cylinder)
Cover Installation – Cab Rear
Main & Aux Hst Speed Sw Install
Lmi Cab Bcs Kit W/O Dl
C.U., Bus Int. Card W/O Dl
Console Assembly -Vertical, Graphic
Cable, 16′ 3-Pin Pressure Trans. Cable
Lmi Cab Install. Kit
Pedal Installation – Brake
Valve Assembly with Treadle
Shifter Installation -Transmission
Tele Pedal Linkage Install
Steer Valve Installation
Steering Control Valve
Pedal Installation – Throttle(Electric)
Frame Assembly Complete
Box Assembly – Front Outrigger(Complete Assembly)
Outrigger Beam Assy
Cylinder Assembly -6 1/2″ Outrigger Jack(Complete Assembly)
Cylinder Assembly – Outrigger Extension(Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension(Complete Assembly)
Box Assembly – Outrigger(Complete Assembly)
Valve Assembly – Outrigger Control4 Section
Cylinder Assembly – 4″ Power Pin(Complete Assembly)
Harness Assembly – Outriggerbox
Fender Installation
Kit, Hardwarefender Installation
Hood Installation – Engine
Front Sub Assembly – Hood
Float Installation – Outrigger
Float Assembly – Outrigger(Complete Assembly)
Exterior Lts & Alarm Install
Cover Installation – Battery Box
Mirror Installation -Rear View
Cwt Stand Installation
Hyd/Trans Oil Cooler Install
Cooler Assembly – Oil(Complete Assembly)
Tire Mount Assembly
Electrical System Installation – Carrier
Harness Assy-Carrier
Harness Assembly – Enginecoolant Level Sensor
Panel Assembly – Engine Relays(Complete Assembly)
Harness Assembly – Engine Relay Panel(Complete Assembly)
Box Assembly – Outrigger Pin Controls(Complete Assembly)
Cable Assy – Lh Remote O/R Rem
Lift Cyl Travel Support Install
Lift Cyl Travel Support Ass’y
Bottle Jack (Modified)
Cylinder Assembly -Bottle Jack
Hydraulic Reservoir Install
Hydraulic Reservoir Assembly
Hydraulic Reservoir
Filter Assembly
Valve Installation – Hydraulicwithout Differential Lock
Valve Assembly – Integrated Outrigger/Rear Steer
Valve Assy-Axle Dis & Park Bra
Switch Assembly – Pressure(Normally Closed)
Valve-Manual Bleed Off Pressur
Valve Assembly -Double Solenoid
Sling Assembly
O/R Hyd Lines-Carr
Hydraulic Lines Installation -Supply, Pressure And Return
Solenoid Valve 2 Way N.O.
Hydraulic Lines Installation -Rear Axle Lockout
Serv Brake Hyd Lines-Disc
Axle Disc & Park Brake Lines
Frt Steer Hyd Lines Install-Carr
Axle Installation – Rearstandard Differential
Axle Assembly – Rear Drive Steerstandard Differential
Diff.Carr.Group
Housing Group
Hub & Shaft Group
Brake Group, 4 Set
Brake Assy.Group
Cylinder Assembly – 3 1/2″ Steer(Complete Assembly)
Cylinder Assembly – 7″ Lockout(Complete Assembly)
Axle Installation – Frontstandard Differential
Axle Assembly – Front Drive Steerstandard Differential
Brake Assembly – Parking(Complete Assembly)
Driveline Install.
Driveline-8.5c W/Ctr Brg
Driveline-8.5c W/Slip
Driveline-7c W/Slip
Tire And Wheel Installation
Tire And Wheel Assembly
Wheel Assembly
Engine Installation
Engine Assembly
Converter Assembly – Torque(Complete Assembly)
Torque Convertor Group
Charge Pump And Regulatingvalve Group
Pump Assy. Charging
Dual Pump Disconnect Group
Pump Assembly – 2 Section Gear(Complete Assembly)
Pump Assembly – Gearwith Flow Control
Hydraulic Lines Installation -Engine
Electrical System Installation – Engine
Cable Kit-Rt9000e Engine
Transmission Installation
Transmission Assembly
Input Shaft And Cover Group
Case And Rear Cover Group
Drive Group – Low Speed
Forward Clutch Andshaft Group
Shaft Group – Reverse Andsecond
Shaft Group – First Clutch
Idler Group – Forward High
Shaft Group – Forward Highand Third
Idler Shaft Group
Shaft Group – Output
Control Valve Mountinggroup
Flange Group
Transmission Filter/Lines Installation
Filter Assembly (Complete Assembly)
Radiator Installation
Radiator Assembly
Cooler Assembly – Radiator/Charge Air(Complete Assembly)
Tank Assembly – Surge(Not Available As Assembly)
Tank Installation – Fuel
Tank Assembly – Fuel
Tank Assembly – Fuel100 Gallon
Battery Install W/Disc Switch
Cable Kit-Rt9000e Batteries
Exhaust Sys Install. Cummins Qsc
Cleaner Installation – Air
Cleaner Assembly – Air(Complete Assembly)
Strainer Installation -Coolant
Disconnect Installation – Pump
Rear Steer Hyd Lines Install-Car
Miscellaneous Decals
Decal Installation – Rt9000e
Decal Installation – Rt9000e(Standard)
Decal Install Rt9000e-Std-Carr
Decal Installation – Rt9000e(Standard Superstructure)
Decal Install Rt9000e-Std-Boom
Decal Installation – Rt9130e(Nomenclature)
Hardware Kit – Decal
