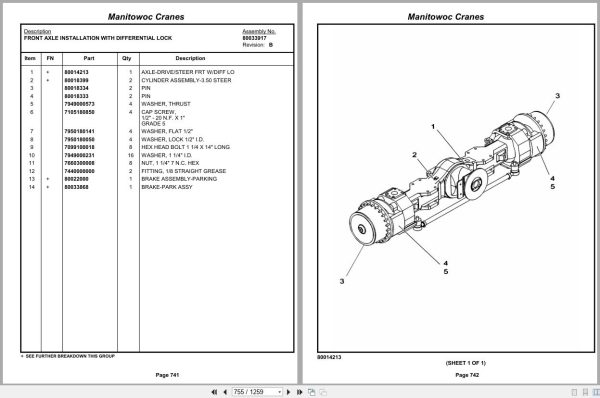

Grove Crane RT9150E 233642 Parts Manual 2012

Description

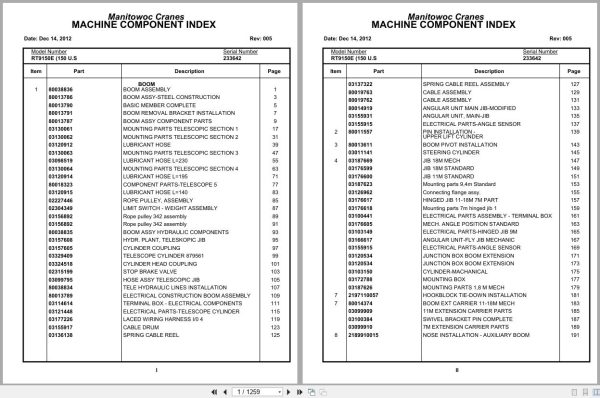

Contents:
Boom Assembly
Boom Assy-Steel Construction
Basic Member Complete
Boom Removal Bracket Installation
Boom Assy Component Parts
Mounting Parts Telescopic Section 1
Mounting Parts Telescopic Section 2
Lubricant Hose
Mounting Parts Telescopic Section 3
Lubricant Hose L=230
Mounting Parts Telescopic Section 4
Lubricant Hose L=195
Component Parts-Telescope 5
Lubricant Hose L=140
Rope Pulley, Assembly
Limit Switch – Weight Assembly
Rope Pulley 342 Assembly
Boom Assy Hydraulic Components
Hydr. Plant, Teleskopic Jib
Cylinder Coupling
Telescope Cylinder 879561
Cylinder Head Coupling
Stop Brake Valve
Hose Assy Telescopic Jib
Tele Hydraulic Lines Installation
Electrical Construction Boom Assembly
Terminal Box – Electrical Components
Electrical Parts-Telescope Cylinder
Laced Wiring Harness I/0 4
Cable Drum
Spring Cable Reel
Spring Cable Reel Assembly
Cable Assembly
Angular Unit Main Jib-Modified
Angular Unit, Main-Jib
Electrical Parts-Angle Sensor
Pin Installation – Upper Lift Cylinder
Boom Pivot Installation
Steering Cylinder
Jib 18m Mech
Jib 18m Standard
Jib 11m Standard
Mounting Parts 9,4m Standard
Connecting Flange Assy.
Hinged Jib 11-18m 7m Part
Mounting Parts 7m Hinged Jib 1
Electrical Parts Assembly – Terminal Box
Mech. Angle Position Standard
Electrical Parts-Hinged Jib 9m
Angular Unit-Fly Jib Mechanic
Junction Box Boom Extension
Cylinder-Mechanical
Mounting Box
Mounting Parts 1,8 M Mech
Hook Block Tie-Down Installation
Boom Ext Carrier 11-18m Mech
11m Extension Carrier Parts
Swivel Bracket Pin Complete
7m Extension Carrier Parts
Nose Installation – Auxiliary Boom
Sheave Assembly (Complete Assembly)
Socket, 3/4” Open Wedge
Limit Switch Assembly
Wedge Socket Adapter Kit
Wind Speed Indicator Installation
Wind Speed Indicator Assembly
Wind Gauge Flange Mount
Pole Installation -Jib Release
Boom Removal Rigging
Turntable Bearing And Drive Installation
Box Sub Assembly – Swing Drive
Standard Gear Cpl.
Hydraulic-Multiple-Disk Brake
Electric, Water & Hydraulic Swivel Installation
Electric, Water & Hydraulic Swivel Assembly
Swivel Assembly
Slip Ring Assy 46 Conductor
Valve, Cart. Check
Control Valve Installation Main & Auxiliary Hoist
Directional Cont. Vlv, 4 Sect.
Valve Assy.Manifold Body Assy.
Valve Assy.
Control Cart. Cover Group
Control 3-Piston, Cover Group
Control 1-Piston, Cover Group
Control, Cover Group
Cover Assy. Group
Valve Block W/Control Group
Valve Assy. Block Manifold
Accessory Manifold
Dual Accum Charge Valve
Valve Assembly – Solenoid
Accumulator Assembly – Hydraulic Oil
Filter 70325334. Typ:Pi330 010
Valve Assembly – Needle (Manual Bleed Off Pressure)
Heater And Air Condition Control Panel Installation
Heater & Control Panel (24v)
Hydraulic Lines Installation -Ss Main And Auxiliary Hoist
Hoist Installation – Main And Auxiliary
Hoisting Gear
Mounting Gear
Switch Assembly – Limit
Hoist Mirror Installation
Bearing Bolt Installation
Counterweight Stand Installation
Turntable Lock Pin Installation
Binder Installation
Boom Pivot Bushing Installation
Swing Lock Installation – 360 Degree
Swing Lock Assembly
Hoist Access Platform
Hoist Access Platform Assy
Switch Installation – Limit (For Reference Only)
Lift Cylinder Installation
Lift Cylinder Assembly
Valve Assembly – Stop Brake
Sound Foam Installation -Ss
Superstructure Installation (Optional) (C.E. Conformity)
Harness Assembly -Low Steer Pressure
Esi – Lmi Override Installation (C.E. Conformity)
Lmi Override Assembly
Lift Cylinder Support Installation
Lift Cylinder Support Assembly
Cab Assembly -24v (C.E. Conformity)
Cab Sub Assemlby-24v (C.E. Conformity)
Glass Door Assembly
Window Assembly – Side Rh
Window Assembly – Rear (Complete Assembly)
Kit – Skylight Wiper (24 Volt)
Kit – Front Wiper (24 Volt)
Fan Assembly – 12 Volt Cab (Complete Assembly)
Heater & Air Condition Installation Superstructure Cab-24v
Kit, Heater/Cool Assy. 24v.
Acoustics Installation (Sg)
Miscellaneous Components – Cab
Cab Brackets Installation
Pedal Group Installation
Pedal Assembly – Foot (Complete Assembly)
Swing Brake Pedal-5v
Valve-Brake Pedal
Lmi Warning Light Brkt Install
Cab Crane Star Installation
Seat Installation With Auxiliary Hoist
Seat Assembly With Auxiliary Hoist
Harness Assembly -Seat
Plastic Covers Installation
Pin Lock Cable Installation
Esi-Superstructure Cab
Panel Assy Overhead Console
Harness Assembly -Overhead Panel (Cab)
Panel Assy Fuse And Relay
Harness Assembly – Fuse & Relay Panel (Cab)
Harness Assembly -Cab
Harness Assembly – Front Console Panel
Drive Controls Installation
Steering Column (Tilt/Tele)
Steering Control Valve
Hydraulic Lines Installation -Cab
Switch Installation -Differential Lock
Switch Install – Tier 4 Regen
Rear Cab Cover Installation (C.E. Conformity)
Rear Cab Cover Modified (C.E. Conformity)
Front Sun Visor Installation
First Aid Kit Installation
Lift Up Switch Installation (C.E. Conformity)
Esi-Cab (Ce Conformity)
Harness Assy-Light Bar Cable
Crane Star Installation
Tcu And Sat Antenna Kit
Grab Handle Installation
Harness-Swing Brake Jumper
Rework-Brake Pedal
Roller Assembly
Cab Tilt Installation
Cylinder Assembly – 2 1/2″ Steer (Complete Assembly)
Swing Brake Pedal Installation -Modified
Supplemental Esi Superstructure Cab
Harness Assembly – Swing Brake Pedal
Resistor Assembly
Cab Installation – Components
Fire Extinguisher Installation (C.E. Conformity)
Frame Complete
Outrigger Box Installation (C.E. Conformity)
Outrigger Box Assembly
Outrigger Beam Assembly
Cylinder Assembly – Inverted Jack (6 1/2″ Bore)
Cylinder Assembly – Outrigger Extension (Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension (Complete Assembly)
Manifold – Outrigger Control
Harness Assembly – Outrigger Box
Fender & Decking Installation
Rear Deck Assembly -Lh
Ladder Assembly
Engine Hood Installation (C.E. Conformity)
Engine Hood Assembly
Float Installation – Outrigger
Float Assembly – Outrigger (Complete Assembly)
Exterior Lights And Alarm Installation
Cover Installation -Battery Box
Valve Cover Installation
Rear View Mirror Installation
Oil Cooler Installation (C.E. Conformity)
Oil Cooler – Hydraulic & Transmission Assembly
Valve Covers Installation
Esi-Carrier
Harness Assembly -Carrier
Module/Bracket Assembly
Panel Assembly – Engine Relays
Harness Assembly – Engine Relay Panel
Box Assembly – Outrigger Pin Controls (Complete Assembly)
Cable Assy – Lh Remote O/R Rem
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Filter Assembly – Hydraulic Return
Heater Lines Installation
Hydraulic Valve Installation With Differential
Integrated Valve – Outrigger Rear Steer
Valve Assembly – Park Brake/Axle Disconnect
Solenoid Valve – Differential Lock
Axle Lockout Valve – Ce Conformity
Valve Flow Ctrl 4.5 Gpm 24v
Counterweight Cylinders Installation
Lifting Unit Counterweight
Cylinder Assembly – 2″ Steer (Complete Assembly)
Hydraulic Lines Installation -Carrier With Differential Lock
Solenoid Valve Assembly
Rear Axle Installation With Differential Lock
Axle-Drive/Steer Rr W/Diff Loc
Diff.Carrier Group 6.43 Ratio
Housing, Axle Group
Hud & Shaft Group
Brake Group
Brake Assy. Group
Cylinder Assembly – 3 1/2″ Steer (Complete Assembly)
Front Axle Installation With Differential Lock
Axle-Drive/Steer Frt W/Diff Lo
Hub & Shaft Group
Cylinder Assembly -3.50 Steer
Brake Assembly -Parking
Brake-Park Assy
Counterweight Installation – Heavy
Driveline Installation
Driveline Assembly With Center Bearing
Driveline Assembly
Washer Bottle Installation
Tire And Wheel Installation
Tire And Wheel Assembly
Wheel Assembly
Engine Install-Cummins Qsl-T4
Engine Assembly -Qsl T-4
Converter Assembly – Torque (Complete Assembly)
Gear Hub & Output Flange Group
Impeller Hub & Wheel Group
Stator Supp.& Oil Baffle Group
Speed Sensor Bushing Group
Turbine Shaft Group
Pump Drive Group
Press. Regulating Valve Group
Reg.Valve/Chg.Pump Drive Group
Charge Pump & Reg. Valve Group
Pump Assy. Charging
Regulator Valve Group
Drive Plate Group
Pump Assy. Piston
Pump Assy Gear D Series
Gear Pump With Priority Flow
Coupler Assy-Splined
Air Cond Kit-Cumm Isl Eng 24v
Esi – Engine
Harness Assembly -Engine
Cable Kit Engine Rt9150e4
Transmission Installation
Transmission Assembly – 36000 Series (Complete Assembly)
Cover Group – Input Shaft And Front (12 Speed)
Cover Group – Case And Rear
Gear Set Group – Input Drive
Gear Group – Low Speed
Drive Group – Low Speed
Shaft Group – Forward Clutch
Shaft Group – Reverse And 2nd Clutch (6 Speed)
Clutch Shaft Assembly Group – Forward, Reverse, 2nd And 3rd, 4th
Shaft Group – Low (1st) Speed Clutch
Gear Group – Low Clutch And Idler
Idler Group – Forward High Clutch
Clutch Group – Forward High & 3rd Shaft (6 And 12 Speed)
Shaft Group – Idler
Gear Group – Idler And Output
Shaft Group – Output And Rear Disconnect
Control Valve Mtg. Group
Control Valve Assy. 24v. Group
Flange Group – Output
Flange Group – Input
Transmission Filter Lines Installation
Filter Assembly (Complete Assembly)
Radiator Installation
Radiator Assembly
Surge Tank Installation
Surge Tank Assembly
Bolt-On Step Installation
Fuel Tank Installation
Fuel Tank Assembly
Mounting Kit – Oil Cooler
Battery Installation
Cable Kit- Batteries, Rt9150e
Exhaust System Installation
Dpf Assy-Siso
Harness Assembly -Exhaust Sensors
24v Warning Light-Modified
Air Cleaner Installation T4
Air Cleaner Assembly
Outrigger Beam Cover Installation (C.E. Conformity)
Block Heater Installation -Qsb 240v
Foam Installation -Hood (C.E. Conformity)
Decking Foam Installation (C.E. Conformity)
Oil Cooler Foam Installation (C.E. Conformity)
Sound Foam Kit-Carrier (C.E. Conformity)
Panel Installation – Noise (C.E. Conformity)
Noise Panel Foam Installation (C.E. Conformity)
Cac Installation
Charge Air Cooler Assembly
Counterweight Removal And Rigging Installation
Miscellaneous Decals
Decal Installation (Nomenclature)
Hardware Kit – Decal
