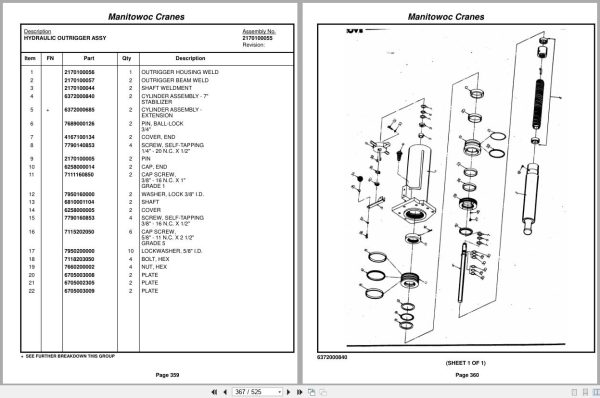

Grove Crane TM800T 23824 Parts Manual 2016

Description

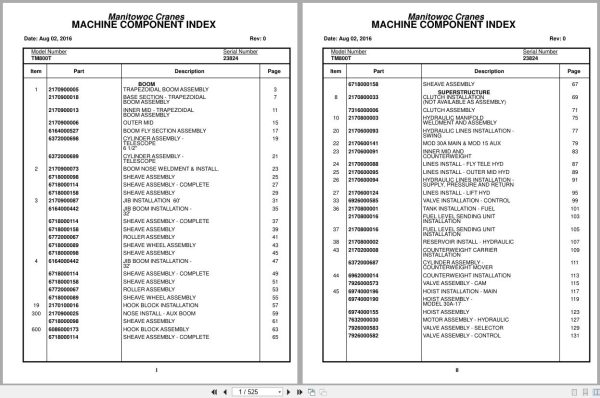

Contents:
Boom
Trapezoidal Boom Assembly
Base Section – Trapezoidal
Boom Assembly
Inner Mid – Trapezoidal
Boom Assembly
Outer Mid
Boom Fly Section Assembly
Cylinder Assembly –
Telescope
6 1/2”
Cylinder Assembly –
Telescope
Boom Nose Weldment & Install.
Sheave Assembly
Sheave Assembly – Complete
Sheave Assembly
Jib Installation 60′
Jib Boom Installation –
32′
Sheave Assembly – Complete
Sheave Assembly
Roller Assembly
Sheave Wheel Assembly
Sheave Assembly
Jib Boom Installation –
32′
Sheave Assembly – Complete
Sheave Assembly
Roller Assembly
Sheave Wheel Assembly
Hook Block Installation
Nose Install – Aux Boom
Sheave Assembly
Hook Block Assembly
Sheave Assembly – Complete
Sheave Assembly
Superstructure
Clutch Installation
(Not Available As Assembly)
Clutch Assembly
Hydraulic Manifold
Weldment And Assembly
Hydraulic Lines Installation –
Swing
Mod 30a Main & Mod 15 Aux
Inner Mid And
Counterweight
Lines Install – Fly Tele Hyd
Lines Install – Outer Mid Hyd
Hydraulic Lines Installation –
Supply, Pressure And Return
Lines Install – Lift Hyd
Valve Installation – Control
Tank Installation – Fuel
Fuel Level Sending Unit
Installation
Fuel Level Sending Unit
Installation
Reservoir Install – Hydraulic
Counterweight Carrier
Installation
Cylinder Assembly –
Counterweight Mover
Counterweight Installation
Valve Assembly – Cam
Hoist Installation – Main
Hoist Assembly –
Model 30a-17
Hoist Assembly
Motor Assembly – Hydraulic
Valve Assembly – Selector
Valve Assembly – Control
Cylinder Assembly –
Hydraulic
Cable Idler Drum
Installation
Idler Drum Assembly -Cable
(Boom Clearance)
Hoist Assembly –
Model 30a-17
Hoist Assembly
Motor Assembly – Hydraulic
Valve Assembly – Selector
Valve Assembly – Control
Tubing Installation –
Hoist
(Not Available As Assembly)
Valve Assembly – Hoist
Control
Swivel Install – Elect.& Hyd.
Swivel Assembly
Collector Ring Assembly
Turntable Assy.& Drive Install
Turntable Section
Turntable, Center Section
Hoist Mounting Structure
Box Assembly – Swing
Motor Assembly – Orbit
Swing Brake Installation
Brake Assembly – Disc
Brake Assembly – Disc
Counterweight Carrier
Installation
Cylinder Assembly –
Counterweight Mover
Swing Brake Installation
Brake Assembly – Disc
Brake Assembly – Disc
Hose Reel Assembly – 32”
Hose Reel Assembly –
Right Hand
Bearing Bolt Install.
Swing Horn Install.
Rotation Installation –
Hoist Drum
Rotation Ind.Install.
Cable Follower
Installation
Cable Follower Assembly –
Hoist
Cable Follower
Cable Follower
Cable Follower
Installation W/Idler
Cylinder Installation – Lift
Cylinder Assembly – Lift
Cylinder Assembly – Lift
Valve Assembly
– Overcenter
Hydraulic Lines
Installation
Cylinder Assembly – Master
Superstructure Cab
Throttle Control Assy.& Instal
Cab Installation
Skylight Installation
Windshield Stowage
Compartment
Heater Assembly
Removable Windshield
Installation
Windshield Wiper
Installation
(Not Available As Assembly)
Door Assembly – Cab
Canopy Window Installation
Valve Installation – Control
Console Installation – Right Hand
Seat Assembly
Skylight Installation
Windshield Stowage
Compartment
Removable Windshield
Installation
Windshield Wiper
Installation
(Not Available As Assembly)
Cab Seat Assembly
Seat Assembly
Canopy Window Installation
Cab Side Covers Assy.& Install
Door Installation
Console Installation
Circular Level Assembly
And Installation
Extinguisher Installation – Fire
Indicator Install – Boom Angle
Boom Pointer/Angle Indicator
Assembly
Lowerworks/Carrier
Outrigger Remote Control Box
Engine Install – Gmc.6v-53n
Pump Assembly – Hydraulic
Pump Assembly – Hydraulic Gear
Pump Assembly – Hydraulic Gear
Pump Assembly
3 Pump Drive Assembly
Clutch Installation
(Not Available As Assembly)
Clutch Assembly
Pump Drive – Remote Disconnect
Installation
Hydraulic Manifold
Weldment And Assembly
Muffler & Air Cleaner Inst
Cleaner Assembly – Air
Wiring Diagram
Wiring Diagram – Hourmeter
Pump Drive – Remote Disconnect
Installation
Muffler & Air Cleaner Inst
Cleaner Assembly – Air
Carrier Prep. (Hendrickson)
Hydraulic Outrigger Assy
Cylinder Assembly – 7″
Stabilizer
Cylinder Assembly –
Extension
Outrigger Float Assembly –
Aluminum
Pedestal Stowage Installation
Hook Block Installation
Outrigger Remote Control Box
Level Assembly
Hydraulic Outrigger Assy
Cylinder Assembly – 7″
Stabilizer
Cylinder Assembly –
Extension
Pedestal Stowage Installation
Lines Install – Outrigger Hyd
Valve, Pressure Relief
Engine Side Covers Assy.& Inst
Door Installation
Engine Side Door
Installation
Engine Side Door
Installation
Parking Brake Cable
Installation
Carrier/Frame Cab
Door Installation
Specs/Schematics
Wiring Diagram
Wiring Diagram – Hourmeter
Wiring Diagram
Wiring Diagram
