Grove Crane TM890 68203 Parts Manual 2016

Description

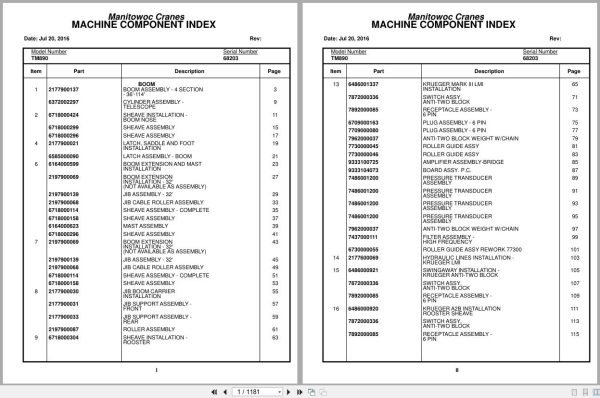

Contents:
Boom
Boom Assembly – 4 Section
– 36′-114′
Cylinder Assembly –
Telescope
Sheave Installation –
Boom Nose
Sheave Assembly
Sheave Assembly

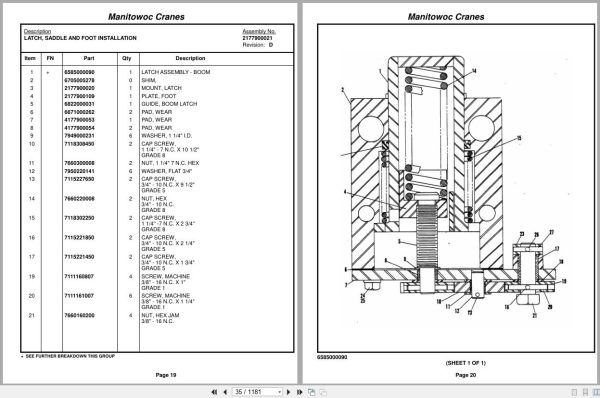

Latch, Saddle And Foot
Installation
Latch Assembly – Boom
Boom Extension And Mast
Installation
Boom Extension
Installation – 32′
(Not Available As Assembly)
Jib Assembly – 32′
Jib Cable Roller Assembly
Sheave Assembly – Complete
Sheave Assembly
Mast Assembly
Sheave Assembly
Boom Extension
Installation – 32′
(Not Available As Assembly)
Jib Assembly – 32′
Jib Cable Roller Assembly
Sheave Assembly – Complete
Sheave Assembly
Jib Boom Carrier
Installation
Jib Support Assembly –
Front
Jib Support Assembly –
Rear
Roller Assembly
Sheave Installation –
Rooster
Krueger Mark Iii Lmi
Installation
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Plug Assembly – 6 Pin
Plug Assembly – 6 Pin
Anti-Two Block Weight W/Chain
Roller Guide Assy
Roller Guide Assy
Amplifier Assembly-Bridge
Board Assy. P.C.
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Pressure Transducer
Assembly
Anti-Two Block Weight W/Chain
Filter Assembly –
High Frequency
Roller Guide Assy Rework 77300
Hydraulic Lines Installation –
Krueger Lmi
Swingaway Installation –
Krueger Anti-Two Block
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Krueger A2b Installation
Rooster Sheave
Switch Assy,
Anti-Two Block
Receptacle Assembly –
6 Pin
Krueger Cord Reel
Installation – Fixed Jib
Reel Assembly – Cord
Plug Assembly – 6 Pin
Receptacle Assembly –
6 Pin
Dynamometer Installation
Dynamometer Assembly
Plug Assembly – 6 Pin
Roller Guide Assy Rework 77300
Superstructure
Reel Installation – Hose
Reel Assembly – Hose
Reel Assembly – Hose
Reel Assembly – Hose
Hydraulic Lines Installation –
Mid And Counterweight
Hydraulic Lines Installation –
Outer Mid
Pivot Shaft Installation –
Boom
Horn Installation – Swing
Hydraulic Lines Installation –
Lever Lockout
Control Valve And Linkage
Installation
Valve Assembly – Control
Outlet Section
Cartirige,Relief
Valve Assembly – Control
Inlet Section
Cartirige,Relief
Section, Outlet
Cartirige,Relief
Valve Bank Assembly –
1 Section (A-20 Series)
Valve Assembly – Section
Inlet (A-20 Series)
Valve Section – Outlet
Valve Bank Assembly –
2 Section (A-35 Series)
Valve Section – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Cartridge Assembly
Valve Bank Assembly –
2 Section (A-35 Series)
Valve Assembly – Outlet
Valve Section – Inlet
(A-35 Series)
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Valve Assembly – Relief
2250 Psi
Cartridge Assembly
Cartridge Assembly
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Solenoid
Cylinder Assembly –
Lockout
Valve Bank Assembly –
2 Section (A-20 Series)
Valve Assembly – Section
Outlet (A-20 Series)
Valve Section – Inlet
( A20 Series )
Valve, Relief – 1250 Psi
Valve, Relief – 1250 Psi
Sequence Valve
Installation
Valve Assembly – Sequence
Solenoid Valve
Installation
Valve Assembly – Solenoid
Hoist Installation –
Main
Hoist Assembly –
Model Ho-30b-26
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Motor Assembly – Hydraulic
Brake Assembly
Cylinder Assembly –
Hydraulic
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Cable Follower And Idler
Installation
Cable Follower And Idler
Assembly
Hoist Installation –
Auxiliary
Hoist Assembly –
Model Ho-30b-16
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Motor Assembly – Hydraulic
Brake Assembly
Idler Drum Assembly
Roller Assembly – Cable
Cylinder Assembly –
Hydraulic
Roller Assembly – Cable
Valves And Plumbing
Installation – Hoist
(Not Available As Assembly)
Valve Assembly –
Motor Control
Valve Assembly – Selector
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Rotation Indicator
Installation – Model 30
Driver Assembly
Driver Assembly
Indicator Assembly
Transmitter Assembly
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Cable Follower
Installation
Turntable Drive
Installation
Swing Box And Brake
Assembly
Motor Assembly – Orbit
Brake Assembly
Control Lever Installation
– Swing Lock
Swing Brake Release
Installation
Swing Brake Release
Assembly – Trailing Boom
Brake Assembly
Valve Cover Installation
Prop
Fuel Tank Assembly And
Installation
Fuel Level Sending Unit
Installation
Reservoir Installation –
Hydraulic
Filter Assembly
Cylinder Installation –
Lift
Cylinder Assembly – Lift
Valve Assembly
– Overcenter
Swivel Installation
– Electric/Hydraulic
Swivel Assembly
Ring Assembly – Slip
Counterweight Installation
Valve Assembly – Cam
Counterweight Carrier
Installation
Cylinder Assembly –
Counterweight Mover
Roller Assembly
Counterweight Assembly
Counterweight Carrier
Installation
Cylinder Assembly –
Counterweight Mover
Roller Assembly
Bearing Bolt Installation
Hydraulic Lines Installation –
Supply, Pressure And Return
Free Swing Hydraulic
Schematic
Valve Assembly – Relief
Hydraulic Lines Installation –
Lift With Trailing Boom
Lock Installation – Swing
Superstructure Cab
Cab Installation
Cab Weldment And Assembly
Valve Assembly –
Selector
Control Installation –
Air Throttle
Accelerator Pedal Assy
Accelerator Pedal Design “B”
Accelerator Pedal Design “A”
Weatherstrip Installation
– Cab
Seat Installation
Seat Assembly
Wiper Installation –
Cab Windshield
Heater/Defroster
Installation
Heater/Defroster Assembly
Fan Installation – Cab
Circulating
Fan Assembly – 12 Volt Cab
(Complete Assembly)
Extinguisher Installation – Fire
Washer Installation –
Windshield
Acoustical Installation
Control Lever
Installation
Instruments And Lights
Installation
Valve And Pedal
Installation – Swing Brake
Valve Assembly –
Power Brake
Wiper Installation –
Skylight
Motor Assembly –
Windshield Wiper
Harness Assembly – Skylight
Wiper
Grab Rail Installation
Warning System
Installation-Audio/Visual
Plate, Mounting
Installation – Load Chart
Warning System
Installation-Audio/Visual
Lowerworks/Carrier
Engine Installation –
Cummins V-555-C
Manifold Assembly
Fuel/Water Separater
Assembly
Pump Assembly
Pump Assembly
Pump Assembly
Drive Assembly – Pump
Fitting Assy
Tachometer Generator
Assembly
Belt & Filter Cumm V-555-C
Pump Drive Remote
Disconnect Installation
Exhaust And Air Cleaner
Installation
Cleaner Assembly – Air
Hood Installation – Engine
Prop
Prop
Engine Harness
Installation
Link Assembly – Fusible
Clutch Installation
Clutch Assembly
Cover Installation –
Cummins Engine Only
Drive Line Installation
Drive Line Assembly
Drive Line Assembly
Propeller Shaft
Axle And Steering
Installation
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Axle Assembly
Wheel And Drum Assembly
Cylinder Assembly – Steer
Hub Cap Assembly
Torque Arm Assembly
Arm Assembly – Torque
Gear Assembly – Steering
Drag Link And Steering
Valve Assembly
Link Assembly – Drag
Equalizer Assembly
Axle Installation –
Rear
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing Assembly
Axle Assembly
Hub And Shaft Group
Axle Assembly
Brake Assembly
Beam Assembly – Equalizer
Loose Hardware Kit
Actuator Assembly – Spring
Brake
Axle Assembly
Axle Assembly
Differential Carrier Assembly
Axle Assembly
Housing Assembly
Axle Assembly
Wheel End Assembly
Axle Assembly
Brake Assembly
Propeller Shaft
Tire And Wheel Assembly
Tire And Wheel Assembly
Power Steering Schematic –
Cummins Ntc 335 Engine
Valve Extension And Spacer
Installation
Outrigger Beam
Installation
Beam Assembly – Outrigger
Cylinder Assembly – 7″ Outrigger Jack
(Complete Assembly)
Cylinder Assembly –
Extension
Hydraulic Lines Installation –
Outrigger
Valve Installation – Control
– Outrigger
Valve Assembly – 5 Stack
Valve Assembly – 4 Stack
Outrigger Solenoid
Valve Assembly – Relief
Control Box Installation –
Outrigger
Panel Assembly –
Outrigger Control
Level Installation
Level Assembly
Fenders And Battery Box
Installation – Front
Fender Installation – Rear
Fuel Tank Installation
Fuel Tank Assy
Lights And Horn
Installation – Exterior
Air System Schematic –
Cummins Engine
Air Tank And Valve
Installation
Valve Assembly –
Spring Brake
Dryer Assembly – Air
Reservoir Installation –
Power Steering
Reservoir Assembly –
Power Steering
Mud Guard Installation
Access Steps And Landing
Installation
Alarm Installation –
Back-Up
Air Brake And Electrical
Disconnect Installation
Sling Box Installation
Cylinder Installation –
Stabilizer – Front
Cylinder Assembly –
Stabilizer
Float Assembly – Outrigger
Rest Installation – Boom
Engine Installation –
Cummins Ntcc-350
Valve Assembly –
Flow Divider
Tachometer Generator
Assembly
Controller Assembly –
Slave Unit
Pump Assembly –
Power Steering
Engine Brake Assembly
Belt & Filter Cumm Ntc-350
Transmission Shift
Installation
(Not Available As Assembly)
Control Assembly –
Master Unit
Battery Installation
(Not Available As Assembly)
Terminal Block
Installation
Terminal Block Assembly – Electrical
Quick Start Installation
Hood Installation – Engine
Connector & Mounting Plate
Installation
Carrier/Frame Cab
Electrical System
Installation – S/S
Harness Assembly –
Superstructure Wiring
Panel Assembly – S/S
Fuse And Connector
Cab Installation
Cab
Door Assembly
Door Assembly
Heater Assembly –
Hot Water
Controls Installation
Steering Column Assembly
(Complete Assembly)
Cylinder Assembly – Master
Toe Board Assembly
Valve Assembly – Dual Brake
Seat And Seat Belt
Installation
(Not Available As Assembly)
Seat Assembly – Drivers
Shock
Clutch And Slave Cyl Hyd
Lines Installation
(Not Available As Assembly)
Acoustical Installation
Washer Installation –
Windshield
(Not Available As Assembly)
Mirror Installation –
Rear View
Mirror Head And Loop
Assembly – Stainless Steel
Wiper Installation –
Windshield
(Not Available As Assembly)
Exhaust System And Air
Cleaner Installation
Cleaner Assembly – Air
Radiator Installation
Pedal Installation – Throttle
(Not Available As Assembly)
Fuel/Water Separater
Installation
Fuel/Water Separater
Assembly
Cylinder Installation –
Clutch And Slave
Clutch Assembly
Clutch Release Assembly
Cylinder Assembly – Slave
Brake Controls
Installation – Engine
Specs/Schematics
Wiring Diagram
Decals
Decal Installation
