Grove Crane TMS760E 400038 Parts Manual 2015

Description

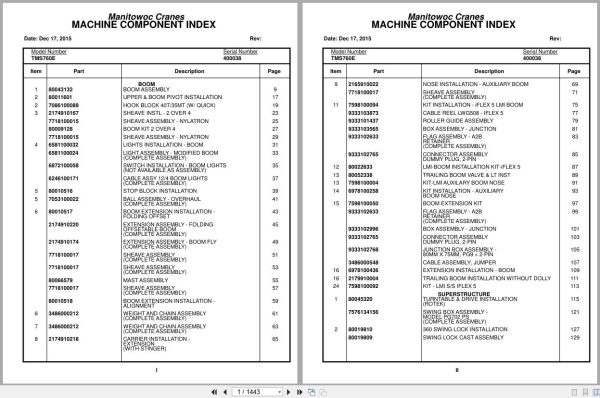

Contents:
Boom
Boom Assembly
Upper & Boom Pivot Installation
Hook Block 40t/35mt (W/ Quick)
Sheave Instl – 2 Over 4
Sheave Assembly – Nylatron
Boom Kit 2 Over 4
Sheave Assembly – Nylatron
Lights Installation – Boom
Light Assembly – Modified Boom
(Complete Assembly)
Switch Installation – Boom Lights
(Not Available As Assembly)
Cable Assy 12/4 Boom Lights
(Complete Assembly)
Stop Block Installation
Ball Assembly – Overhaul
(Complete Assembly)
Boom Extension Installation –
Folding Offset
Extension Assembly – Folding
Offsetable Boom
(Complete Assembly)
Extension Assembly – Boom Fly
(Complete Assembly)
Sheave Assembly
(Complete Assembly)
Sheave Assembly
(Complete Assembly)
Mast Assembly
Sheave Assembly
(Complete Assembly)
Boom Extension Installation –
Alignment
Weight And Chain Assembly
(Complete Assembly)
Weight And Chain Assembly
(Complete Assembly)
Carrier Installation –
Extension
(With Stinger)
Nose Installation – Auxiliary Boom
Sheave Assembly
(Complete Assembly)
Kit Installation – Iflex 5 Lmi Boom
Cable Reel Lwg508 – Iflex 5
Roller Guide Assembly
Box Assembly – Junction
Flag Assembly – A2b
Retainer
(Complete Assembly)
Connector Assembly
Dummy Plug, 2-Pin
Lmi-Boom Installation Kit-Iflex 5
Trailing Boom Valve & Lt Inst
Kit-Lmi Auxilary Boom Nose
Kit Installation – Auxiliary
Boom Nose
Boom Extension Kit
Flag Assembly – A2b
Retainer
(Complete Assembly)
Box Assembly – Junction
Connector Assembly
Dummy Plug, 2-Pin
Junction Box Assembly –
80mm X 75mm, Pg9 + 2-Pin
Cable Assembly, Jumper
Extension Installation – Boom
Trailing Boom Installation Without Dolly
Kit – Lmi S/S Iflex 5
Superstructure
Turntable & Drive Installation
(Rotek)
Swing Box Assembly –
Model Pg702 Ps
(Complete Assembly)
360 Swing Lock Installation
Swing Lock Cast Assembly
Counterweight Install 16500#
Cylinder Assembly – 3 1/2″ Cwt Removal
(Complete Assembly)
Electric, Water And Hydraulic
Swivel Installation
Electric, Water And Hydraulic
Swivel Assembly
Swivel Assy-5 Port Hyd
Swivel Assembly – 2 Port Water
(Complete Assembly)
Slip Ring Assy 49 Cond W/Slew
Valve Assembly – High Speed Boost
(Complete Assembly)
Lift Cylinder Installation
Cyl Assy 12.00″ Bore-Lift
3/4 Holding Valve
Valve Cover Comps Installation
Air Condition Installation-Ss
Hyd A/C Unit Kit – S/S 12v
Esi-Superstructure
Harness Assembly – Superstructure
Panel Assembly- Counterweight Removal Lh
Panel Assembly- Counterweight Removal Rh
Rope, Wire
Bearing Bolt Installation
Control Valve Installation
(Superstructure)
Directional Control Valve
Valve Assy. Inlet Section
Valve Assy. Work Section
End Cap Assy.
Valve Assy. Work Section
End Cap Assy.
Valve Assy. Work Section
End Cap Assy.
Valve Assy. Outlet Section
Pressure Reducing Valve W/Sol
Valve Assembly – Counterweight Removal
(Complete Assembly)
Valve Installation – Control
(Complete Assembly)
19mm Rope 35x7x153m
Supply, Pressure And Return
Hydraulic Lines Installation
With Air Conditioning
(Superstructure)
Valve Assembly – Residual
Check
(Complete Assembly)
Socket, 3/4” Open Wedge
Binder Installation
Lift Hydraulic Lines Installation
With Trailing Boom
(Superstructure)
Valve Assembly –
Flow Control
Socket, 3/4” Open Wedge
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Hydraulic Lines Installation – Cab
Supply, Pressure And Return
Hydraulic Lines Installation –
Telescope
(Superstructure)
Hydraulic Lines Installation –
Telescope With Auxiliary Hoist
Swing Hydraulic Lines Installation
With Trailing Boom
(Superstructure)
Hydraulic Lines Installation –
Swing And Swing Brake
Hydraulic Lines Installation –
Main And Auxiliary Hoist
Valve Cover Installation
Hydraulic Lines Installation –
Lmi
Hydraulic Lines Installation – Lift
Brake Release Installation –
Swing
Valve Assembly – Swing Brake
Lmi-Internal Light Bar Installation
Main & Aux Hoist Installation
Hoist Assembly-Ghp30a
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator
(Complete Assembly)
Indicator Installation – Hoist Rotation
Control Assy – Hoist Rotation Indicator
(Complete Assembly)
Mirror Installation – Hoist
Mirror Installation – Hoist
Kit Installation – Iflex 5 Lmi
Superstructure
Oms Can-Bus Installation-Superstructure
Canbus Assemlby-Retro
Cranestar Installation-Ss
Canbus Assemlby-Retro
Hoist Access Platform Installation
Hri Installation-Ss
Wiring Harness, Main Hoist Sw
Hri Installation-Ss W/Aux
Wiring Harness, Aux Hoist Sw
Superstructure Cab
Cab Assembly
Rear Window Assembly
Window Assembly-Rh
Cable Assembly
(Complete Assembly)
Skylight Assembly – Sliding
Fan Assembly-12v (Cab)
Valve Assembly
With Treadle Pedal
Seat Installation
With Auxiliary Hoist
Single Axis Controllers
Seat Assembly
With Auxiliary Hoist
Single Axis Controller
Handle Assembly (W/Solenoid)
Harness Assembly – Superstructure
(Cab Seat)
(Complete Assembly)
Seat
Instruments & Lamps Installation
Switch Panel Assembly
(Superstructure Cab)
Harness Assy-Panel Switch (Ss)
Panel Assembly-Front Console
(Superstructure)
Harness Assembly-Front Console
(Superstructure)
Harness Assembly-Front Console Top
(Superstructure)
Receptacle Harness
Acoustics Installation-Ss
Heat/Cool Installation-Cab
Heater/Cool Kit 12v.
Clutch Pedal Installation
Boot, Rubber Control Rod
Pedal Installation –
360 Swing Lock
Pedal Assembly – Foot
(Complete Assembly)
Pin Installation – Lock
Boom Telescope Pedal Installation
Tredal Valve Assembly – Bi Directional
Hydraulic Proportional Remote Control
Sunscreen Installation
Light Installation – Beacon
(With Carrier Control)
Cable Assembly – Beacon Light
(Complete Assembly)
Esi-Superstructure Cab
Harness Assembly-Ss Cab
Fuse & Relay Panel
Esi-Superstructure Cab
Fuse & Relay Panel Assembly
Fuse & Relay Panel
Harness Assembly-Superstructure
Throttle Pedal Installation-Ss
Heater & Air Condition
Central Panel Installation
Heater & A/C Ctrl Panel (12v)
Kit – Lmi Iflex 5 Cab
Centeral Unit – Iflex 5
Graph. Console (Ver.) – Iflex5
Kit Installation – Iflex5 Lmi Cab
Air Condition Lines Installation-Cab
A/C Hose Kit
Cranestar Installation-Cab
Harness Assembly-Crane Star Tcu
Cover Installation – Bottom
Cab Installation-Components
Hri Installation-Cab
Hoist Ind Power Wiring Harness
Lowerworks/Carrier
Frame Complete
Outrigger Beam Installtion
Outrigger Beam Assembly
Cylinder Assembly-4 1/2″ Outrigger Jack
(Complete Assembly)
Cylinder Assembly –
Outrigger Extension
(Complete Assembly)
Cylinder Assembly – 2 1/2″ O/R Extension
(Complete Assembly)
Fifth Outrigger Jack Installation
Cylinder Assembly-3.50 Jack
Pad Assembly – Outrigger
Outrigger Float Stowage Installation
Acoustics Installation-Carrier
Fenders & Decking Installation
Engine Hood Installation
Engine Hood Assembly
Float Assembly – Outrigger
Instruments & Lamps Installation
Light Assembly – Park And Turn Signal
(Complete Assembly)
Alarm Installation –
Back-Up
(Not Available As Assembly)
Tire Inflation Kit
Stowage Tray Installation
Mirror Installation –
Rear View
Head And Loop Assembly –
Mirror
Boom Rest & Pump Cover Installation
Cross Axle Diff Valve & Light Install
Outrigger Controller Installation
Outrigger Controllers Assembly
Cable Assembly
Hardware Kit – Decal
Esi-Carrier Cab
Fuse & Relay Panel Assembly
(Carrier Cab)
Harness Assembly-Fuse & Relay
(Carrier Cab)
Harness Assembly – Carrier Cab
(Complete Assembly)
Clutch Cable Installation
Tire Inflation Valve Installation
Counterweight Removal –
Hydraulic Lines – Superstructure
Air Tank & Valve Installation
Valve Assembly –
Spring Brake
Valve Assembly – Supply Dump
(Complete Assembly)
Air Lines Installation-Carrier
Air Lines Inst-Trlg Boom
Air Valve Installation
Trailing Boom
Esi – Carrier
Air Lines Installation-Carrier Cab
Trailing Boom
Battery Installation
Wiring Harness Assembly
Trailer Recept Installation
Remote Control Installation-Outrigger
Panel Assy-O/R Controls,Lh
Panel Assy-O/R Controls,Rh
Harness Assembly –
Outrigger Remote Controls
(Complete Assembly)
Hydraulic Reservoir Installation
Hydraulic Reservoir Assembly
Reservoir Assembly – Hydraulic
(Complete Assembly)
Filter Assembly – Return
(Complete Assembly)
Hydraulic Valve Installation-Carrier T4
Valve Assembly – Outrigger Control
4 Section
(Complete Assembly)
Valve Assembly – Outrigger Control
5 Section
(Complete Assembly)
Valve Assembly – Outrigger Selector
(Complete Assembly)
Valve Assembly – Flow Divider
(Complete Assembly)
Hyd Lines Install-Carrier Isx
Valve Assembly – Pump Mounted Relief
(Complete Assembly)
Oil Cooler Installation
Cooler Assembly – Oil

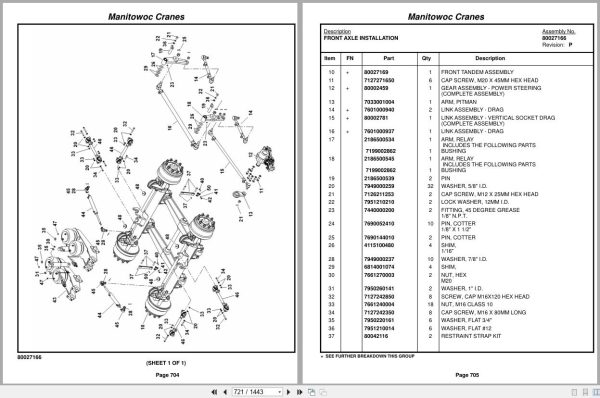

Front Axle Installation
Front Tandem Assembly
Front Axle-Front Front
Steer Hub & Beam Assy. F/F Grp
Brake Assy. Group L.H
Brake Assy. Group R.H
Front Axle-Rear Front
Steer Hub & Beam Assy. F/R Grp
Brake Assy. Group L.H
Brake Assy. Group R.H
Beam Assembly – Front Walking
Beam Assembly – Walking 60”
Gear Assembly – Power Steering
(Complete Assembly)
Link Assembly – Drag
Link Assembly – Vertical Socket Drag
(Complete Assembly)
Link Assembly – Drag
Front Suspension Kit-Air Link
Control Valve And Linkage
Assembly
Cylinder Assembly – 2″ Steer
(Complete Assembly)
Rod Assembly – Torque
(Complete Assembly)
Rear Axle Installation
No Spin
Rear Axle Assembly
No Spin
Rear Axle-With Diff
Diff.Carr.Assy.& Housing Group
Housing Axle & Wheel End Group
Brake Assy. Group R.H. & L.H.
Beam Assembly – Rear Walking
(Complete Assembly)
Axle Assembly – Rear Rear
With No Spin
(Complete Assembly)
Brake Chamber
Drive Line Assembly
(Complete Assembly)
Rear Suspension Kit-Air Link
Control Valve And Linkage
Assembly
Driveline Installation
Drive Line Assembly
With Center Bearing
(Complete Assembly)
Drive Line Assembly
(Complete Assembly)
Tire And Wheel Installation
Michelin 13″ Aluminum
Tire And Wheel Assembly –
Michelin 445/65r 22.5 Aluminum
(Complete Assembly)
Tire And Wheel Installation –
Michelin 315/80r 22.5
(Aluminum/Steel)
Tire And Wheel Assembly –
Michelin 315/80r 22.5
(Aluminum)
T & W (Ref 80026556)
Tire And Wheel Assembly –
Michelin 315/80r 22.5
(Steel)
Engine Installation-Isx12
Engine Assembly-Isx12
Transmission Assembly
Filter Regulator Group
Slave Valve Group
Hose & Connection Group
Shift Bar Group
Main Case Group
Mainshaft Group
Countershaft Group
Input Shaft & Drive Gear Group
Reverse Idler Group
Oil Pump, Integeral Group
Auxiliary Case Group
Auxiliary Mainshaft Group
Auxiliary Countershaft Group
Auxiliary Drive Gear Group
Combination Cylinder Group
Slave Unit Assembly
(Complete Assembly)
Slave Unit Assembly
Slave Unit Assembly
Pump Gear W/Priority Flow
Clutch Installation
Clutch Assembly
Clutch Release Kit
Esi-Engine Isx12
Valve Assy- Modified Fan Clutch Solenoid
12 Volt
(Complete Assembly)
Valve Assembly – Solenoid
Harness Assembly – Speedometer
(Complete Assembly)
Pump Installation
Pump 3 Section
Pump Drive W/ Disconnect
Drive Line Assembly
(Complete Assembly)
Valve Assembly – 3 Way
Solenoid
Switch Assembly – Proximity
(Normally Open)
(Complete Assembly)
Gear Pump Assembly
Transmission Shift Installation
Master Control Unit
Modification
Fuel Cooler Installation
Mounting Kit – Oil Cooler
Heater Lines Installation
Either System Installation
Ether Valve-12v
Radiator Installation-Isx
Radiator/Cac Assembly
Rad/Cac Assy
Surge Tank Assembly
Fuel Tank Installation
(Aluminum)
Fuel Tank 97 Gal Alum
Fuel Filter Installation
Fuel Filter Assy. W/Wif Sensor
Air Cleaner Installation
Cleaner Assembly – Air
(Complete Assembly)
Exhaust System Instl 12v
Dpf-Siso 12v 2013
Esi-Exhaust
Harness Assembly-After Trmnt
Def Tank Installation
Def Tank-10 Gal
Scr Coolant Lines Installation
Def Control System Instl 12v
Module Doser-Supply 12v
Ac Installation-Carrier
Freon Compressor-12v Pad, Kit
Step Installation
Bottom Cover Installation
Oms Installation
Supplemental Oms Harness Assembly
Horizontal Potentiometer Installation
(Outrigger)
Oms Module Installation
Block Heater Installation-120v
Supplemental Harness Assembly
Ambient Air Temp
Supp Harness-Ambient Air Temp
Air Lines Installation
With Trailing Boom
Supplemental Esi-Aftertreatment
Supplemental Harness Assembly
(Aftertreatment)
Clutch Switch Rw Esi
Clutch Switch Harness Assy
Carrier/Frame Cab
Cab Installation 12v
Cab Assembly 12v
Cab
Cab Door Installation
Cab Door
Valve Assembly – Dual Brake
(Complete Assembly)
Window Assy – Rh
Rear Window Assembly
Column Assembly – Steering
(Complete Assembly)
Harness Assembly – Wiper Motor
(Complete Assembly)
Light Assembly – Dome
(12 Volt)
(Complete Assembly)
Fan Assembly-12v (Cab)
Steering Support (Modified)
Seat And Seat Belt Installation
Seat Assembly
(Complete Assembly)
Front Console Installation-Carrier
Front Console Assembly-Carrier
Harness Assembly-Front Console
Heater & Defroster Installation-12v
Heater & Evaporator Kit 12v
Heater & A/C Control Panel Installation
Heater & A/C Ctrl Panel (12v)
Air Condition Installation-Cab 12v
Air Cond Kit-12v
Air Cond Hose Kit (Carrier)
Flasher Light Installation
Switch Instl-Beacon Light
Horn Installation – Air
Air Lines Inst-Cab
Air Lines Inst-Console
Bottle Installation – Washer
Console Installation-Rh
Console Assembly-Rh
Pedal Installation – Throttle
(Not Available As Assembly)
Cab Assembly Kit-Carrier
Air Lines Inst-Air Horn
Dash Lamp Installation-12v
Specs/Schematics
Elect Schematic
Reeving Diagram
Hyd Pressure Setting Procedure
Finish Specification
Decals
Decal Installation-Standard
Decal Installation-Standard
(Superstructure Cab)
Decal Installation-Standard
(Carrier Cab)
Decal Installation-Standard Carrier
Decal Installation-Standard Ss
Decal Installation-Standard Boom
Decal Installation-Tms700e
Nomenclature
Decal Instl Tms700e Series-Mis
Decal Installation
Decal Installation – Clean Idle
