Grove Crane YB5518 321422 Parts Manual 2021
20 USD
- Description
Description
Contents:
Boom
Boom Group – 4 Section
18.5 – 54.5 Long
Boom Assembly – 1st Section
(Complete Assembly)
Boom Assembly – 2nd Section
(Complete Assembly)
Boom Assembly – 3rd Section
(Complete Assembly)
Guide Assembly – Cable
(Complete Assembly)
Grp,Chain Assy,4sect Long Boom
Guide Assembly – Roller
(Complete Assembly)
Pivoting Boom Head Group
Load Sense Indicator Installation
With Rated Capacity Limiter
18 Ton
Transmitter, Anti Two Block
Work Lights Group – Boom 5560b
Searcher Hook Group – 6000lb
5560b/5518
Mounting Group – Boom Extension
5560b/5518
Telecylinder/Crowd Group – 5560b
Cylinder Assembly – Hydraulic
(Complete Assembly)
Winch Assembly,5540f,5560b
Mast And Attaching Parts Group
Swivel Assembly – Hydraulic
(Complete Assembly)
Cylinder Assembly – Lift
Yb5518
(Complete Assembly)
Piston Motor Installation
5560b/5515
Hookblock Tie-Down Installation
(All Industrial Cranes)
Swivel Installation And Connectors –
2 Pass
Carrier/Lowerworks
Frame Assembly
Tank Group – Dual Fuel
5560b
(For Reference Only)
Tank Assembly – Dual Fuel
5540f
Hydraulic Plumbing Group
Cd5560b / Yb5518
Valve Assembly – Solenoid
(Complete Assembly)
Valve Assembly – Dump 2 Way
Valve Assembly – Priority Flow Regulator
(Complete Assembly)
Valve Assembly – Relief
(Complete Assembly)
Valve Assembly – Combination
(Complete Assembly)
Valve Assembly
Steering Mode
(Complete Assembly)
Valve Assembly – Control
1 Section
(Complete Assembly)
Valve Assembly – Control
3 Section
(Complete Assembly)
Tank Assembly – Hydraulic Oil
Engine Installation
(Dual Fuel)
5560
Engine, Dual Fuel, 4.3l
Pump Assembly – Gear
Exhaust Group – Dual Fuel
(With Spark Arrester)
5540f
Valve And Plumbing Group – Outrigger
(Industrial)
Cylinder, Hydraulic
Cylinder Assembly – Jack
Yb5518
(Complete Assembly)
Valve Assembly – Outrigger
9 Section With 12 Volt – Dt Coils
(Complete Assembly)
Adapter Assembly – Harness
Oscillation Axle Lockout With
Outriggers – Independent
5560
Cylinder Assembly
Axle Lockout
(Complete Assembly)
Decal-Danger Oscillation Lockout Tipover
(English)
Axle Group Front – 5560b

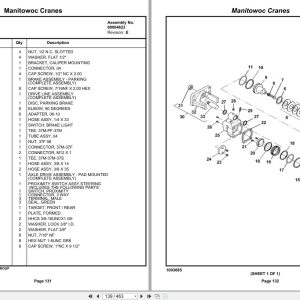

Brake Assembly – Parking
(Complete Assembly)
Drive Line Assembly
(Complete Assembly)
Axle Drive Assembly – Pad Mounted
(Complete Assembly)
Drive Head Group
Differential Assy. Parts Group
Wheel Hubs Group
Hub Swivels And Track Rod Group
Tire And Wheel Group – 385/65r22.5
(For Reference Only)
Tire And Wheel Assembly
(385/65r22.5 Tbls)
Hitch Group – Front Pintle
Pintle Hook Assy.Chain & Cable
Pintle Hook.W/Chain Safety Pin
Pintle Hook.W/Cable Safety Pin
Jaw Assy.
Hitch Group – Pintle Rear
Pintle Hook Assy.Chain & Cable
Pintle Hook.W/Chain Safety Pin
Pintle Hook.W/Cable Safety Pin
Jaw Assy.
Light Guard Group – 3330/5500
Electrical Steering Circuits Group –
Return To Center Steer
(For Reference Only)
Mirror Group – Dual Rear View
5550
Windshield Washer Kit Group
5560b
Swing Gear Group – 5560
Gearcase, Swing – T Model
Motor Assembly – Hydraulic Swing
(Complete Assembly)
Battery Group – 5560b
Electrical Group – Common Parts
(For Reference Only)
Harness Assembly – Dash 5560b
(Tier 3)
(Complete Assembly)
Axle Assembly – Rear 4 Wheel Drive
5560
Driveline Assembly – Rear
(Complete Assembly)
Axle Assembly – Rear Drive
(Complete Assembly)
Axle Housing Group – Rear Drive
(4 Wheel Drive Units Only)
Differential Carrier Group
(4 Wheel Drive Units Only)
Hub And Track Group
(4 Wheel Drive Units Only)
Planetary Hub Group
(4 Wheel Drive Units Only)
Brake Group – Wheel Brakes
(4 Wheel Drive Units Only)
Shaft Group – Drive
(4 Wheel Drive Units Only)
Cylinder Group – Steer
(4 Wheel Drive Units Only)
Cylinder Assembly – Steering
(Complete Assembly)
Radiator Group With Dual Fuel
5560b
Axle Mounting – 5560b/5540f
L.P.G. Tank And Hoses Group
Kit – L.P.G. Hose 4.3l
Air Cleaner Group – Dual Fuel
5560b
Air Cleaner Assembly – Diesel Engine
(Complete Assembly)
Heater/Defroster Engine Parts Group
(Dual Fuel)
Transmission Group – 4 Wheel Drive
Cd5560b / Yb5518
Transmission Group – 4 Wheel Drive
(For Reference Only)
Transmission Assembly – Complete
(4 Wheel Drive)
Drive Transmission – External Component
Drive Transmission – Pump Drive Shaft
Drive Transmission – Main Shaft &
Components
Drive Transmission – Layshaft &
Components
Drive Transmission – Input Clutch
Drive Transmission – Reverse Clutch
Drive Transmission – Output Assembly
Clutch Assembly – 4wheel Drive
(Complete Assembly)
Drive Transmission-4-Wd Clutch
Clutch Assembly – 4wheel Drive
(Complete Assembly)
Drive Transmission – Pump & Components
Pump, Transmission (Used On 2wd
Transmissions With Transmission S/N
460/80220-2 And After And 4wd
Transmissions With Transmission S/N
460/80210-21 And After).
Drive Transmission-Piping(4weel Drive)
Drive Transmission – Solenoid Valves
(4wheel Drive)
Valve Assembly
Steering Mode
(Complete Assembly)
Harness, Transmission
Harness Group – Frame 5560b
(Tier 3 Diesel)
Harness Assembly – Main Frame
(Complete Assembly)
Carrier/Frame Cab
Cab Group – Standard 5560b
Valve – Brake Modulating
Valve Assembly – Steering Control Unit
(Complete Assembly)
Decal – Identification Plate
Valve Assembly – Pilot Control
(Complete Assembly)
Harness Assembly – Outrigger,Dash To Cab
(Complete Assembly)
Harness Assembly – Dash 5560b
(Tier 3)
(Complete Assembly)
Cab Group – Enclosed
Seat Installation – Adjustable
Seat, Adjustable Cushioned Optional
Fire Extinguisher Assembly
Heater/Defroster Installation
Heater Assembly
(Complete Assembly)
Dome Light Installation
Strobe Light – Enclosed Cab
Cab Component Installation – Dual Fuel
Door Strap Installation
Door Installation With Strobe Light
Window Assembly – Slider Door
(Aluminum Frame)
(Complete Assembly)
Loose Ship Items
Downhaul Weight Assembly – 105lbs
Hookblock Assembly –
20ton Working Load Limit
(1/2″ Wire Rope)
Wire Rope, 13mm 310′
Socket & Wedge, 1/2 W.R. With Clip
Decal Instl-Nomen Yb5518
Specs/Schematics
Wiring Diagram, 5560 Dual Fuel
Decals
Miscellaneous Decals
Kit – Decals Universal
(English)
(For Reference Only)
Kit – Graphics – Cab – English
Kit – Graphics – C/S – English
Decal – Warning Pinch Point
(English)
Chevron Decal Instl Yb5518
Decal – Load Rating And Range Diagram
Yb5518
(English)
Decal – Danger Backward Stability
(English)
Decal-Danger Oscillation Lockout Tipover
(English)
Decal – Dash Right Console
Decal – Dash Left Console
Panel-Serial No.
Decal – P.C.S.A. Shield
(English)
Decal – Angle Indicator Left
Decal – Angle Indicator Right
Decal-Shift Pattern
Decal – Warning Pinch Point
(English)
Panel – Yardboss Serial Number
