Name: GSI Direct Gear Drive Bin Sweep 10 Heavy Duty Parts Catalog 652164
SKU: 454903
Availability: InStock

GSI Direct Gear Drive Bin Sweep 10 Heavy Duty Parts Catalog 652164 1

GSI Direct Gear Drive Bin Sweep 10 Heavy Duty Parts Catalog 652164 2

GSI Direct Gear Drive Bin Sweep 10 Heavy Duty Parts Catalog 652164 3

✓

Expert Support

✓

Full Speed

✓

100% Working

GSI Direct Gear Drive Bin Sweep 10 Heavy Duty Parts Catalog 652164

Size: 6.28 MB

Format:

Language: English

Brand: GSI

Type of Machine: Direct Gear Drive Bin Sweep 10â€ Heavy Duty

Type of Manual: Parts Catalog

Part Number: 652164

Number of Pages: 82 Pages

10 USD

Tag: GSI Parts Manual

Description

Description

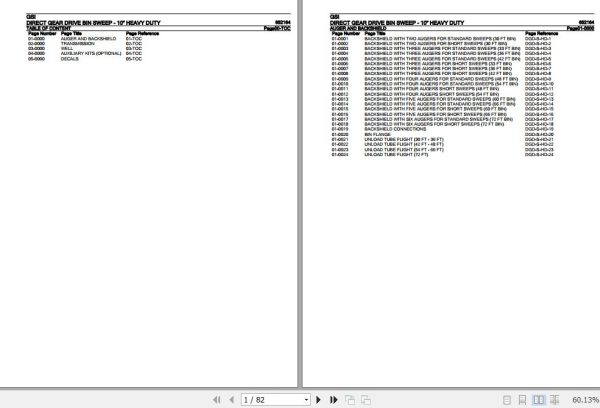

Contents:
Auger And Backshield
Backshield With Two Augers For Standard Sweeps (30 Ft Bin)
Backshield With Two Augers For Short Sweeps (30 Ft Bin)
Backshield With Three Augers For Standard Sweeps (33 Ft Bin)
Backshield With Three Augers For Standard Sweeps (36 Ft Bin)
Backshield With Three Augers For Standard Sweeps (42 Ft Bin)
Backshield With Three Augers For Short Sweeps (33 Ft Bin)
Backshield With Three Augers For Short Sweeps (36 Ft Bin)
Backshield With Three Augers For Short Sweeps (42 Ft Bin)
Backshield With Four Augers For Standard Sweeps (48 Ft Bin)
Backshield With Four Augers For Standard Sweeps (54 Ft Bin)

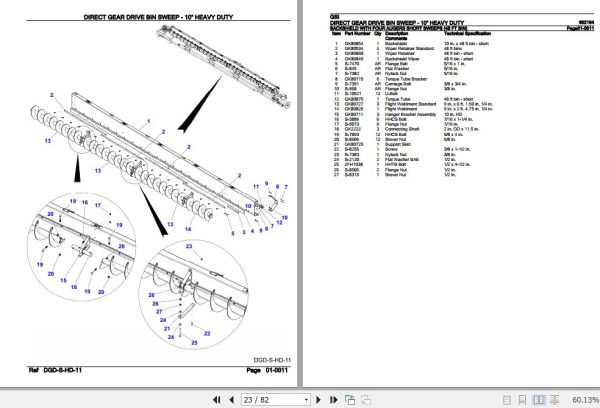

Backshield With Four Augers Short Sweeps (48 Ft Bin)
Backshield With Four Augers Short Sweeps (54 Ft Bin)
Backshield With Five Augers For Standard Sweeps (60 Ft Bin)
Backshield With Five Augers For Standard Sweeps (66 Ft Bin)
Backshield With Five Augers For Short Sweeps (60 Ft Bin)
Backshield With Five Augers For Short Sweeps (66 Ft Bin)
Backshield With Six Augers For Standard Sweeps (72 Ft Bin)
Backshield With Six Augers For Short Sweeps (72 Ft Bin)
Backshield Connections
Bin Flange
Unload Tube Flight (30 Ft – 36 Ft)
Unload Tube Flight (42 Ft – 48 Ft)
Unload Tube Flight (54 Ft – 66 Ft)
Unload Tube Flight (72 Ft)
Transmission
Single Rack And Pinion (30 Ft – 36 Ft)
Double Rack And Pinion (42 Ft – 72 Ft)
Sweep Wheel
Clutch Control
Gear Box
Upper Gear Box Components
Lower Gear Box Components
Well
Center Well
Intermediate Well (30 Ft – 36 Ft Bins)

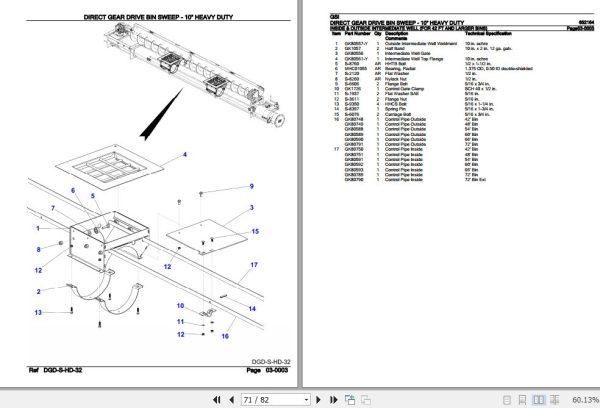

Inside & Outside Intermediate Well (For 42 Ft And Larger Bins)
Auxiliary Kits (Optional)
Auxiliary Kits – 10 In (30 Ft – 36 Ft)
Auxiliary Kits – 10 In (42 Ft – 48 Ft)
Auxiliary Kits – 10 In (54 Ft – 72 Ft)
Decals
