Name: GSI Portable Dryer 3426 Parts Catalog 652114
SKU: 454929
Price: 10.00 USD
Availability: InStock

GSI Portable Dryer 3426 Parts Catalog 652114 1

GSI Portable Dryer 3426 Parts Catalog 652114 2

GSI Portable Dryer 3426 Parts Catalog 652114 3

✓

Expert Support

✓

Full Speed

✓

100% Working

GSI Portable Dryer 3426 Parts Catalog 652114

Size: 8.83 MB

Format: PDF

Language: English

Brand: GSI

Type of Machine: Portable Dryer

Type of Manual: Parts Catalog

Model: GSI 3426 Portable Dryer

Part Number: 652114

Number of Pages: 107 Pages

10 USD

Tag: GSI Parts Manual

Description

Description

Contents:
Main Structure Assembly
Frame Assembly – (Gsi Only-2015)
Frame Assembly – Bottom, Stack Module – (Gsi Only-2015)

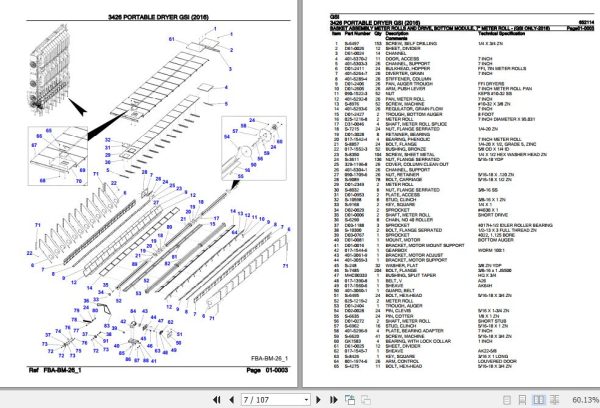

Basket Assembly Meter Rolls And Drive, Bottom Module, 7 Meter Roll – (Gsi Only-2016)
Basket Bulk Head, Bottom, Bottom Module, 7 Meter Roll – (Gsi Only-2016)
Clean-Out Door, Bottom Module, 7 Meter Roll – (Gsi Only-2016)
Basket Bulk Head, Middle, 1 Plenum – (Gsi Only-2016)
Basket Bulk Head, Top, 1 Plenum – (Gsi Only-2015)
Inside Bottom Screen, Galvanize, 7 Meter Roll (0.094) – (Gsi Only-2015)
Inside Bottom Screen, Galvanize, Tm (0.094) – (Gsi Only-2015)
Inside Top Screen, Galvanize, One Piece Screen (0.094) – (Gsi Only-2015)
Inside Wall Screen, Galvanize (0.094) – (Gsi Only-2015)
Outside Bottom Screen, Galvanize (0.094) – (Gsi Only-2015)
Outside Bottom Screen, Galvanize, 7 Meter Roll (0.094) – (Gsi Only-2015)
Outside Top Screen, Galvanize (0.094) – (Gsi Only-2015)
Outside Wall Screen, Galvanize (0.094) – (Gsi Only-2015)
Connecting Sheets Screen, Galvanize (0.094) – (Gsi Only-2015)
Service Platform Kit – Three Module – (Gsi Only-2016)
Column End Panels – One Module – (Gsi Only-2015)
Wet Bin Components, Galvanized – (Gsi Only-2016)
Ladder, Panel And Hitch, Ochre 2016 – Front Side – (Gsi Only-2016)
Ladder, Panel And Hitch, Ochre 2016 – Rear Side – (Gsi Only-2016)
Ladder, Panel And Hitch, Top Mid Mod-Ochre 2016 – Front Side – (Gsi Only-2016)
Ladder, Panel And Hitch, Top Mid Mod-Ochre 2016 – Rear Side – (Gsi Only-2016)
Safety Cage – 3 Mod Package Rl-Fm – (Gsi Only-2016)
Stiffener Package – Front Module – (Gsi Only-2016)
Stiffener Package – Rear Module – (Gsi Only-2016)
Grain Inverter Package, 26′ Stk Dc 2012 – (Gsi Only-2015)
Auger And Metering Roll Drive Trains
Bottom Auger And Drive Components, New Discharge, 7 Meter Roll – (Gsi Only-2016)
Discharge Assembly, New Discharge, 7 Meter Roll – (Gsi Only-2016)
Top Auger – 26′ Vision Black – (Gsi Only-2015)
Top Auger Drive Components – 26′ Galv. Perf. Wb Och Vision 7 Meter Roll 2016 – (Gsi Only-2016)
Fan And Heater
Pipe Train, Bottom Module Ng Vision – (Gsi Only-2016)
Pipe Train, Middle Module Ng Vision – (Gsi Only-2016)
Pipe Train, Top Module Ng Vision – (Gsi Only-2016)
Fan And Heater Housing, 40in, 25hp, 440v, 3 Phase, Ng, Vision – (Gsi Only-2015)
Heater Burner Assembly, 40in, 25hp, 440v, 3 Phase, Ng, Vision – (Gsi Only-2016)
Fan And Heater Housing, 42in, 40hp, 440v, 3 Phase, Ng, Vision – (Gsi Only-2015)
Heater Burner Assembly, 42in, 40hp, 440v, 3 Phase, Ng, Vision – (Gsi Only-2016)
Electrical System
Moisture Sampler Blower, 440v – (Gsi Only-2015)
Auger Drive Motor Assembly, 10hp, 3 Phase – (Gsi Only-2015)
Electrical Package, Airswitch Box, Bottom Module Dtp – (Gsi Only-2016)
Electrical Package, Timing Gear, Bottom Module Dtp – (Gsi Only-2016)
Electrical Package, Airswitch Box, Middle Module – (Gsi Only-2016)
Electrical Package, Airswitch Box, Top Module – (Gsi Only-2016)
Precision Farming Systems
Upper Control Box, Vision Hybrid, 3 Phase, 440v, 15hp Load Unload, 7 Meter Roll – (Gsi Only-2016)
Lower Control Box, Vision Hybrid, 3 Phase, 440v, 15hp Load Unload, 7 Meter Roll – (Gsi Only-2016)
Decal
Decals – Bottom Module – (Gsi Only-2016)
Decals – Middle Module – (Gsi Only-2016)
Decals – Top Module – (Gsi Only-2016)
