Name: Hako Sweeper Scrubmaster B115R Admiral 28 30 Service Booklet
SKU: 553564
Availability: InStock

Hako Sweeper Scrubmaster B115R Admiral 28 30 Service Booklet (1)

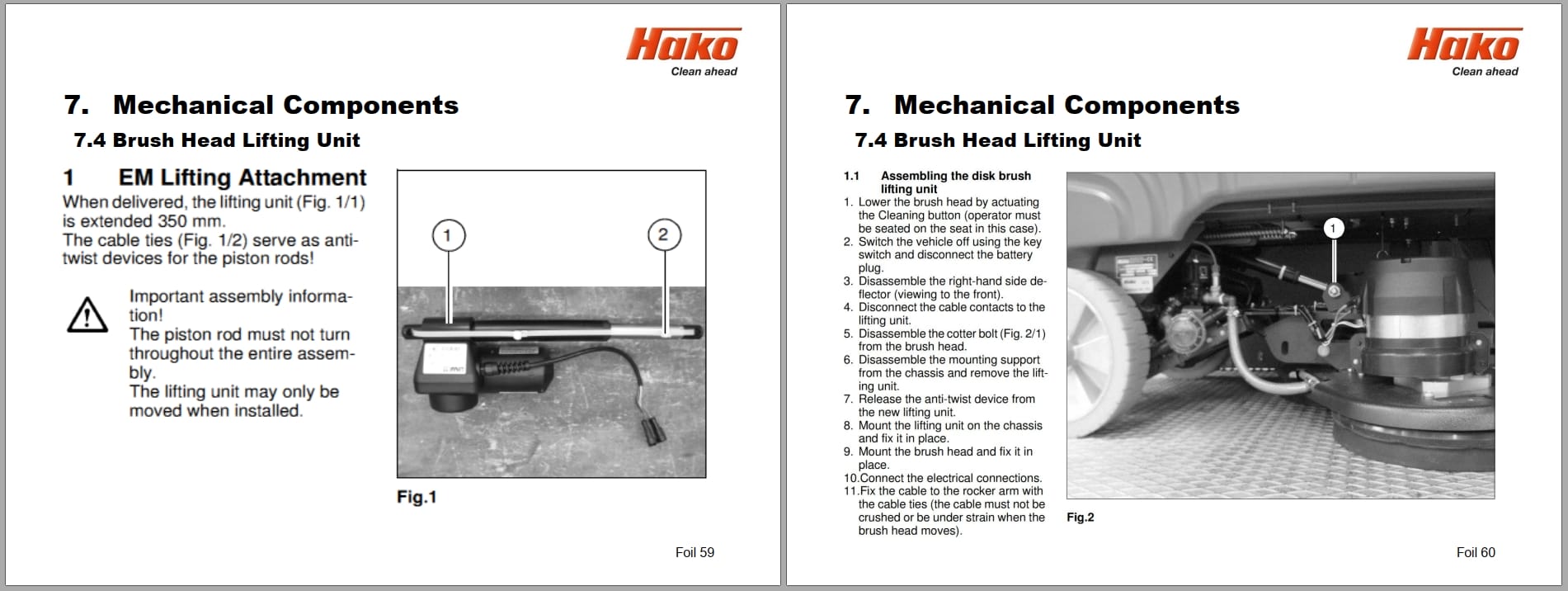

Hako Sweeper Scrubmaster B115R Admiral 28 30 Service Booklet (2)

Hako Sweeper Scrubmaster B115R Admiral 28 30 Service Booklet (3)

✓

Expert Support

✓

Full Speed

✓

100% Working

Hako Sweeper Scrubmaster B115R Admiral 28 30 Service Booklet

Size: 3.87 MB

Format: PDF

Language: English

Brand: Hako

Type of Machine: Sweeper

Type of Manual: Service Booklet

Model:

Hako Scrubmaster B115R Admiral 28 30 Sweeper

PowerBoss Admiral 28 ; Admiral 30 Sweeper

Publication Date: 2014

Number of Pages: 133 Pages

10 USD

Tags: B115R Admiral 28 30, Hako Service Booklet, Hako Sweeper Scrubmaster Manual

Description

Description

Contents:
1 Information
2 General Information
2.1 Settings
2.1.1 Connection With The Diagnosis-Computer
2.1.2 Flashing Of The Control Unit
2.1.3 Connection Schemes With The Different Interfaces
2.2 Short Description
2.2.1 Deactivating Vacuuming / Dirty Water Tank Full
2.2.2 Home Position Of The Machine
2.2.3 Seat Contact Switch (3.6.6.4.)
2.2.4 Introduction To Programming
2.2.5 Reset Last Error Which Occurred In The Start Screen
3 Technical Data
4 Maintenance Intervals
4.1 Hako System Maintenance (Customer)
4.2 Hako System Maintenance I
4.3 Hako System Maintenance II
4.4 Hako System Maintenance S
5 Cleaning Programs
6 Machine Settings
6.1 Basic Settings
6.1.1 Machine Type
6.1.2 Cleaning Units
6.1.3 Battery Setting
6.1.4 Charger
6.2 Settings On Customer Request (Ppv)
7 Mechanical Components
7.1 Squeegee
7.2 Disk Brush Head
7.3 Cylindrical Brush Head
7.3.1 Adjustment Cylindrical Brush Head
7.4 Brush Head Lifting Unit
7.4.1 Potentiometer In The Brush Head Lifting Unit
8 Water Pump
8.1 Water Quantities
8.2 Water Pump Standstill Recognition
9 Drive Control Units
9.1 Atech / Zapi Drive Control Unit (Dc-Motor)
9.1.1 Automatic Monitoring Of Components
9.1.2 Diagnosis Led For Drive Module (Zapi)
9.1.3 Explanations Of Error Messages
9.2 DMC (Ac-Motor)
9.2.1 Description Of The Connectors
9.2.2 Error-Codes On The DMC Control Unit (AC Motor)
10 Error Reference Chart With Information On Service Display
10.1 Service Counter 3.3.1.1.
11 Brakes
11.1 Adjustment Of Brake (Dc-Motor)
11.2 Brake Of The Ac Motor
12 Options
12.1 Silence Kit
12.2 Acoustic Warning Signal
12.3 Chemical Dosage
12.4 Scrubbing-Vacuum Tool
13 Real-Time Clock (RTC)
14 Notes
