Name: Hako Sweepmaster P1500RH D1500RH B1500RH Service Booklet
SKU: 553596
Price: 10.00 USD
Availability: InStock

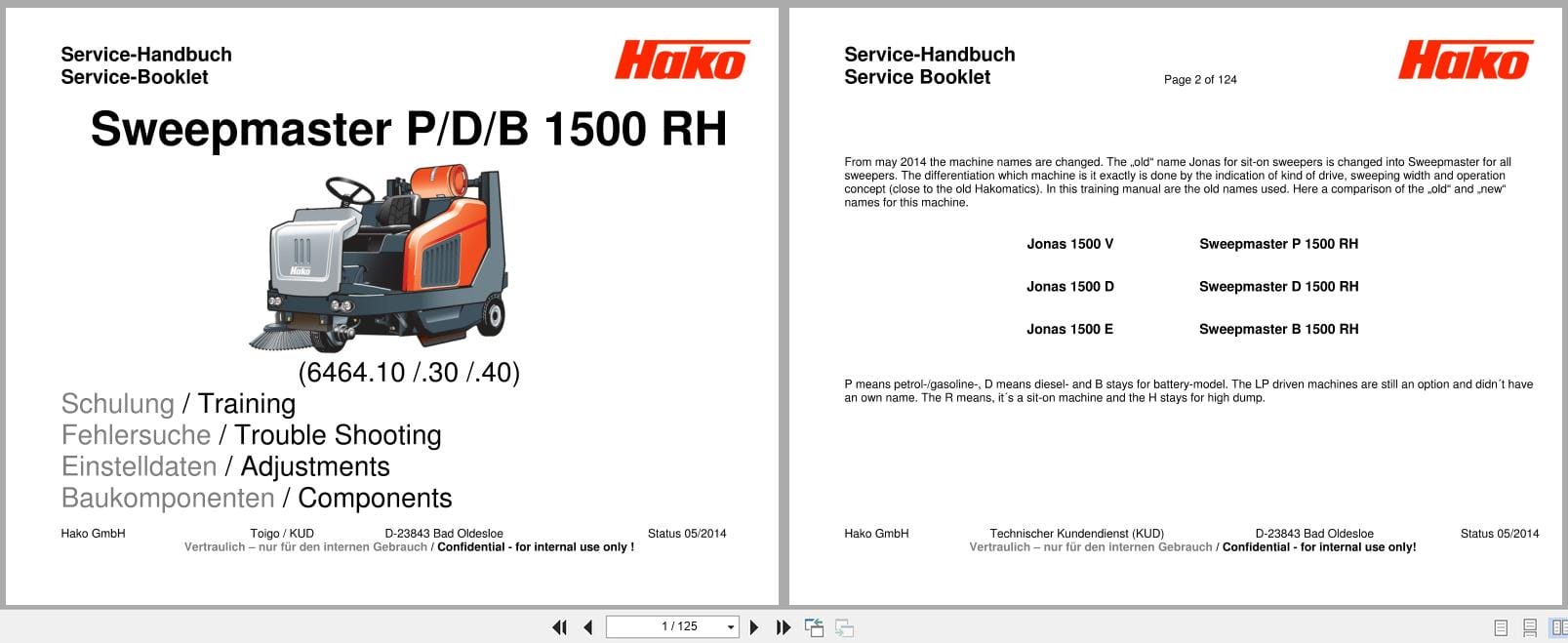

Hako Sweepmaster P1500RH D1500RH B1500RH Service Booklet (1)

Hako Sweepmaster P1500RH D1500RH B1500RH Service Booklet (2)

✓

Expert Support

✓

Full Speed

✓

100% Working

Hako Sweepmaster P1500RH D1500RH B1500RH Service Booklet

Size: 11.26 MB

Format: PDF

Language: English

Brand: Hako

Type of Machine: Sweeper

Type of Manual: Service Booklet, Training, Troubleshooting, Adjustment, Components

Model:

Hako Jonas 1500 V ; Sweepmaster P 1500 RH Sweeper

Hako Jonas 1500 D ; Sweepmaster D 1500 HH Sweeper

Hako Jonas 1500 E ; Sweepmaster B 1500 HH Sweeper

Publication Date: 2014

Number of Pages: 125 Pages

10 USD

Tags: Hako Service Booklet, Hako Sweepmaster Manual, P1500RH D1500RH B1500RH

Description

Description

Contents:
0.0 Contents
1.0 Overview
1.1 Options
1.2 Operation
1.3 Technical data
2.0 Components
2.1. Frame
2.2. Sweeping system
2.2.1. Rotary brush
2.2.2. Side brush
2.2.3 Sweeping pattern
2.2.3.1 Basic settings
2.3. Holding attachment / Dirt hopper
2.3.1. Basic settings
2.4. Steering /Wheel drive
2.5 Brakes
2.6 Engine
2.6.1 Diesel engine
2.6.2 Gasoline engine
2.6.2.1Gasoline engine
2.6.2.2LPG model
3.0 Hydraulics
3.1. V / D hydraulics
3.1.1.1 General information
3.1.1.2 Traction drive, short description
3.1.1.3 Work hydraulics, short description
3.1.2.1 Pumps (till 646410201733 or 646430202964)
3.1.2.2 Pumps (from 646410201744 or 646430202974)
3.1.3 Traction drive
3.1.3.1 Accelerator pedal
3.1.3.2 Hydrostatic drive
3.1.4 Work hydraulics
3.1.4.1 Valve manifold
3.2. E hydraulics
3.2.1 General description
3.2.2 Valve manifold
3.2.3 Venting
4.0 Electric System
4.1 . V / D electric system
4.1.1 Components
4.1.2 Configuration
4.1.2.1 Accessing the configuration level
4.1.2.2 Configuration matrix
4.1.2.3 FPV table
4.1.3 Error messages
4.2.E Electric system
4.2.1. General Information
4.2.2 Settings and programming the vehicle
4.2.2.1 Short description
4.2.2.2 Settings 1
4.2.2.3 Settings 2
4.2.2.4 Settings 3
4.2.2.5 Settings 4
4.2.2.6 Module settings
4.2.3 Error messages
4.2.4 Modules
4.2.4.1 A1
4.2.4.2 A2 + A3
4.2.5 Drive control
4.2.5.1 Error messages
5.0 Maintenance
5.1. J1500 Diesel
5.2. J1500 Gasoline
5.3. J1500 LPG
5.4. J1500 Electric
