Hangcha 1.0t-5.0t CPD10-XC4 to CPD50-XXC4 Service Manual 2025 EN

Size: 4.89 MB

Format: PDF

Language: English

Brand: Hangcha

Type of Machine: Electric Forklift Truck

Type of Manual: Service Manual, Wiring Diagrams, Hydraulic Diagram

Model: Hangcha 1.0t-5.0t Electric Forklift Truck

CPD10-XC4 CPD15-XC4 CPD18-XC4 CPD20-XC4 CPD25-XC4 CPD30-XC4 CPD35-XC4

CPD38-XC4 CPD40-XC4 CPD45-XC4 CPD50-XC4 CPD10-XD2 CPD15-XD2 CPD18-XD2

CPD20-XD2 CPD25-XD2 CPD30-XD2 CPD35-XD2 CPD38-XD2 CPD40-XD2 CPD45-XD2

CPD50-XD2 CPD10-XD3 CPD15-XD3 CPD18-XD3 CPD20-XD3 CPD25-XD3 CPD30-XD3

CPD35-XD3 CPD38-XD3 CPD40-XD3 CPD45-XD3 CPD50-XD3 CPD20-XC5 CPD25-XC5

CPD30-XC5 CPD35-XC5 CPD38-XC5 CPD40-XC5 CPD45-XC5 CPD50-XC5 CPD50-XXC5

CPD50-XXD3 CPD50-XXC4 CPD50-XXD2 CPD25-XLC5 CPD20-XC4-JC CPD25-XC4-JC

CPD20-XXC4 CPD25-XLC4 CPD50-XXC4 CPD20-XXD2 CPD25-XLD2 CPD20-XXD3 CPD25-XLD3

CPD10-XC4-I CPD15-XC4-I CPD18-XC4-I CPD20-XC4-I CPD25-XC4-I CPD30-XC4-I CPD35-XC4-I

CPD38-XC4-I CPD40-XC4-I CPD45-XC4-I CPD50-XC4-I CPD10-XD2-I CPD15-XD2-I CPD18-XD2-I

CPD20-XD2-I CPD25-XD2-I CPD30-XD2-I CPD35-XD2-I CPD38-XD2-I CPD40-XD2-I CPD45-XD2-I

CPD50-XD2-I CPD10-XD3-I CPD15-XD3-I CPD18-XD3-I CPD20-XD3-I CPD25-XD3-I CPD30-XD3-I

CPD35-XD3-I CPD38-XD3-I CPD40-XD3-I CPD45-XD3-I CPD50-XD3-I CPD20-XC5-I CPD25-XC5-I

CPD30-XC5-I CPD35-XC5-I CPD38-XC5-I CPD40-XC5-I CPD45-XC5-I CPD50-XC5-I CPD50-XXC5-I

CPD50-XXD3-I CPD50-XXC4-I CPD50-XXD2-I CPD25-XLC5-I CPD20-XC4-JCI CPD25-XC4-JCI

CPD20-XXC4-I CPD25-XLC4-I CPD50-XXC4-I CPD20-XXD2-I CPD25-XLD2-I CPD20-XXD3-I CPD25-XLD3-I

Publication Date: 2025

Number of Pages: 76 Pages

50 USD

Tags: 1.0t-5.0t, CPD10-XC4, CPD50-XXC4, Hangcha Forklift Manual, Hangcha Service Manual

Description

Description

Contents:
1. Driving System
Motor
Gear Box
Driving Axle
2. Steering System
Steering Device
Steering Axle
3. Brake System
Brake Schematic Diagram
Master Cylinder
Foot Brake
Hand Brake Device
4. Hydraulic System
Main Pump
Control Valve
5. Lifting System
Data
Fault
Mast

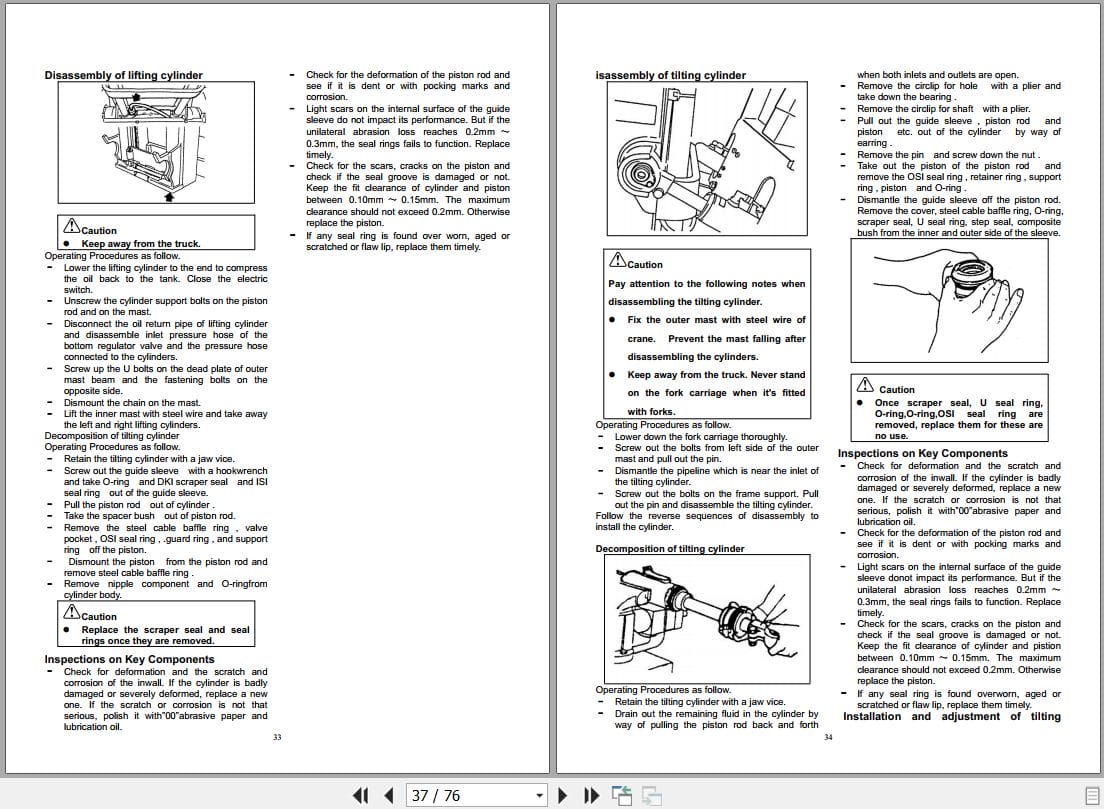

Lifting Cylinder
Tilting Cylinder
6. Electrical System
Controller

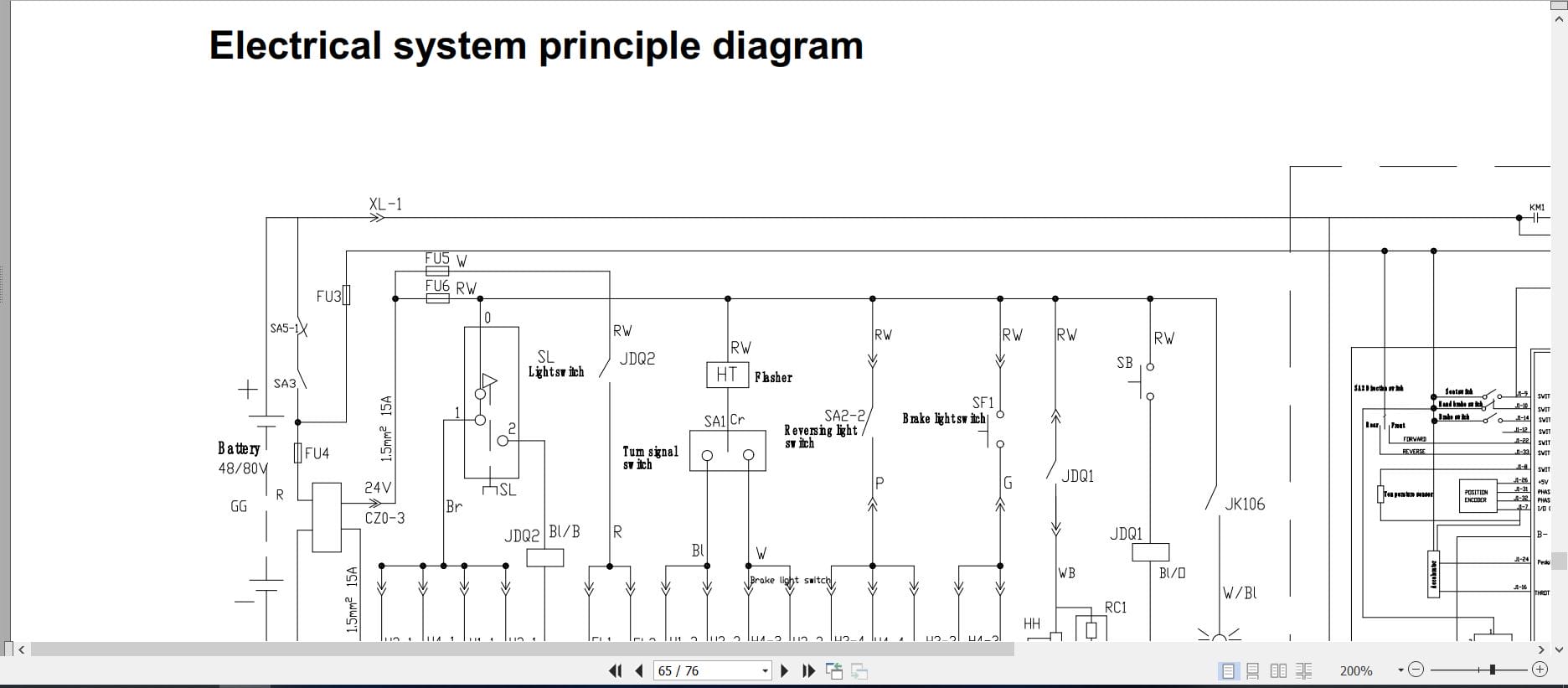

Electrical System Principle Diagram
