Hangcha Forklift CPCD40-RG24 to CPCD50-RXG53 Service Manual 2018
Size: 7.14 MB
Format: PDF
Language: English
Brand: Hangcha
Type of Machine: Internal Combustion Counterbalanced Forklift Truck
Type of Document: Service Manual, Electrical and Hydraulic Diagram
Model: Hangcha R Series 4t-5t
CPCD40-RG24, CPCD45-RG24, CPC50-RXG24, CPCD50-RXG24, CPCD40-RG24-GW
CPCD45-RG24-GW, CPCD50-RXG24-GW, CPC40-RG31, CPC45-RG31, CPCD40-RG42
CPCD45-RG42, CPC50-RXG42, CPCD50-RXG42, CPC45-RG34-S, CPC45-RG42-S
CPC45-RG43-S, CPCD40-RW5, CPCD45-RW5, CPCD50-RXW5, CPCD40-RW19
CPCD45-RW19, CPCD50-RXW19, CPCD40-RW35, CPCD45-RW35, CPCD50-RXW35
CPCD40-RW38, CPCD45-RW38, CPCD50-RXW38, CPYD40-RW17, CPYD45-RW17
CPYD50-RXW17, CPYD40-RW57, CPYD45-RW57, CPYD50-RXW57, CPQYD40-RW57
CPQYD45-RW57, CPQYD50-RXW57, CPC40-RG53, CPC45-RG53, CPC50-RXG53
CPC45-RG53-S, CPCD40-RG53, CPCD45-RG53, CPCD50-RXG53
Date: 2018
Number of Pages: 98 Pages
20 USD
- Description
Description
Contents:

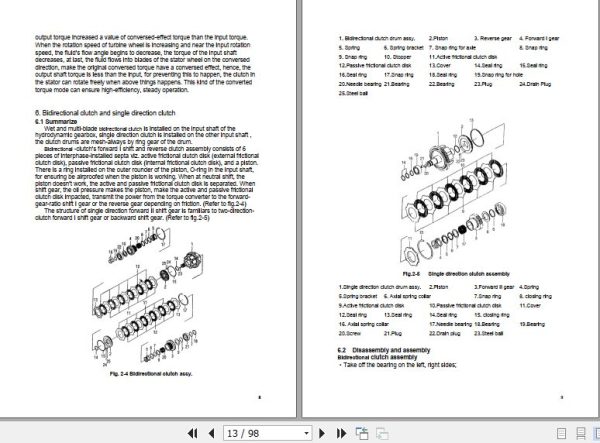

I Driving System
II Hydrodynamic power transmission gear-box, hydrodynamic torque converter
1. Data
2. Trouble diagnoses and corrections
3. Summary
4. Working principles
5. Hydrodynamic torque converter
6. Bidirectional clutch and single direction clutch
7. Control valve assembly, main pressure regulating valve and relief valve
8. Oil-supply pump
9. Reducer and differential
10. Disassembly of hydrodynamic power transmission gear-box, hydrodynamic
torque converter
III Clutch
1. Data
2. Test and Adjustment
3. Trouble diagnoses and corrections
4. Clutch
5. Check and adjust
6. Replacement of frictional piece assembly
7. Brake clutch system
IV Mechanical Gearbox
1. Data
2. Trouble diagnoses and corrections
3. Summary
V Driving axle
1. Data
2. Trouble diagnoses and corrections
3. Disassembly and installation of driving axle assembly
4. Axle shaft and wheel hub
5.Bearing adjustment
VI Steering axle
1. General data
2. Trouble diagnoses and corrections
3. Steering axle
VII Steering system
1. Data
2. Trouble diagnoses
3. Summary
VIII Brake system
1. Trouble diagnoses and corrections
2. Summary
IX Hydraulic system
1. Data
2. Trouble diagnoses and corrections
3. Main oil pump
4. Multi-pathway valve
5. Hydraulic system circuit
X Lifting system
1. Assemble debugging data
2. Trouble diagnoses and corrections
3. Summary
4. Removal and adjustment of mast
5. Disassembly and installation of lifting cylinders
6. Disassembly and assembly of tilting cylinders
7. Notice for debugging after assembly

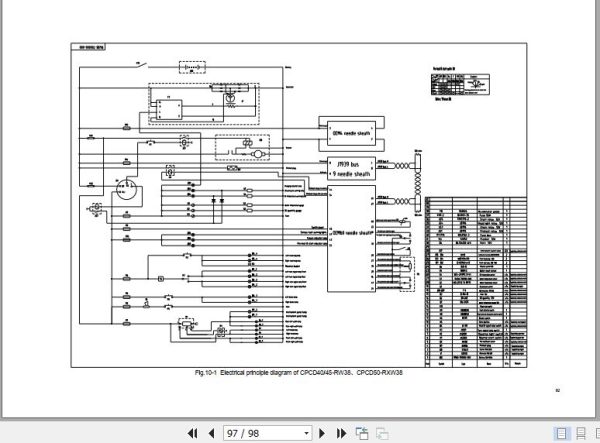

â…ª Electrical system
