Hangcha Reach Stacker XH Series RS4531CH-XHJG RS4531CH-XHJG-C Service Manual 2025 EN
Size: 26.31 MB
Format: PDF
Language: English
Brand: Hangcha
Type of Machine: Reach Stacker
Type of Manual: Service Manual, Wiring Diagrams, Hydraulic Diagrams
Model: Hangcha XH Series RS4531CH-XHJG RS4531CH-XHJG-C Reach Stacker
Publication Date: 2025
Number of Pages: 314 Pages
50 USD
- Description
Description
Contents:
1.Safety Specification
1.1.High Voltage Component Description
1.2.Safety Precautions And Operating Specifications Fo
1.3.First Aid For High-Voltage Accident
2.Driving System
2.1.Drive Axle
2.2.Transmission Shaft
2.3.Traction Motor
3.Steering System
3.1.Summarize
3.2.Steering Device
3.3.Steering Axle
3.4.Troubleshooting And Corrections On The Steering Sy
4.Truck Body
4.1.Overview
4.2.Left Box Assembly
4.3..Right Box Assembly
4.4.The Counterweight Assembly
5.Brake System
5.1.Hydraulic Circuit Of Manipulation
5.2.Assembly Of Brake Manipulation
5.3. Front Axle Hydraulic Piping
5.4.Accumulator Oil Circuit
5.5.Brake Oil Circuit
5.6.Brake System Air Removal
5.7.Troubleshooting
5.8.Brake System Principle Diagram
6.Hydraulic System
6.1.Hydraulic System Circuit
6.2.Principle Of Hydraulic System
6.3.Oil Pump Motor Device
6.4.Multi-Way Valve Control Line
6.5.Expansion Pipeline
6.6.Steering Line
6.7.Pitch Pipe
6.8.Hydraulic Tank Attachment
6.9.Auxiliary Oil Supply Pipeline
6.10.Main Cooling Pipeline
6.11.Fault And Exclusion
7.Electrical System
7.1.Special Safety Rules For High-Voltage Electric For
7.2.High Voltage Component Description
7.3.Lithium Battery
7.4.Safe Operation Specification
7.5.Fuse Box Assembly
7.6.Lighting System
7.7.Electric Elements
7.8.Fault Diagnosis
7.9.Electrical System Principle Diagram
8.Cargo Boom
8.1.Boom
8.2.Dampening Cylinder
8.3.Boom Extension Cylinder
8.4.Attachment
8.5.Troubleshooting
9.Cab
9.1.Cab Frame
9.2.Cab Door Assembly
9.3.Cab Rear Wiper
9.4.Cab Front Wiper
9.5.Cab Fan

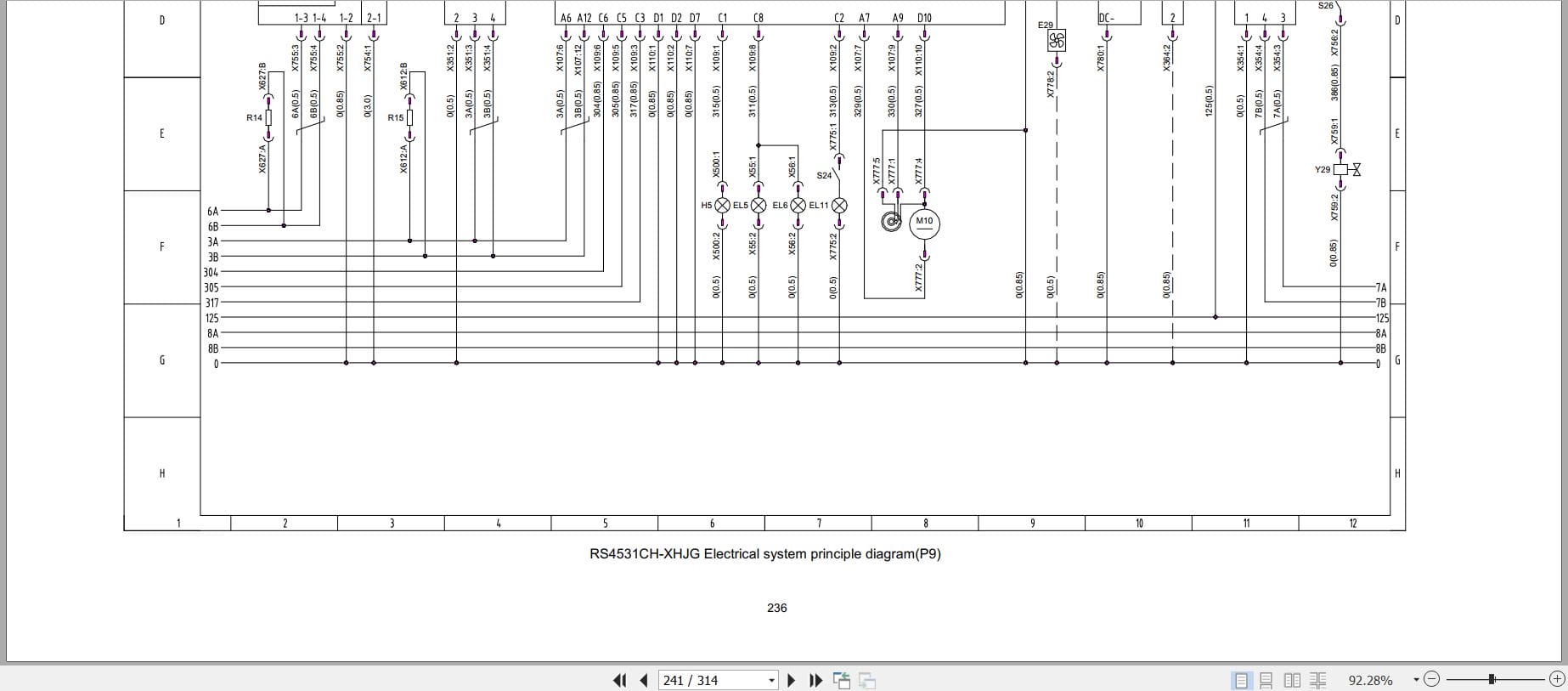

9.6.9.6electrical Schematic Diagram Of Cab
