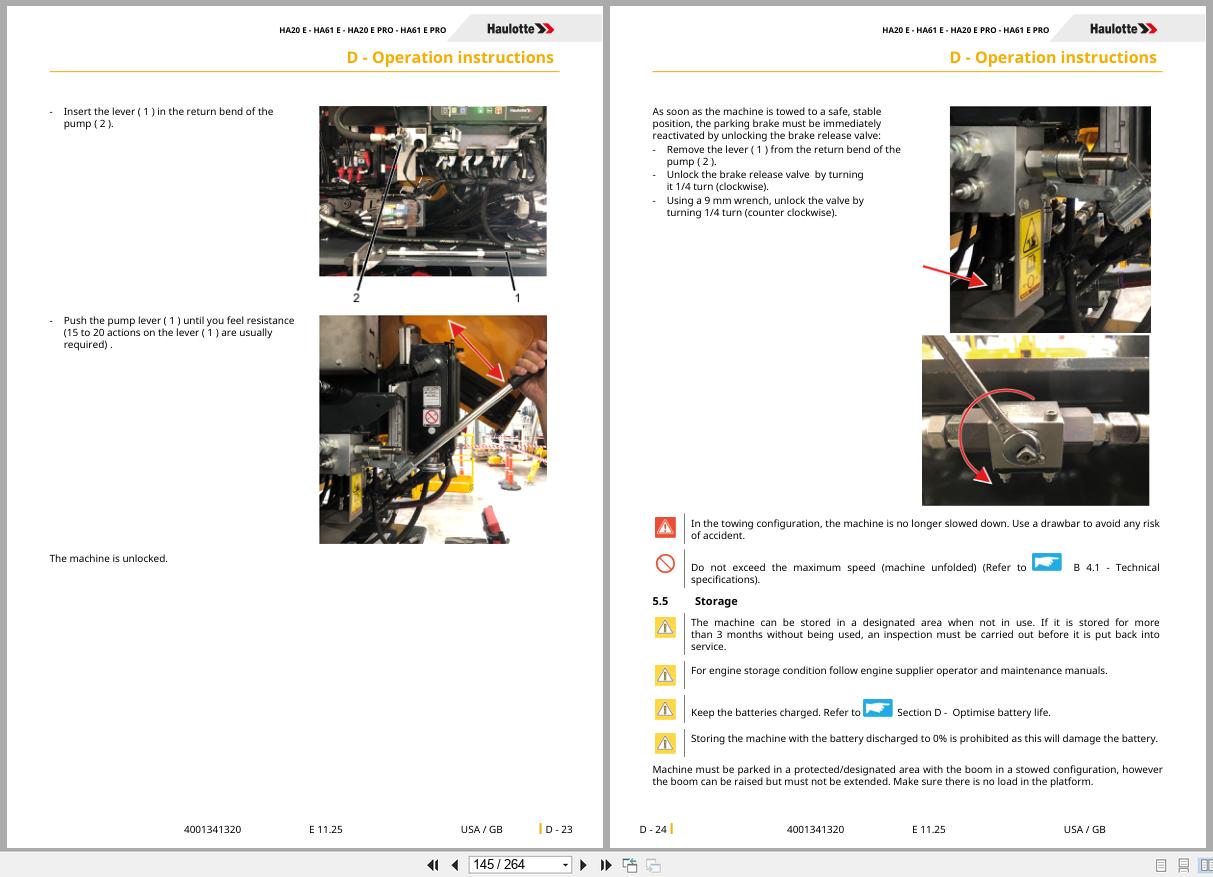

Haulotte Articulating Boom HA20 E to HA61 E PRO Operators Manual 4001341320 11.2025 EN

Size: 25.58 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Articulating Boom
Type of Manual: Operators Manual
Model: Haulotte HA20 E, HA61 E, HA20 E PRO, HA61 E PRO Articulating Boom
Part Number: 4001341320
Publication Date: 11.2025
Number of Pages: 264 Pages

20 USD

Tags: , , ,
  • Description

Description

Contents:
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.2 Employer’s Responsibility
2.3 Trainer’s Responsibility
2.4 Operator’s Responsibility
3 Safety
3.1 Safety Instructions
4 Safety Inquiries
5 Incident Notification
6 Compliance
6.1 Product Modification
6.2 Product Specifications
6.3 Change Of Ownership Notification
6.4 Declaration Of Conformity
Familiarization
1 General Safety
1.1 Intended Use
1.2 Decal Content
1.3 Level Of Severity
1.4 Symbols Legend And Definitions
1.5 Symbols And Colors
2 Primary Machine Components
2.1 Layout
2.2 Ground Control Box  -  Service / Emergency Station
2.3 Platform Control Box  -  Main Station
3 Performance Specifications
3.1 Technical Characteristics
3.2 Working Area / Range Of Motion
4 Decals And Markings Locations
Pre-Operation Inspection
1 Recommendations
2 Working Area Assessment
3 Inspection And Functional Test
3.1 Daily Inspection
4 Safety Functional Checks
4.1 Lowering For Repairs
4.2 Emergency Push Buttons
4.3 Activation Of Controls
4.4 Fault Detector
4.5 Buzzers Test
4.6 Indicators/Led’s Test
4.7 Travel Speed Limitation
4.8 Automatic Engine Cut-Out (If Machine Equipped With The Option Range Extender)
4.9 Slope Warning Device
4.10 Machine Braking
4.11 Working Envelope Selection System
4.12 Braking Test
4.13 Overload Test
Operation Instructions
1 Operation
1.1 Introduction
1.2 Major Description
1.3 Operation From The Ground Control Box (Service / Emergency Station)
1.4 Operation From The Platform Control Box (Main Station)
1.5 Mode Operation
2 Ground Control Box  -  Service / Emergency Station
2.1 To Start And Stop The Machine
2.2 Movement Control
3 Platform Control Box  -  Main Station
3.1 To Start And Stop The Machine
3.2 Drive And Steer Control
3.3 Movement Control
3.4 Additional Controls
4 Rescue And Emergency Procedures
4.1 In Case Of Power Loss
4.2 To Rescue Operator In Platform
4.3 Operation Of Overriding System From Ground Control Box
4.4 No Power Available
5 Transportation
5.1 Transport Configuration
5.2 Machine Stowage For Transport – Ha20 E – Ha61 E – Ha20 E Pro – Ha61 E Pro - Versions Extra Reach – Li
5.3 Unloading
5.4 Towing
5.5 Storage
5.6 Lifting Operation
6 Cold Weather Recommendations
6.1 Engine Oil
6.2 Li-Ion Battery
7 Battery Care And Maintenance (For Machines Fitted With Lead Batteries)
7.1 Battery Recharge
7.2 Battery Care And Maintenance (For Machines Equipped With It)
7.3 Optimise Battery Life
8 Battery Care And Maintenance (For Machines Equipped With The Lithium-Ion Battery Option)
8.1 Battery Recharge
8.2 Optimise Battery Life
General Specifications
1 Machine Dimensions
2 Major Component Masses
3 Acoustics And Vibrations
4 Wheel/Tire Assembly
4.1 Technical Specifications
4.2 Inspection And Maintenance
5 Options
5.1 Compatibility
5.2 Pedestrian Detection Assistance
5.3 Basket Lighting Device
5.4 Driving Assistance System
5.5 Advanced Access Management  -  Access Control And Usage Restriction
5.6 Transport Handle
5.7 Obstacle Detection Assist  (Oda)
5.8 Platform
5.9 Swing Gate
5.10 Glazier’s Kit
5.11 Welder’s Kit
5.12 Plumber’s Kit
5.13 Neon Tube Holder
5.14 Power Inverter
5.15 Range Extender
5.16 Fast Charge
5.17 Activ’ Shield Bar  -  Secondary Crush Risk Reduction System (If Fitted)
Maintenance
1 General
2 Maintenance Schedule
3 Inspection Program
3.1 General Program
3.2 Daily Inspection
3.3 Periodic Inspection
3.4 Reinforced Inspection
3.5 Major Inspection
4 Repairs And Adjustments
Other Information
1 Conditions Of Warranty
2 Subsidiary Contact Information
2.1 California Warning
Records
1 Intervention Register
