Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN

Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (1)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (2)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (3)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (4)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (1)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (2)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (3)
Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Haulotte Articulating Boom Lift HA32RTJ PRO to HA130RTJ PRO Service Repair Manual 4001322410 03.2025 EN

Size: 9.81 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Articulating Boom Lift
Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte HA32RTJ PRO, HA100RTJ PRO, HA41RTJ PRO, HA130RTJ PRO Articulating Boom Lift
Part Number: 4001322410
Publication Date: 03.2025
Number of Pages: 150 Pages

50 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.2 Technician’s Responsability
3 Haulotte® Commitments
3.1 Haulotte Services®
3.2 Training
3.3 Product Information
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On The Thermal Engine
Familiarization
1 Display Panel (Led’s 1 – 10)
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 Consumables (Oils  -  Fuels  -  Engine Oil  -  Coolant Level…)
3.1 Fuel
3.2 Engine Oil
3.3 Hydraulic Oil
3.4 Gear Motor Oil
3.5 Coolant
3.6 Cylinder Storage Oil
3.7 Grease
3.8 Marine Protection
3.9 Consumables
4 Movement Speed
Machine Sheets
Machine Sheets
Ms0001 – Structural Part Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
Ms0002 – Pins And Bearing Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
5 Criteria Of Replacement
6 Procedure Of Reassembly
Ms0003 – Cylinder Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
E004 – Fuel Tank
1 Preliminary Procedure
2 Filling-Up
3 Additional Operation
Ms0004 – Braking Test Procedure
1 Warning
2 Risk Prevention
3 You Will Need
4 Test Procedure
Ms0005 – Torque Values
1 Metric Torque Chart
2 Sae Fastener Torque Chart
3 Hydraulic Couplings And Hoses Tightening Torque Charts
E006 – Wheel
1 Preliminary Procedure
2 Criteria Of Replacement
3 Replacement
4 Torque
5 Additional Operation
E007 – Screws, Bolts And Nuts
1 Torque (Coarse Thread)
2 Torque (Fine Thread)
E016-1 – Chains
1 You Will Need
2 Preliminary Procedure
3 Lubrication
4 Check The Condition Of The Chains
5 Check The Tension Of The Chains
6 Replacing The Chains
E018 – Battery
1 Preliminary Procedure
2 Control
3 Filling-Up
4 Battery Charge
5 Additional Operation
Ms0031 – Overload System
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Periodic Inspection
5 Calibration Procedure
6 Checks

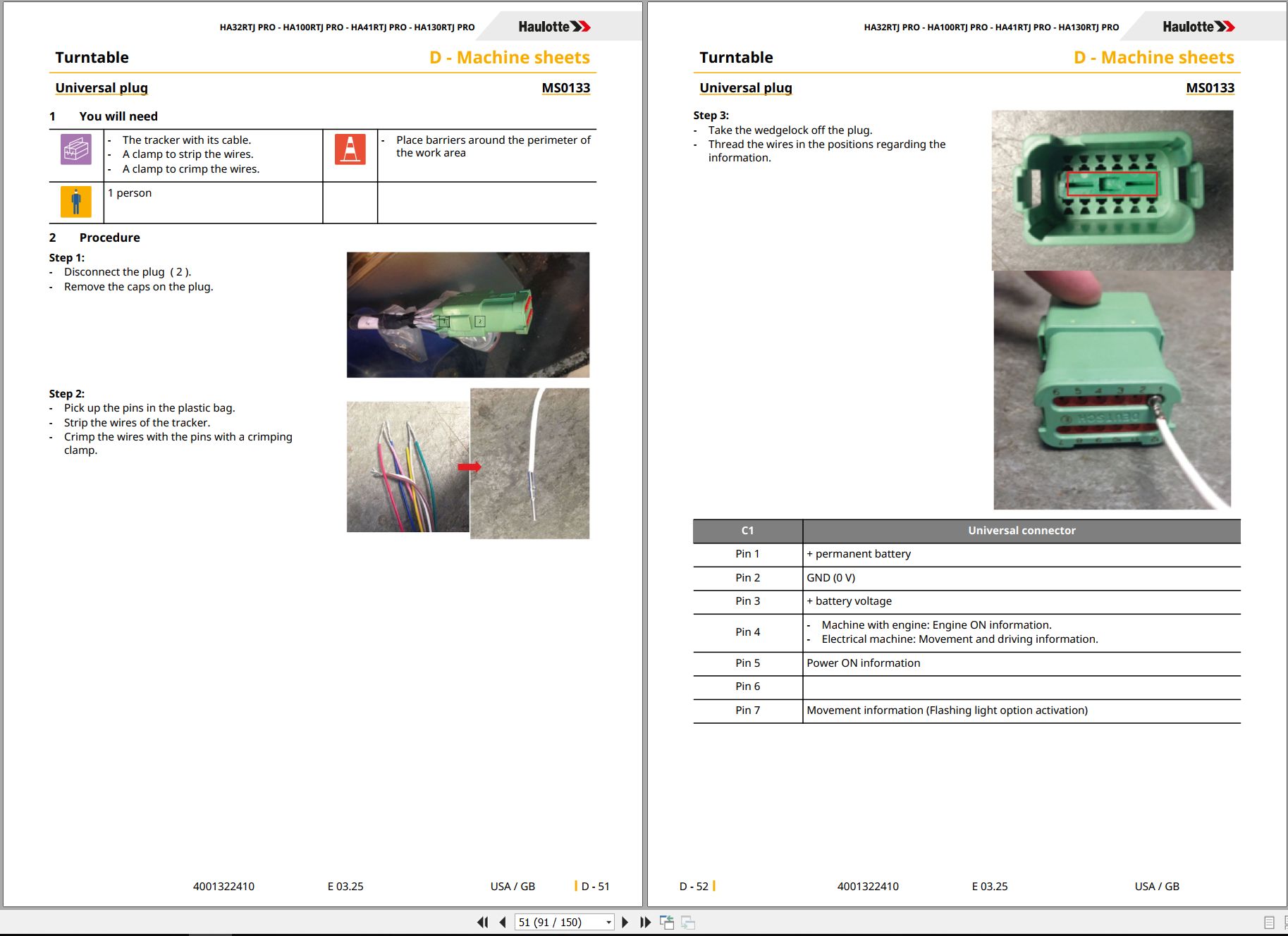

Ms0133 – Universal Plug
1 You Will Need
2 Procedure
Ms0285 – Maintenance Implementation
1 Placing In Configuration
Trouble Shooting
1 Trouble Shooting
1.1 Recommendations
1.2 Description
1.3 Requirements
1.4 Failures List

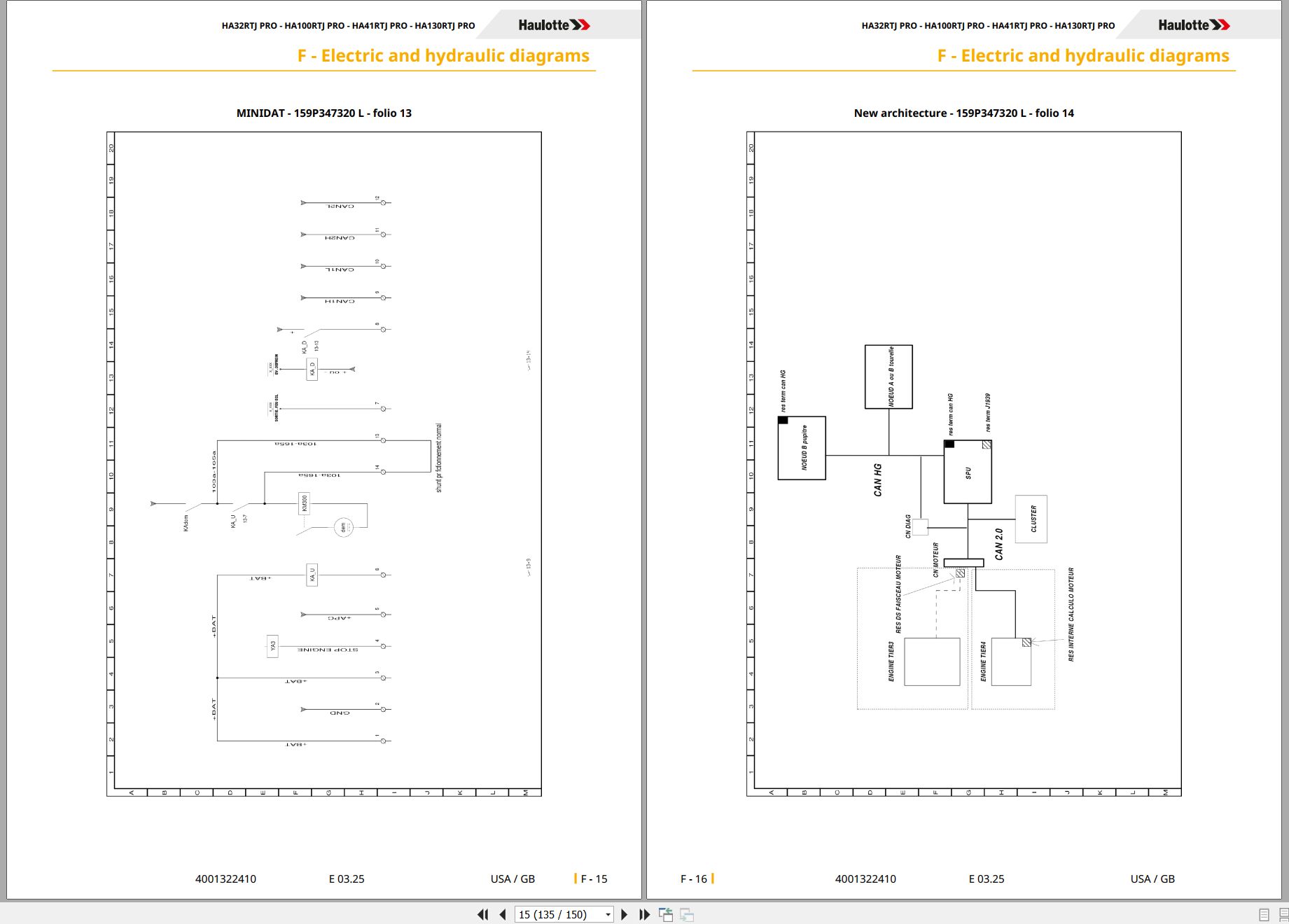

Electric And Hydraulic Diagrams

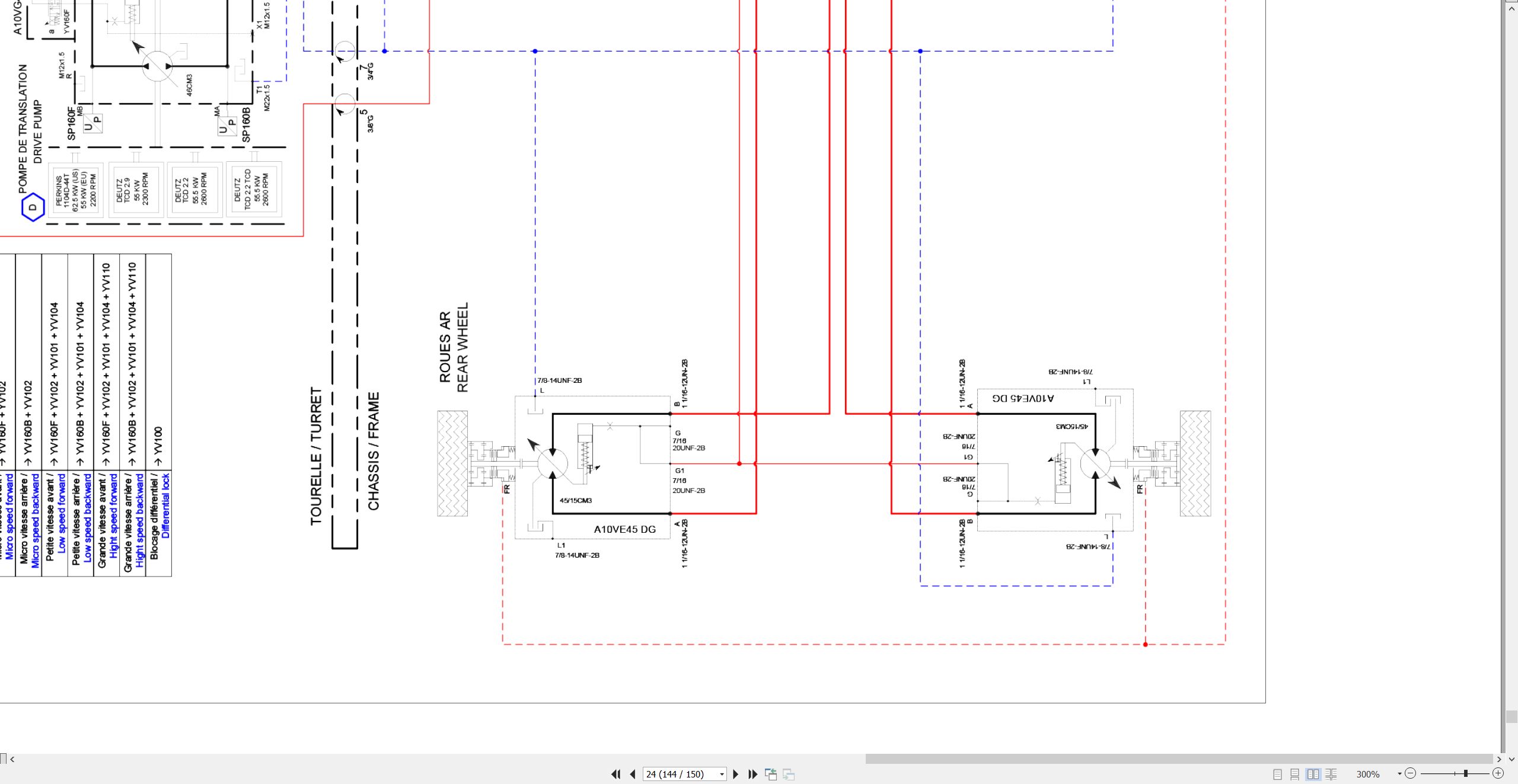

1 Wiring Diagram
1.1 Wiring Diagram
2 Hydraulic Diagram
2.1 Hydraulic Diagram
Records
1 Intervention Register
