Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN

Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (1)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (2)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (3)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (4)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (1)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (2)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (3)
Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Haulotte Electric Scissor Lift COMPACT 10DX to COMPACT 3368RT Service Repair Manual 4001320160 12.2025 EN

Size: 5.43 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Electric Scissor Lift
Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte COMPACT 10DX, COMPACT 2668RT, COMPACT 12DX, COMPACT 3368RT Electric Scissor Lift
Part Number: 4001320160
Publication Date: 12.2025
Number of Pages: 102 Pages

50 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities and commitments
1 Foreword
2 Responsibilities
2.1 Owner’s responsibility
2.1.1 Product modification
2.2 Technician’s responsability
3 HAULOTTE® commitments
3.1 HAULOTTE Services®
3.2 Training
3.3 Product information
3.3.1 Implementing manufacturer safety campaigns
4 Conditions of warranty
Safety
1 General safety rules
1.1 Uncontrolled movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety rules energy source motorization
2.1 General safety and specific interventions on the thermal engine
Familiarization
1 List of actuators and sensors
1.1 Sensors and actuators
2 Consumables (Oils  -  Fuels  -  Engine oil  -  Coolant level…)
2.1 Fuel
2.1.1 General Specifications
2.1.2 Other fuels
2.2 Engine oil
2.3 Hydraulic oil
2.4 Gear motor oil
2.5 Coolant
2.6 Cylinder storage oil
2.7 Grease
2.8 Marine protection
2.9 Consumables
3 Movement speed
Machine sheets
Machine sheets
MS0001 – Structural part inspection
1 Warning
2 Risk prevention
3 You will need
4 Control and maintenance
4.1 Daily inspection
4.2 Major inspection
4.3 Functional tests
4.4 Dynamic tests
4.5 Structural test
MS0002 – Pins and bearing inspection
1 Warning
2 Risk prevention
3 You will need
4 Control and maintenance
5 Criteria of replacement
6 Procedure of reassembly
6.1 Pins and bushes
6.2 Bearings
MS0003 – Cylinder inspection
1 Warning
2 Risk prevention
3 You will need
4 Control and maintenance
4.1 Visual inspections
4.2 Functional tests
4.3 Major inspection
MS0004 – Braking test procedure
1 Warning
2 Risk prevention
3 You will need
4 Test procedure
MS0005 – Torque Values
1 Metric torque chart
2 SAE fastener torque chart
3 Hydraulic couplings and hoses tightening torque charts
E006 – Wheel
1 Preliminary procedure
2 Criteria of replacement
3 Replacement
4 Torque
5 Additional operation
E012 – Cylinder hinge
1 Preliminary procedure
2 Lubrication
3 Additional operation
MS0020 – Hoses inspection  -  Replacement
1 You will need
2 Control and inspections
3 Hoses Disassembling
4 Hoses Reassembly

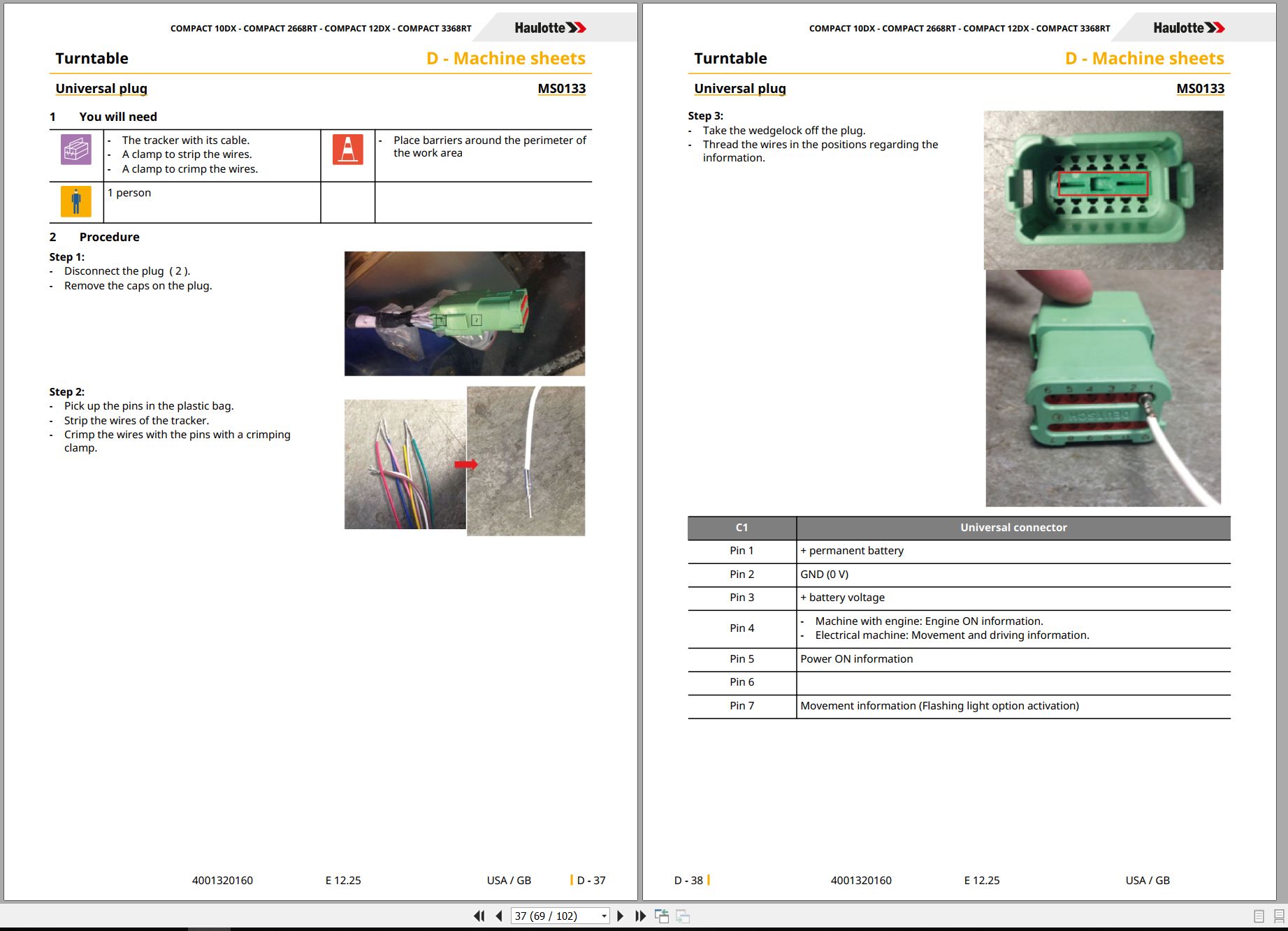

MS0133 – Universal plug
1 You will need
2 Procedure
MS0314G – Maintenance implementation
1 Placing in configuration
Trouble shooting
1 Trouble shooting
1.1 Recommendations
1.2 Description
1.3 Requirements
1.4 Failures list
1.4.1 Failures codes
2 Legend
2.1 System architecture
Electric and hydraulic diagrams
1 Wiring diagram
1.1 Electric diagram

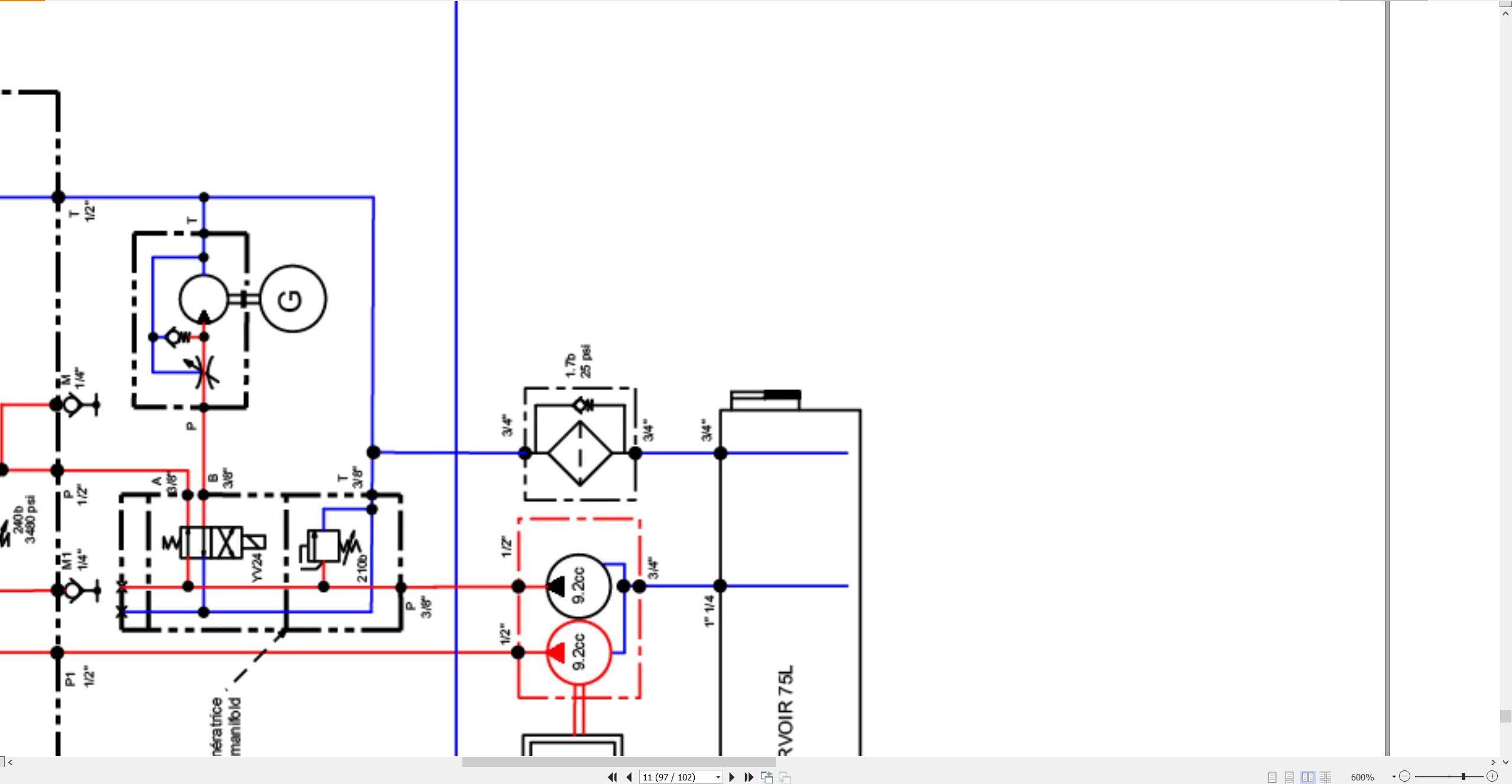

2 Hydraulic diagram
2.1 Hydraulic diagram
Records
1 Intervention register
