Name: Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN
SKU: 658679
Availability: InStock

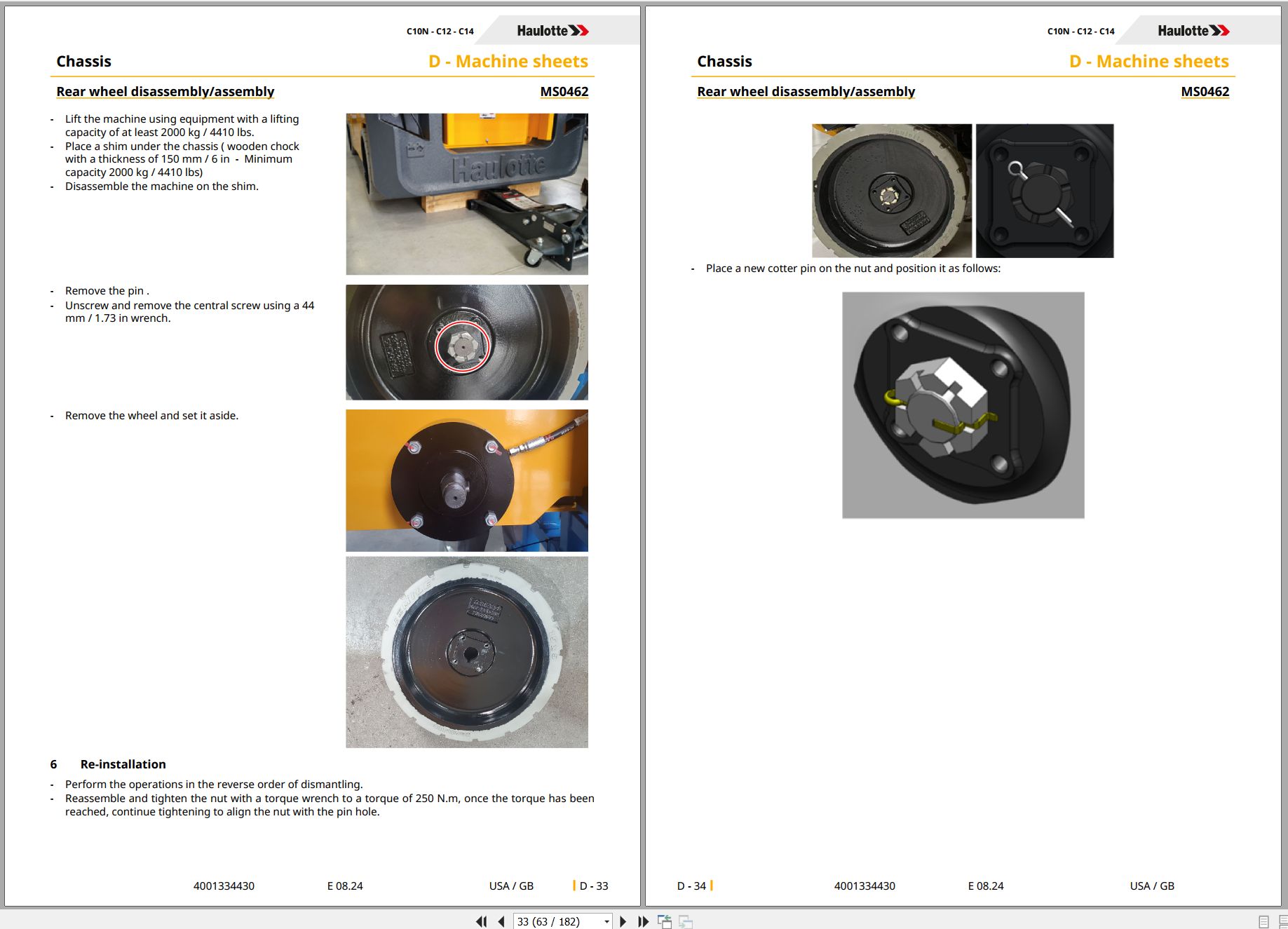

Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN (1)

Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN (2)

Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN (3)

Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN (4)

✓

Expert Support

✓

Full Speed

✓

100% Working

Haulotte Scissor Lift C10N C12 C14 Service Repair Manual 4001334430 07.2024 EN

Size: 20.77 MB

Format: PDF

Language: English

Brand: Haulotte

Type of Machine: Scissor Lift

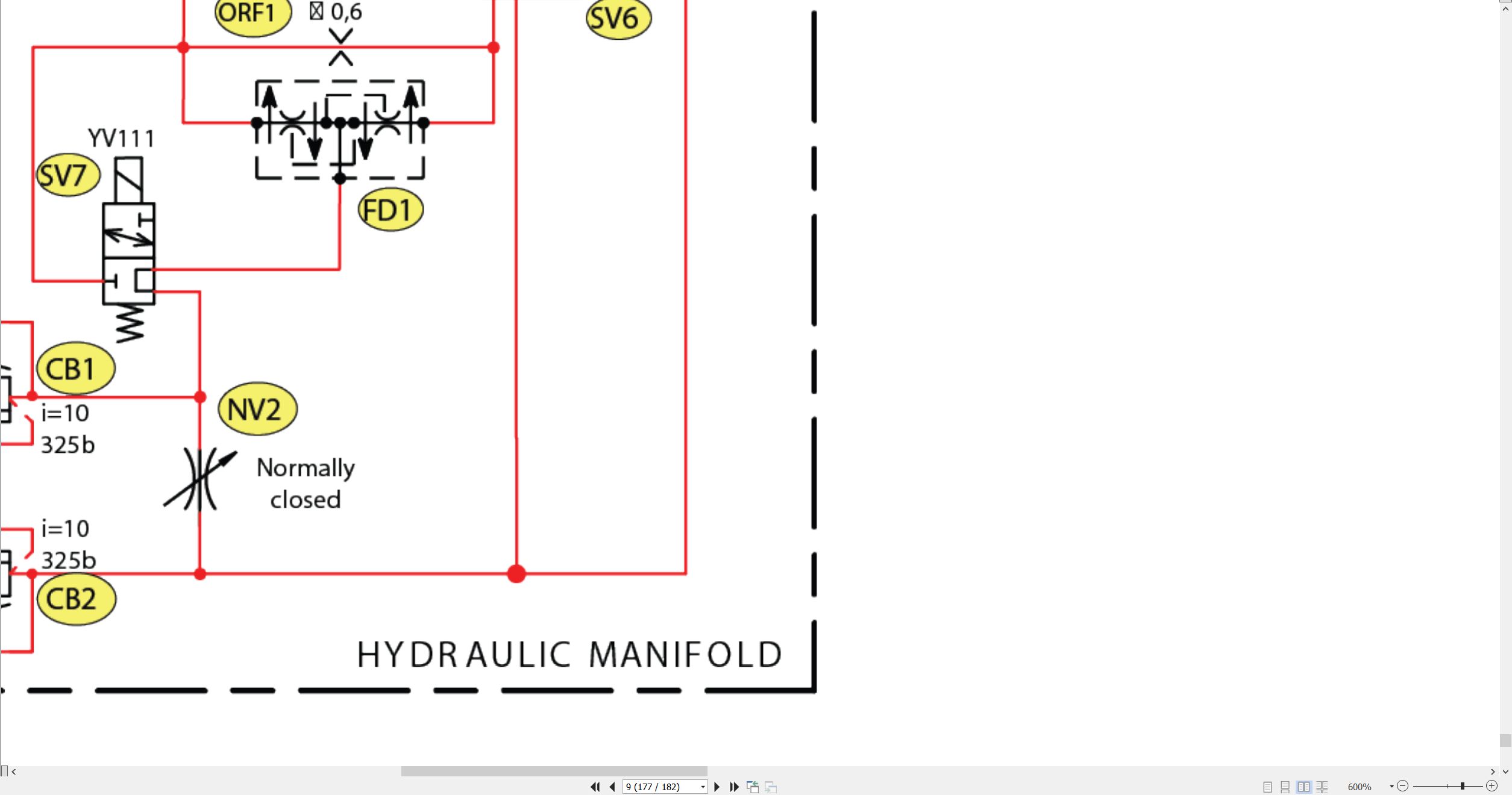

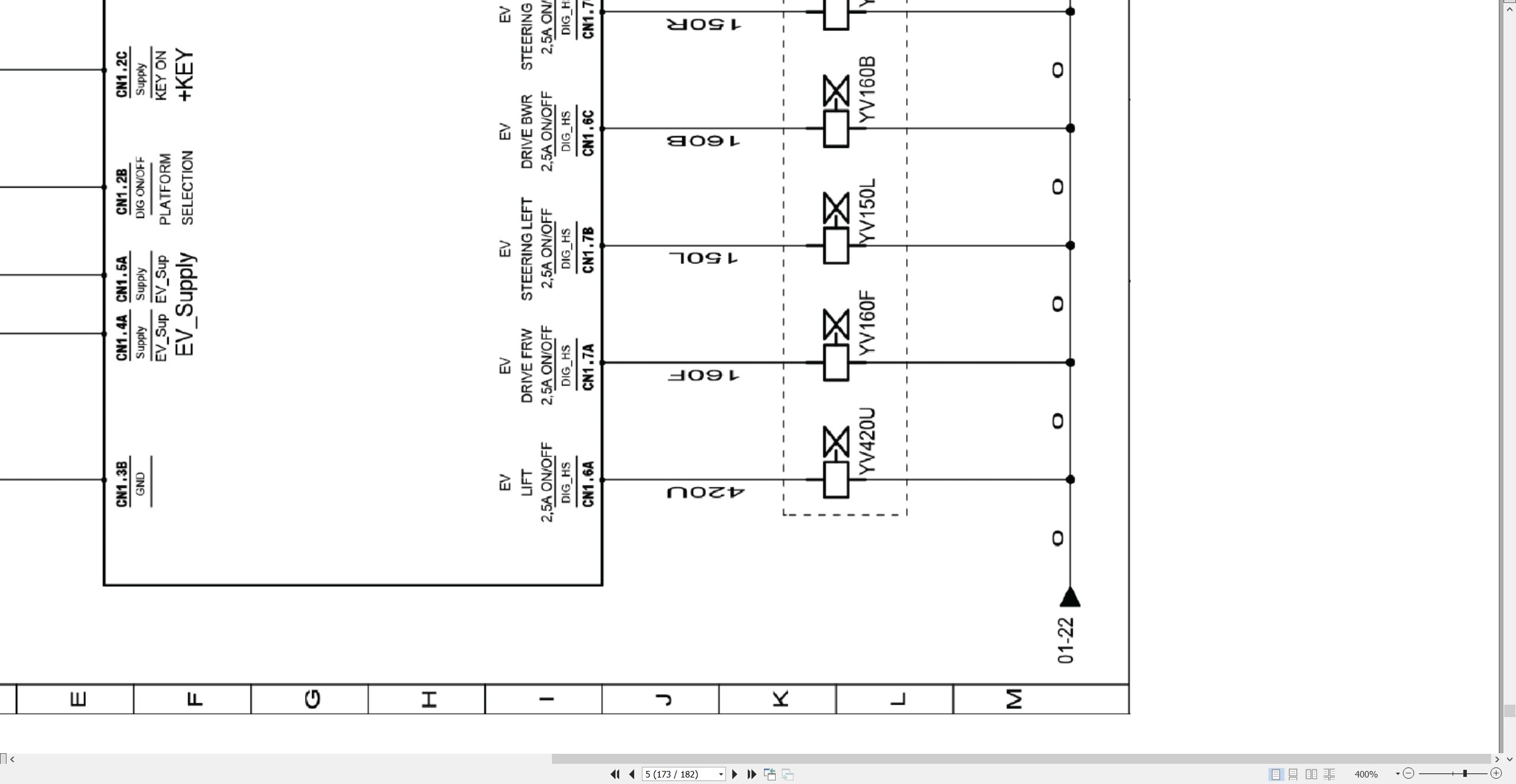

Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram

Model: Haulotte C10N, C12, C14 Scissor Lift

Part Number: 4001334430 AU

Publication Date: 07.2024

Number of Pages: 182 Pages

30 USD

Tags: C10N, C12+, C14, Haulotte Scissor Lift Manual, Haulotte Service Repair Manual

Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.1.1 Product Modification
2.2 Technician’s Responsability
3 HaulotteÂ®Â Commitments
3.1 Haulotte ServicesÂ®
3.2 Training
3.3 Product Information
3.3.1 Implementing Manufacturer Safety Campaigns
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On Energy Storage
Familiarization
1 Screen
1.1 Display
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 ConsumablesÂ (Oils…)
3.1 Hydraulic Oil
3.2 Cylinder Storage Oil
3.3 Grease
3.4 Marine Protection
3.5 Consumables
4 Movement Speed
Machine Sheets
Machine Sheets
Ms0001 – Structural Part Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
4.1 Daily Inspection
4.2 Major Inspection
4.3 Functional Tests
4.4 Dynamic Tests
4.5 Structural Test
Ms0002 – Pins And Bearing Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
5 Criteria Of Replacement
6 Procedure Of Reassembly
6.1 Pins And Bushes
6.2 Bearings
Ms0003 – Cylinder Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
4.1 Visual Inspections
4.2 Functional Tests
4.3 Major Inspection
Ms0004 – Braking Test Procedure
1 Warning
2 Risk Prevention
3 You Will Need
4 Test Procedure
Ms0005 – Torque Values
1 Metric Torque Chart
2 SaeÂ Fastener Torque Chart
3 Hydraulic Couplings And Hoses Tightening Torque Charts
Ms0020 – Hoses InspectionÂ -Â Replacement
1 You Will Need
2 Control And Inspections
3 Hoses Disassembling
4 Hoses Reassembly
Ms0314 – Maintenance Implementation
1 Placing In Configuration
Ms0462 – Rear Wheel Disassembly/Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0463 – Brake Disassembly/Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0464 – Wheel Steering Pivot Disassembly/Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0465 – Removal – Replacement Of The Steering Cylinder
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0466 – Motor Pump Unit Disassembly/Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0467 – Replacing The Carbon Contacts Of The Motor Pump Unit
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0468 – Variable Speed Drive Disassembly/Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0469 – Pothole Cylinder Removal/Refitting
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0470 – Removal – Replacement Of Semi-Traction Batteries
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
Ms0471 – Removal – Replacement Of On-Board Charger
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0472 – Removal – Reinstallation Of The Platform Extension
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0473 – Removal / Replacement Of Platform Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0474 – Remove – Replace Arm Assembly
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0475 – Removing/Refitting The Top Lifting Cylinder
1 Concerned Machines
2 Concerned Area
3 Warning
4 Risk Prevention
5 You Will Need
6 Removal
7 Re-Installation
Ms0476 – Removing/Refitting The Bottom Lifting Cylinder
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0477 – Removing/Refitting The External Arm
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0478 – Removing/Refitting The Arm Wiring Harness
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Ms0479 – Remove/Re-Install The Hydraulic Motor
1 Concerned Area
2 Warning
3 Risk Prevention
4 You Will Need
5 Removal
6 Re-Installation
Trouble Shooting
1 Trouble Shooting
1.1 Recommendations
1.2 Failures List
1.2.1 Failures Codes
Electric And Hydraulic Diagrams
1 Wiring Diagram
1.1 Electric Diagram
2 Hydraulic Diagram
2.1 Hydraulic Diagram
Records
1 Intervention Register
