Haulotte Scissor Lift HS15E to HS5390E MAX Maintenance Manual 4001309450 06.2025 FR
Size: 78.72 MB
Format: PDF
Language: French
Brand: Haulotte
Type of Machine: Scissor Lift
Type of Manual: Maintenance Manual
Model: Haulotte HS15E, HS4390E, HS15E PRO, HS4390E PRO, HS18E, HS5390E, HS18E PRO, HS5390E PRO, HS18E MAX, HS5390E MAX Touch Screen Display Scissor Lift
Part Number: 4001309450
Publication Date: 06.2025
Number of Pages: 466 Pages
30 USD
- Description
Description
Contents:
Sommaire
Responsabilités et engagements
1 Avant-propos
2 Responsabilités
3 Engagements HAULOTTE®
4 Conditions de garantie
Sécurité au poste
1 Règles générales de sécurité
2 Règles de sécurité source d’énergie motorisation
Familiarisation
1 Ecran tactile
2 Liste des actionneurs et capteurs
3 Consommables  (Huiles…)
4 Vitesse de mouvements
Fiches machine
Fiches machine
MS0001, Inspection structurelle
MS0002, Inspection des axes et des roulements
MS0003, Inspection d’un vérin
MS0004, Procédure de test de freinage
MS0133, Prise universelle
MS0163, Procédure de consignation
MS0311, Remplacement de la biellette du système Activ’Shield Bar Scissors
MS0312, Remplacement ressort du système Activ’Shield Bar Scissors
MS0313, Remplacement patins de guidage du système Activ’Shield Bar Scissors
MS0314, Mise en oeuvre de l’entretien
MS0315, Dépose, Repose vérin de levage ciseaux - Haut
MS0316, Dépose, Repose vérin de levage ciseaux-Bas
MS0317, Dépose, Repose ensemble plateforme
MS0318, Dépose, Repose du Range Extender
MS0319, Dépose, Repose extension plateforme
MS0320, Dépose, Repose vérin de stabilisateur
MS0321, Dépose, Repose vérins de blocage de l’essieu oscillant

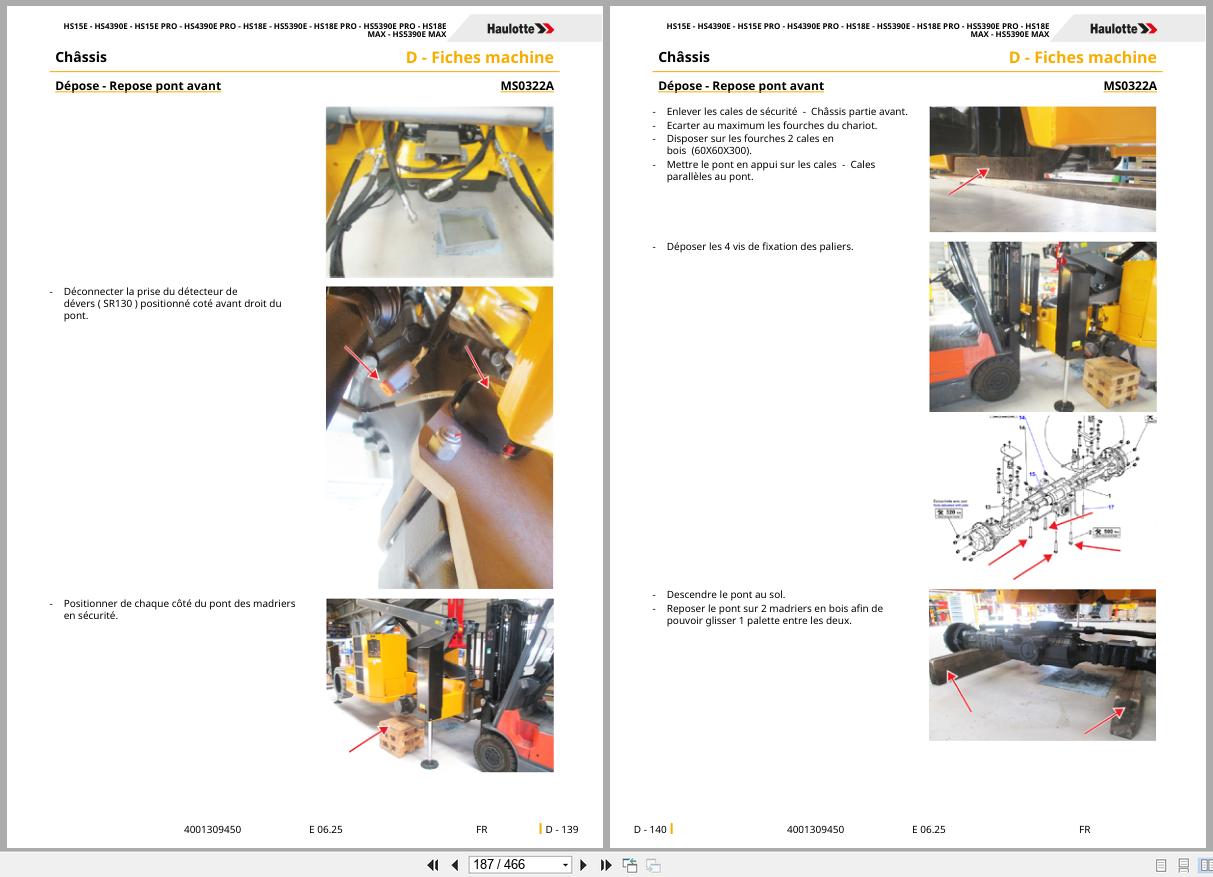

MS0322A, Dépose, Repose pont avant
MS0322B, Dépose, Repose pont avant
MS0323A, Dépose, Repose pont arrière
MS0323B, Dépose, Repose pont arrière
MS0324, Démontage, Remontage capteur dévers
MS0325, Dépose, Repose ensemble bras de ciseaux
MS0326, Dépose, Repose des patins inférieurs du bras de ciseau
MS0327, Démontage, Remontage jauge de contrainte
MS0328, Dépose, Repose chargeurs (Principal et charge accélérée)
MS0329A, Dépose, Repose moteur électrique de translation
MS0330A, Dépose, Repose groupe électropompe ou moteur électrique seul ou pompe seul
MS0331, Dépose, Repose arbre de transmission
MS0332, Remplacement des faisceaux châssis / plateforme (Faisceau CAN, Câble 220V, ALS)
MS0333, Dépose, Repose bac batteries ou batterie par batterie
Recherche de pannes
1 Recherche de pannes
2 Légende
Schémas électriques et hydrauliques
1 Schéma électrique
2 Schéma hydraulique
Registres
1 Registre d’intervention
