Haulotte Scissor Lift OPTIMUM 8 OPTIMUM 1931 E Service Repair Manual 4001335880 04.2025 EN

Size: 26.22 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Scissor Lift

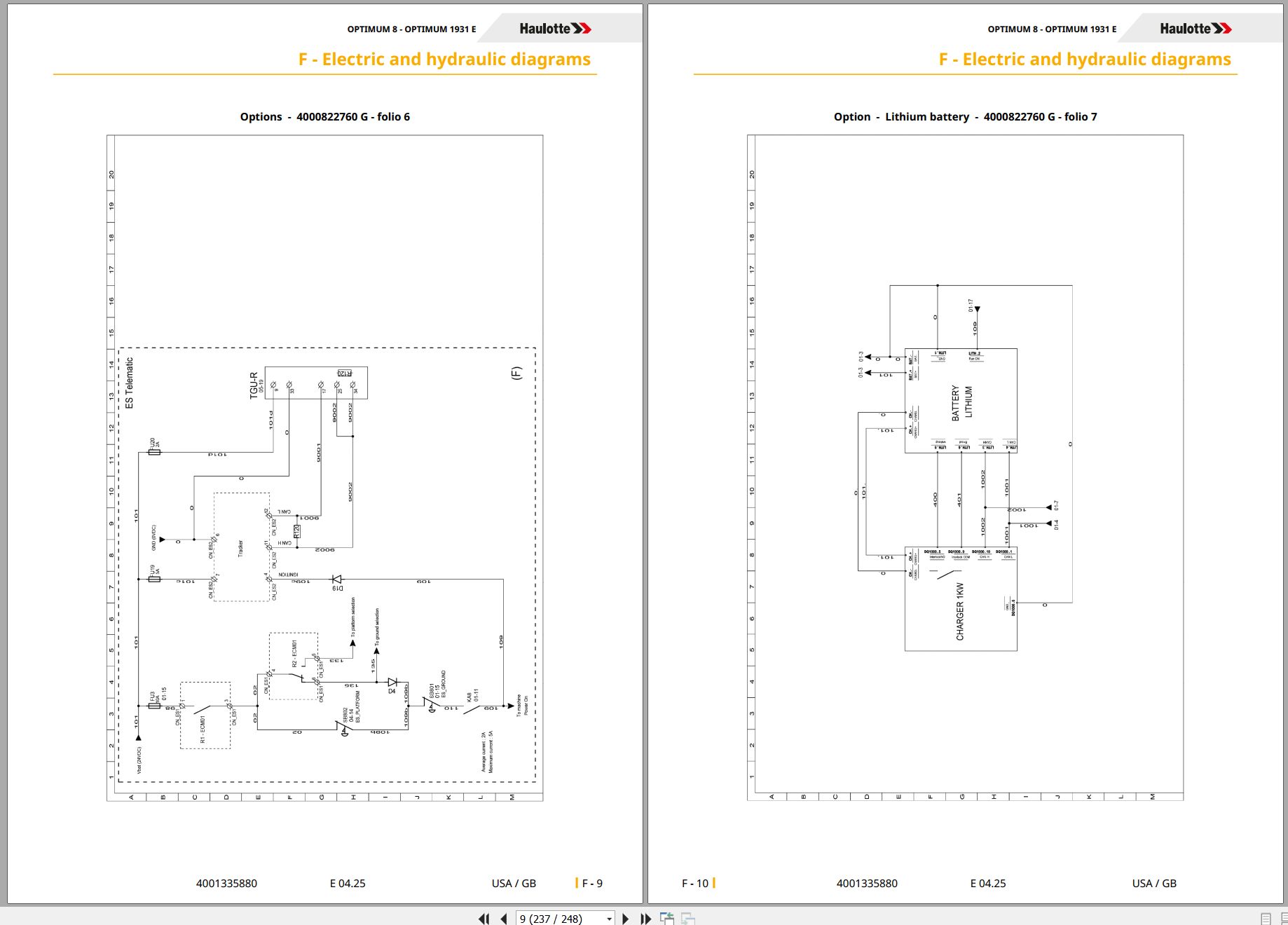

Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte OPTIMUM 8 OPTIMUM 1931 E Color Screen Display Scissor Lift
Part Number: 4001335880
Publication Date: 04.2025
Number of Pages: 248 Pages

50 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.1.1 Product Modification
2.2 Technician’s Responsability
3 Haulotte® Commitments
3.1 Haulotte Services®
3.2 Training
3.3 Product Information
3.3.1 Implementing Manufacturer Safety Campaigns
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On Energy Storage
Familiarization
1 Haulotte Activ’screen
1.1 Lcd Screen
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 Consumables  (Oils…)
3.1 Hydraulic Oil
3.2 Gear Motor Oil
3.3 Cylinder Storage Oil
3.4 Grease
3.5 Marine Protection
3.6 Consumables
4 Movement Speed
Machine Sheets
Machine Sheets
Ms0072 – Pressure Adjustment
1 You Will Need
2 Preliminary Operation
3 Pressure Adjustment
4 Pressure Plug Location
Ms0073 – Scissor Arms Screw-Periodical Checks
1 You Will Need
2 Checks
3 Tightening The Screws Of The Scissor Arms
Ms0084 – Removal / Replacement Of Motor Reducer Assembly
1 You Will Need
2 Preliminary Operation
3 Plan Of The Assembly
4 Removal
5 Reinstall
6 Checks
Ms0090 – Removal / Replacement Of Steering Pivot Assembly
1 You Will Need
2 Plan Of The Assembly
3 Removal
4 Reinstall
5 Complementary Operations
6 Checks
Ms0095 – Removal / Replacement Of Platform Assembly
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
5 Reinstall
6 Complementary Operations
7 Checks
Ms0096 – Removal / Replacement Of Scissor Pack
1 You Will Need
2 Preliminary Operation
3 Removal
4 Reinstall
5 Complementary Operations
6 Checks
Ms0097 – Calibration Steering
1 You Will Need
2 Preliminary Operation
3 Level Of Knowledge Required
4 Steering Calibration Procedure
5 Checks
Ms0098 – Calibration Load Management System
1 You Will Need
2 Preliminary Operation
3 Level Of Knowledge Required
4 Load Management Calibration Procedure
5 Checks
Ms0099 – Calibration Arm Angle Sensors
1 You Will Need
2 Preliminary Operation
3 Level Of Knowledge Required
4 Procedure Of Load Management System Calibration
5 Checks
Ms0102 – Tires (Tyres)  -  Wheel Replacement
1 You Will Need
2 Preliminary Operation
3 Technical Specifications
4 Wheel And Tires/Tyres Inspections
5 Procedure Of Replacement
Ms0106 – Haulotte Activ’screen
1 You Will Need
2 Simplified Menus
3 Detailed Menus
3.1 Screen Access Code Settings
3.1.1 Screen 0d
Ms0133 – Universal Plug
1 You Will Need
2 Procedure
Ms0174 – Platform Extension Lock Assembly
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Procedure
5 Additional Operations
6 Checks

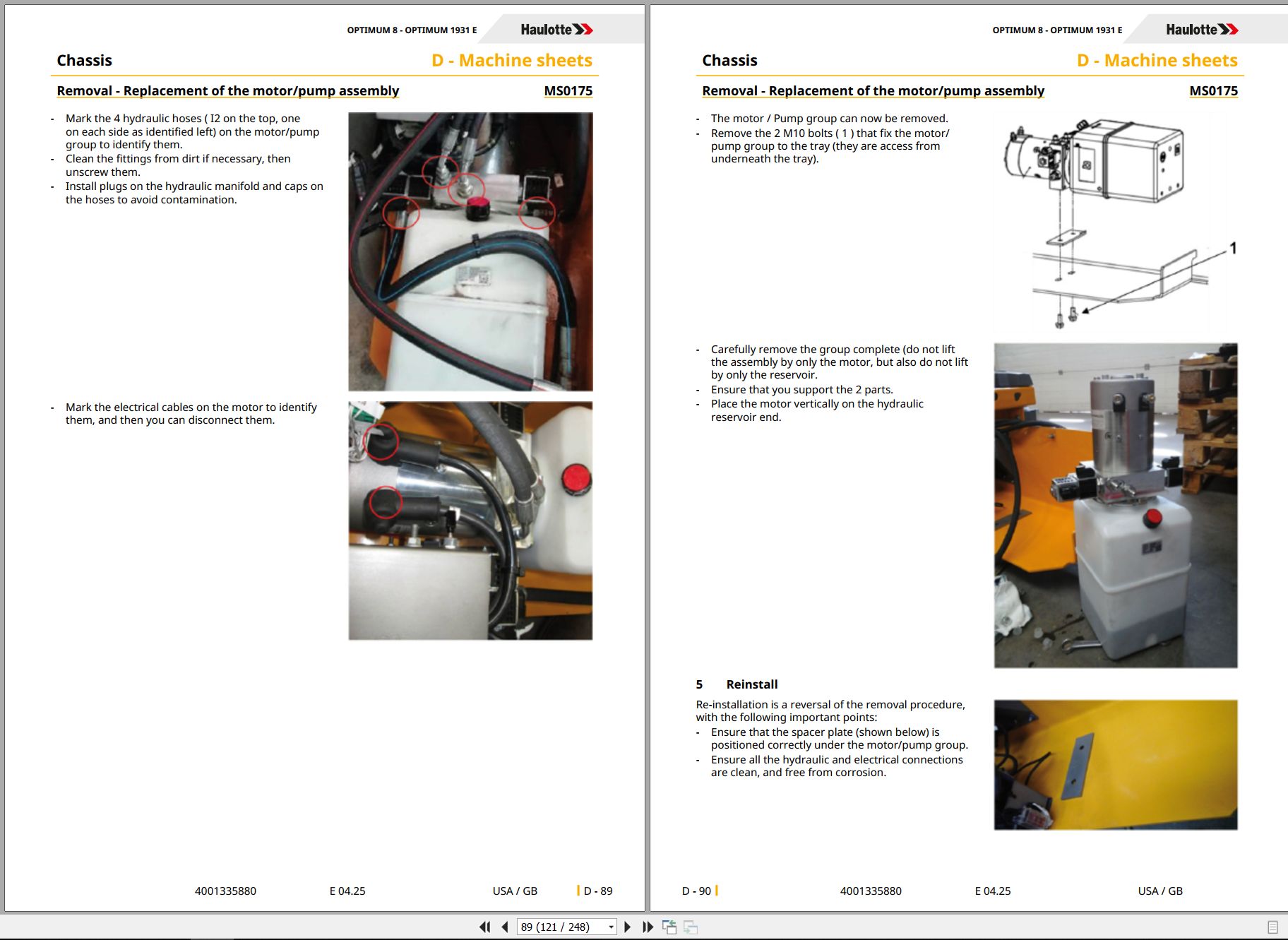

Ms0175 – Removal – Replacement Of The Motor/Pump Assembly
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
5 Reinstall
6 Complementary Operations
7 Checks
Ms0176 – Hydraulic Filter
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
5 Reinstall
6 Complementary Operations
7 Checks
Ms0177 – Assembly Electro-Brake Unit
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
5 Reinstall
6 Complementary Operations
7 Checks
Ms0178 – Brake Unit Protection Installation
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
4.1 Remove The Counterweight
4.2 Treating A Stuck Brake
5 Reinstall
5.1 Installing The Protection Kit
5.2 Reinstall The Counterweight
6 Checks
Ms0179 – Assembly Moto – Reducer
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Assembly
5 Complementary Operations
6 Checks
Ms0242 – Check Of Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Check Of Tilt Sensor
Ms0245 – Dismantling/Reassembling The Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Dis-Assembly
5 Reassembly
6 Calibration
7 Additional Operations
Ms0283 – Assembly Electro-Brake Unit (For The Asia-Pacific Market Only)
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Removal
5 Reinstall
6 Complementary Operations
7 Checks
Ms0314 – Maintenance Implementation
1 Placing In Configuration
Ms0383 – Removal – Replacement Of Lithium-Ion Battery (For Machines Fitted With)
1 Warning
2 Risk Prevention
3 You Will Need
4 Removal
Trouble Shooting
1 Trouble Shooting
1.1 Recommendations
1.2 Description
1.3 Requirements
1.4 Failures List
1.4.1 Failures List
1.4.2 List Of Failures Per Category
Electric And Hydraulic Diagrams
1 Wiring Diagram
1.1 Electric Diagram

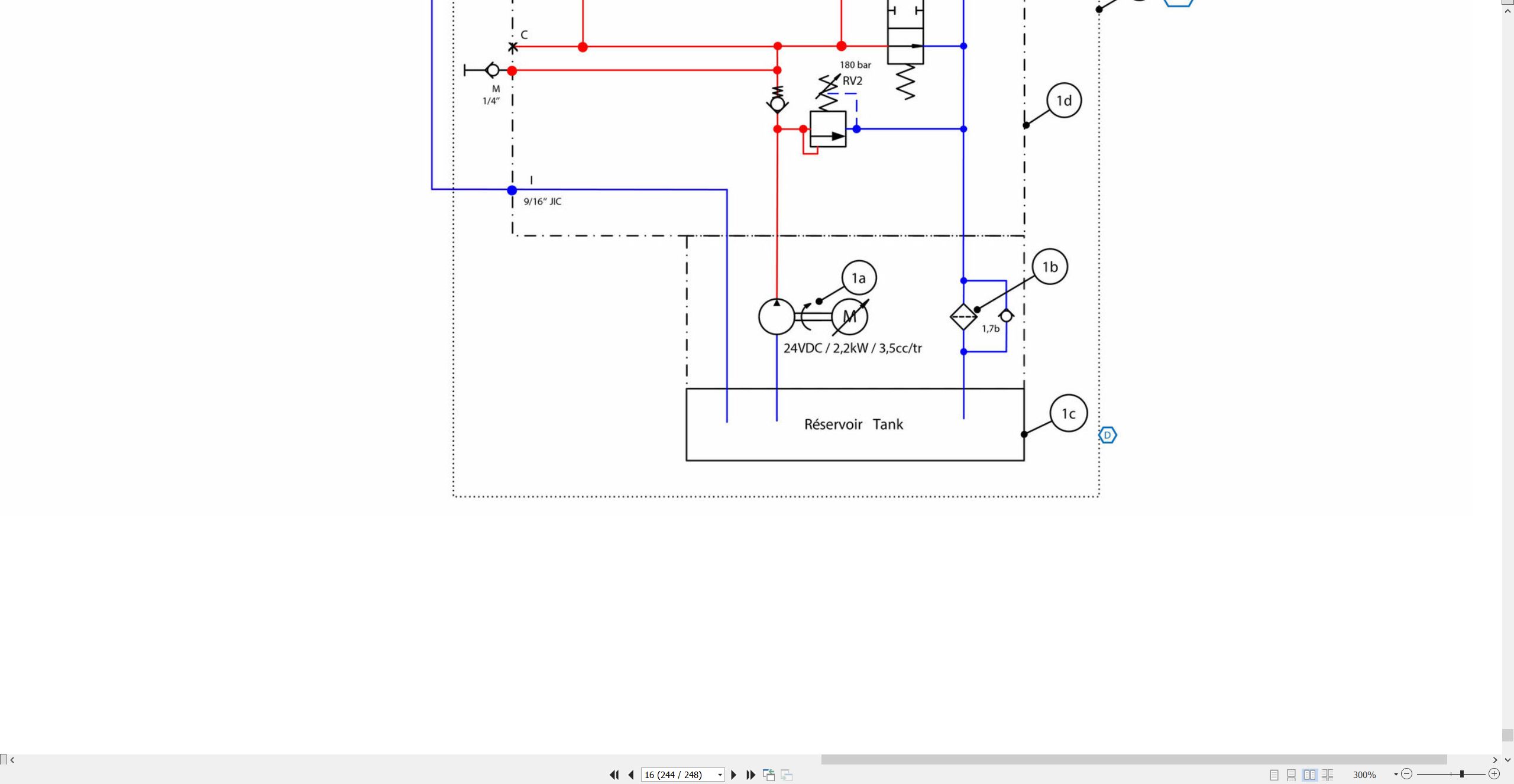

2 Hydraulic Diagram
2.1 Hydraulic Diagram
Records
1 Intervention Register
