Haulotte Vertical Mast STAR 10 STAR 26J Service Repair Manual 4001354610 06.2025 EN

Size: 16.16 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Vertical Mast
Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte STAR 10 STAR 26J Vertical Mast
Part Number: 4001354610
Publication Date: 06.2025
Number of Pages: 158 Pages

30 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.1.1 Product Modification
2.2 Technician’s Responsability
3 Haulotte Commitments
3.1 Haulotte Services
3.2 Training
3.3 Product Information
3.3.1 Implementing Manufacturer Safety Campaigns
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On Energy Storage
Familiarization
1 Activ’screen
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 Consumables  (Oils…)
3.1 Hydraulic Oil
3.2 Gear Motor Oil
3.3 Cylinder Storage Oil
3.4 Grease
3.5 Marine Protection
3.6 Consumables
4 Movement Speed
Machine Sheets
Machine Sheets
Ms0044 – Tires (Tyres) And Pressures-Wheel Replacement
1 You Will Need
2 Preliminary Operation
3 Technical Specifications
4 Wheel And Tires/Tyres Inspections
5 Wheel Replacement
Ms0046 – Dismantling / Reassembling Wheels Reducer
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Removal
5 Reinstall
6 Additional Operations
7 Checks
Ms0047 – Replacing The Wheel Pivot
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Removal
5 Reinstall
5.1 Hub
5.2 Wheel Steering Pivots
6 Checks
Ms0048 – Steering Cylinder Removal
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Removal
5 Reinstall
6 Checks
Ms0049 – Hydraulic Oil  -  Level  Replacement
1 You Will Need
2 Preliminary Operation
3 Level Control
4 Replacement Of Hydraulic Oil
4.1 Consumable
4.2 Filling
Ms0050 – Hydraulic Filter Cartridge Replacement
1 You Will Need
2 Hydraulic Filter Cartridge Replacement

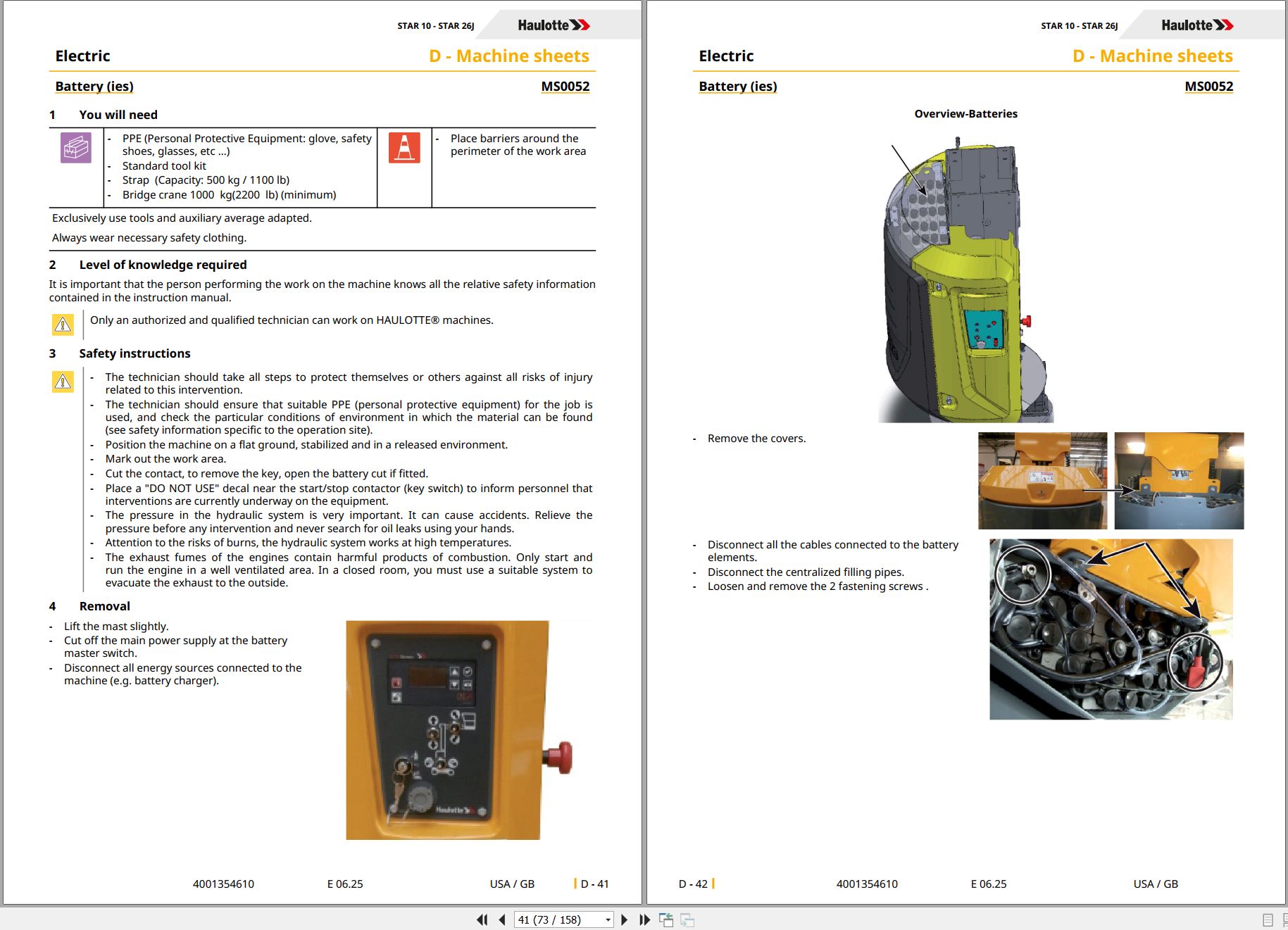

Ms0052 – Battery (Ies)
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Removal
5 Reinstall
6 Checks
Ms0054 – Specific Adjustment Procedure  Star 10 – Star 26j
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Inspection Of Chain Adjustment
5 Inspection Of Chain Adjustment
Ms0061 – Clearance Procedure
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Procedure
Ms0062 – Inspection Of The Slack Chain Sensors
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Procedure
5 Slack Chain Detector Adjustment Procedure
Ms0085 – Overriding Function Reset
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Overriding Function Reset
4.1 Procedure
Ms0097 – Calibration Steering
1 You Will Need
2 Level Of Knowledge Required
3 Preliminary Operation
4 Steering Calibration Procedure
5 Checks
Ms0133 – Universal Plug
1 You Will Need
2 Procedure
Ms0242 – Check Of Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Check Of Tilt Sensor
Ms0245 – Dismantling/Reassembling The Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Dis-Assembly
5 Reassembly
6 Calibration
7 Additional Operations
Ms0314 – Maintenance Implementation
1 Placing In Configuration
Ms0343 – Visual Inspection Of The Baseplate Fastening Screws On The Casings Of Booms 1 And 2
1 Warning
2 Risk Prevention
3 You Will Need
4 Procedure
4.1 Inspection Of Fastening Screws On The Lifting Cylinder Baseplate Of Housing 1
4.2 Inspection Of The Fastening Screws Of The Baseplate Of Housing No 2
Trouble Shooting
1 Trouble Shooting
1.1 Recommendations
1.2 Description
1.3 Requirements
1.4 Failures List
1.4.1 List Of Failures Per Category
Electric And Hydraulic Diagrams

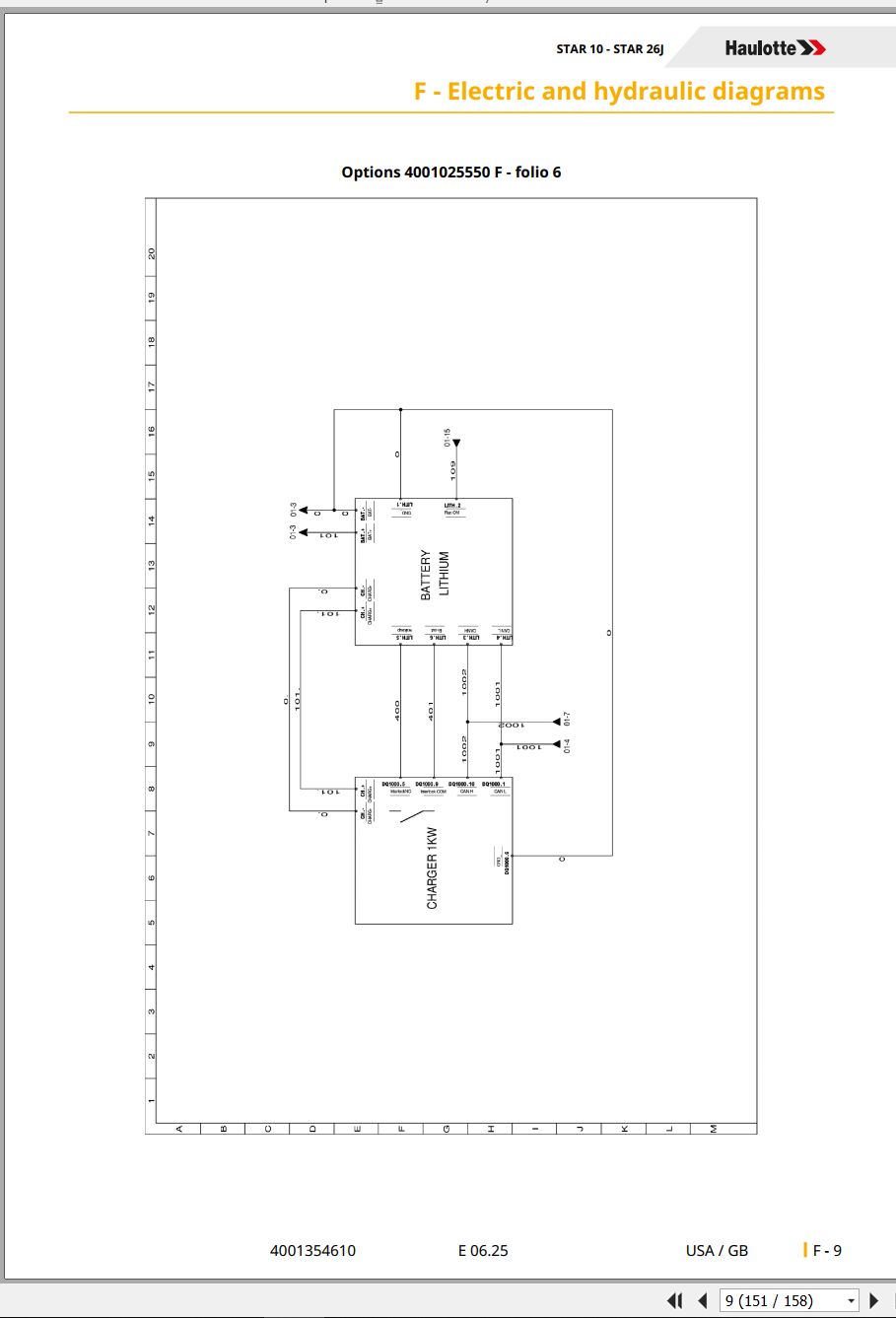

1 Wiring Diagram
1.1 Electric Diagram

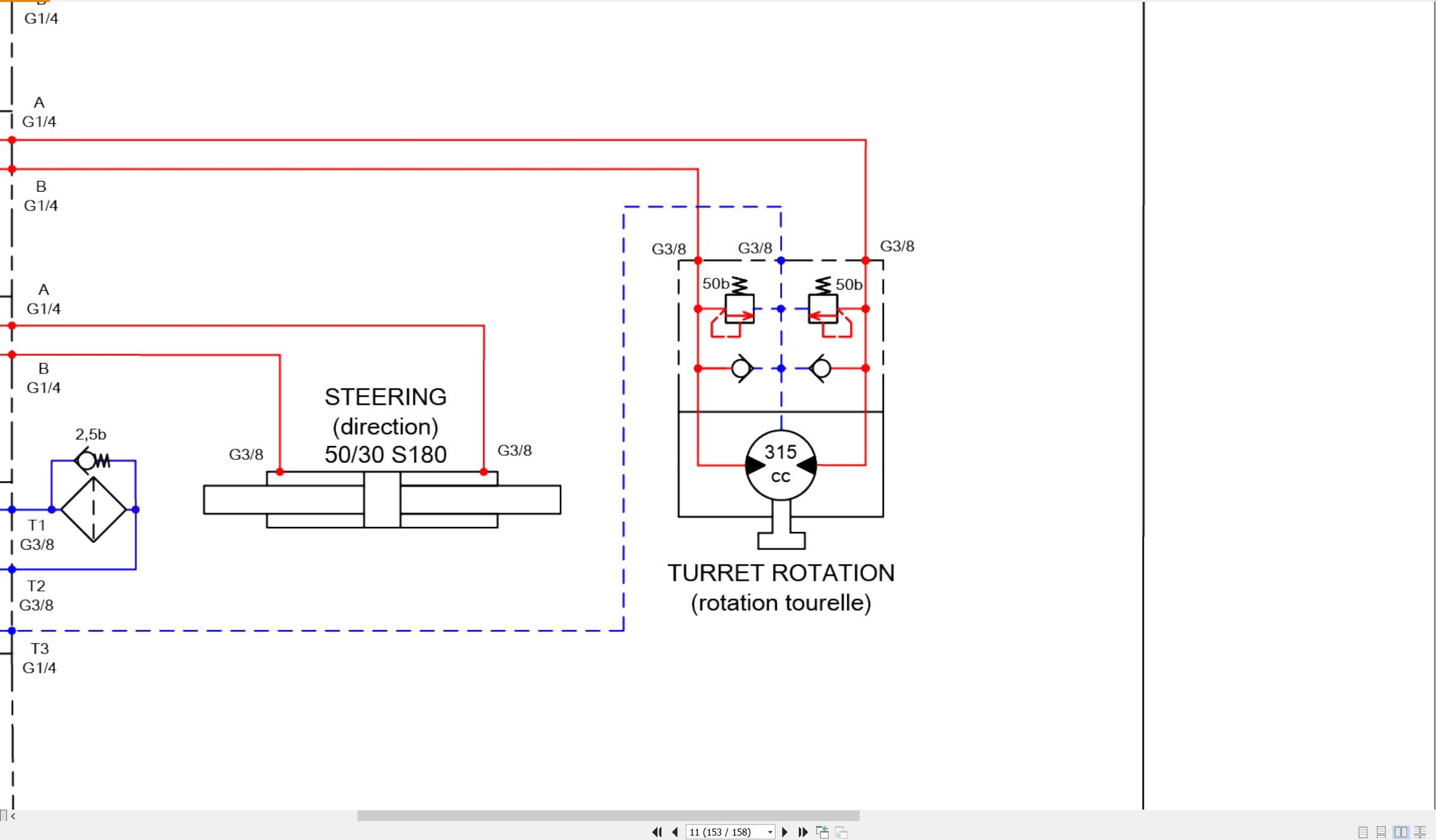

2 Hydraulic Diagram
2.1 Hydraulic Diagram
Records
1 Intervention Register
