Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN

Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (1)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (2)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (3)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (4)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (1)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (2)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (3)
Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Haulotte Vertical Mast STAR 6 STAR 13 Maintenance Manual 4001370710 06.2025 EN

Size: 5.09 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Vertical Mast
Type of Manual: Maintenance Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte STAR 6 STAR 13 Vertical Mast
Part Number: 4001370710
Publication Date: 06.2025
Number of Pages: 102 Pages

30 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.1.1 Product Modification
2.2 Technician’s Responsability
3 Haulotte® Commitments
3.1 Haulotte Services®
3.2 Training
3.3 Product Information
3.3.1 Implementing Manufacturer Safety Campaigns
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On Energy Storage
Familiarization
1 Haulotte Activ’screen
1.1 Lcd Screen
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 Consumables  (Oils…)
3.1 Hydraulic Oil
3.2 Gear Motor Oil
3.3 Cylinder Storage Oil
3.4 Grease
3.5 Marine Protection
3.6 Consumables
4 Movement Speed
Inspection And Maintenance Schedule
1 Inspection Program
2 Daily Inspection
3 Preventive Maintenance
3.1 Preventive Maintenance
4 Periodic Inspection
5 Major Inspection
Machine Sheets
Machine Sheets
Ms0001 – Structural Part Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
4.1 Daily Inspection
4.2 Major Inspection
4.3 Functional Tests
4.4 Dynamic Tests
4.5 Structural Test
Ms0002 – Pins And Bearing Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
5 Criteria Of Replacement
6 Procedure Of Reassembly
6.1 Pins And Bushes
6.2 Bearings
Ms0003 – Cylinder Inspection
1 Warning
2 Risk Prevention
3 You Will Need
4 Control And Maintenance
4.1 Visual Inspections
4.2 Functional Tests
4.3 Major Inspection
Ms0004 – Braking Test Procedure
1 Warning
2 Risk Prevention
3 You Will Need
4 Test Procedure
Ms0005 – Torque Values
1 Metric Torque Chart
2 Sae Fastener Torque Chart
3 Hydraulic Couplings And Hoses Tightening Torque Charts
4 Star 6 – Star 13
Ms0020 – Hoses Inspection  -  Replacement
1 You Will Need
2 Control And Inspections
3 Hoses Disassembling
4 Hoses Reassembly
Ms0059 – Electrical Wiring
1 You Will Need
Ms0104 – Lubrication  -  Steering Cylinder  -  Lift Cylinder
1 You Will Need
2 Preliminary Operation
3 Lubrication

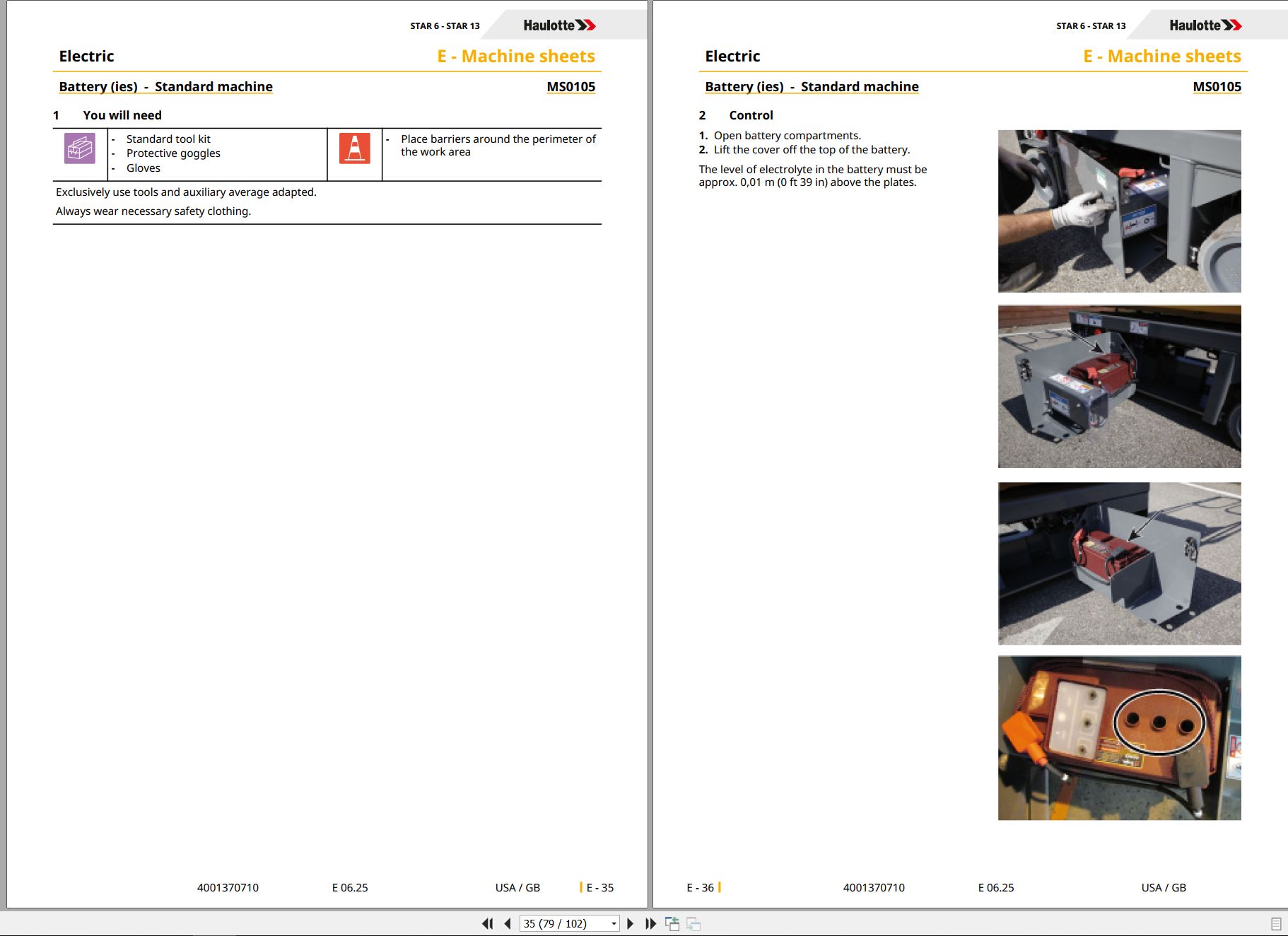

Ms0105 – Battery (Ies)  -  Standard Machine
1 You Will Need
2 Control
3 Filling-Up
4 Battery Charge
Ms0314 – Maintenance Implementation
1 Placing In Configuration
Electric And Hydraulic Diagrams
1 Wiring Diagram

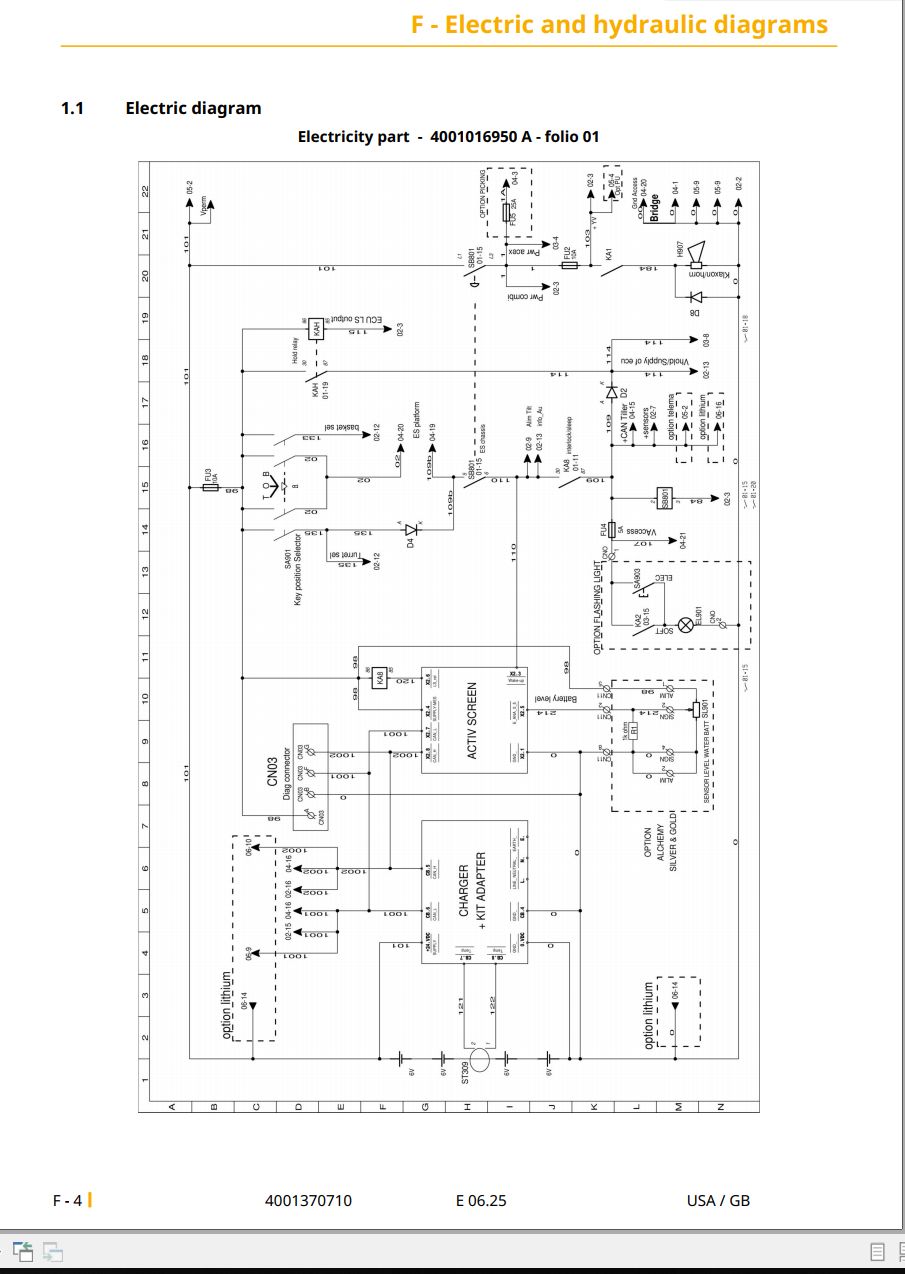

1.1 Electric Diagram
2 Hydraulic Diagram

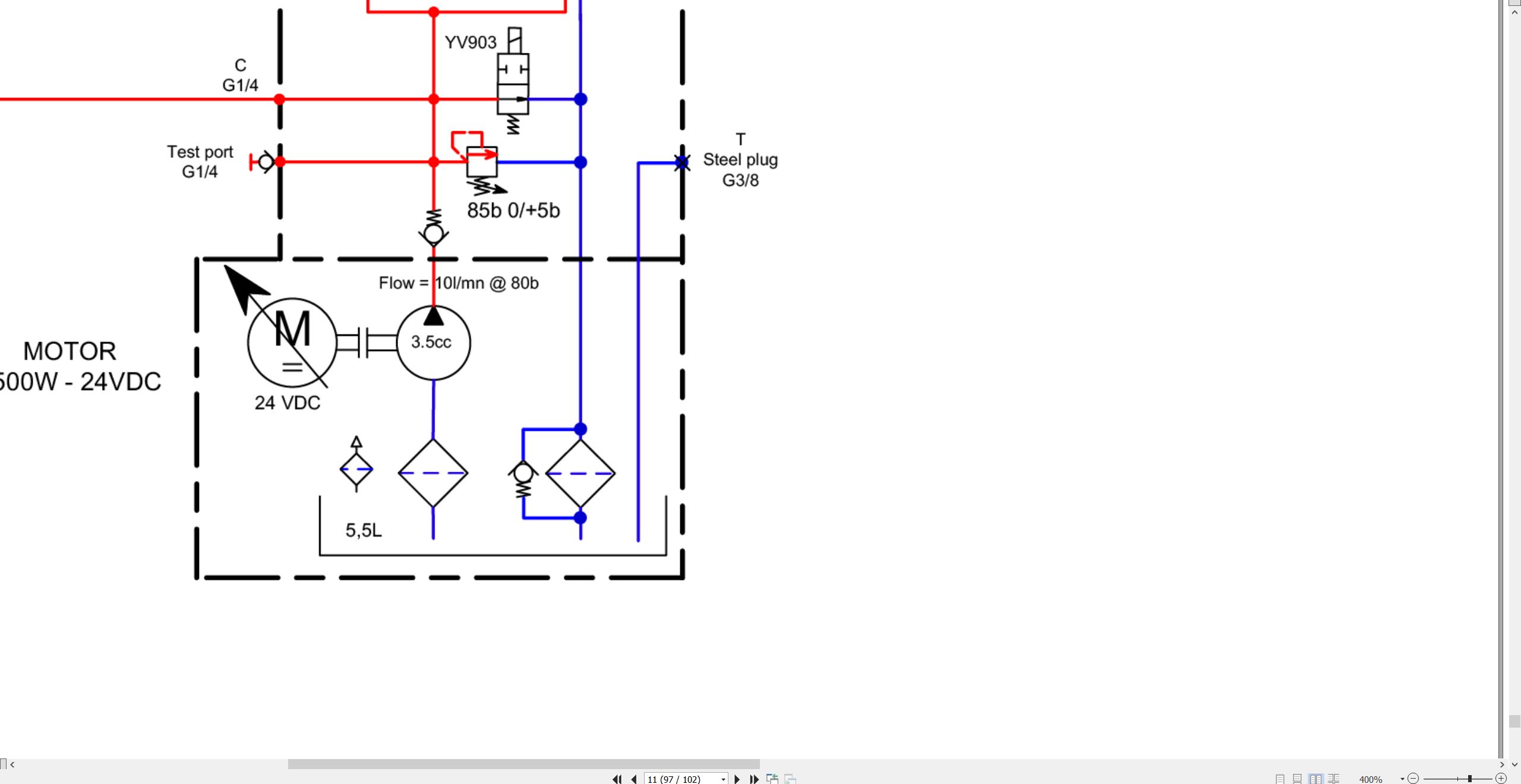

2.1 Hydraulic Diagram
Records
1 Intervention Register
