Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN

Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (1)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (2)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (3)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (4)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (1)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (2)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (3)
Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN (4)
✓

Expert Support

✓

Full Speed

✓

100% Working

Haulotte Vertical Mast STAR 6P STAR 13P Service Repair Manual 4001371410 06.2025 EN

Size: 8.82 MB
Format: PDF
Language: English
Brand: Haulotte
Type of Machine: Vertical Mast
Type of Manual: Service Manual, Repair Manual, Wiring Diagram, Hydraulic Diagram
Model: Haulotte STAR 6P STAR 13P Vertical Mast
Part Number: 4001371410
Publication Date: 06.2025
Number of Pages: 132 Pages

50 USD

Tags: , , ,
  • Description

Description

Contents:
Responsibilities And Commitments
1 Foreword
2 Responsibilities
2.1 Owner’s Responsibility
2.1.1 Product Modification
2.2 Technician’s Responsability
3 Haulotte Commitments
3.1 Haulotte Services
3.2 Training
3.3 Product Information
3.3.1 Implementing Manufacturer Safety Campaigns
4 Conditions Of Warranty
Safety
1 General Safety Rules
1.1 Uncontrolled Movement Hazard
1.2 Electric Shock Hazards
1.3 Explosion / Fire Hazards
2 Safety Rules Energy Source Motorization
2.1 General Safety And Specific Interventions On Energy Storage
Familiarization
1 Haulotte Activ’screen
1.1 Lcd Screen
2 List Of Actuators And Sensors
2.1 Sensors And Actuators
3 Consumables  (Oils…)
3.1 Hydraulic Oil
3.2 Gear Motor Oil
3.3 Cylinder Storage Oil
3.4 Grease
3.5 Marine Protection
3.6 Consumables
4 Movement Speed
Machine Sheets
Machine Sheets

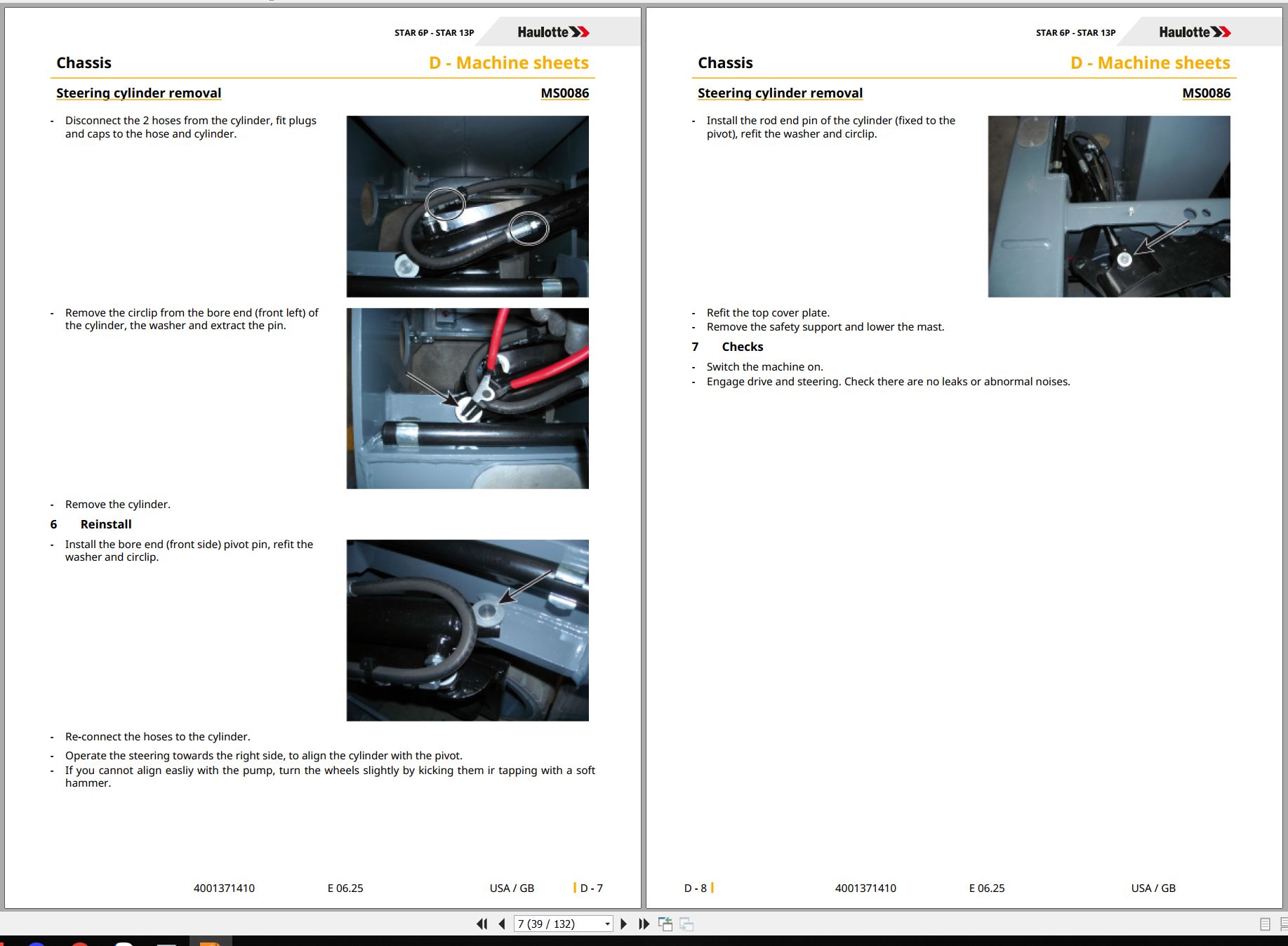

Ms0086 – Steering Cylinder Removal
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Preliminary Operation
5 Removal
6 Reinstall
7 Checks
Ms0087 – Pothole Cylinder Replacement
1 You Will Need
2 Level Of Knowledge Required
3 Safety Instructions
4 Preliminary Operation
5 Removal
6 Reinstall
Ms0102 – Tires (Tyres)  -  Wheel Replacement
1 You Will Need
2 Preliminary Operation
3 Technical Specifications
4 Wheel And Tires/Tyres Inspections
5 Procedure Of Replacement
Ms0103 – Hydraulic Oil  -  Level  Replacement
1 You Will Need
2 Preliminary Operation
3 Level Control
4 Replacement Of Hydraulic Oil
4.1 Consumable
4.2 Filling
Ms0104 – Lubrication  -  Steering Cylinder  -  Lift Cylinder
1 You Will Need
2 Preliminary Operation
3 Lubrication
Ms0106 – Haulotte Activ’screen
1 You Will Need
2 Simplified Menus
3 Detailed Menus
3.1 Screen Access Code Settings
3.1.1 Screen 0d
Ms0112 – Control-Lubrication
1 You Will Need
2 Preliminary Procedure
3 Lubrication
4 Check The Condition Of The Chains
5 Check The Tension Of The Chains
6 Replacing The Chains
Ms0113 – Battery (Ies)  -  Standard Machine
1 You Will Need
2 Control
3 Filling-Up
4 Battery Charge
Ms0133 – Universal Plug
1 You Will Need
2 Procedure
Ms0242 – Check Of Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Check Of Tilt Sensor
Ms0245 – Dismantling/Reassembling The Tilt Sensor
1 Warning
2 Risk Prevention
3 You Will Need
4 Dis-Assembly
5 Reassembly
6 Calibration
7 Additional Operations
Ms0314 – Maintenance Implementation
1 Placing In Configuration
Trouble Shooting
1 Trouble Shooting
1.1 Recommendations
1.2 Description
1.3 Requirements
1.4 Failures List
1.4.1 List Of Failures Per Category
Electric And Hydraulic Diagrams

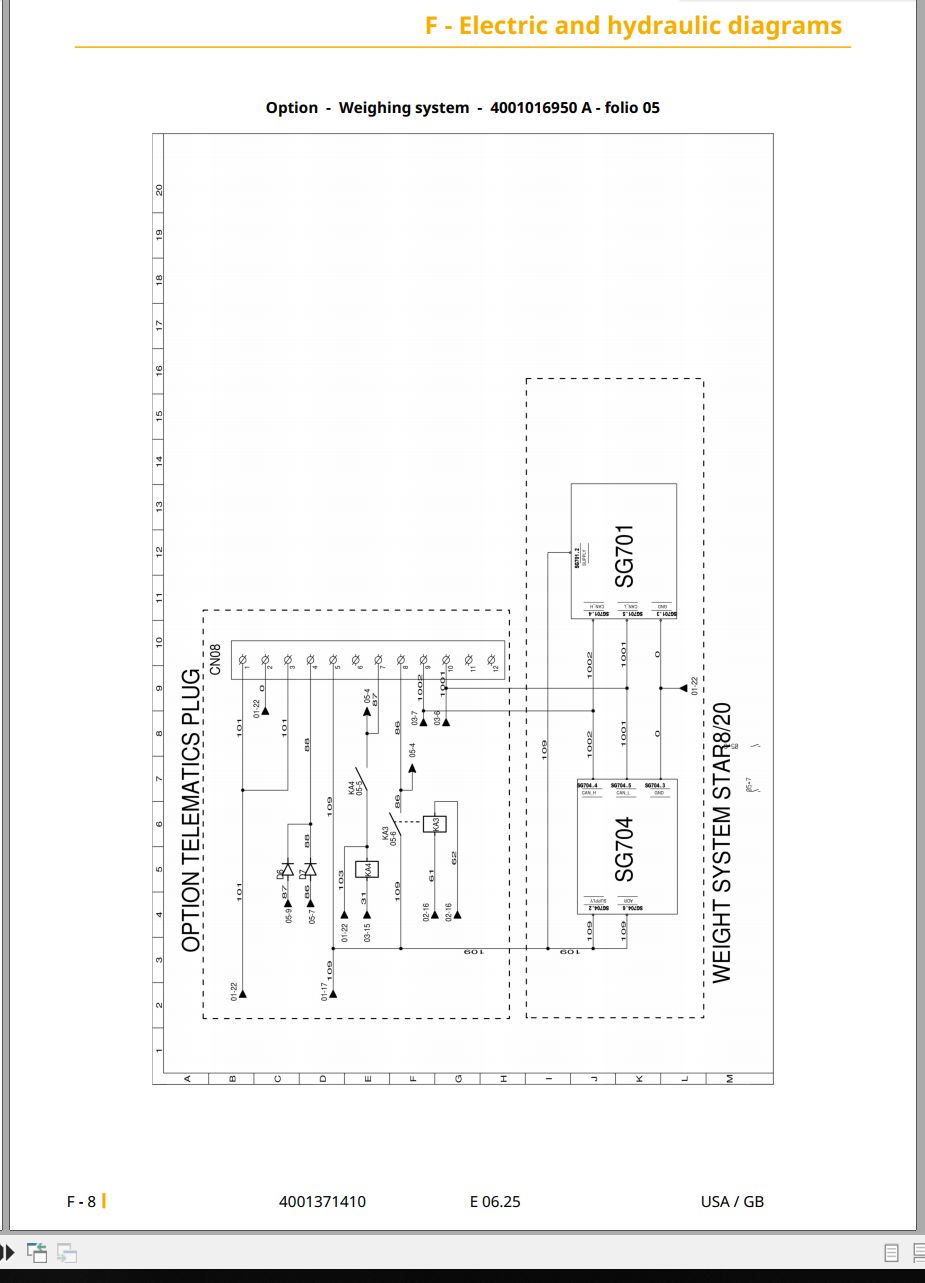

1 Wiring Diagram
1.1 Electric Diagram

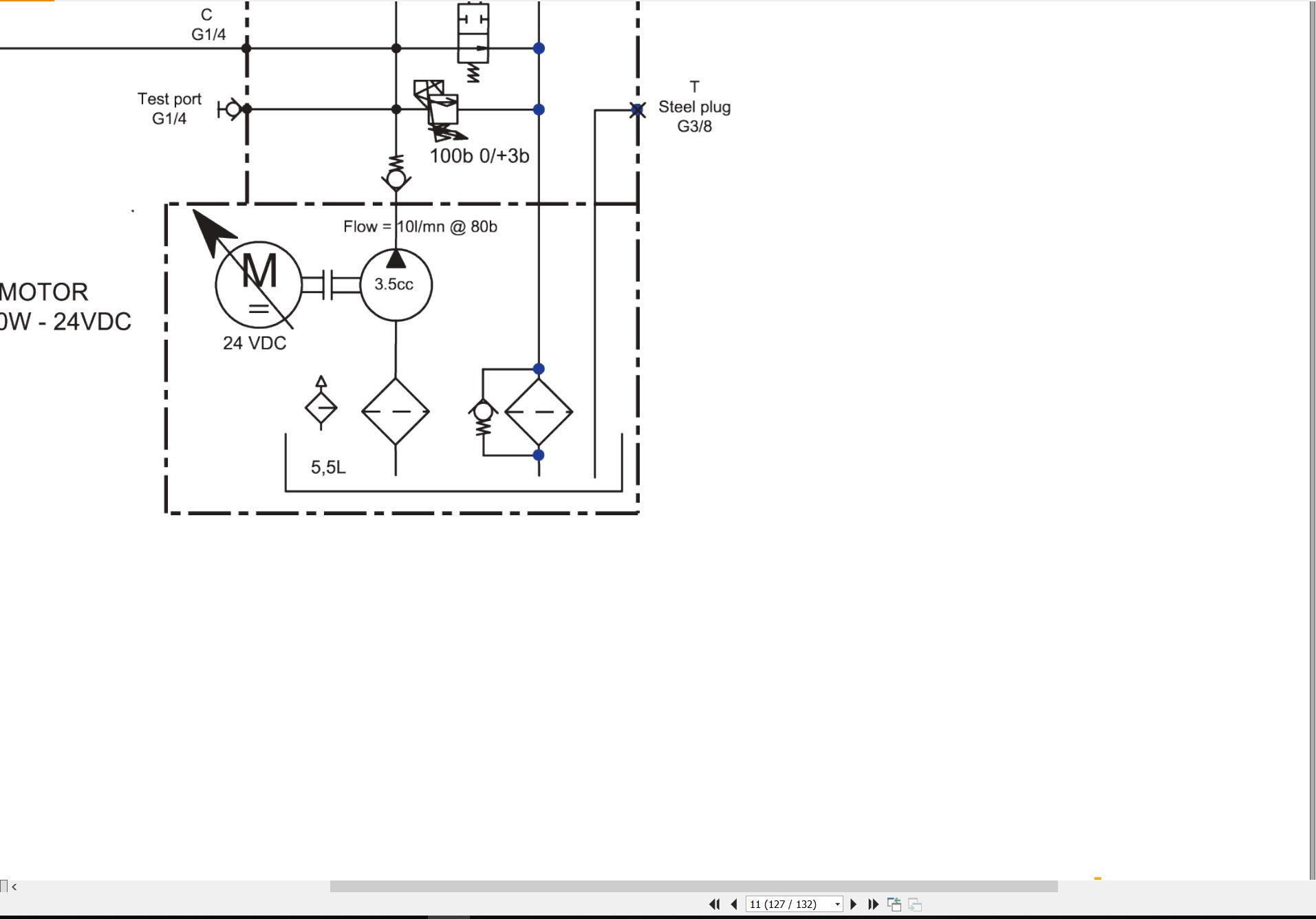

2 Hydraulic Diagram
2.1 Hydraulic Diagram
Records
1 Intervention Register
