Name: Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual ZH EN
SKU: 333715
Availability: InStock

-33%

Heli Electric Pallet Truck CBD16 180 to CBD20 180 Parts Manual ZH EN

✓

Expert Support

✓

Full Speed

✓

100% Working

Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual ZH EN

Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual ZH EN

Size: 6.30 MB

Format: PDF

Language: English, Chinese

Brand: Heli

Type of Machine: Electric Pallet Truck

Type of Manual: Parts Manual

Model: Heli CBD16-180 CBD18-180 CBD20-180 Electric Pallet Truck

Original price was: 30.Current price is: 20. USD

Tag: Heli

Description

Description

Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual ZH EN
Size: 6.30 MB
Format: PDF
Language: English, Chinese
Brand: Heli
Type of Machine: Electric Pallet Truck
Type of Manual: Parts Manual
Model: Heli CBD16-180 CBD18-180 CBD20-180 Electric Pallet Truck

List of Files:

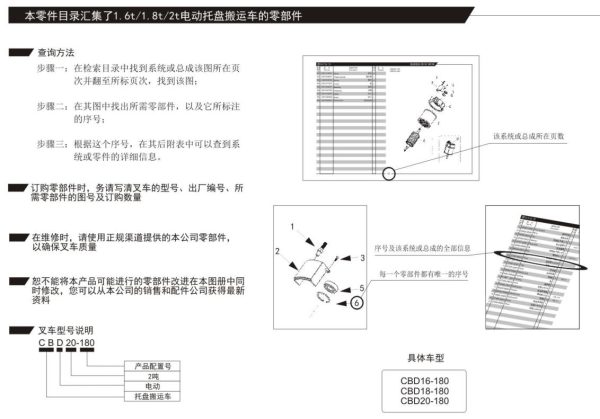

Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual LD-180-20140604 ZH EN (19 Pages)
Heli Electric Pallet Truck CBD16-180 to CBD20-180 Parts Manual LD-180-20151127 ZH EN (20 Pages)
Fig.1 Steering Control System
Fig.2 Handle Assembly
Fig.3 Switch Box Assembly
Fig.4 Stepped Switch Assembly
Fig.5 Gear Box Assembly
Fig.6 Motor
Fig.7 Frame
Fig.8 Balance Wheel Assembly
Fig.9 Hydraulic System
Fig.1o Hydraulic Power Unit
Fig.11 Frame
Fig.12 Compartment
Fig.13 Electrical Appliance Assembly
Fig.14 Double Wheel Assembly
Fig.15 Battery Assembly
