Name: Heli Electric Stacker CDD12-060 Parts Manual EN ZH
SKU: 333761
Availability: InStock

-33%

Heli Electric Stacker CDD12 060 Parts Manual EN ZH

✓

Expert Support

✓

Full Speed

✓

100% Working

Heli Electric Stacker CDD12-060 Parts Manual EN ZH

Heli Electric Stacker CDD12-060 Parts Manual EN ZH

Size: 18.4 MB

Format: PDF

Language: English, Chinese

Brand: Heli

Type of Machine: Electric Stacker

Type of Manual: Parts Manual

Model: Heli CDD12-060 Electric Stacker

Original price was: 30.Current price is: 20. USD

Tag: Heli

Description

Description

Heli Electric Stacker CDD12-060 Parts Manual EN ZH
Size: 18.4 MB
Format: PDF
Language: English, Chinese
Brand: Heli
Type of Machine: Electric Stacker
Type of Manual: Parts Manual
Model: Heli CDD12-060 Electric Stacker

List of Files:

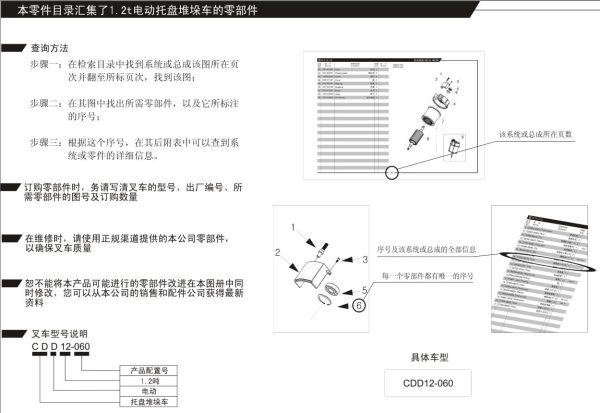

Heli Electric Stacker CDD12-060 Parts Manual LD-060-20140821 EN ZH (20 Pages)
Heli Electric Stacker CDD12-060 Parts Manual LD-060-20151127 EN ZH (20 Pages)
Fig.1 Steering Control System
Fig.2 Handle Assembly
Fig.3 Switch Box Assembly
Fig.4 Stepped Switch Assembly
Fig.5 Driving System
Fig.6 Gear Box Assembly
Fig.7 Driving Motor
Fig.8 Hydraulic System
Fig.9 Cylinder Assembly
Fig1o Frame
Fig.11 Front Wheel Assembly
Fig.12 Balance Wheel Assembly
Fig.13 Electric Panel Assembly
Fig.14 Mast Assy-Outer
Fig.15 Mast Assy—Inner
Fig.16 Fork & Carriage & Backrest
Fig.17 Battery Assembly
