Heli Forklift Truck G Series 20-32t CPCD200-CPCD320 Operation Service Manual 2025

Size: 6.06 MB

Format: PDF

Language: English

Brand: Heli

Type of Machine: Forklift Truck

Type of Manual: Operation Service Manual, Electrical and Hydraulic Schematic, Fault Code Display

Model: Heli G Series 20-32t CPCD200 CPCD250 CPCD280 CPCD300 CPCD32 Forklift Truck

Year: 2025

Number of Pages: 247 Pages

100 USD

Description

Description

Contents:
Ⅰ. Safe operation regulations and daily maintenance of the whole truck

The delivery of the truck
The storage of the truck
Preparations before use
Safety operation regulation
Usage notes on the cooling system
Oil for the truck

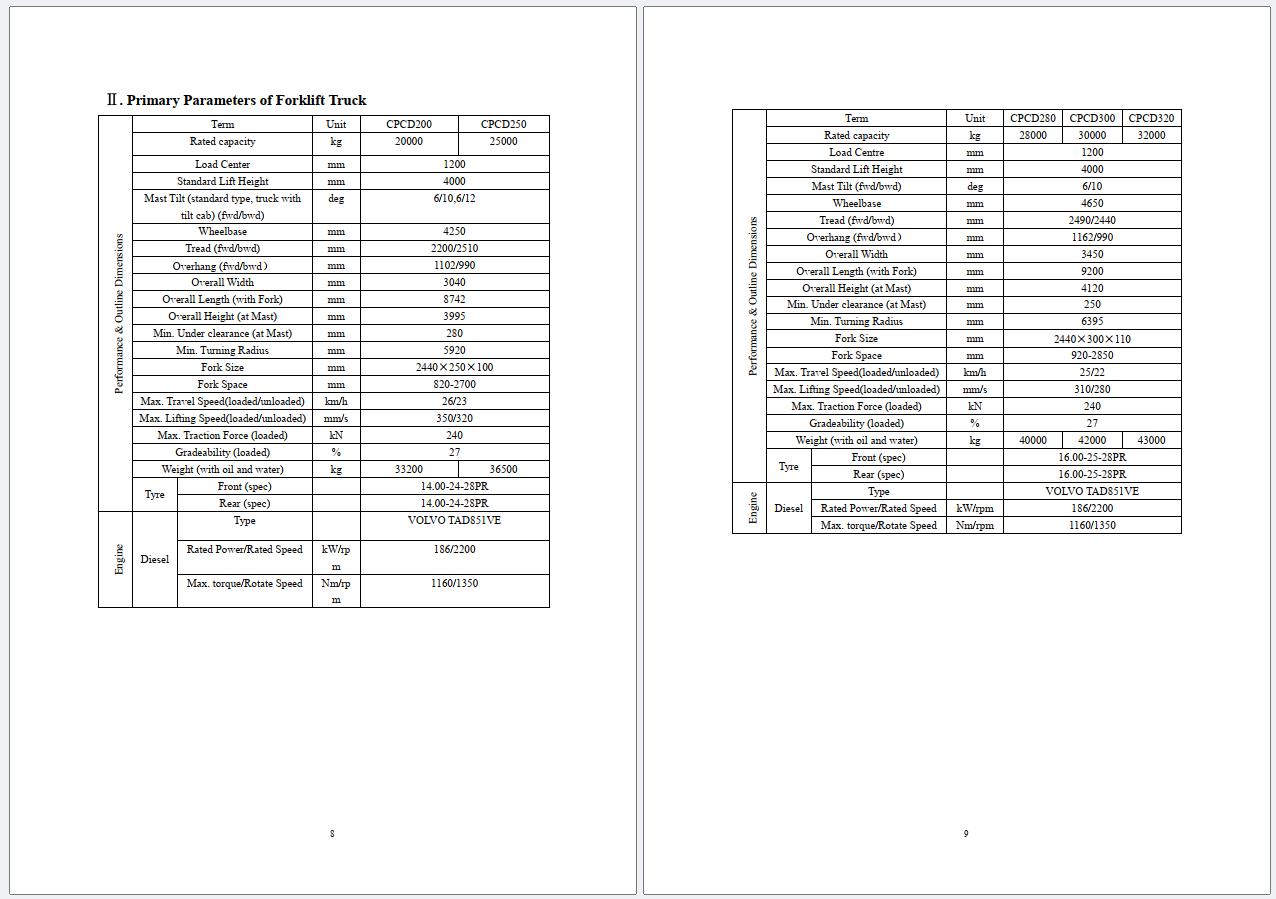

Ⅱ. Primary Parameters of Forklift Truck
Ⅲ. Primary Assembly of Forklift Truck
Ⅵ. The Structure, Principle, Adjustment and Maintenance of Forklift Truck
Dynamic System
Transmission device
2.1 Gearbox
2.2 Transmission Shaft
2.3 Drive Axle
Hydraulic System and Brake System
Hydraulic System and Brake System of G series 20-32 ton forklift truck:
3.1 General Description
3.2 Hydraulic System
3.3 Braking System
3.4 Combination Valve
3.5 Pilot Control Valve

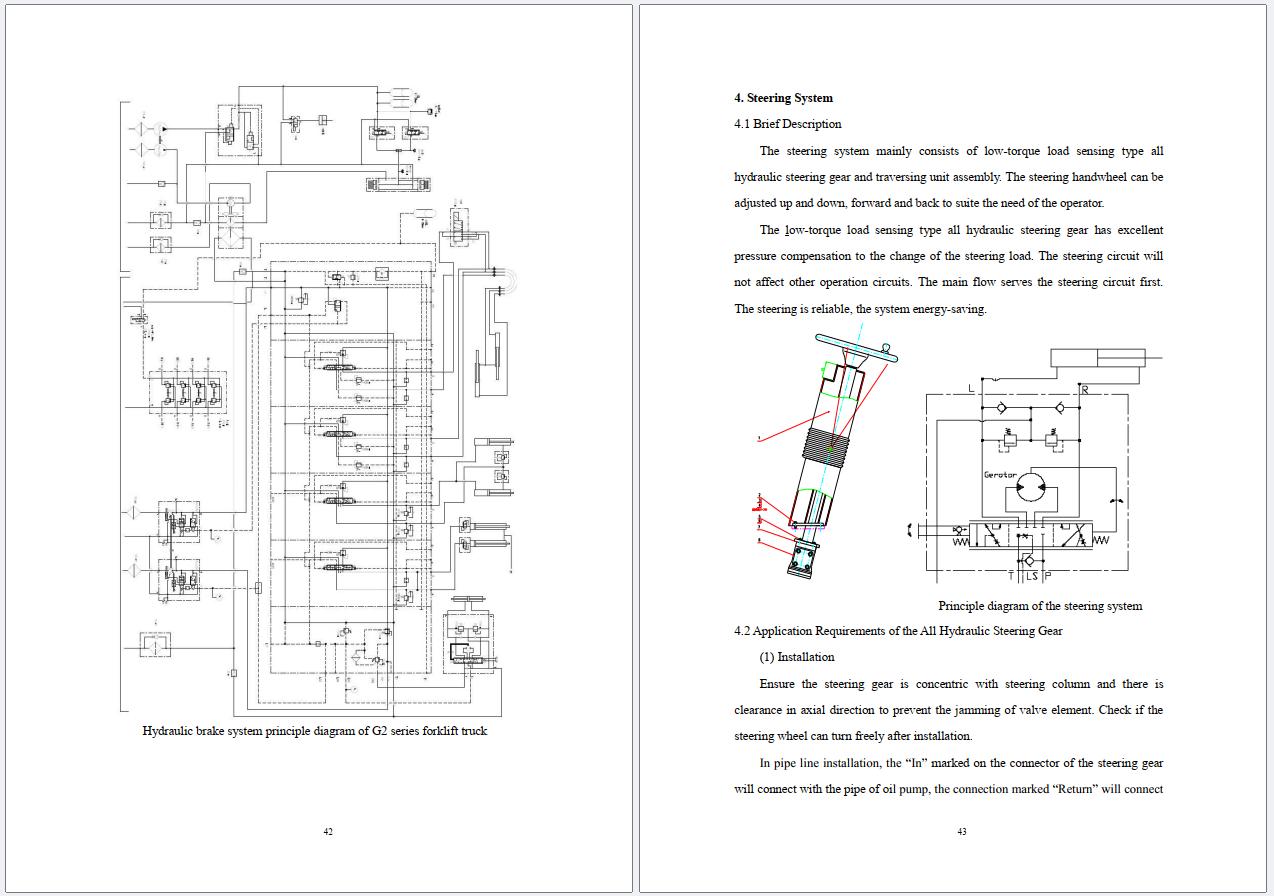

3.6 Schematic Diagram of the Hydraulic & Braking System
Hydraulic System and Brake System of G2 series 20-32 ton forklift truck:
3.1 General Description
3.2 Hydraulic System
3.3 Braking System
3.4 Combination valve
3.5 Hydraulic pump
3.6 Pilot Control Valve
3.7 Schematic Diagram of the Hydraulic & Braking System
Steering System
4.1 Brief Description
4.2 Application Requirements of the All Hydraulic Steering Gear
4.3 Troubleshooting of the Steering System
Steering Axle
5.1 Brief Description
5.2 Steering Knuckle and King Pins of Steering Knuckle
5.3 Adjustment of Pre-tightening Load of Steering Wheel Bearing
Lifting System
6.1 The Composition of the Lifting System
6.2 Maintenance and Lubrication
Electric System
7.1 Battery
7.2 Starter
7.3 Generator
7.4 Engine
7.5 Electric system of the transmission box
7.6 Electric cabinet
7.7 Electric system of the lighting and signals
7.8 Electric system for the instrument
7.9 Air conditioner
7.10 Electric control units (including transmission control units and so on)
7.11 Inspection before forklift starting
7.12 Operation during travelling
7.13 Electrical system maintenance
7.14 Common fault and eliminating methods

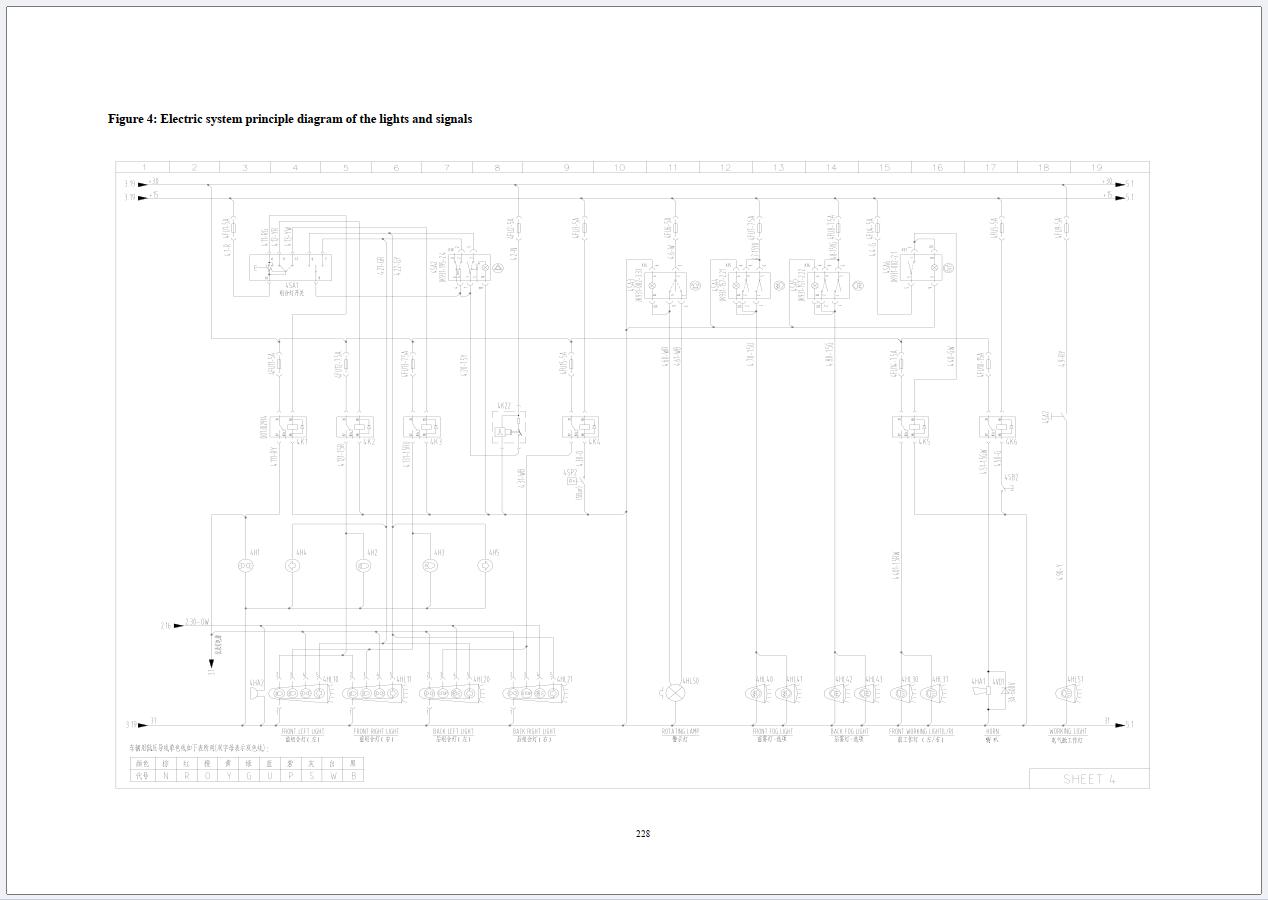

7.15 Principle diagram of the electric system
