Hesston Mower Conditioner 1130 Parts Catalog 00709327

Description

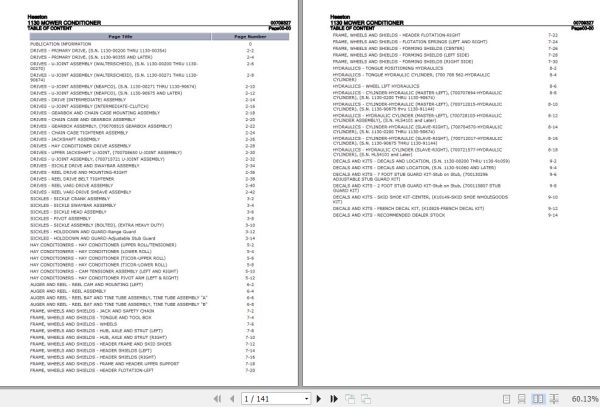

Contents:
Publication Information
Drives – Primary Drive, (S.N. 1130-00200 Thru 1130-00354)
Drives – Primary Drive, (S.N. 1130-90355 And Later)
Drives – U-Joint Assembly (Walterscheid), (S.N. 1130-00200 Thru 1130-00270)
Drives – U-Joint Assembly (Walterscheid), (S.N. 1130-00271 Thru 1130-90674)
Drives – U-Joint Assembly (Neapco), (S.N. 1130-00271 Thru 1130-90674)
Drives – U-Joint Assembly (Neapco), (S.N. 1130-90675 And Later)
Drives – Drive (Intermediate) Assembly
Drives – U-Joint Assembly (Intermediate-Clutch)
Drives – Gearbox And Chain Case Mounting Assembly
Drives – Gearbox Assembly, (700708515 Gearbox Assembly)
Drives – Chain Case Tightener Assembly
Drives – Jackshaft Assembly
Drives – Hay Conditioner Drive Assembly
Drives – Upper Jackshaft U-Joint, (700708650 U-Joint Assembly)
Drives – U-Joint Assembly, (700715721 U-Joint Assembly)
Drives – Sickle Drive And Swaybar Assembly
Drives – Reel Drive And Mounting-Right
Drives – Reel Drive Belt Tightener
Drives – Reel Vari-Drive Assembly
Drives – Reel Vari-Drive Sheave Assembly
Sickles – Sickle Crank Assembly
Sickles – Sickle Swaybar Assembly
Sickles – Sickle Head Assembly
Sickles – Pivot Assembly
Sickles – Sickle Assembly (Bolted), (Extra Heavy Duty)
Sickles – Holddown And Guard-Range Guard
Sickles – Holddown And Guard-Adjustable Stub Guard
Hay Conditioners – Hay Conditioner (Upper Roll Tensioner)
Hay Conditioners – Hay Conditioner (Lower Roll)
Hay Conditioners – Hay Conditioner (Ticor-Upper Roll)
Hay Conditioners – Hay Conditioner (Ticor-Lower Roll)
Hay Conditioners – Cam Tensioner Assembly (Left And Right)
Hay Conditioners – Hay Conditioner Pivot Arm (Left & Right)
Auger And Reel – Reel Cam And Mounting (Left)
Auger And Reel – Reel Assembly
Auger And Reel – Reel Bat And Tine Tube Assembly, Tine Tube Assembly A
Auger And Reel – Reel Bat And Tine Tube Assembly, Tine Tube Assembly B
Frame, Wheels And Shields – Jack And Safety Chain
Frame, Wheels And Shields – Tongue And Tool Box
Frame, Wheels And Shields – Wheels
Frame, Wheels And Shields – Hub, Axle And Strut (Left)
Frame, Wheels And Shields – Hub, Axle And Strut (Right)
Frame, Wheels And Shields – Header Frame And Skid Shoes
Frame, Wheels And Shields – Header Shields (Left)
Frame, Wheels And Shields – Header Shields (Right)

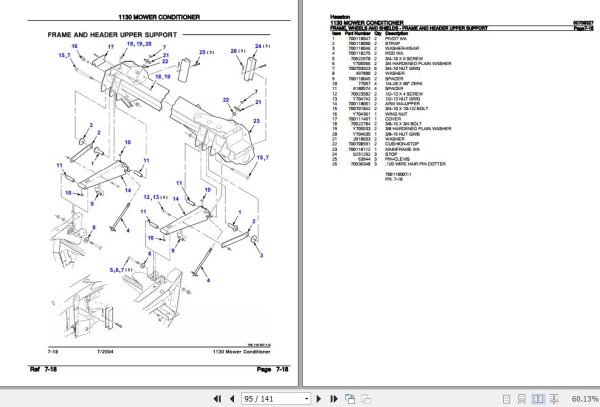

Frame, Wheels And Shields – Frame And Header Upper Support
Frame, Wheels And Shields – Header Flotation-Left
Frame, Wheels And Shields – Header Flotation-Right
Frame, Wheels And Shields – Flotation Springs (Left And Right)
Frame, Wheels And Shields – Forming Shields (Center)
Frame, Wheels And Shields – Forming Shields (Left Side)
Frame, Wheels And Shields – Forming Shields (Right Side)
Hydraulics – Tongue Positioning Hydraulics
Hydraulics – Tongue Hydraulic Cylinder, (700 708 562-Hydraulic Cylinder)
Hydraulics – Wheel Lift Hydraulics
Hydraulics – Cylinder-Hydraulic (Master-Left), (700707694-Hydraulic Cylinder), (S.N. 1130-0200 Thru 1130-90674)
Hydraulics – Cylinder-Hydraulic (Master-Left), (700712015-Hydraulic Cylinder), (S.N. 1130-90675 Thru 1130-91144)
Hydraulics – Hydraulic Cylinder (Master-Left), (700728103-Hydraulic Cylinder Assembly), (S.N. Hl54101 And Later)
Hydraulics – Cylinder-Hydraulic (Slave-Right), (700704570-Hydraulic Cylinder), (S.N. 1130-0200 Thru 1130-90674)
Hydraulics – Cylinder-Hydraulic (Slave-Right), (700712017-Hydraulic Cylinder), (S.N. 1130-90675 Thru 1130-91144)
Hydraulics – Hydraulic Cylinder (Slave-Right), (700721577-Hydraulic Cylinder), (S.N. Hl54101 And Later)
Decals And Kits – Decals And Location, (S.N. 1130-00200 Thru 1130-91059)
Decals And Kits – Decals And Location, (S.N. 1130-91060 And Later)
Decals And Kits – 7 Foot Stub Guard Kit-Stub On Stub, (700130296 Adjustable Stub Guard Kit)
Decals And Kits – 2 Foot Stub Guard Kit-Stub On Stub, (700115807 Stub Guard Kit)
Decals And Kits – Skid Shoe Kit-Center, (K10149-Skid Shoe Wholegoods Kit)
Decals And Kits – French Decal Kit, (K10825-French Decal Kit)

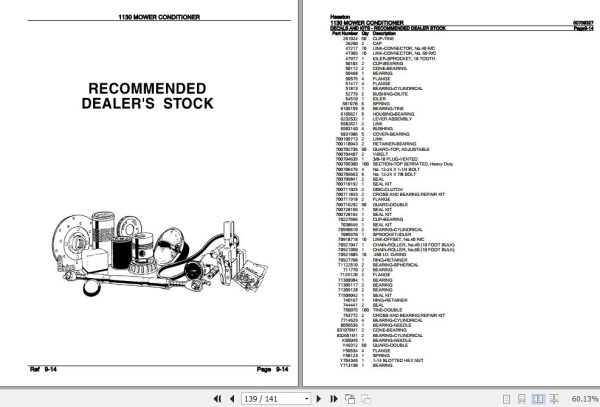

Decals And Kits – Recommended Dealer Stock
