Hesston PT Forage Harvester 2000-100 2000-150 Parts Catalog 00701478

Size: 6.34 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: PT Forage Harvester

Type of Manual: Parts Catalog

Model:

Hesston 2000-100 PT Forage Harvester

Hesston 2000-150 PT Forage Harvester

Part Number: 00701478

Number of Pages: 161 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

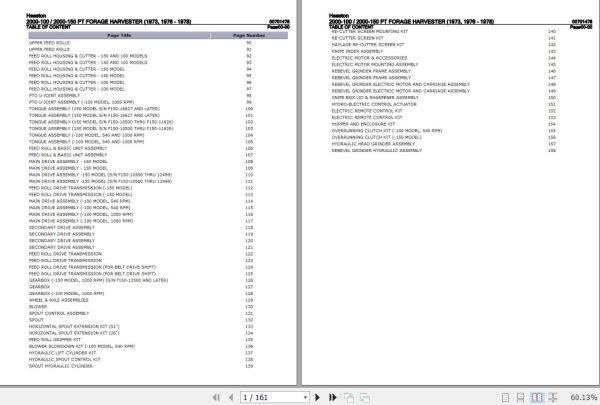

Contents:
Upper Feed Rolls

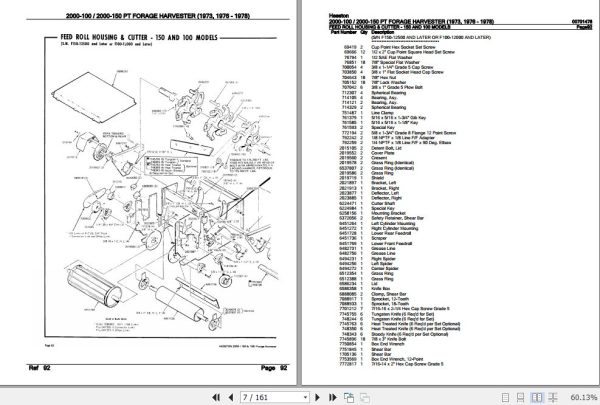

Feed Roll Housing & Cutter – 150 And 100 Models
Feed Roll Housing & Cutter – 150 Model
Feed Roll Housing & Cutter – 100 Model
Pto U-Joint Assembly
Pto U-Joint Assembly (-100 Model, 1000 Rpm)
Tongue Assembly (150 Model S N F150-16627 And Later)
Tongue Assembly (150 Model S N F150-10500 Thru F150-11626)
Tongue Assembly (-100 Model, 540 And 1000 Rpm)
Feed Roll & Basic Unit Assembly

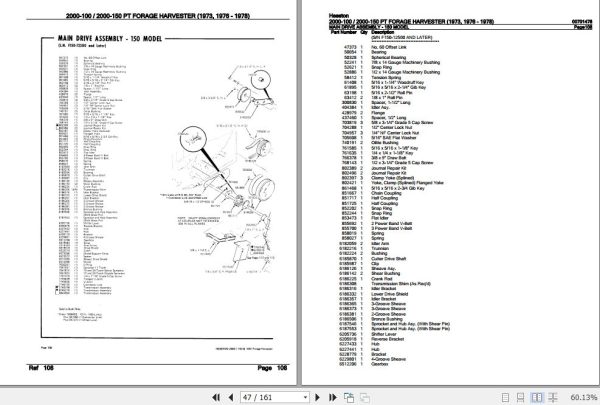

Main Drive Assembly – 150 Model
Main Drive Assembly -150 Model (S N F150-10500 Thru 12499)
Feed Roll Drive Transmission (-150 Model)
Main Drive Assembly (-100 Model, 540 Rpm)
Main Drive Assembly (-100 Model, 1000 Rpm)
Secondary Drive Assembly
Feed Roll Drive Transmission
Feed Roll Drive Transmission (For Belt Drive Shift)
Gearbox (-150 Model, 1000 Rpm) (S N F150-12500 And Later)
Gearbox
Gearbox (-100 Model, 1000 Rpm)
Wheel & Axle Assemblies
Blower
Spout Control Assembly
Spout
Horizontal Spout Extension Kit (51 )
Horizontal Spout Extension Kit (26 )
Feed Roll Gripper Kit
Blower Slowdown Kit (-100 Model, 540 Rpm)
Hydraulic Lift Cylinder Kit
Hydraulic Spout Control Kit
Spout Hydraulic Cylinder
Re-Cutter Screen Mounting Kit
Re-Cutter Screen Kit
Haylage Re-Cutter Screen Kit
Knife Index Assembly
Electric Motor & Accessories
Electric Motor Mounting Assembly
Rebevel Grinder Frame Assembly
Rebevel Grinder Electric Motor And Carriage Assembly
Knife Box Lid & Sharpener Assembly
Hydro-Electric Control Actuator
Electric Remote Control Kit
Hopper And Enclosure Kit
Overrunning Clutch Kit (-100 Model, 540 Rpm)
Overrunning Clutch Kit (-150 Model)
Hydraulic Head Grinder Assembly
Rebevel Grinder Hydraulic Assembly
