Name: Hesston Rectangular Baler 4570 Parts Catalog 00728763
SKU: 455448
Availability: InStock

Hesston Rectangular Baler 4570 Parts Catalog 00728763 1

Hesston Rectangular Baler 4570 Parts Catalog 00728763 2

Hesston Rectangular Baler 4570 Parts Catalog 00728763 3

✓

Expert Support

✓

Full Speed

✓

100% Working

Hesston Rectangular Baler 4570 Parts Catalog 00728763

Size: 6.30 MB

Format: PDF

Language: English

Brand: Hesston

Type of Machine: Rectangular Baler

Type of Manual: Parts Catalog

Model: Hesston 4570 Rectangular Baler

Part Number: 00728763

Number of Pages: 128 Pages

10 USD

Tag: Hesston Parts Manual

Description

Description

Contents:

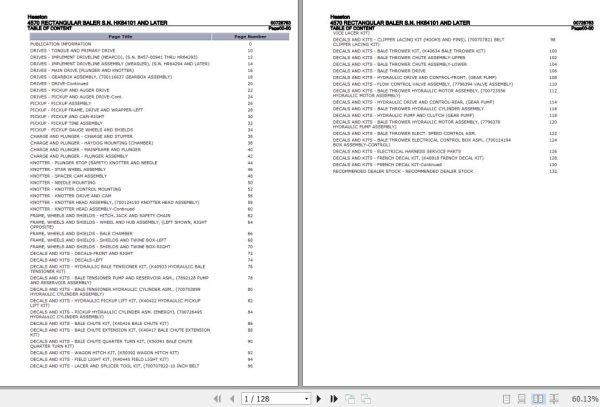

Publication Information
Drives – Tongue And Primary Drive
Drives – Implement Driveline (Neapco), (S.N. B457-00941 Thru Hr64293)
Drives – Implement Driveline Assembly (Weasler), (S.N. Hr64294 And Later)

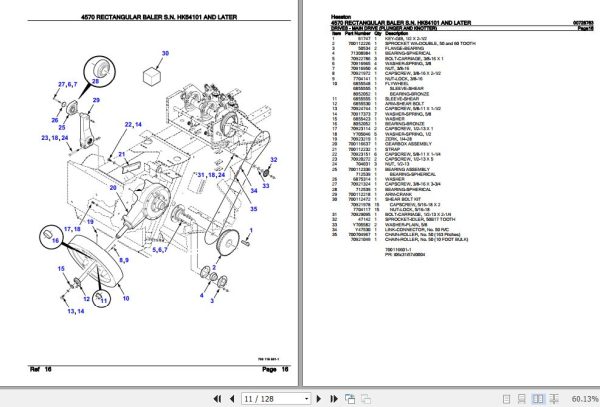

Drives – Main Drive (Plunger And Knotter)
Drives – Gearbox Assembly, (700116637 Gearbox Assembly)
Drives – Drive-Continued
Drives – Pickup And Auger Drive
Drives – Pickup And Auger Drive-Cont.
Pickup – Pickup Assembly
Pickup – Pickup Frame, Drive And Wrapper-Left
Pickup – Pickup And Cam-Right
Pickup – Pickup Tine Assembly
Pickup – Pickup Gauge Wheels And Shields
Charge And Plunger – Charge And Stuffer
Charge And Plunger – Haydog Mounting (Chamber)
Charge And Plunger – Mainframe And Plunger
Charge And Plunger – Plunger Assembly
Knotter – Plunger Stop (Safety) Knotter And Needle
Knotter – Star Wheel Assembly
Knotter – Spacer Cam Assembly
Knotter – Needle Mounting

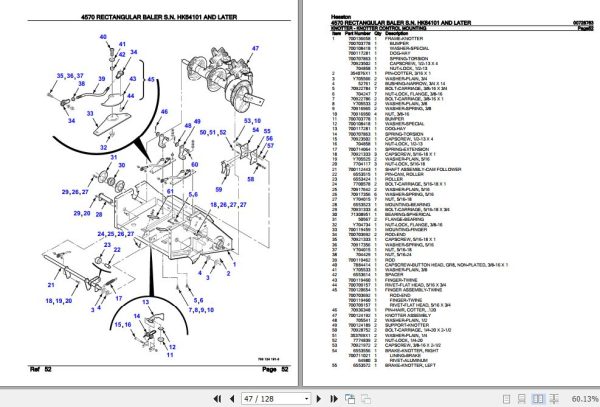

Knotter – Knotter Control Mounting
Knotter – Knotter Drive And Cam
Knotter – Knotter Head Assembly, (700124193 Knotter Head Assembly)
Knotter – Knotter Head Assembly-Continued
Frame, Wheels And Shields – Hitch, Jack And Safety Chain
Frame, Wheels And Shields – Wheel And Hub Assembly, (Left Shown, Right Opposite)
Frame, Wheels And Shields – Bale Chamber
Frame, Wheels And Shields – Shields And Twine Box-Left
Frame, Wheels And Shields – Shields And Twine Box-Right
Decals And Kits – Decals-Front And Right
Decals And Kits – Decals-Left
Decals And Kits – Hydraulic Bale Tensioner Kit, (K40933 Hydraulic Bale Tensioner Kit)
Decals And Kits – Bale Tensioner Pump And Reservoir Asm., (7892128 Pump And Reservoir Assembly)
Decals And Kits – Bale Tensioner Hydraulic Cylinder Asm., (700703899 Hydraulic Cylinder Assembly)
Decals And Kits – Hydraulic Pickup Lift Kit, (K40422 Hydraulic Pickup Lift Kit)
Decals And Kits – Pickup Hydraulic Cylinder Asm. (Energy), (700726495 Hydraulic Cylinder Assembly)
Decals And Kits – Bale Chute Kit, (K40416 Bale Chute Kit)
Decals And Kits – Bale Chute Extension Kit, (K40417 Bale Chute Extension Kit)
Decals And Kits – Bale Chute Quarter Turn Kit, (K50391 Bale Chute Quarter Turn Kit)
Decals And Kits – Wagon Hitch Kit, (K50392 Wagon Hitch Kit)
Decals And Kits – Field Light Kit, (K40445 Field Light Kit)
Decals And Kits – Lacer And Splicer Tool Kit, (700707822-10 Inch Belt Vice Lacer Kit)
Decals And Kits – Clipper Lacing Kit (Hooks And Pins), (700707821 Belt Clipper Lacing Kit)
Decals And Kits – Bale Thrower Kit, (K40634 Bale Thrower Kit)
Decals And Kits – Bale Thrower Chute Assembly-Upper
Decals And Kits – Bale Thrower Chute Assembly-Lower
Decals And Kits – Bale Thrower Drive
Decals And Kits – Hydraulic Drive And Control-Front, (Gear Pump)
Decals And Kits – Flow Control Valve Assembly, (7796394 Valve Assembly)
Decals And Kits – Bale Thrower Hydraulic Motor Assembly, (700723556 Hydraulic Motor Assembly)
Decals And Kits – Hydraulic Drive And Control-Rear, (Gear Pump)
Decals And Kits – Bale Thrower Hydraulic Cylinder Assembly
Decals And Kits – Hydraulic Pump And Clutch (Gear Pump)
Decals And Kits – Bale Thrower Hydraulic Motor Assembly, (7796378 Hydraulic Pump Assembly)
Decals And Kits – Bale Thrower Elect. Speed Control Asm.
Decals And Kits – Bale Thrower Electrical Control Box Asm., (700124194 Box Assembly-Control)
Decals And Kits – Electrical Harness Service Parts
Decals And Kits – French Decal Kit, (K40818 French Decal Kit)
Decals And Kits – French Decal Kit-Continued
Recommended Dealer Stock – Recommended Dealer Stock
